Blodgett BDO-100-E Manuel du propriétaire
BDO-100-E
CONVECTION OVEN
INSTALLATION - OPERATION - MAINTENANCE
BLODGETT OVEN COMPANY
www.blodgett.com
42 Allen Martin Drive, Essex Junction, Vermont 05452 USA Telephone: (802) 658-6600 Fax: (802)864-0183
PN 58281 Rev C (3/18)
© 2018- G.S. Blodgett Corporation
Your Service Agency’s Address:
Model
Serial number
Oven installed by
Installation checked by
TABLE OF CONTENTS
INSTALLATION
Oven Description and Specications ....................................... 2
Delivery and Location .................................................... 3
Oven Assembly .......................................................... 4
NSF Bolts ........................................................... 4
Leg Attachment ...................................................... 5
Caster Assembly ..................................................... 5
Double Section Assembly ............................................. 6
Oven Leveling ....................................................... 6
Utility Connections - Standards and Codes ................................. 7
Electrical Connection ..................................................... 8
OPERATION
SSM Solid State Manual w/60 Minute Electro-Mechanical Timer .............. 9
General Guidelines for Operating Personnel ............................... 10
Suggested Times and Temperatures ...................................... 11
MAINTENANCE
Cleaning and Preventative Maintenance .................................. 12
Troubleshooting Guide .................................................. 13
IMPORTANT
WARNING: Improper installa-
tion, adjustment, alternation,
service or maintenance can
cause property damage, in-
jury or death. Read the instl-
lation, operation and mainte-
nance instructions thoroughly
before installing or servicing
this equipment.
FOR YOUR SAFETY
Do not store or use gasoline or
other ammable vapors or liq-
uids in the vicinity of this or any
other appliance.
The information contained in this
manual is important for the prop-
er installation, use, and mainte-
nance of this oven. Adherence
to these procedures and instruc-
tions will result in satisfactory
baking results and long, trou-
ble free service. Please read
this manual carefully and retain
it for future reference.
ERRORS: Descriptive, typo-
graphic or pictorial errors are
subject to correction. Speci-
cations are subject to change
without notice.
2
Installation
Oven Description and Specications
ELECTRICAL RATINGS- BDO-100-E
VOLTAGE
HZ
KW
PHASE
MAX LOAD (AMPS)
ELECTRICAL CONNECTION AWG*
L1 L2 L2
208 60 11 1 51 0 51 6
208 60 11 3 31 29 29 8
220/240 60 11 1 44 0 44 6
220/240 60 11 3 26 24 24 8
480 60 11 3 14 13 13 12
* Electric connection wiring is sized for 90ºC copper wire at 125% of rated input.
Cooking in a convection oven diers from cooking in a
conventional deck or range oven since heated air is con-
stantly recirculated over the product by a fan in an en-
closed chamber. The moving air continually strips away
the layer of cool air surrounding the product, quickly al-
lowing the heat to penetrate. The result is a high qual-
ity product, cooked at a lower temperature in a shorter
amount of time.
Blodgett convection ovens represent the latest advance-
ment in energy eciency, reliability, and ease of opera-
tion. Heat normally lost, is recirculated within the cooking
chamber before being vented from the oven: resulting in
substantial reductions in energy consumption and en-
hanced oven performance.

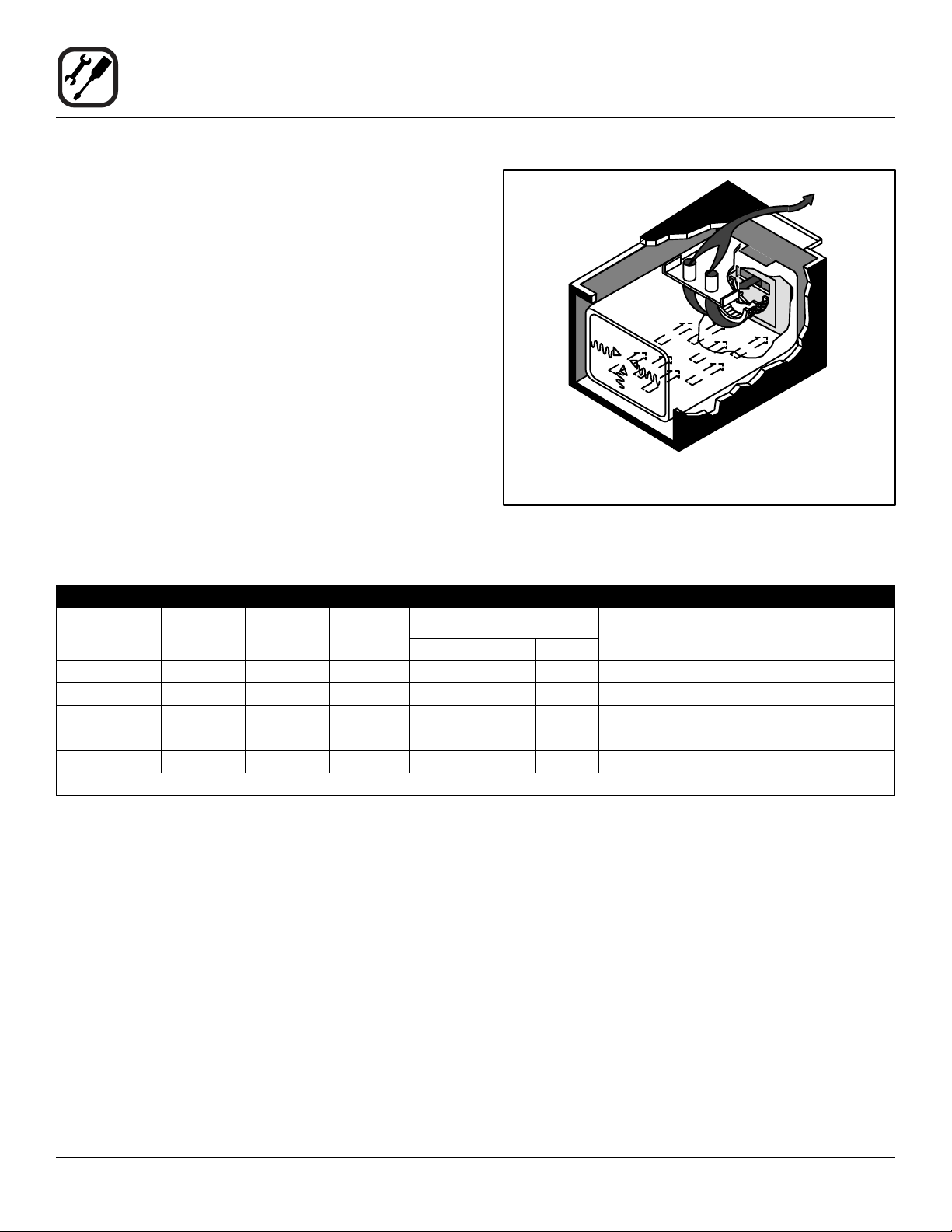

Air Flow Pattern for Blodgett Convection Ovens
Figure 1
3
Installation
Delivery and Location
DELIVERY AND INSPECTION
All Blodgett ovens are shipped in containers to prevent
damage. Upon delivery of your new oven:
• Inspect the shipping container for external damage.
Any evidence of damage should be noted on the
delivery receipt which must be signed by the driver.
• Uncrate the oven and check for internal damage.
Carriers will accept claims for concealed damage if
notied within fteen days of delivery and the ship-
ping container is retained for inspection.
The Blodgett Oven Company cannot assume responsibil-
ity for loss or damage suered in transit. The carrier as-
sumed full responsibility for delivery in good order when
the shipment was accepted. We are, however, prepared
to assist you if ling a claim is necessary.
OVEN LOCATION
The well planned and proper placement of your oven will
result in long term operator convenience and satisfactory
performance.
The following clearances must be maintained between
the oven and any combustible or non-combustible con-
struction.
• Oven body right side - 0” (0 cm)
• Oven body left side - 0” (0 cm)
• Oven body back - 0” (0 cm)
• Single and stacked oven bottom - 4.5” (11.4 cm)
• Oven body top (for direct vent installations only) - 8”
(20 cm)
The following clearances must be available for servicing.
• Oven body sides - 12” (30 cm)
• Oven body back - 12” (30 cm)
Keep the oven area free and clear of all combustibles
such as paper, cardboard, and ammable liquids and sol-
vents.
Do not place the oven on a curb base or seal to a wall.
This will restrict the ow of air and prevent proper ventila-
tion resulting in damage to the oven.
• Do not place strong sources of heat such as open
ame ranges, griddles, or charbroilers near the
oven. If such an instance exists, it is highly recom-
mended to purchase a heat shield, available from
Blodgett.
• Note that if temperatures are too high, a safety shut-
down may occur.
• Failure to comply may invalidate the oven warranty.
Before making any utility connections to this oven, check
the rating plate to be sure the oven specications are
compatible with the electrical services supplied for the
oven.
1. Pull out control panel. The rating plate attached to the
inside of the control compartment.
4
Installation
Oven Assembly
NSF BOLTS
These bolts are required by NSF to block any exposed
hole on the back of an oven. This includes:
• any unit, single or stacked, without a back panel.
• any holes in stacked units not used for mounting
stacking brackets.

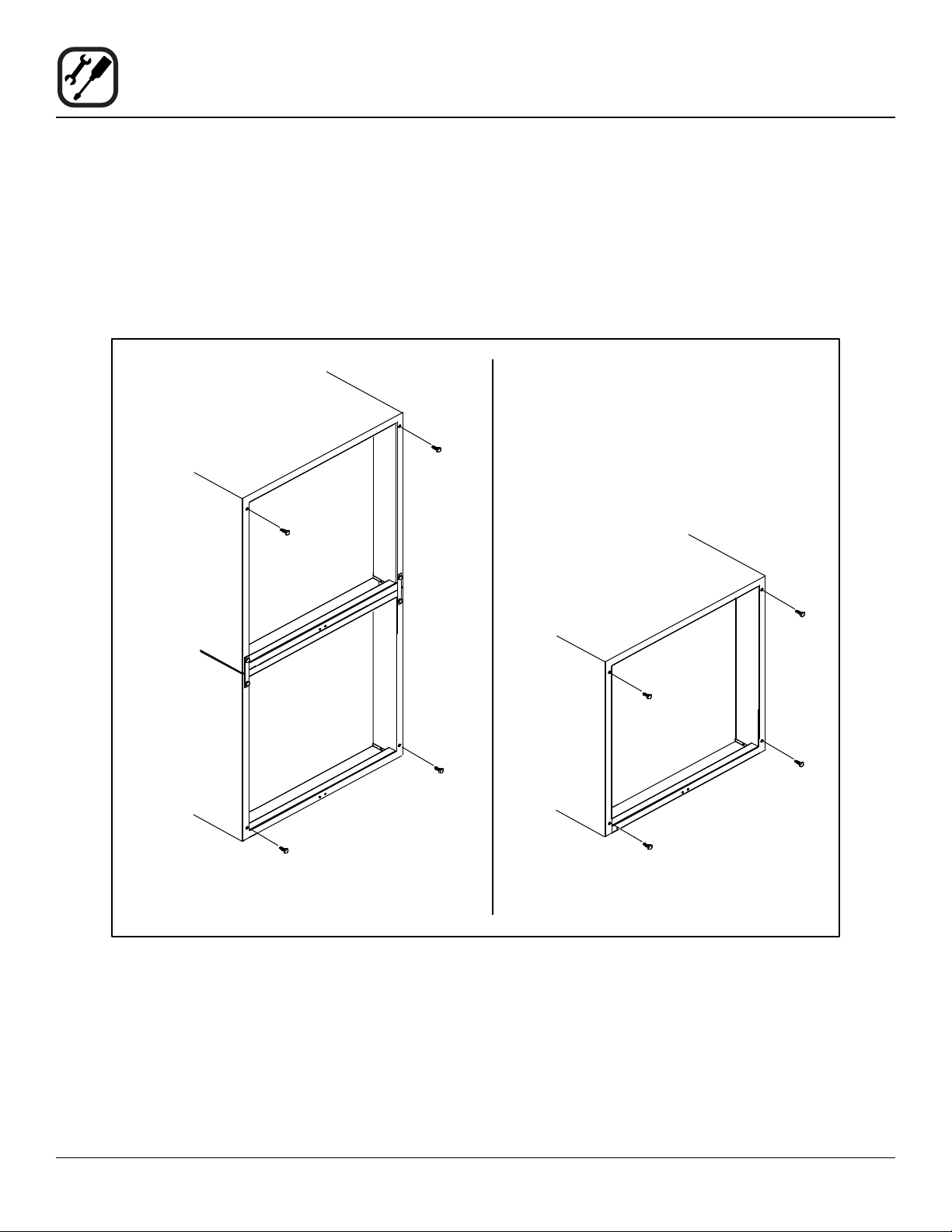

1. Locate the 5/16” bolts that were shipped with the
oven.
2. Install the bolts as shown
Double Stacked Units Units without back panels
Figure 2
5
Installation
Oven Assembly
LEG ATTACHMENT
1. Push the oven onto a lift with the bottom of the oven
down.
2. Align the threaded stud in each leg with the nut locat-
ed inside each bottom corner of the oven frame. Turn
the legs clockwise and tighten to the nearest full turn.
3. Align the two leg plate holes in each leg with those
in the oven bottom. Secure each leg using two 1/2”
bolts.
NOTE: If using casters see CASTER ASSEMBLY
before proceeding.
4. Level the oven by screwing the adjustable leg feet in
or out as necessary.
6" (15 cm) Legs Shown
Figure 3

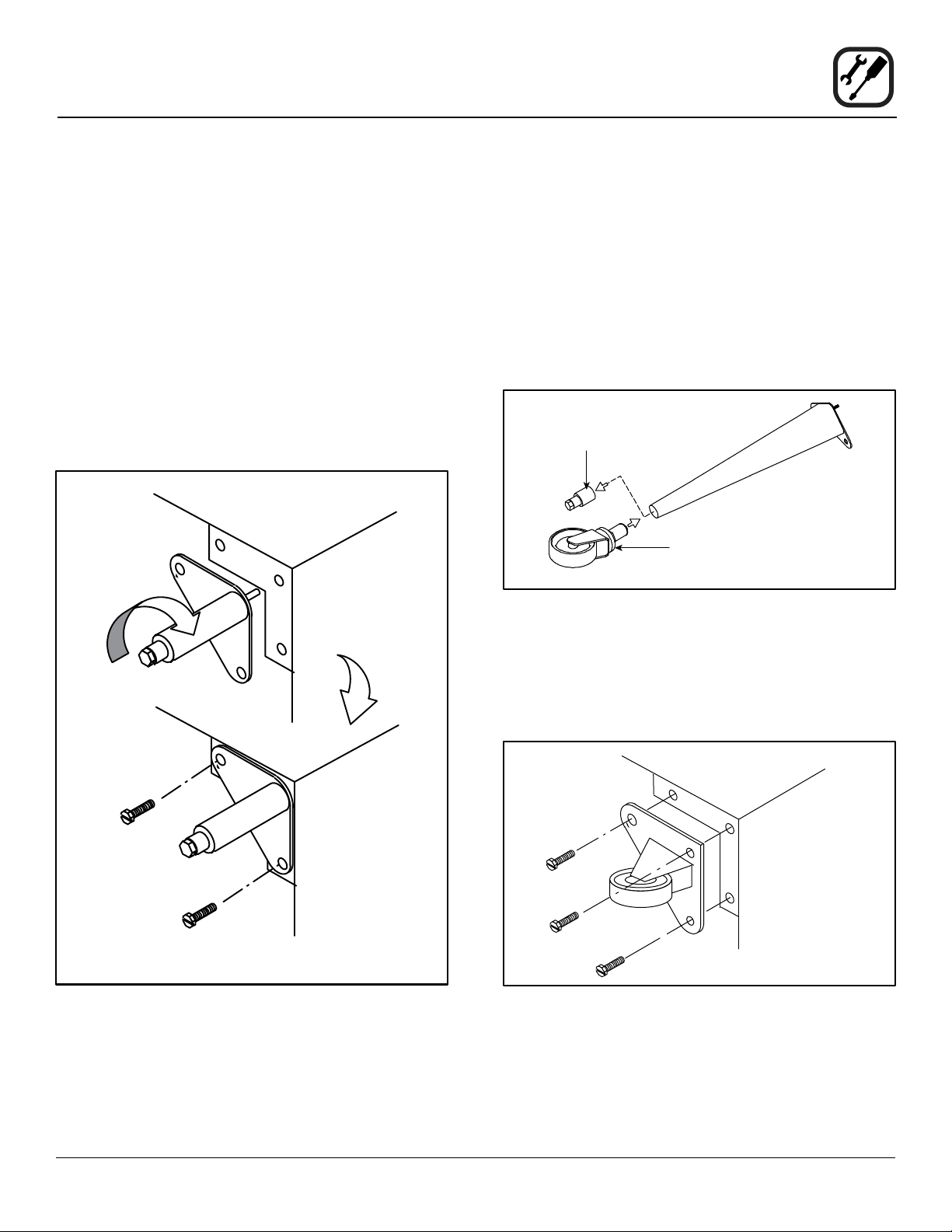

CASTER ASSEMBLY
NOTE: Install the locking casters on the front of the oven.
Install the non-locking casters on the back of the
oven.
Casters for Single and Double Stacked Ovens:
1. Attach the legs as described.
2. Pry the adjustable feet out of the legs.
3. Insert one caster into each leg as shown. Tighten the
lock nuts to secure the casters.
Adjustable
Leg Foot
Caster Assembly
Figure 4
Low Prole Casters for Double Stacked Ovens:
1. Align the three holes in each caster assembly plate
with those in the oven bottom. Secure each caster
using three 1/2” bolts.
Figure 5
6
Installation
Oven Assembly

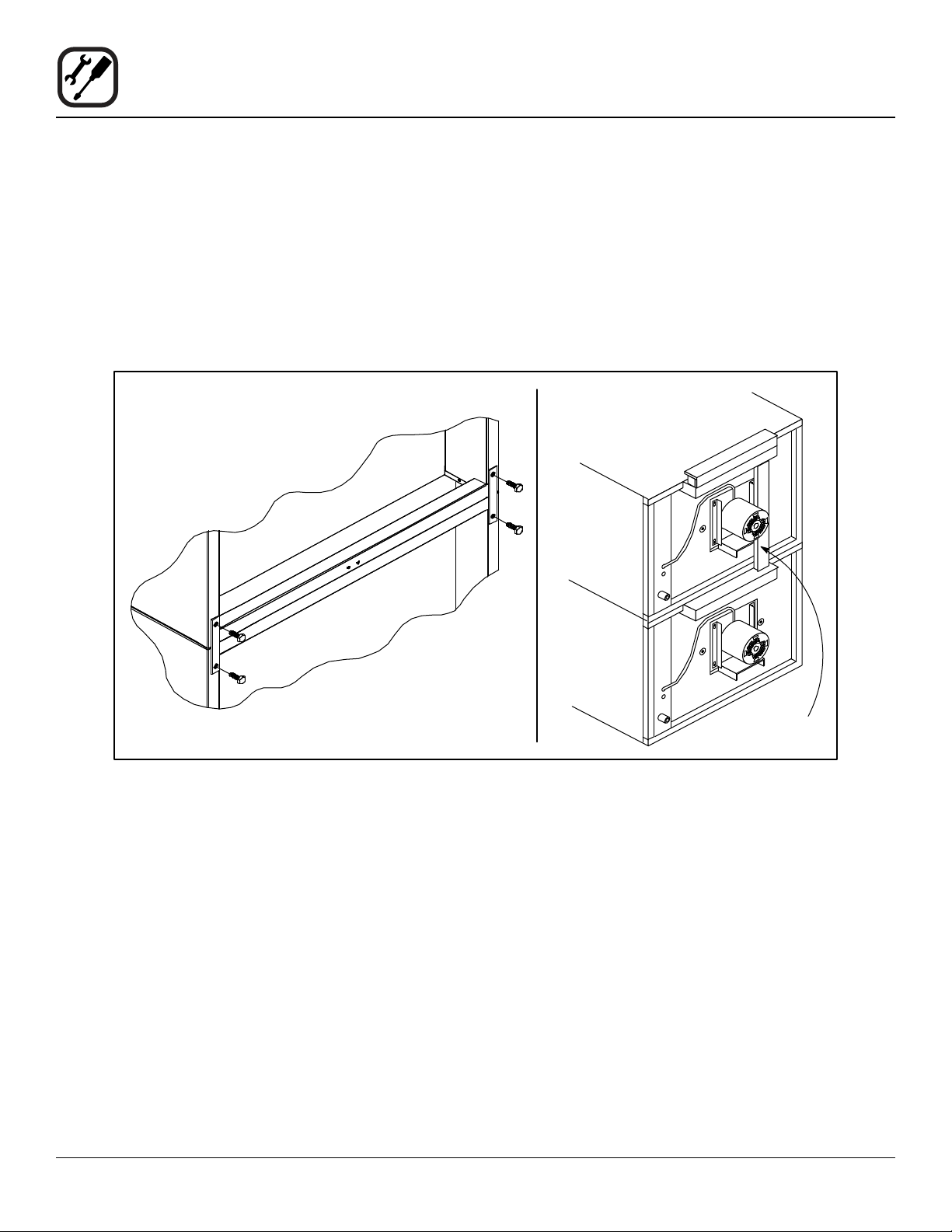

DOUBLE SECTION ASSEMBLY
1. Secure the short legs to the bottom sections as de-
scribed.
2. Place the upper section in position on top of the lower
oven.
3. Attach the stacking brackets using the remaining
5/16” bolts shipped with the ovens.
OVEN LEVELING
After assembly, the oven should be leveled and moved to
the operating location.
1. The oven can be leveled by adjusting the feet or cast-
ers located on the botto
Flue Connector
Figure 6
7
Installation
Utility Connections - Standards and Codes
THE INSTALLATION INSTRUCTIONS CONTAINED
HEREIN ARE FOR THE USE OF QUALIFIED INSTAL-
LATION AND SERVICE PERSONNEL ONLY. INSTAL-
LATION OR SERVICE BY OTHER THAN QUALIFIED
PERSONNEL MAY RESULT IN DAMAGE TO THE OVEN
AND/OR INJURY TO THE OPERATOR.
Qualied installation personnel are individuals, a rm,
a corporation, or a company which either in person or
through a representative are engaged in, and responsible
for:
• the installation of electrical wiring from the electric
meter, main control box or service outlet to the elec-
tric appliance.
Qualied installation personnel must be experienced in
such work, familiar with all precautions required, and have
complied with all requirements of state or local authorities
having jurisdiction.
U.S. and Canadian installations
Installation must conform with local codes, or in the ab-
sence of local codes, with the National Electrical Code,
ANSI/NFPA 70-Latest Edition and/or Canadian National
Electric Code C22.2 as applicable.
General export installations
Installation must conform with Local and National instal-
lation standards. Local installation codes and/or require-
ments may vary. If you have any questions regarding the
proper installation and/or operation of your Blodgett oven,
please contact your local distributor. If you do not have a
local distributor, please call the Blodgett Oven Company
at 0011-802-658-6600.
8
Installation
Electrical Connection

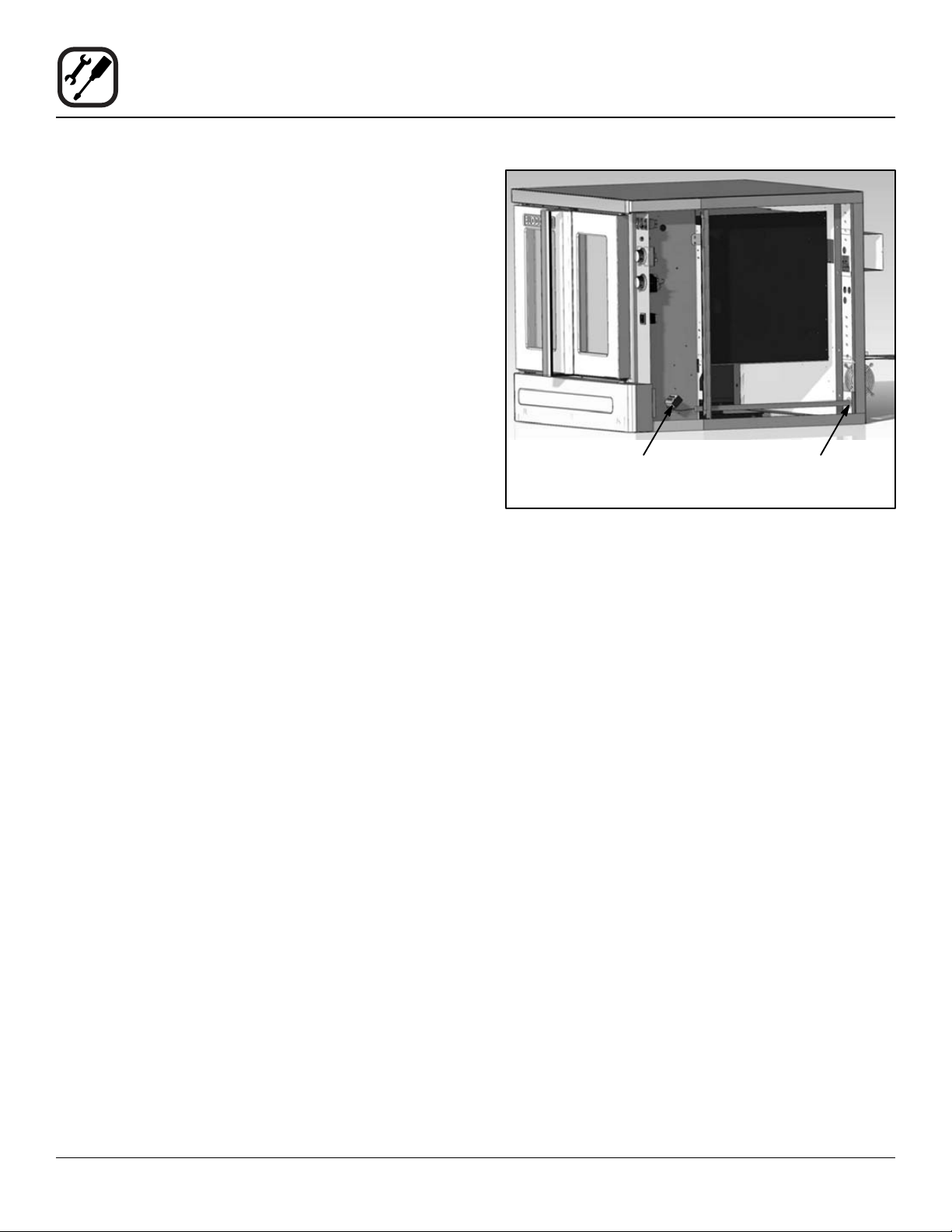

The service line will enter trough the rear of the oven and
connected to the terminal block (see diagram).
1. Remove the bottom trim and control panel. Removal
of the body side is not necessary.
2. Remove knock-out in the rear of the unit and run the
supply power line to terminal block and connect the
wires.
3. Reinstall the control panel and the bottom trim.
The Blodgett Oven Company cannot assume responsi-
bility for loss or damage suered as a result of improper
installation.
Connect wires to
terminal block
Run supply line
through the knock-out
Figure 7
