BLK BOX BINARY RACK Manuel utilisateur

OWNERS MANUAL & QUICK START GUIDE

BINARY RACK

NOTE : PLEASE READ ALL THE INSTRUCTIONS

CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.

BLK BOX

21-0549-0A

#MADEINBELFAST

628mm x 1450mm x 2212mm

2128mm x 2950mm x 3076mm

65kg

PRODUCT SPECIFICATION

PRODUCT WEIGHT

MAX USER WEIGHT

MAX USER

MAX TRAINING WEIGHT

DIMENSIONS

SAFE WORKING ZONE

-125kg

200kg

SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE

BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF

INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE).

WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.

EACH PERSON SHOULD BE EQUIPPED WITH SAFETY GLASSES, STEEL TOE CAP BOOTS AND EAR PLUGS.

PLEASE BE AWARE OF THIS SYMBOL AS AN INDICATION TO CHECK THAT A PART IS LEVEL

OR PLUMB.

WARNING

SPIRIT LEVEL

10MM MASONRY

DRILL BIT

TOOLS REQUIRED

2x 30MM SPANNER

2x 17MM SPANNER

1x 13MM SPANNER

HAMMER

HAMMER DRILL VACUUM STEP LADDER

#MADEINBELFAST

TAPE MEASURE

PARTS & ATTACHMENTS

#MADEINBELFAST

ASSEMBLY

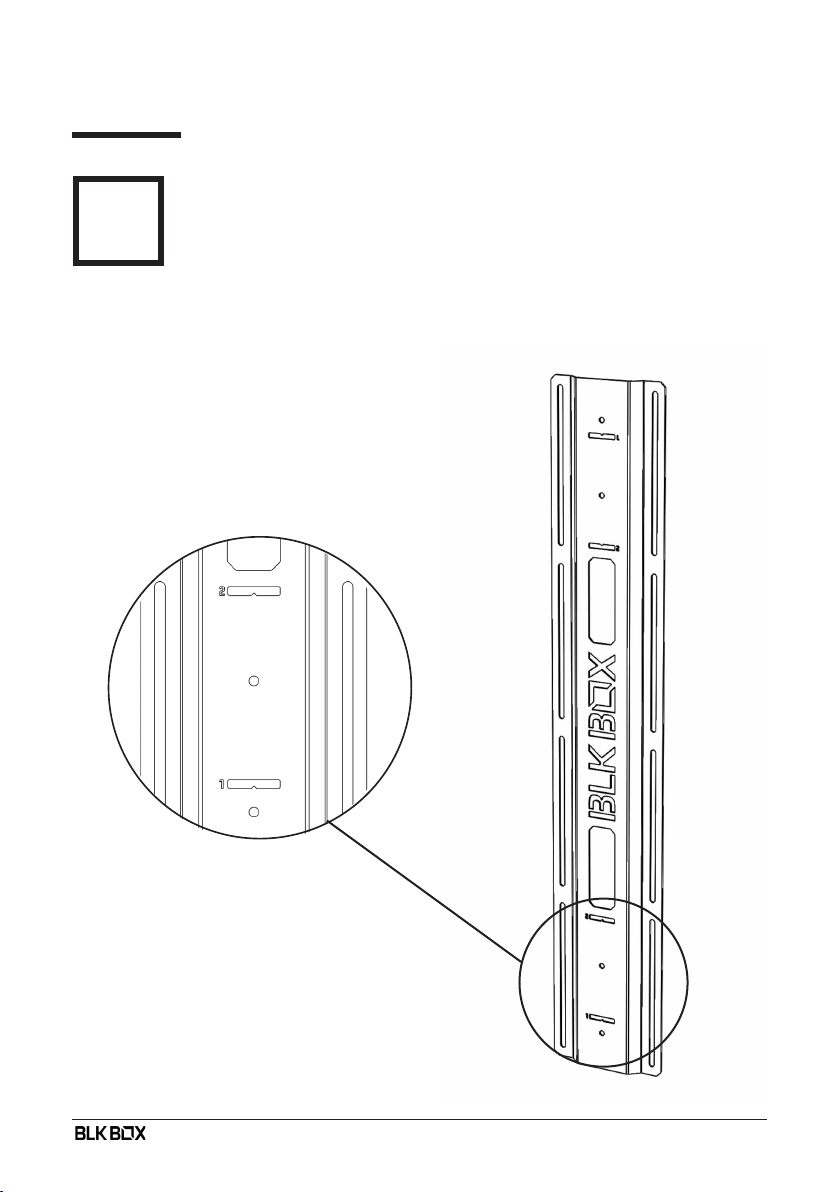

PLACE THE WM STRINGER (20-0350-0A) IN A VERTICAL POSITION AGAINST THE WALL ,

PERPENDICULAR TO THE FLOOR.

MARK THE LOCATION OF THE INDICATOR ON THE WALL, USING THE POINT IN THE CENTRE

AS A GUIDE.

#MADEINBELFAST

MOVE THE STRINGER 1200MM LEFT/RIGHT AND REPEAT STEP 1.

1200 MM

MARK OUT THE REST OF THE HOLES USING THE GUIDE BELOW.

#MADEINBELFAST

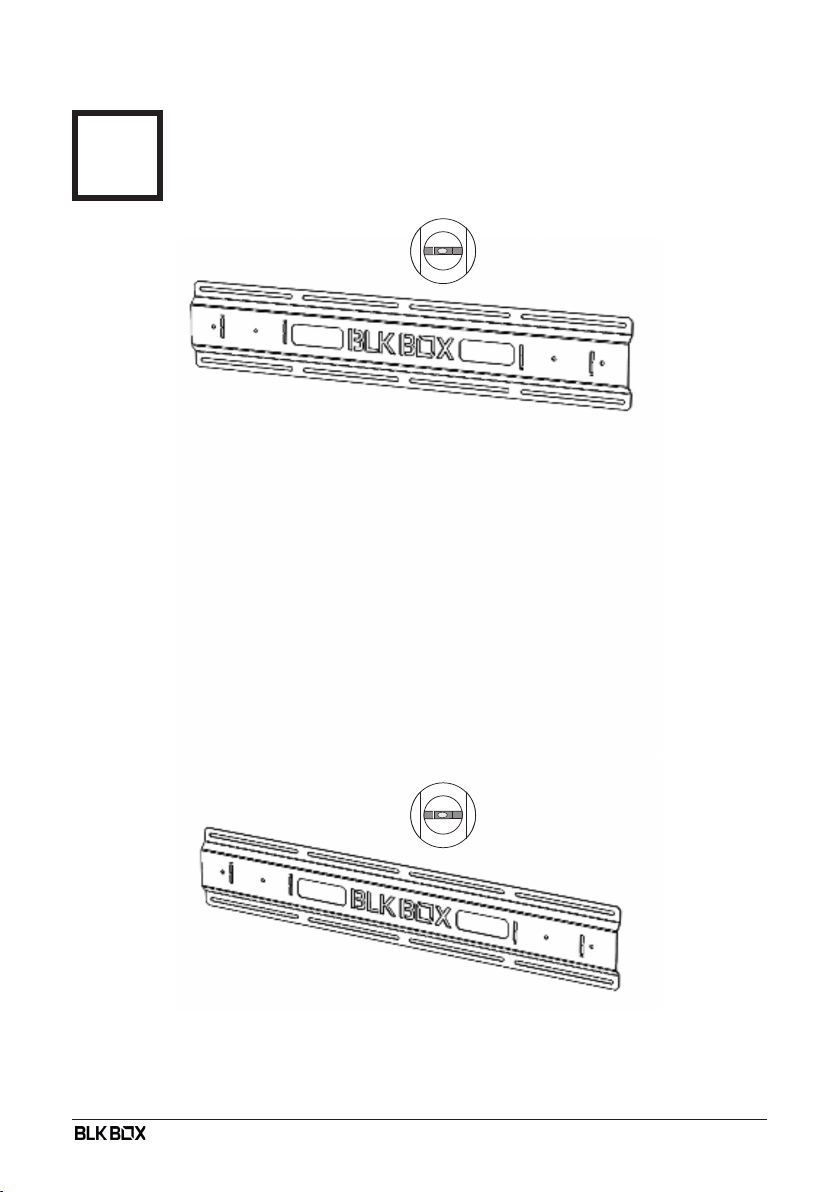

CHECK THAT THE STRINGERS ARE LEVEL AND ALIGN WITH THE HOLES THAT HAVE BEEN

MARKED OUT. DRILL 10MM HOLES, 90MM DEEP. VACUUM OUT THE DUST

BOLT 4QTY HINGE BRACKET (21-0552-0B) TO 2QTY WM STRINGER WITH BOLTS

ASSEMBLY AS SHOWN.

#MADEINBELFAST

10-0031 x 2

10-0019 x 2

10-0024 x 2

#MADEINBELFAST

SECURE STRINGERS TO THE WALL USING 16QTY M10 SLEEVE ANCHOR BOLTS (10-0031)

AND THE PREDRILLED HOLES.

BOLT 4QTY FOLDING RACK BOX CM (21-0551-0A) TO 2QTY UPRIGHT (21-0557-0A).

#MADEINBELFAST

10-0134 x 2

10-0023 x 2

10-0028 x 2

10-0134 x 2

10-0023 x 2

10-0028 x 2
