Blaupunkt 5DA15151AU Manuel utilisateur

Instruction manual

5DA15151AU

5DA15250AU

5DA17250AU

5DA17151AU

Extractor hood

1. SAFETY

INFORMATION

For your safety and

correct operation of the

appliance, read this manual

carefully before installation

and use. Always keep these

instructions with the

appliance even if you move

or sell it. Users must fully

know the operation and

safety features of the

appliance.

The wire connection has

to be done by specialized

technician.

• The manufacturer will not be

held liable for any damages

resulting from incorrect or

improper installation.

• The minimum safety

distance between the cooker

top and the extractor hood

is 650 mm (some models

can be installed at a lower

height, please refer to the

paragraphs on working

dimensions and installation).

• If the instructions for

installation for the gas hob

specify a greater distance,

this must be respected.

• Check that the mains voltage

corresponds to that indicated

on the rating plate xed to

the inside of the hood.

• Means for disconnection

must be incorporated in the

xed wiring in accordance

with the wiring rules.

• For Class I appliances,

check that the domestic

power supply guarantees

adequate earthing.

• Connect the extractor to

the exhaust ue through a

pipe of minimum diameter

120 mm. The route of the

ue must be as short as

possible.

• Regulations concerning the

discharge of air have to be

fullled.

• Do not connect the extractor

hood to exhaust ducts

carrying combustion fumes

(boilers, replaces, etc.).

• If the extractor is used

in conjunction with non-

electrical appliances (e.g.

gas burning appliances), a

sufcient degree of aeration

must be guaranteed in the

room in order to prevent the

backow of exhaust gas.

When the cooker hood is

used in conjunction with

appliances supplied with

energy other than electric,

the negative pressure in the

room must not exceed 0,04

mbar to prevent fumes being

drawn back into the room by

the cooker hood.

• The air must not be

discharged into a ue that is

used for exhausting fumes

from appliances burning gas

or other fuels.

• If the supply cord is

damaged, it must be

replaced from the

manufacturer or its service

agent.

• Connect the plug to a socket

complying with current

regulations, located in an

accessible place.

• With regards to the technical

and safety measures

to be adopted for fume

discharging it is important to

closely follow the regulations

provided by the local

authorities.

WARNING: Before

installing the Hood,

remove the protective

lms.

• Use only screws and small

parts in support of the hood.

WARNING: Failure to

install the screws or xing

device in accordance with

these instructions may

result in electrical

hazards.

• Do not look directly at the

light through optical devices

(binoculars, magnifying

glasses…).

• Do not ambè under the

range hood; risk of re.

• This appliance can be

used by children aged

from 8 years and above

and persons with reduced

physical, sensory or

mental capabilities or

lack of experience and

knowledge if they have

been given supervision or

instruction concerning use

of the appliance in a safe

way and understand the

hazards involved. Children

shall not play with the

appliance. Cleaning and

user maintenance shall not

be made by children without

supervision.

• Children should be

supervised to ensure that

they do not play with the

appliance.

• The appliance is not to be

used by persons (including

children) with reduced

physical, sensory or mental

capabilities, or lack of

experience and knowledge,

unless they have been given

supervision or instruction.

Accessible parts may

become hot when used

with cooking appliances.

• Clean and/or replace the

Filters after the specied

time period (Fire hazard).

See paragraph Care and

Cleaning.

• There shall be adequate

ventilation of the room when

the range hood is used at

the same time as appliances

burning gas or other fuels

(not applicable to appliances

that only discharge the air

back into the room).

• The symbol on the

product or on its packaging

indicates that this product

may not be treated as

household waste. Instead

it shall be handed over to

the applicable collection

point for the recycling of

electrical and electronic

equipment. By ensuring

this product is disposed

of correctly, you will

help prevent potential

negative consequences

for the environment and

human health, which

could otherwise be

caused by inappropriate

waste handling of this

product. For more detailed

information about recycling

of this product, please

contact your local city

ofce, your household

waste disposal service

or the shop where you

purchased the product.

“In case of replacement

with halogen lamp use

only self-shielded tungsten

halogen lamps or

self-shielded metal halide

lamps.”

2. USE

• The extractor hood has been

designed exclusively for domestic

use to eliminate kitchen smells.

• Never use the hood for purposes

other than for which it has been

designed.

• Never leave high naked ames

under the hood when it is in

operation.

• Adjust the ame intensity to direct

it onto the bottom of the pan only,

making sure that it does not engulf

the sides.

• Deep fat fryers must be

continuously monitored during use:

overheated oil can burst into ames.

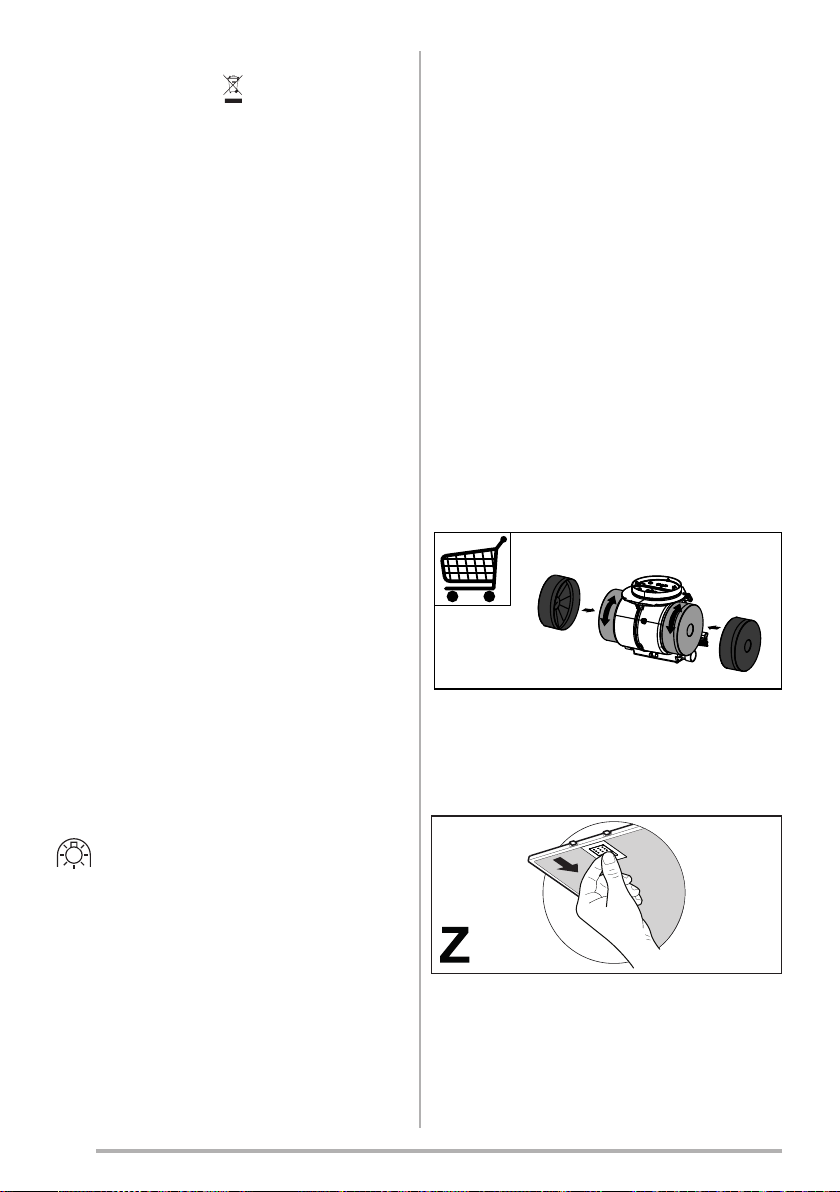

3. CARE AND CLEANING

- The Activated charcoal lter is

not washable and cannot be

regenerated, and must be replaced

approximately every 4 months of

operation, or more frequently for

particularly heavy usage (W).

- The Grease lters must be cleaned

every 2 months of operation, or

more frequently for particularly

heavy usage, and can be washed

in a dishwasher (Z).

• Clean the hood using a damp cloth

and a neutral liquid detergent.

4. CONTROLS

L V

LLight Switches the lighting system on

and off.

VSpeed Sets the operating speed of the

extractor:

0. Motor Off.

1. Low speed, used for a

continuous and silent air

change in the presence of

light cooking vapour.

2. Medium speed, suitable for

most operating conditions

given the optimum treated air

ow/noise level ratio.

3. Maximum speed, used for

eliminating the highest cooking

vapour emission, including

long periods.

5. LIGHTING

1 2

Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCOS Code

4 E14 220 – 240 107 x 37 DRBB/F-4-220-240-E14-35/100

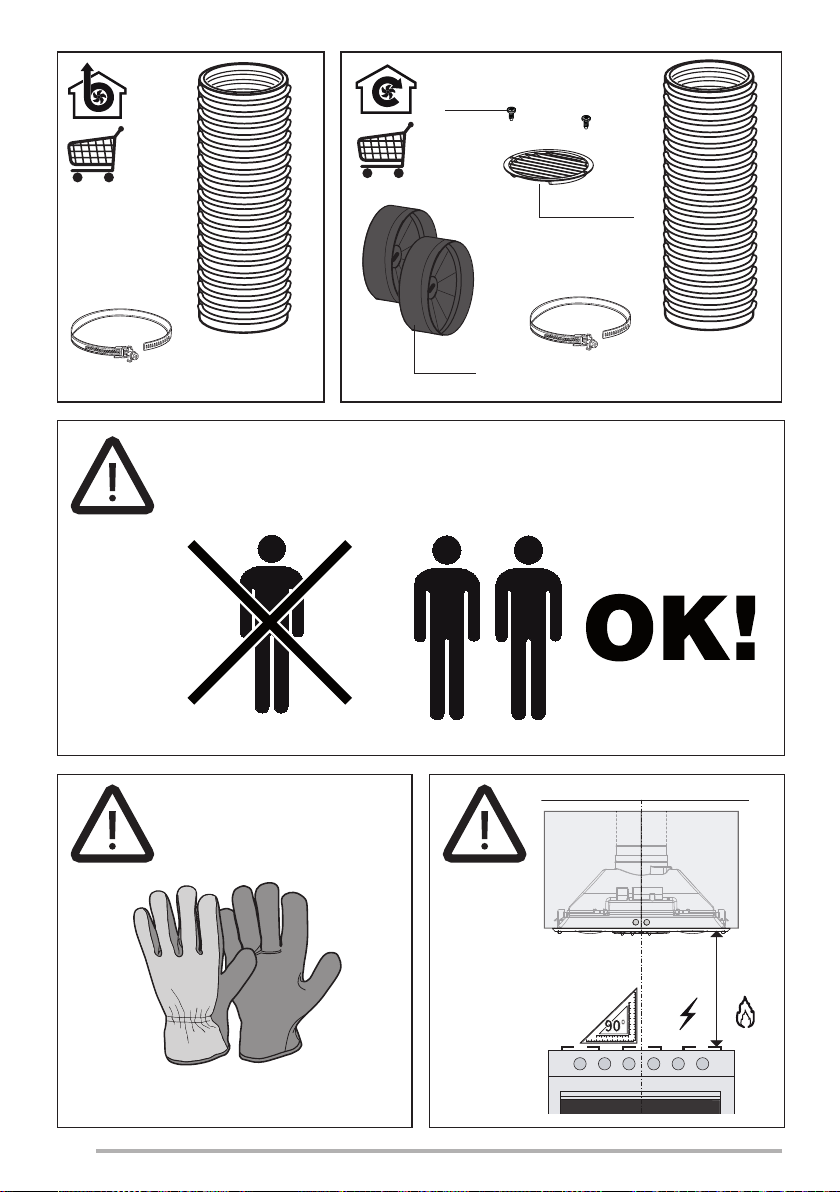

INSTALLATION MANUAL

The hood must be installed inside a unit,

so that the plastic casing around the hood

cannot be reached when installation is

complete.

Warning! Before proceeding with

installation, read the Recommendations

and Suggestions in the User Manual.

L = 8x (A= 520mm)

L = 10x (A= 700mm)

G1 = 2x

F = 4x

650

500

Min.

450

Min.

650

ø 120 mm

ø 150 mm

ø 120 mm

ø 150 mm

(ø 150 mm)
