Blankom HDC 5016 Manuel utilisateur

HDC 5016

IP to QAM Modulator

User Manual

SW Version: 1.02, HW version: 0.70.0.0, Web NMS version: 1.02

About This Manual

Intended Audience

This user manual has been written to help people who have to use, to integrate

and to install the product. Some chapters require some prerequisite knowledge

in electronics and especially in broadcast technologies and standards.

Disclaimer

No part of this document may be reproduced in any form without the written

permission of the copyright owner.

The contents of this document are subject to revision without notice due to

continued progress in methodology, design and manufacturing. We shall have no

liability for any error or damage of any kind resulting from the use of this

document.

Copy Warning

This document includes some confidential information. Its usage is limited to the

owners of the product that it is relevant to. It cannot be copied, modified, or

translated in another language without prior written authorization from us.

Table of Content

Chapter 1 Product Overview 1

1.1 OUTLINE 1

1.2 KEY FEATURES 1

1.3 BLOCK DIAGRAM 1

1.4 AGILE CARRIER SETTING EXAMPLE 2

1.5 SPECIFICATIONS 2

Chapter 2 Connection Description 4

2.1 FRONT & REAR PANEL 4

Chapter 3 Installation Guide 5

3.1 ACQUISITION CHECK 5

3.2 INSTALLATION PREPARATION 5

3.2.1 DEVICE’S INSTALLATION FLOW CHART ILLUSTRATED AS FOLLOWS：5

3.2.2 ENVIRONMENTAL CONDITIONS 6

3.2.3 GROUNDING REQUIREMENT 6

3.2.4 FRAME GROUNDING 7

3.2.5 DEVICE GROUNDING 7

3.3 WIRE CONNECTIONS 7

3.3.1 POWER CORD CONNECTION 7

3.3.2 SIGNAL AND NETWORK MANAGEMENT (NMS) CABLE CONNECTION 7

Chapter 4 Web NMS Management 8

4.1 LOGIN 8

4.2 OPERATION 8

4.2.1 SUMMARY 8

4.2.2 PARAMETERS 9

Chapter 5 Troubleshooting 18

INSTALLATION PRE-CONDITIONS 18

CONDITIONS NEED TO UNPLUG POWER CORD 18

Chapter 6 Packing list 19

IMPORTANT NOTES! 19

INSTALLATION NOTES 19

CONTACT: 20

HDC-5016 IP to QAM Modulator User Manual

Chapter 1 Product Overview

1.1 Outline

The BLANKOM HDC-5016 IP to QAM Modulator is the 5th generation Mux-scrambling-

modulating all-in-one device developed by us. It has 16 multiplexing channels, 16 scrambling

channels and 16 QAM (DVB-C) modulating channels, and supports maximum 1024 IP input

through the GE port and 16 non-adjacent carriers (50MHz...960MHz) output through the RF

output interface. The device is also characterized with high integrated level, high performance

and low cost. This is very adaptable to newly generation CATV broadcasting system.

1.2 Key Features

•2 GE input, SFP interface

•Up to 1024 channels TS over UDP/RTP, unicast and multicast, IGMP v2\v3

•Max. 840 Mbps for each of the 2 GE input

•Accurate PCR adjusting

•CA PID filtering, remapping and PSI/SI editing

•Up to 180 PIDS remapping per channel

•DVB CA scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197

•Max. 16 multiplexed or scrambled TS over UDP/RTP/RTSP output in parallel

•16 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) & ITU-T J.83 A/B

•RS (204,188) encoding

•Web-based Network management

1.3 Block Diagram

HDC-5016 IP to QAM Modulator User Manual

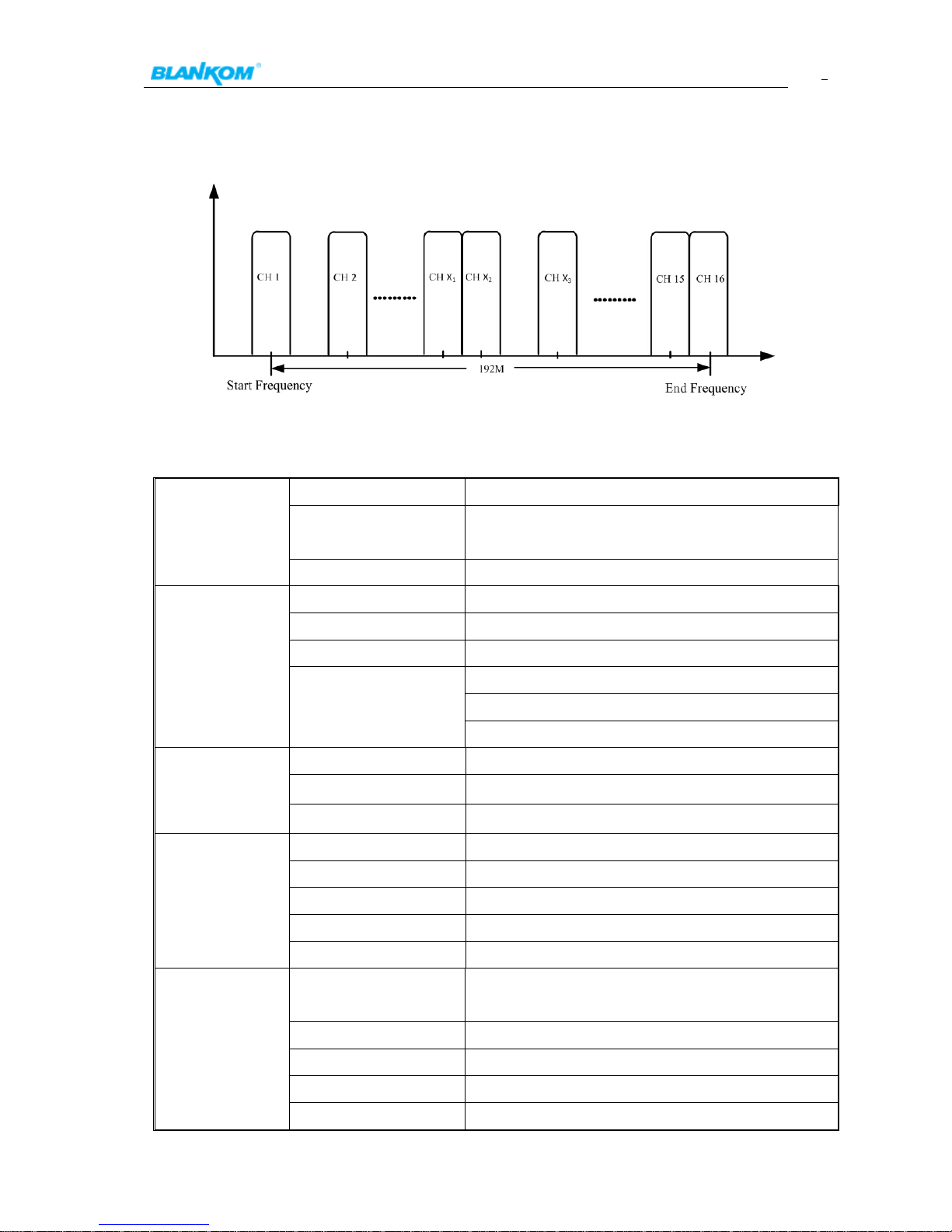

1.4 Agile Carrier setting example

1.5 Specifications

Input

Input 512×2 IP input, 2 100/1000M Ethernet Port (SFP)

Transport Protocol

TS over UDP/RTP/RTSP, unicast and multicast,

IGMP V2/V3

Transmission Rate Max 840Mbps for each GE input

Mux

Input Channel 1024

Output Channel 16

Max PIDs 180 per channel

Functions

PID remapping (auto / manually optional)

PCR accurate adjusting

PSI/SI table automatically generating

Encryption

Parameters

Max simulscrypt CA 4

CA Standard ETR289, ETSI 101 197, ETSI 103 197

Connection Local/remote connection

Modulation

Parameters

QAM Channel 16 non-adjacent carrier

Modulation Standard EN300 429/ITU-T J.83A/B

Symbol Rate

5.0...7.0Msps, 1ksps stepping

Constellation 16, 32, 64 , 128, 256QAM

FEC

RS (204, 188)

RF Output

Interface 1 F typed output port for 16 carriers, 75Ω

impedance

RF Range 50...960MHz, 1kHz stepping

Output Level -20dBm...+10dBm(87...117dbµV), 0.1dB steps

MER ≥ 40dB

ACLR

-60 dBc

HDC-5016 IP to QAM Modulator User Manual

TS output 16 IP output over UDP/RTP/RTSP, unicast/multicast, 2x100/1000M

Ethernet Ports

System Network management software (NMS) support

General

Dimensions

420×440×44.5mm (WxLxH)

Weight 3kg

Temperature

0...45

℃

(operation), -20...80

℃

(storage)

Power Supply AC 100V±10%, 50/60Hz or AC 220V±10%,

50/60Hz

Consumption 15.4W

HDC-5016 IP to QAM Modulator User Manual

Chapter 2 Connection Description

2.1 Front & Rear panel

1 NMS/CAS: network management port and CA data port

2 RF output port

3 Reset IP: Reset webmaster IP address, recover it to default IP address

4 Link/Act Indicators

5 Data Input/Output 1/2 (SFP)

6 Power switch

7 AC Power Socket

8 Grounding

3 4 5

HDC-5016 IP to QAM Modulator User Manual

Chapter 3 Installation Guide

3.1 Acquisition Check

When you opens the package of the device, it is necessary to check items according to packing

list. Normally it should include the following items:

HDC-5016 IP QAM Modulator

User’s Manual (online download from www.blankom.de)

Power Cord (depending on country)

3.2 Installation Preparation

When you install the device, please follow the steps below. The details of installation will be

described after this chapter. Users can also refer to the rear panel chart during the installation.

The main steps of the installation include:

Checking the possible device missing or damage during the transportation

Preparing relevant environment for installation

Installing the IP Mux-Scrambling QAM Modulator

Connecting signal cables

Connecting communication port for WEB-IF

3.2.1 Device’s Installation Flow Chart Illustrated as follows：

Connecting

Grouding

Wire and

Power

Cord

Acquisition

Check Fixing

Device Setting

Parameter Running

Device

Connecting

Signal Wire

HDC-5016 IP to QAM Modulator User Manual

3.2.2 Environmental Conditions

3.2.3 Grounding Requirement

All function modules’ good grounding is the basis of reliability and stability of devices. Also,

they are the most important guarantee of lightning arresting and interference rejection.

Therefore, the system must follow this rule.

Coaxial cables’ outer conductor and isolation layer should keep proper electric conducting

with the metal housing of device.

Grounding conductor must adopt copper conductor in order to reduce high frequency

impedance, and the grounding wire must be as thick and short as possible.

Item Requirement

Machine Hall Space

When user installs machine frame array in one machine hall, the

distance between 2 rows of machine frames should be 1.2...1.5m

and the distance against wall should be no less than 0.8m.

Machine Hall Floor

Electric Isolation, Dust Free

Volume resistivity of ground anti-static material: 1X107...1X1010Ω,

Grounding current limiting resistance: 1M (Floor bearing should be

greater than 450Kg/㎡)

Environment

Temperature

5...40℃(sustainable ), 0...45℃(short time)

installing air-conditioning is recommended

Relative Humidity 20%...80% sustainable 10%...90% short time

Pressure 86...105KPa

Door & Window

Installing rubber strip for sealing door-gaps and dual level glasses

for window

Wall It can be covered with wallpaper, or brightness less paint.

Fire Protection Fire alarm system and extinguisher

Power

Requiring device power, air-conditioning power and lighting power

are independent to each other. Device power requires AC power

220V ±10% 50/60Hz or 110V ±10% 50/60Hz. Please carefully check

before running.

HDC-5016 IP to QAM Modulator User Manual

Users should make sure the 2 ends of grounding wire well electric conducted and be

antirust.

It is prohibited to use any other device as part of grounding electric circuit

The area of the conduction between grounding wire and device’s frame should be no less

than 25mm2.

3.2.4 Frame Grounding

All the machine frames should be connected with protective copper strip. The grounding wire

should be as short as possible and avoid circling. The area of the conduction between

grounding wire and grounding strip should be no less than 25mm2.

3.2.5 Device Grounding

Connecting the device’s grounding rod to frame’s grounding pole with copper wire.

3.3 Wire Connections

3.3.1 Power cord connection

The power socket is located on the right of rear panel, and the power switch is on the left of

front panel. User can plug one end of the power cord to the socket and insert the other end to

AC power. When the device solely connects to protective ground, it should adopt

independent way, say, share the same ground with other devices. When the device adopts

united way, the grounding resistance should be smaller than 1Ω.

Caution: Before connecting power cord to the IP QAM Modulator, user should set the

power switch to “OFF”.

3.3.2 Signal and Network Management (NMS) Cable Connection

The signal connections include the connection of input signal cable and the connection of

output signal cable.
