AMB 307

Part No: 9730.01

COFDM Modulator

ASI-TS →DVB-T (COFDM)

AMB 307

Part No: 9730.01

COFDM Modulator

ASI-TS →DVB-T (COFDM)

LINE

1. Safety and operating instructions

When assembling, starting-up and adjusting the modules, it is necessary to consider the system specific references in

the manual instruction.

The modules may only be installed and started up by authorized technical personnel.

When assembling the modules into the receiving points, the adherence of the EMC regulations is to be secured.

The assembly and wiring have to be done without voltage.

All active modules may only be operated with the Headend Controller HCB x00 or Bus Extender BEB x00.

The main voltage and the operating voltage of the modules working by DC have to be in complience to the operating

parameters described in the technical data.

With all work the defaults of the DIN EN 50083 have to be considered! Especially the safety

relevant execution of the DIN EN 60728-11[2] is necessary.

2. Device variants

AMB 307 9730.01 ASI-TS →DVB-T (COFDM)

Mininum software requirements for HCB x00:

9650.03: Version 2.34*

9650.04/.05: Version 3.18*

9652.01: Version 3.23*

9653.01: Version 3.27*

9653.02: Version 3.28*

*) Updates: www.blankom.de

3. General

The COFDM modulator AMB 307 is a module of the head end system B-LINE wich is conceived as a complete system for middle-

sized networks.The module converts one (or two, if hierarchical modulation selected) ASI stream(s) into the digital standard

DVB-T. The signal will be transcoded from the ASI transport stream into cable TV channels. All modules will be programmed via

a central control unit (HCB x00) and are working fully independent afterwards. The status of the modules are displayed via LED’s

(see chapter 7.2 “Status LED‘s“).

WEEE-Reg.-Nr. DE 50389067

AMB 307

Part No: 9730.01

COFDM Modulator

ASI-TS →DVB-T (COFDM)

LINE

The manual instructions of the Headend Controller HCB x00 and the Bus Extender BEB x00 have to be considered!

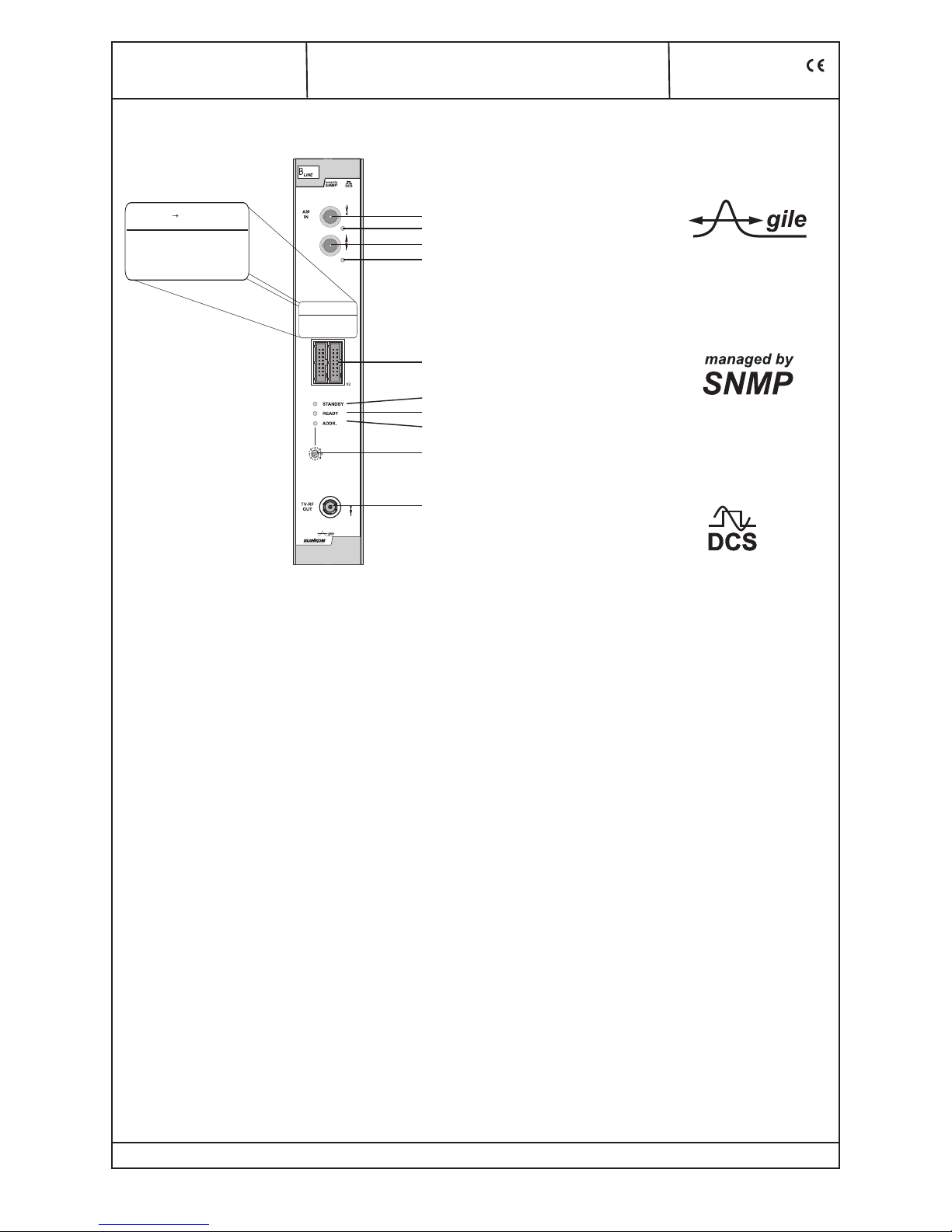

4. Front view

5. Functional description

The data stream which results from the ASI input is passed to a FIFO. All services of the resulting transport stream which shall be pro-

cessed into the COFDM modulator will be choosen by controling software of the module. The SI and PSI tables affected (i.e. the PAT,

PMT, SDT, EIT) are automatically corrected. From the Headend Controller informations are provides to generate a complete NIT (Net-

work Information Table) into the transport stream. This is required to enable the receiver (such as set-top-box) to tune in automatically.

The changed SI an PSI tables are fed into the COFDM modulator and an IF signal is generated at the output channel. There is a free

choise of frequency in the output channel from 45 to 862 MHz. On the output side, the modulator does not leak to adjacent channels.

So that errors in level can be signalled if the load fluctuates (the red LED will flash and a trap message will be sent), a reference level

is generated. Every time the level for frequency figures are programmed, automatic measurement of the refence level takes place; this

function will, however, not start until 100 seconds have elapsed after start-up of the system. This function can be enabled or disabled

in the main menu.

6. Adjustments

6.1 Adjustment with the Headend Controller

· Adjustment of the addresses at the Bus Extender BEB x00 and at the modules

· Activation of the programming mode on each module by selecting the line (BEB x00) and the module position (01... 15) at the

Headend Controller(HCB x00)

→ yellow LED illuminates until the beginning of the parameter adjustment

· Adjustment of the AMB 307 parameters (see chapter 9) →green LED is switched on

· After the programming the AMB 307 will be automatically switched into the operating mode

→yellow LED flashes shortly/ green LED is switched on

6.2 Adjustment with PC/ laptop

· Prerequisite for the remote programming is an “online-connection” acording the IP standard and an ethernet connection at the

PC/ laptop

· Adjustment of the line/ position addresses at the Bus Extender BEB x00 as well as at the modules

· At the Headend Controller HCB x00 input IP address (default: 192.168.2.80)

· For “direct connection” between a PC and HCB x00 use crossover cable (RJ 45)

· For connection over a hub use a normal straight throught patch cable

· Start-up HTML browser and put in IP address as target address

· If connected correctly the web interface will be opened on the PC/ laptop and a blue LED (LINK) at the HCB x00 will be lit up.

· All adjustments of the modules are specified on the web interface.

COFDM MODULATOR

ASI-TS DVB-T(COFDM)

ASI/ TS-MODE burst,continuous 188,204

ASI/ TS-RATE 270/ 0.625...78 Mbps

INPUT LEVEL 200...880 mV

TV-RF OUT 45...862 MHz

OUTPUT LEVEL max. 155 dBµV

SUPPL CURRENT 0.65 A

Type: Part N :AMB 307 9730.01

COFDM MODULATOR

AMB 307 9730.01

ASI-TS DVB-T(COFDM)

ASI/ TS-MODE burst,continuous 188,204

ASI/ TS-RATE 270/ 0.625...78 Mbps

INPUT LEVEL 200...880 mV

TV-RF OUT 45...862 MHz

OUTPUT LEVEL max. 155 dBµV

SUPPL CURRENT 0.65 A

Type: Part N :

ASI

IN/OUT

ASI TS input 1

LED input 1

ASI TS input 2/ output

LED input 2/ output

Operating voltage/

control bus

LED “STANDBY (red)

LED “READY“ (green)

LED “ADDR.“ (yellow)

Address selector

RF output

AMB 307

Part No: 9730.01

COFDM Modulator

ASI-TS →DVB-T (COFDM)

LINE

6.3 Adjustment with SNMP

· Prerequisite for the SNMP functionality is the use of HCB x00 with enabled SNMP software option CKB 100.

· Supported is SNMP version 1.0 [2].

· Automatic creation of the MIB based on the current head end configuration by the HCB x00.

· For setting and reading out the parameters and is to receive traps from an SNMP management software required.

· Further notes on the SNMP functionality of BLANKOM modules are listed in the SNMP manual (download: www.blankom.de).

7. Meaning of LED signals

7.1 LED’s for the ASI ports

Colour Status Meaning of display

green permanently on ASI channel has been configured as input

flashing no ASI signal

yellow permanently on ASI channel has been configured as output

flashing no ASI signal

7.2 Status LED‘s

Designation (Colour) Status Meaning of display

STANDBY (red) permanently on Module is on standby

flashing Module faulty (hardware) or level error

READY (green) permanently on Module working, everything ok

flashing Dysfunction depending in signal:

ASI not sync (e.g. in case of missing input signal)

no input on the COFDM modulator

buffer overflow in the COFDM modulator

off RF output is deactivated

ADDR. (yellow) illuminated or flashing Remote control making contact/ data transmission

AMB 307

Part No: 9730.01

COFDM Modulator

ASI-TS →DVB-T (COFDM)

LINE

8. Programming by web server *

8.1 Main menu

Name of device, item number, module address in head end

Description module name (max. 30 characters)

Transport stream displays the priority of both TS, if hierarchical

modulation was selected (menu 1)

Input

TS-Input displays ASI input respective selection of the

input of the second TS, if hierarch. modulation

was selected.

Status display wether SYNChronization or

noSYNChronisation with input

Data rate displays the data rate of the TS

Output

Channel channel selection : 2 ... 69, standard B/G,

2 ...134, standard M

Attenuation adjustment range 0 ... 31.5 dB

RF signal: selection: On/ Off

Transmission mode selection: 2k/ 8k

Constellation selection: 16 QAM, 64 QAM, QPSK

Bandwith: selection: 5, 6, 7, 8 MHz

Guard intervall: selection: 1/32, 1/16, 1/8, 1/4

Code rate: selection: 1/2, 2/3, 3/4, 5/6, 7/8

Status

Operating mode

COFDM-Modulator according adjustment menu 1

Hierarchical

modulation according adjustment menu 1

Mode TS-Processing DVB-Standard/ TNT-France according menu 1

NIT-Processing On/ Off according adjustment menu 5

CAT-Processing On/ Off according adjustment menu 5

Change TS-Identificat. On/ Off according adjustment menu 5

Program filter On/ Off according adjustment menu 3

Data rate overview see menu 4

Operating mode selection: On/ Off/ Reset

SNMP-Trap message selection: On/ Off, if SNMP option in HCBx00

enabled, otherwise “locked“ displays

Level monitoring selection: On/ Off

Factory settings setting the default values (see menu 9)

Routing to the appropriate adjustment menu

Extended settings see menu 1

NIT table see menu 2

Program filter see menu 3

Table processing see menu 5

Software overview see menu 7

Status see menu 8

* Further details on this are to be found in the HCB manual

AMB 307

Part No: 9730.01

COFDM Modulator

ASI-TS →DVB-T (COFDM)

LINE

8.2 Extended settings (menu 1)

Name of device, item number, module address in head end

Output

Standard (channel

table) selection: B/G, M

Frequency adjustment range 45000 ... 862000 kHz

Operating mode selection: Transcoder, Test level,

COFDM-Modulator Test signal

Hierarchical selectionl: Off, On (Alpha=1), On (Alpha=2),

modulation On (Alpha=4)

Spectrum selection: normal/ invers

Mode TS-Processing selection: DVB-Standard, TNT-France

8.3 NIT entries (menu 2)

Name of device, item number, module address in head end

NIT entries with all information available

8.4 Program filter (menu 3)

Name of device, item number, module address in head end

Program filter configuration

Filter function selection: On/ Off

Other transporder

information pass or drop of additional informations

(e.g. electronic program guide), wich are

contained in data stream as “other“

Program selection

Operating mode pass or drop of the marked programs

Reserve selection all not marked programs are choosen

or vice versa

Select all all programs of the list are marked

Clear all no program of the list is marked

Data rate overview routing to menu 4

8.5 Data rate overview (menu 4)

Name of device, item number, module address in head end

Input data rate net data rate at the input

Data rate by filter net data rate by program filters

Available netto data rate max. possible net data rate

Reserve max. netto data rate minus

data rate by filter

FIFO-Memory utilisation displays in %

AMB 307

Part No: 9730.01

COFDM Modulator

ASI-TS →DVB-T (COFDM)

LINE

8.6 Table processing (menu 5)

Name of device, item number, module address in head end

Transport stream displays the priority of both TS, if hierarchical

modulation was selected (menu 1)

NIT

NIT-Processing selection: On/ Off

Network name adjustment range: max. 30 characters

Network ID adjustment range: 0...65535

Channel number

insertion (LCN) selection: On/ Off

Standard SD-LCN IEC 62216, NorDig(V1)

Channel list see menu 6

CAT

CAT-Processing selection: On, On (CA Filter), Off

CA-System ID adjustment range: 0...65535

Operator ID adjustment range: 0...65535

Transport stream

Change TS-Identific. selection: On/ Off

Transport stream ID adjustment range: 0...65535

Network ID adjustment range: 0...65535

8.7 Configuration channel list-LCN (menu 6)

Name of device, item number, module address in head end

The allocation of a logical channel number (LCN) is a service that allocates

a serial number to each TV activated program. If the set-top box supports

this service at the subscriber, the TV programs are offered in the

order established by program numbers. It should be noted that the num-

bering is done separately for HD and SD programs for the respective type

of the box. The simultaneous activation and number allocation for SD pro-

grams in the HD column provides such programs to the appropriate

channel number in the program list for HD boxes.

AMB 307

Part No: 9730.01

COFDM Modulator

ASI-TS →DVB-T (COFDM)

LINE

8.8 Software overview (menu 7)

Name of device, item number, module address in head end

Software version

Controller of terminals board

FPGA Bootcontroller

COFDM modulator, TS-Mux (FPGA)

TS manager

ASI Bootcontroller

ASI FPGA

Up Convertrer controller

AMB 307

Part No: 9730.01

COFDM Modulator

ASI-TS →DVB-T (COFDM)

LINE

8.9 Device status (menu 8)

Name of device, item number, module address in head end

Input

TS-Input displays 1 or 2 inputs acc. selected configuration

Status SYNChroninsation or noSYNChronisation with

ASI input

Data rate displays data rate of TS

Packet size size of packets (188/ 204) in byte

FPGA Status status, transport stream input

FPGA-Error memory error memory TS Mux, COFDM Mod.

Up Converter error

memory error memory up converter

Original TS-ID’s display transport stream ID and network ID

Information

Temperature Temperature of terminals board

Device number display of the device number

Device index display of the device index (hardware)

8.10 Factory settings (menu 9)

When request this menu item at first a security query whether it really set

all parameters to the factory default settings pops up.

Affirming the query, all settings made on the EEPROM will be deleted and

replaced by the default settings. The modul will go back to these default

values. Once the setting process is over, there will be automatic return to

the main menu. It takes about one minute.

AMB 307

Part No: 9730.01

COFDM Modulator

ASI-TS →DVB-T (COFDM)

LINE

9. Manual menu control with Headend Controller (HCB x00)

10. SNMP Trap messages

Item Message Message type Explanation

01 Power fail CRITICAL short circuit

02 System Reset WARNING reset by internal error

03 Input OK INFORMATION module works correctly

04 Input not sync WARNING no ASI input signal

05 IIC error CRITICAL IIC-Bus-error

06 TS-MUX not sync WARNING no transport stream at the FPGA

07 Internal controller reset WARNING error when accessing internal controller

08 FPGA: Program memory full WARNING overflow of program memory in the FPGA

09 FPGA: PID memory full WARNING overflow of PID memory in the FPGA

10 FPGA: Directory full WARNING overflow of Directory in the FPGA

11 FPGA: FAT memory full WARNING overflow of FAT memory in the FPGA

12 FPGA: TS-Packed buffer overflow WARNING overflow of TS packet buffer

13 Data overflow CRITICAL overflow of data

14 Sync error data FIFO CRITICAL data FIFO doesn’t work correctly

15 No response to OPEN command CRITICAL error internal port

16 FPGA ok INFORMATION data processing in FPGA is ok

AMB 307 start

Edit or End

Power Status On/ Off

Output

Output frequency 45000 ... 862000 kHz

Attenuation 0 ... 31.5 dB

RF output On/ Off

Level monitoring On/ Off

Modulator Mode Transcoder/ Test signal/ Test level

Spectrum normal/ invers

Hierarch. modulation Off/ On(Alpha=1)/

On(Alpha=2)/ On(Alpha=4)

Transmission 2k/ 8k

Constellation 16 QAM/ 64 QAM/ QPSK/

Bandwith 5/ 6/ 7/ 8 MHz

Guard interval 1/32, 1/16, 1/8, 1/4

PID program filtering

Program filter On/ Off

Mode Pass/ Drop

Other TS-Data Pass/ Drop

Table processing

NIT processing On/ Off

Network name max. 30 characters

Network ID 0...65535

CAT processing On/ On (CA Filter)/ Off

CA System ID 0...65535

Operator ID 0...65535

Change TS ID On/ Off

TS Network ID 0...65535

TS ID 0...65535

Channel name

AMB 307 end

Table des matières

Autres manuels Blankom Modulateur

Blankom

Blankom A-PALIOS-IPM4CI 5113.81 Manuel utilisateur

Blankom

Blankom SAT-TV Manuel utilisateur

Blankom

Blankom HDC 5016 Manuel utilisateur

Blankom

Blankom HDC 6008CI Manuel utilisateur

Blankom

Blankom A-QAMOS-4CI Guide d'application

Blankom

Blankom A-PALIOS-IPM4 Manuel utilisateur

Blankom

Blankom QAMOS-CT Guide d'application

Blankom

Blankom STR 821 Manuel utilisateur

Blankom

Blankom PALIOS-IPM2 Manuel utilisateur

Blankom

Blankom HDC 5016 Manuel utilisateur

Blankom

Blankom HDC 6012 Manuel utilisateur

Blankom

Blankom VMB 195 Manuel utilisateur

Blankom

Blankom HDC 7016 Mode d’emploi

Blankom

Blankom PALIOS-IPM4 5105.10 Manuel utilisateur

Blankom

Blankom AMA 299 Guide d'application

Blankom

Blankom 5105.82 Manuel utilisateur

Blankom

Blankom ATB 19 series Manuel utilisateur

Blankom

Blankom VMA 191 Manuel utilisateur

Manuels Modulateur populaires d'autres marques

axing

axing AVM 5-00 Manuel utilisateur

IKUSI

IKUSI MAC-HOME HD Manuel utilisateur

Wisi

Wisi MINI OM 10 Manuel utilisateur

RCA

RCA CRF910 Manuel utilisateur

Pico Macom

Pico Macom PM45 Manuel utilisateur

FTE Maximal

FTE Maximal MODIG AIR Manuel utilisateur

Thor Broadcast

Thor Broadcast H-IP-32RF Manuel utilisateur

Delphi

Delphi SA10003 Manuel utilisateur

Elan

Elan MOD3000 Manuel utilisateur

ClearView

ClearView SD4260 Manuel utilisateur

Televes

Televes T.0X COFDM-QAM CI Manuel utilisateur

Crucial Audio

Crucial Audio Die Gotterdämmerung Manuel utilisateur

Pioneer

Pioneer CD-V61FM Manuel utilisateur

Televes

Televes 554912 Manuel utilisateur

Newtec

Newtec M6100 Manuel utilisateur

ProTelevision

ProTelevision PT 5780 Manuel utilisateur

Argent Cables

Argent Cables HD DVB-T MODULATOR Manuel utilisateur

SSS Siedle

SSS Siedle BVM 650-0 Manuel utilisateur
