BLADEZ XTR-HD Manuel utilisateur

Page 1

Product Handbook

FOR THE BLADEZ XTR-HD

ELECTRIC POWER BOARD

Model: PB-SM809

PLEASE BE SAFE WHEN RIDING . . .

ALWAYS WEAR A HELMET AND OBEY ALL LAWS!

Powered Personal Transportation

Electric Power Board

Page 2

Page 3

IMPORTANT

BATTERY MAINTENANCE and

CHARGING INSTRUCTIONS:

1. You MUST Charge completely prior to initial use. (Follow charging

instructions in your Product Handbook).

2. Charge immediately after every use.

3. Charge before storage – min. of every 30 days if not in use.

4. Charge the unit for 4-6 hours after the light on the charger turns

green.

5. DO NOT allow your unit to Deep Discharge.

6. For safety purposes, DO NOT charge for over 24 hours.

7. Turn the unit OFF when not in use.

Failure to follow proper CHARING INSTRUCTIONS will

VOID YOUR WARRANTY!

This PRODUCT IS NOT INTENDED FOR EXTREME or

OFF-ROAD Use! Please take care of your POWERBOARD!

DO NOT JUMP or ABUSE THIS PRODUCT!

DO NOT RIDE IN WET CONDITIONS!

Failure to follow these instruction and abuse will

VOID YOUR WARRANTY!

If you have any questions, please contact Bladez customer service

(866) 325-2339 or visit us on the web at www.ebladez.com

Page 4

IMPORTANT

PLEASE READ THIS BEFORE USING THIS PRODUCT

READ THIS FIRST!

WARNING

This product does not conform to Federal Motor Vehicle Standards and is not

intended for operation on public streets, roads or highways. Serious injury can

result from the unsafe operations of this product. Operator can minimize these

risks by using certain safety equipment such as: safety helmet, goggles, gloves,

elbow and kneepads and appropriate footwear.

DO NOT operate this product in traffic, on wet, frozen oily or unpaved surfaces or

under the influence of drugs and/or alcohol. Avoid uneven surfaces, potholes,

surface cracks and obstacles.

DO NOT use a water hose to clean this product. See Product Handbook for more

information.

This product is recommended for riders 16 YEARS OF AGE and older.

SAFETY

This product should not be used by persons without excellent vision, balance,

coordination, reflex, muscle and bone strength and good decision-making

capabilities.

This product should not be used by minors without adult supervision.

This product should not be used by persons unwilling or unable to take

responsibility for their own actions.

•The user of this product assumes ALL risks associated with its use. To

minimize these RISKS, the user must wear safety helmet, goggles, gloves,

elbow and knee pads and appropriate footwear.

•This product is ELECTRIC! DO NOT Ride this product in wet conditions,

puddles or rainy weather.

Page 5

IF YOU HAVE ANY QUESTIONS OR NEED

ASSISTANCE,

PLEASE CALL BLADEZ, TOLL FREE AT:

(866) EBLADEZ

(866) 325-2339

MONDAY thru FRIDAY, 8am to 5pm PST

or visit us on the web at:

www.ebladez.com

NETWORK OF BLADEZ AND TANAKA SERVICING DEALERS

FOR ALL YOUR POWERBOARD NEEDS

DO NOT TAKE YOUR

BLADEZ POWERBOARD BACK

TO THE STORE!

Page 6

TABLE OF CONTENTS

BATTERY MAINTENANCE AND ................................................................................... 3

CHARGING INSTRUCTIONS:........................................................................................ 3

GETTING TO KNOW YOUR BLADEZ POWER BOARD............................................... 7

GETTING STARTED ...................................................................................................... 8

Install Handle Bar & Unfolding 8

Charging 9

Install Seat & Install Basket 10

Riding 11

FOLDING AND STORAGE........................................................................................... 11

CHARGING SYSTEM ................................................................................................... 12

RECOMMENDED TOOLS ............................................................................................ 12

BRAKING SYSTEM...................................................................................................... 12

Adjusting the Brakes 12

Squeaky Brakes 13

TIRES AND WHEELS................................................................................................... 13

Tire Pressure 13

ADJUSTING THE HEAD UNIT..................................................................................... 13

CHAIN CARE................................................................................................................ 14

Lubrication 14

Chain Adjustment 14

TROUBLESHOOTING GUIDE ..................................................................................... 15

OTHER QUESTIONS.................................................................................................... 15

Page 7

GETTING TO KNOW YOUR BLADEZ POWER BOARD

Before operating your BLADEZ Power Board, please get acquainted with all of the features:

1. Accelerator Lever (Variable Speed)

2. Brake Lever

3. Folding Handle

4. Disc Brake

5. Kick Stand

6. Charging Plug

7. 550 W Electric Motor

8. Mud Guard

9. 24V, 22AH Batteries

10. AC Charger

11. Charger Cord

12. Seat Clamp

13. Seat Pin

14. Seat

15. Seat Post

16. Base Stem

17. Power Panel with On/Off Switch

18. Bag

19. Head Light

20. Tail Light

21. 10 & 13mm Wrench

22. 4mm Allen Wrench

21 22

Page 8

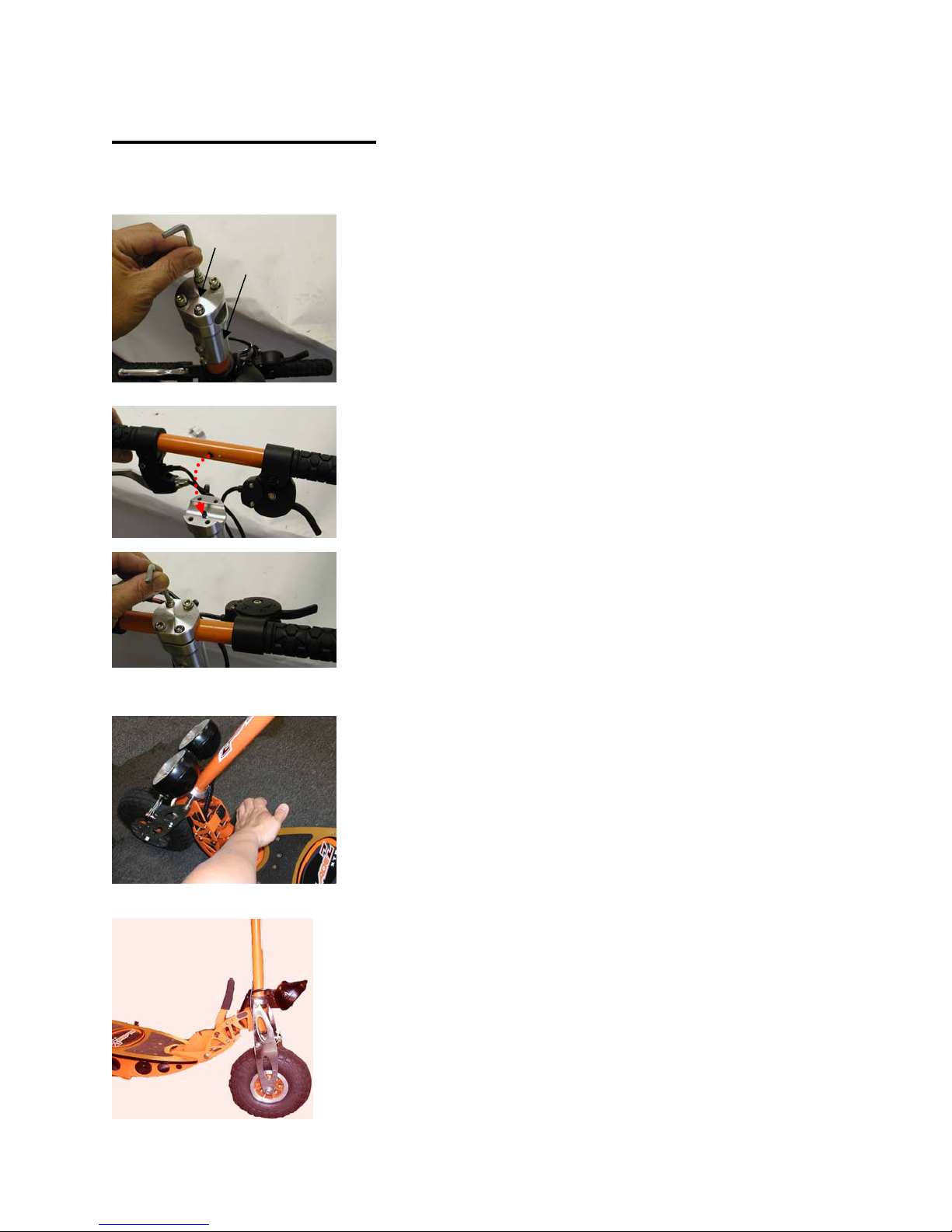

GETTING STARTED

Install handle bar

Before using your XTR-HD, loosen the 4 bolts from the

Billet Aluminum Stem with the Allen Wrench provided, and

then remove the stem from the cap as shown in Fig 1.

Place handle bar onto the Billet cap with the hole facing

down towards the threaded bolt as shown with arrow in Fig

Place the Billet Stem on top of the handle bar and the cap

and tighten the bolts to secure the handle bar onto the cap

as shown in Fig 3.

Unfolding Instruction

1. To unfold the XTR-HD, begin by pressing

down on the FOLDING HANDLE with one

hand (Fig. 4), while gently pulling up on the

handlebars with the other hand.

2. Fully extend the handlebars to their upright

position until you feel the mechanism lock

into place (Fig. 5).

Cap

Ste

Fig. 1

Fig. 2

Fig. 3

Fig. 8

Fig. 4

Fig. 5

Page 9

Charging

Your XTR-HD should come charged out of the box. Bladez still recommends charging

the unit for 6-8 hours prior to first use! Bladez also recommends charging your XTR-HD

after every use and prior to storage.

Warning: DO NOT allow your Powerboard to go into deep discharge! – This will damage

the batteries.

Charging Instructions

Charging

1. Carefully remove the XTR-HD from the box.

2. Make sure the unit is turned OFF.

3. Open the charging plug by rotating the safety

cover counter clockwise as shown in arrow

from Fig. 6.

4. Turn on the charger by switching the on/off

button on the back of the charger.

5. Locate the AC CHARGER and plug it into

wall. Insert the charger (the end with the

prongs inside of it) into the charging plug. A

red light will come on the Charger indicating

that the charger is turned on (Fig. 7). The

light next to the red light indicate the

charging status of your Power Board.

The charging light indication is shown on top of the

charger as shown in Fig 8.

= Charging

= Full charge

= Disconnect

6. Remove charger and close the safety cap.

7. You are now ready to ride the XTR-HD.

Note: If the light turns green right away, this is because the unit was charged at the

factory. Please continue charging for 6-8 hours prior to initial use.

Fig. 6

Fig. 5

Fig. 7

Fig. 8

Status light

Power On light

Page 10

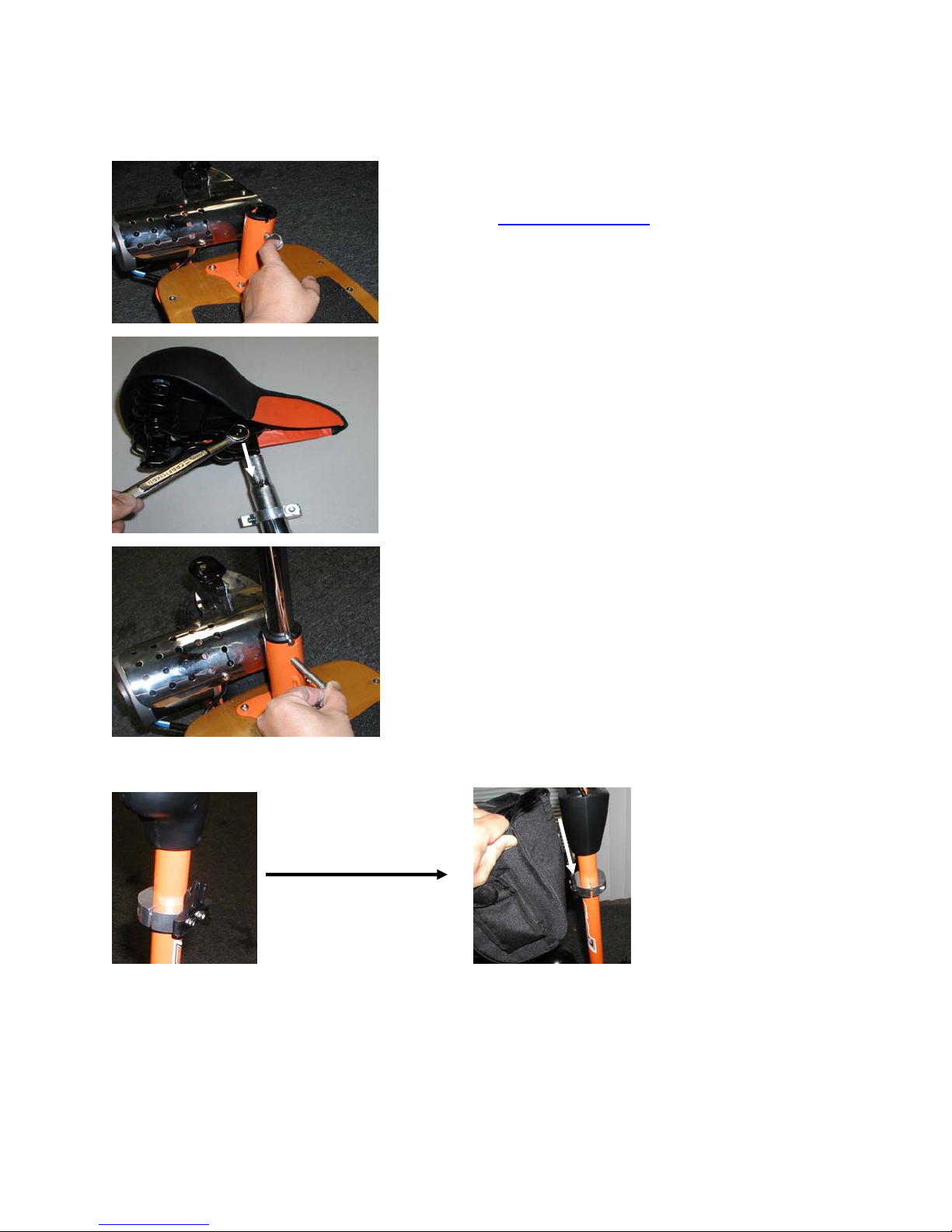

Install Seat

Your XTR-HD comes with Seat Attachment.

Additional seat option is available for purchase

directly from www.ebladez.com.

1. Pull out the lock pin from the Base Stem as

shown in Fig 9.

2. Insert the seat onto the Base Post, adjust seat

position and tighten and close seat clamp with

a 14mm wrench as shown in Fig 10.

3. Press to insert the Base Post with the seat

firmly into the Base Stem. Make sure the tube

guides slide into the base grooves.

4. Slide the Seat Pin through Base Stem to

secure the Base Post (Fig. 11).

5. Adjust to desired height if necessary.

Install Basket

Fig. 9

Fig.10

Fig.11

Snap basket onto slot

as shown in arrow

Slot
