G7 Dock

Technical User Manual

Rev. 11 2022-09-26

Contents

1OVERVIEW ..................................................................................................................................................5

1.1 G7 DOCK CONNECTIVITY ...............................................................................................................5

1.2 BLACKLINE LIVE................................................................................................................................5

1.3 WHAT’S IN THE BOX ........................................................................................................................5

1.4 HARDWARE DETAILS .......................................................................................................................6

2SET UP.........................................................................................................................................................8

2.1 GAS INLET CONFIGURATION.........................................................................................................8

2.2 CUSTOMIZING INLETS ................................................................................................................. 10

2.3 REACTIVE GASES ........................................................................................................................... 10

2.4 CONNECTING G7 DOCK TO A CALIBRATION GAS CYLINDER............................................. 10

3OPERATING............................................................................................................................................. 11

3.1 REQUIREMENTS ............................................................................................................................ 11

3.2 POWERING ON .............................................................................................................................. 11

3.3 PLACING G7 INTO G7 DOCK ...................................................................................................... 12

4FEATURES................................................................................................................................................ 13

4.1 CHARGING G7 ............................................................................................................................... 13

4.2 BUMP TEST..................................................................................................................................... 13

4.3 CALIBRATION ................................................................................................................................. 14

4.4 G7 DOCK UPDATE......................................................................................................................... 15

4.5 MULTI-DOCK SETUP..................................................................................................................... 15

5MOUNTING............................................................................................................................................. 16

5.1 WALL-MOUNTING......................................................................................................................... 16

6G7 DOCK CARE ...................................................................................................................................... 17

6.1 MAINTENANCE............................................................................................................................... 17

7TROUBLESHOOTING ............................................................................................................................ 17

7.1 SETUP FAQ...................................................................................................................................... 17

7.2 CALIBRATION AND BUMP TEST FAQ ........................................................................................ 18

2022-09-26 Rev. 11

8SPECIFICATIONS AND LEGAL NOTICES............................................................................................ 18

8.1 DETAILED SPECIFICATIONS......................................................................................................... 18

8.2 LEGAL NOTICES............................................................................................................................. 19

9SUPPORT................................................................................................................................................. 20

9.1 LEARN MORE.................................................................................................................................. 20

9.2 CUSTOMER CARE.......................................................................................................................... 20

Rev. 11 2022-09-26

WARNING

Electrical equipment may be hazardous if misused.

Seek advice from your local electronics recycling authority regarding the disposal of your

device. Do not dispose Blackline products in your household trash.

DANGER

Do not use G7 Dock in areas classified as hazardous locations, where there is risk of

explosion due to presence of gas, vapor, or dust. G7 Dock is not certified as intrinsically safe.

Do not place G7 Dock in or near open flame or submerge in liquid.

2022-09-26 Rev. 11

1OVERVIEW

G7 Dock is Blackline Safety’s accessory for completing compliance operations (bump testing

and calibration) and charging G7. It supports both G7c and G7x devices with single-gas, multi-

gas diffusion or multi-gas pumped cartridges.

Simply insert G7, and G7 Dock will do the rest. It automatically charges G7 and places G7 into

a test-ready mode to eliminate false alerts.

1.1 G7 DOCK CONNECTIVITY

G7 Dock is not inherently connected to the Blackline Safety Network. A connected G7 device

placed in G7 Dock communicates to the network and to G7 Dock.

The Blackline Safety Network is the cloud-hosted system used to monitor your safety. It

includes cellular networks, satellite networks, our Blackline Live cloud-based application, your

monitoring account, and your personal safety monitoring device.

Each device requires an active service plan to connect to the Blackline Safety Network.

1.2 BLACKLINE LIVE

Blackline Live keeps track of G7 and G7 Dock events, including alert history, gas calibrations,

and bump tests, and eliminates the need to manually retrieve data logs from the field. When

in G7 Dock, all G7 data is communicated in real-time.

For more information, please see Blackline Live.

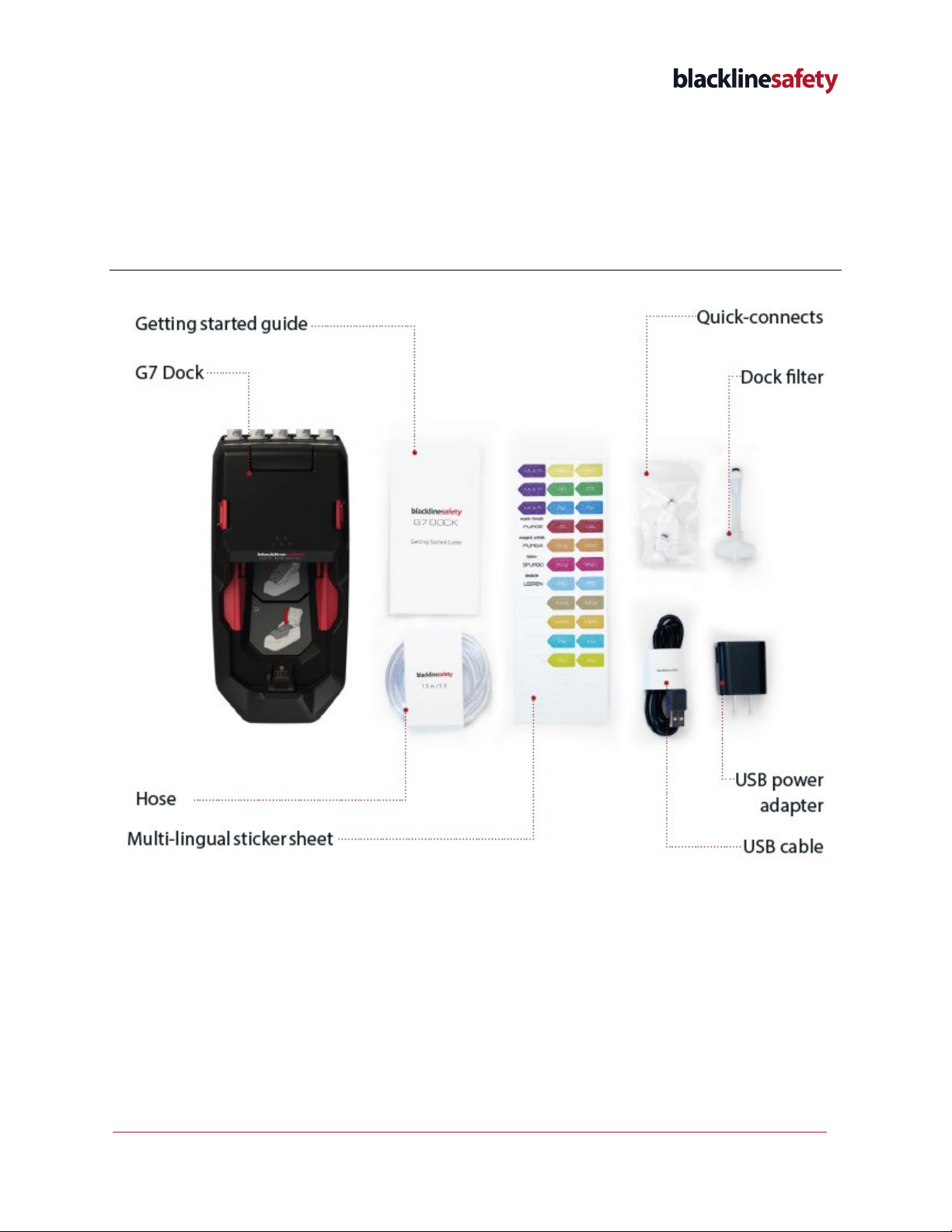

1.3 WHAT’S IN THE BOX

Your G7 Dock comes with the following components:

•G7 Dock

•Tubing

•Quick-connects (four male, one female)

•Power components:

•USB cable

•USB power adapter

Rev. 11 2022-09-26

•Dock filter

•Multi-lingual sticker sheet

•G7 Dock Getting Started Guide

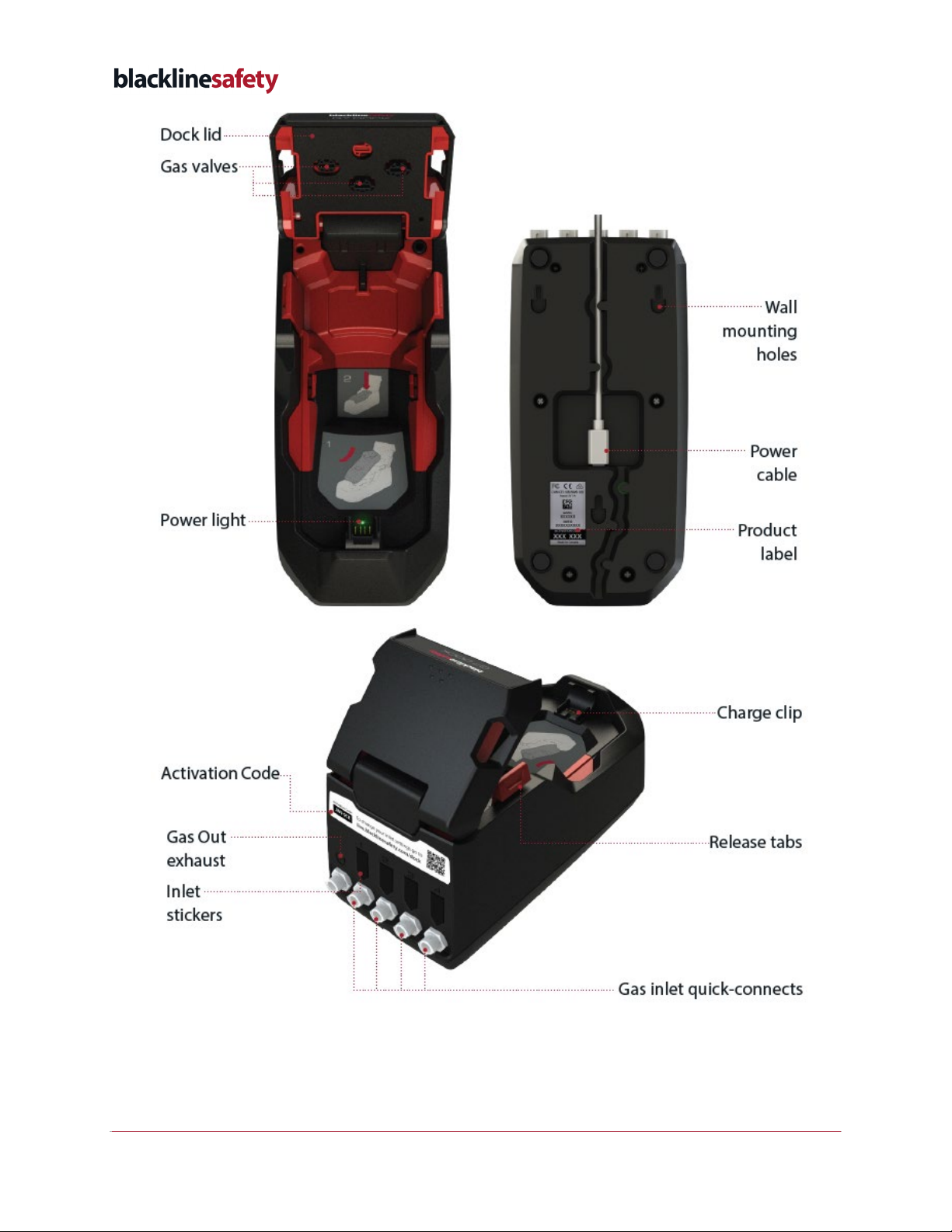

1.4 HARDWARE DETAILS

2022-09-26 Rev. 11

Rev. 11 2022-09-26

2SET UP

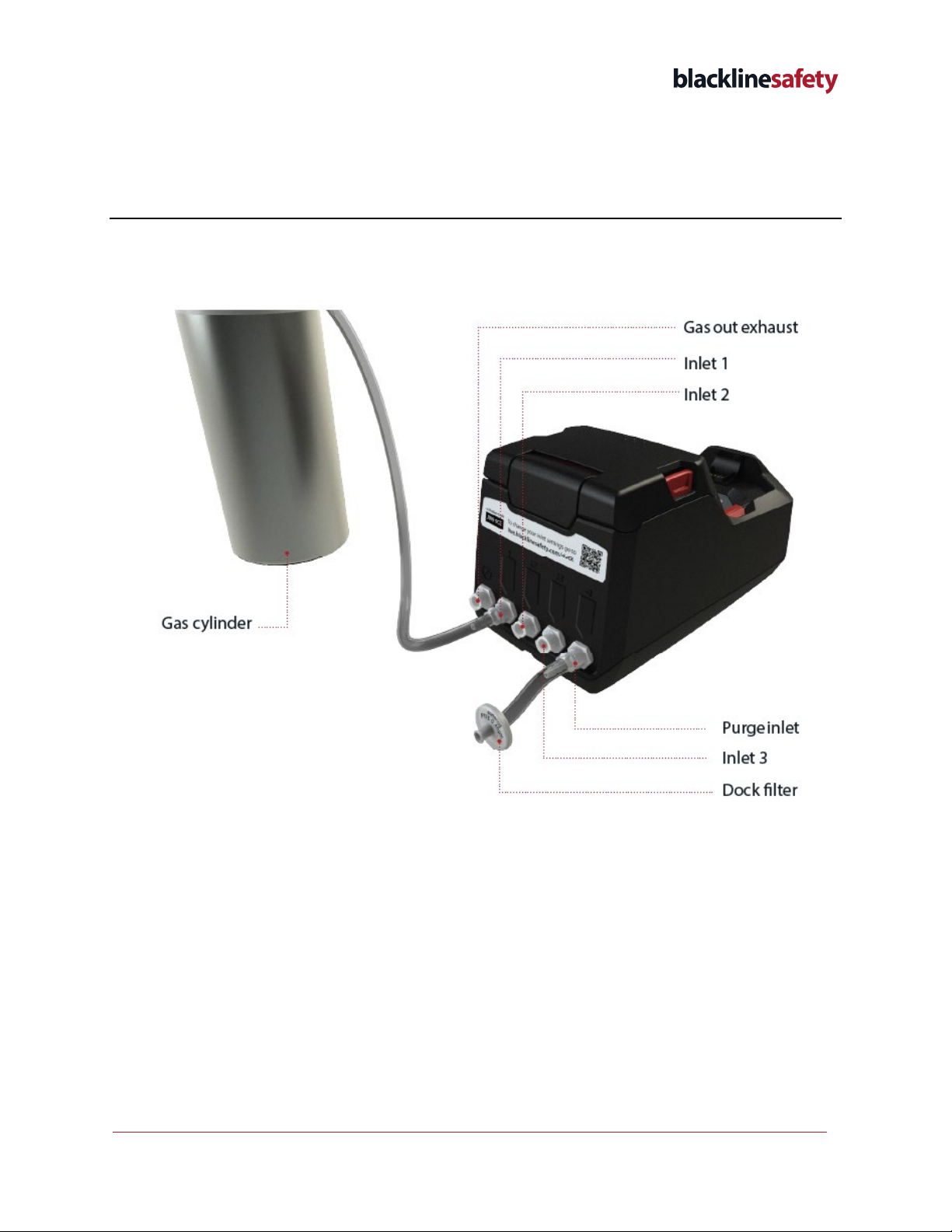

2.1 GAS INLET CONFIGURATION

The back of G7 Dock is equipped with a Gas out exhaust and four gas inlets with

quick-connects. The inlets are pre-programmed for you.

When looking at the back of G7 Dock, the Gas out exhaust is the connector on the far-left

side of the dock. It is used to transfer calibration gas to a safe exhaust location.

NOTE: You should never plug gas into the Gas out exhaust.

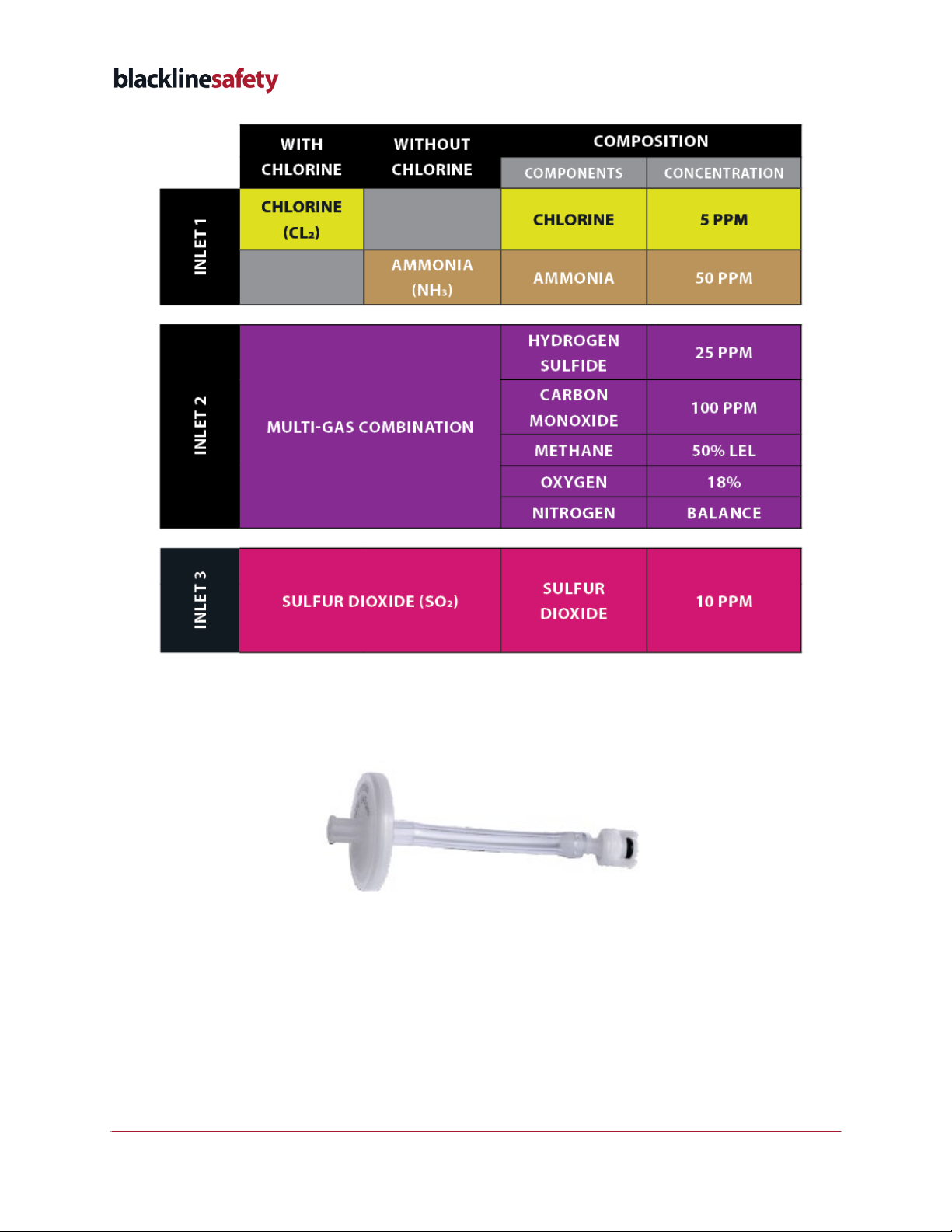

The next three inlets (to the right of the Gas out exhaust) are configured to support your

selected gases and gas mixtures. The table below shows an example of a configuration with

and without Chlorine (Cl2). Your configuration may be different depending on the gases

configured in Blackline Live for your site.

NOTE: For G7 Docks with serial numbers beginning with 8247 and higher, inlet 1 has been

optimized for use with reactive gases such as Cl2. If you are configuring G7 Dock for use with

Cl2, you must use inlet 1 for the Cl2.

2022-09-26 Rev. 11

Inlet 4 is configured as a purge inlet, supplying clean air to remove residual gas from G7

Dock. When using dock in dusty or humid environments, you can attach the optional dock

filter subassembly to the purge inlet to ensure dock is being purged with clean air.

The dock filter subassembly is made up of four pieces:

•a disposable filter

•a luer fitting

•2” tube

•one of the provided male quick connects

The filter piece may need to be replaced as it absorbs contaminants from the air.

Rev. 11 2022-09-26

2.2 CUSTOMIZING INLETS

All four inlets are customizable, and a multi-lingual sticker sheet is provided to label

customized inlets.

Changes to your inlet configuration can be made in G7 Dock’s configuration profile, from the

Docks page on Blackline Live. The activation code on the back of the Dock can be used to

identify it from the list. If you are having difficulties accessing this page or finding G7 Dock in

Blackline Live, please contact our Customer Care team.

2.3 REACTIVE GASES

If you are using chlorine (Cl2) with G7 Dock, you must use the following:

•Inlet 1, which has been optimized for Cl2and other highly reactive gases based on

order of gas calibration or bump testing.

•Teflon lined tubing (ACC-FEP-T2).

•A stainless steel regulator, or a regulator with a Viton valve seat and seals (ACC-DFR-V).

For more information on bump testing and calibrating with reactive gases, please see G7 Gas

Sensor Bump Testing and Calibration Order.

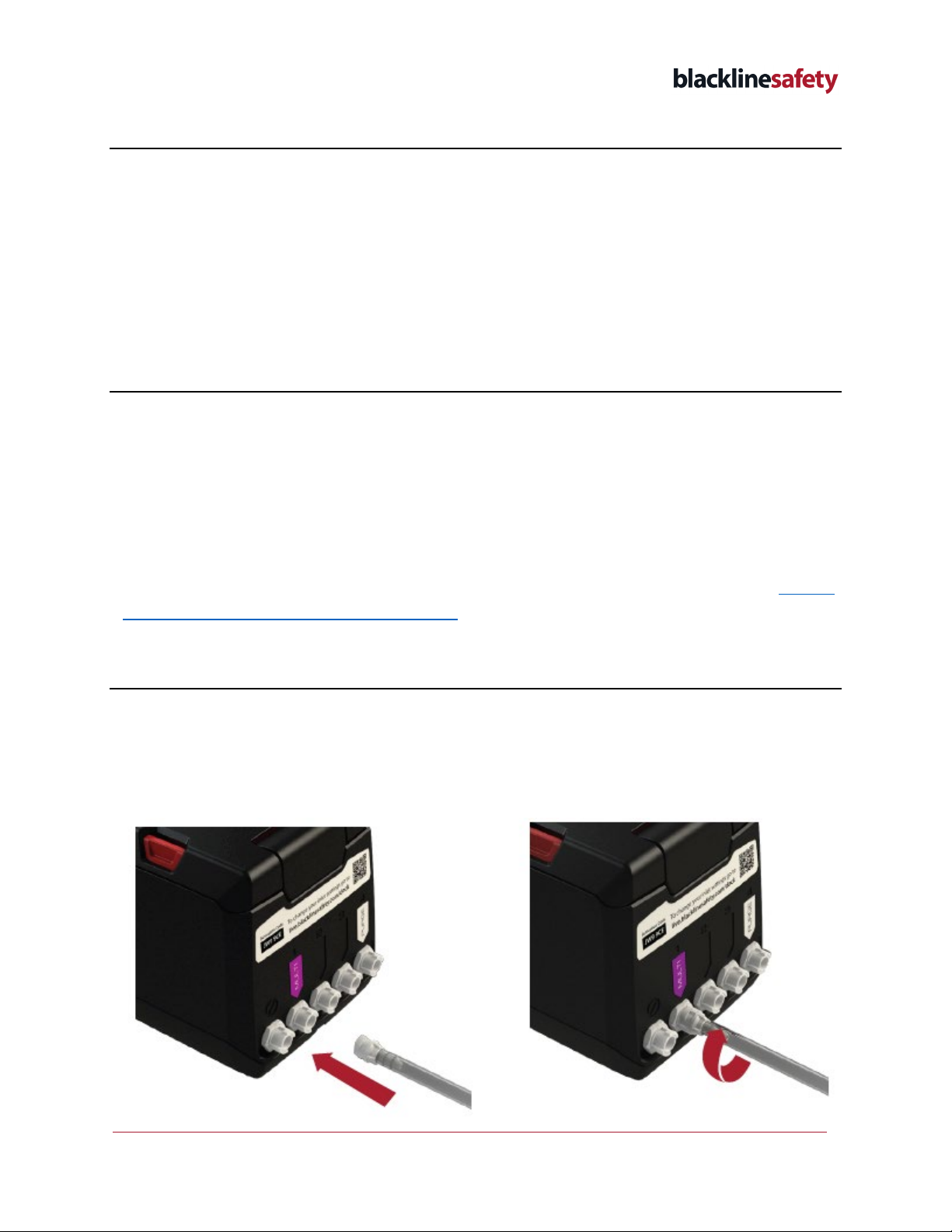

2.4 CONNECTING G7 DOCK TO A CALIBRATION GAS CYLINDER

G7 Dock provides quick-connects that attach to one end of the tube. Join the tube to the

configured inlet at the back of G7 Dock by connecting both quick-connect ends and twisting

clockwise until it clicks securely into place. Ensure the other end of the tube is attached to a

demand flow regulator on the gas cylinder.
