Black Widow 5-BUTTON SERIES Manuel utilisateur

Standard Features:

Two 5-Button RemoteTransmitters

Status indicator (LED)

Valet / override switch

Multi-tone siren

Dual stage impact sensor

Remote panic

Remote chirp mute

Remote sensor bypass

Passive or active arming

Optional Features:

Flashing parking lights

Starter disable

Keyless entry

Remote trunk or hatch release

Illuminated entry

Hood and trunk protection

Remote auto start

Power window roll up

Glass break sensor

Microwave sensor

Note: Some features may require additional

parts and labor,and may not be appropriate for

certain vehicles.Consult your authorized dealer.

System Operation

ARMING OPERATION

To arm the system press transmitter button 1:

• The siren will chirp once.

• The parking lights will flash once.*

• The doors will lock.*

• The LED will turn solid for 10 seconds

then start flashing slowly. After 10

seconds the system is armed.

After Arming, if the system detects a bad

sensor or an open zone, the siren will chirp

and the parking lights will flash 4 times to

indicate a zone is open. The system will

ignore that input, but keep all other areas

protected.

WhileArmed,the system will trigger if:

• The doors are opened.

• The shock sensor detects an impact.

• An optional sensor is disturbed.

• The hood or trunk is opened.

When triggered by the door or hood/trunk

input the siren will sound, the horn will

honk, and the parking lights will flash for 45

seconds. If triggered by a sensor, the alarm

cycle will last 30 seconds.

If the same input triggers the system 3 times

during a single arming cycle, the system will

bypass that input, keeping the other zones

protected, until the next time the system is

armed.

If the shock sensor detects a light impact to

the vehicle or an optional sensor is

disturbed, the system will chirp and the

parking lights will flash 5 times to warn away

the potential intruder.

*Optional Feature

6R / 5-BUTTON SERIES

VEHICLE SECURITY SYSTEM

Button 1Button 2

Button 5

Button 3Button 4

BW3750 new size.qxd 4/14/2004 9:09 AM Page 1

PASSIVE ARMING

The passive arming feature allows the system

to automatically arm after closing all doors.

The Passive Arming feature requires the

ignition to have been on for at least 10

seconds prior to exiting the vehicle. This

enables the key to be turned on then off

quickly to avoid passive arming in the event

of refueling, washing the vehicle, etc. The

Passive Arming feature may be enabled during

installation.

To arm the system passively:

1. Turn the ignition key off (make sure

ignition was on for at least 10 seconds).

2. Exit the vehicle and close all doors.

• The LED flashes rapidly indicating that

the system is preparing to arm.(The

system can be armed at any time by

pressing transmitter button 1.)

• If the optional countdown feature is

programmed, the siren will chirp

every 2 seconds until armed.

• The siren will chirp 30 seconds after

the last door is closed to indicate the

system is armed.NOTE:Opening the

hood/trunk or a door resets the

passive arming timer.

• The doors will lock.†*

†If Passive Locking was enabled during installation.

DISARMING OPERATION

To disarm the system press transmitter

button 2.

• The siren will chirp twice.

• The parking lights will flash twice.*

• The doors will unlock.†*

• The dome light will turn on for 30

seconds.*

†If the Passenger Unlock Feature is installed,

pressing the unlock button will unlock only the

driver's door. Pressing the unlock button again

unlocks all doors.

TAMPER ALERT

If the alarm was triggered while away from

the vehicle, the siren will chirp 3 times and

the parking lights will flash 3 times on

disarming for tamper indication. After

disarming the alarm, enter vehicle and turn

ignition on.The LED will flash the zone that

was triggered 3 times (see LED TAMPER

ALERT INDICATIONS).

AUTO REARM

TheAuto Rearm feature allows the system

to automatically re-arm itself and lock the

doors* in the event the system is disarmed

and a door is not opened within 30

seconds. This programmable feature may

be enabled during installation.

SILENT ARMING/DISARMING

Press transmitter button 5 (the Shift

Button) then theArm or Disarm button for

one-time silent operation.The system can

also be programmed for full-time silent

operation during installation.

IGNITION LOCK*

The ignition locking feature automatically

locks the doors 5 seconds after the ignition

key is turned on, and automatically unlocks

when the ignition key is turned off. To avoid

locking keys in the vehicle, the ignition

locking feature will be cancelled if a door is

open when the ignition is turned on. This

feature may be disabled during installation.

*Optional feature

REMOTE PANIC

In the event of an emergency (PANIC)

situation, the system’s siren can be triggered

for 30 seconds to attract attention.To activate

the Panic Feature, press transmitter button 1

for 3 seconds:

BW3750 new size.qxd 4/14/2004 9:09 AM Page 2

• The siren will sound.

• The parking lights will flash*.

Press button 1 to exit panic mode and rearm

the system. Press button 2 to exit panic

mode and disarm the system. The Panic

Feature will not operate when the ignition is

on.

EMERGENCY OVERRIDE

If the transmitter becomes lost or fails to

operate, the system can be disarmed by

using the emergency override feature.

To override the system:

1. Enter the vehicle.

• Because the system is armed, the

siren will sound.

2. Turn on the ignition key.

3. Press theValet switch for 3 seconds.

• The siren will stop sounding.

• The starter defeat will be bypassed.

• The system will enter valet mode.

VALET MODE

When the system is placed into the Valet

Mode the security system will be disabled.

However, the optional keyless entry and

auxiliary features will still function if

installed. The valet feature may be accessed

using the valet switch or using the remote

transmitter.

To enter or exit valet mode using the switch:

1. Be sure the system is disarmed.

2. Turn the ignition key on.

3. Press and hold the valet switch for 3

seconds.

• The siren will chirp once to enter

valet or twice for exit.

• The LED will turn on solid indicating

the system is in valet mode, or turn

off indicating valet mode exit.

To enter or exit valet mode using the

remote:

1. Be sure the ignition key is off.

2. Press transmitter button 2 then button

1 and hold for 3 seconds..

• The siren will chirp once to enter

valet or twice for exit.

• The LED will turn on solid indicating

the system is inValet Mode, or turn

off indicatingValet Mode exit.

OPTIONALTRUNK RELEASE

Press button 3 for approximately 2 seconds

to open the trunk.

OPTIONALTRUNK DISARM

The trunk disarm feature allows the alarm to

disarm automatically whenever transmitter

button 3 is used to activate the optional

trunk release.This eliminates having to first

disarm the alarm before activating the trunk

release. This feature must be programmed

during installation.

REMOTE SENSOR BYPASS

To arm the system and bypass the shock

sensor, press button 1 to arm, then within 2

seconds press button 4. The siren will chirp

once and sensors will be ignored until the

system is disarmed and rearmed.

OPTIONALANTI-CARJACK FEATURE

The optional anti-carjacking feature provides

added security with three operating modes:

Active, Passive, and Full-time. The Anti-

Carjacking feature may be enabled during

installation.

Active. Press transmitter button 4 with the

ignition on to manually activate the anti-

carjacking feature. Press button 4 again to

deactivate the Activecarjack feature.

BW3750 new size.qxd 4/14/2004 9:09 AM Page 3

Passive. When selected, the anti-carjacking

feature will activate whenever a door is

opened while the ignition is on. Press the

valet switch 3 times to deactive the Passive

carjack feature.

Full-time. When selected, the anti-carjacking

feature will automatically activate each time

the ignition is turned on. Press the valet

switch 3 times to deactive the Full-time

carjack feature.

If the carjack feature is triggered:

• The parking lights will flash two times.

• 90 seconds later the parking lights will

flash, the horn will honk, and the siren

will sound for 5 minutes.

• The starter kill will turn on and remain

on until the carjack feature is

deactivated.

TRANSMITTER FUNCTIONS

Button 1 Arm; press 3 seconds for panic

Button 2 Disarm; press twice for optional

Passenger Unlock feature

Button 3 Auxiliary function 1

Button 4 Auxiliary function 2

Transmitter Functions with Shift Key

(Button 5) pressed 1 time:

Button 1 Silent Arm

Button 2 Silent Disarm

Button 3 Auxiliary function 3

Button 4 Car Locator feature (flashes

parking lights,chirps siren,and honks horn

5 times)

Transmitter Functions with Shift Key

(Button 5) pressed 2 times:

Button 1 Arm car 2; press 3 seconds for

panic

Button 2 Disarm car 2; press twice for

optional Passenger Unlock feature

Button 3 Auxiliary function 1 for car 2

Button 4 Auxiliary function 2 for car 2

Transmitter Functions with Shift Key

(Button 5) pressed 3 times:

Button 1 Silent Arm car 2

Button 2 Silent Disarm car 2

Button 3 Auxiliary function 3 for car 2

Button 4 Car Locator feature for car 2

STATUS INDICATOR (LED)

FUNCTION

On Solid =Valet Mode

Slow Flash = SystemArmed

Rapid Flash when disarmed =

PassiveArming

Rapid Flash when armed =

Tamper Alert

On Solid when not in valet =

Open Zone

LEDTAMPER ALERT

INDICATIONS

(after turning on ignition)

1 Flash = optional sensor

2 Flashes = shock sensor

4 Flashes = door

5 Flashes = hood or trunk

Example:flash-flash-pause-

flash-flash-pause = shock

sensor

PARKING LIGHT

INDICATIONS

1 Flash = SystemArmed

2 Flashes = System Disarmed

3 Flashes =Tamper Alert

4 Flashes = Open Zone

Indication (after arming)

5 Flashes =Warn Away

On Solid = System Disarmed

(optional programming for 30

second output on disarm)

BW3750 new size.qxd 4/14/2004 9:09 AM Page 4

Before you begin the installation

• Read the INSTRUCTIONS!

• Always use a multi-meter when verifying

vehicle wiring.

• Before mounting the product, verify with

the customer the desired location for the

valet switch and LED.

• Protect the vehicle by using fender covers.

• Always look before drilling.Make sure you

will not cause damage to vehicle hoses,

electrical looms or physical damage to

vehicle.

• Set the Polarity Jumpers inside the main

unit. (see Jumper Settings)

Mounting System Module

Mount the system module under the dash

where it will be difficult for a potential thief

to locate the module,and away from moving

parts such as brake pedals, etc. Route the

antenna wire away from wire looms,

computer modules and metallic objects for

better range.

Mounting Siren

Mount the siren in a suitable place under the

hood, away from hot and moving engine

parts such as manifolds, fan belts, etc. Make

sure the siren cannot be accessed from

underneath the vehicle or through the grill.

Face the siren down so that water cannot

accumulate inside the siren bell. Protect

wires running through the firewall using

either tape or split loom tubing.If a new hole

is needed, protect the wire from chaffing by

installing a proper size grommet.

Mounting Shock Sensor

Secure the shock sensor to the steering

column, thick wire harness or a dash brace,

using a wire tie. Make sure that the

adjustment screw is accessible for later

testing and adjustment.

16-Pin Main Harness:

• BROWNWIRE - Siren wire output (+) 3A.

Connect to the siren’s red wire. Connect

the siren’s black wire to ground.

• BLACKWIRE - Ground input (-).Connect

to a solid chassis ground that is clean and

free of paint or dirt.

• ORANGE WIRE - Armed Output (-)

500mA. Connect to a relay for optional

circuit defeat (See installation diagrams).The

ORANGE wire provides a ground when the

unit is armed to activate a fuel pump disable

relay or other device (i.e. window control

module, etc.).

• EMPTY - not used.

• YELLOW WIRE - +12V Ignition input.

Connect to a main ignition wire at the

ignition switch harness. This wire shows

+12V when the ignition is on and while

cranking. The voltage must not drop when

the car is starting.

• BROWN/WHITEWIRE - Horn output (-)

500mA. Connect to an optional relay to

honk the vehicle’s horn when the alarm is

triggered.

• BLACK/YELLOW WIRE - Auxiliary 3

output (-) 500mA.Connect to a relay for an

optional feature such as headlight activation,

etc. This output may be programmed for

momentary, timed, or latched operation.

INSTALLATION INSTRUCTIONS

BW3750 new size.qxd 4/14/2004 9:09 AM Page 5

• GRAY WIRE - Auxiliary 1 output (+/–)

15A relay. Connect to an optional feature

such as trunk release,etc.

• WHITEWIRE - Parking Light output (+/-)

10A relay. Connect to the vehicle’s parking

light wire.If the vehicle’s parking light circuit

exceeds 10 amps a relay is required. For

vehicle’s with independent left and right

parking light circuits, the parking light wires

must be connected using diodes to keep the

circuits separate.

NOTE: Do not connect theWHITE wire to

the vehicle’s headlight circuit.

• REDWIRE - +12V Battery input.Connect

the red fused wire on the main harness to a

constant +12V source. This source wire

should be at least 20 amp supply.

• BLACK/WHITE WIRE - Dome Light

output (+/–) 15A relay. Connect to the wire

that activates the vehicle’s dome light,usually

the door pin switch wire. NOTE:The dome

light output is usually connected to the same

wire used for the door trigger input (See

GREEN andVIOLET door trigger wires).

• BLUE/WHITE WIRE - Passenger Unlock

output (-) 500mA. Connect to an optional

relay to unlock the passenger doors when

configured for Driver Priority Unlocking.

• WHITE/REDWIRE -Auxiliary 2 output (-

) 500mA. Connect to a relay or module for

an optional feature such as power window

roll-up, etc.This output may be programmed

for momentary, timed, or latched operation.

• VIOLET WIRE - Positive door trigger (+).

Connect to the door switch circuit wire that

shows +12V when the door is open. This

type of door circuit is usually found on Ford

vehicles.

• GREENWIRE - Negative door trigger (-).

Connect to the door switch circuit wire that

shows ground when the door is open.

• BLUE WIRE - Trunk/Hood trigger (-).

Connect the Blue wire to the trunk and/or

optional hood pin switches.The switch must

provide a ground output when opened.

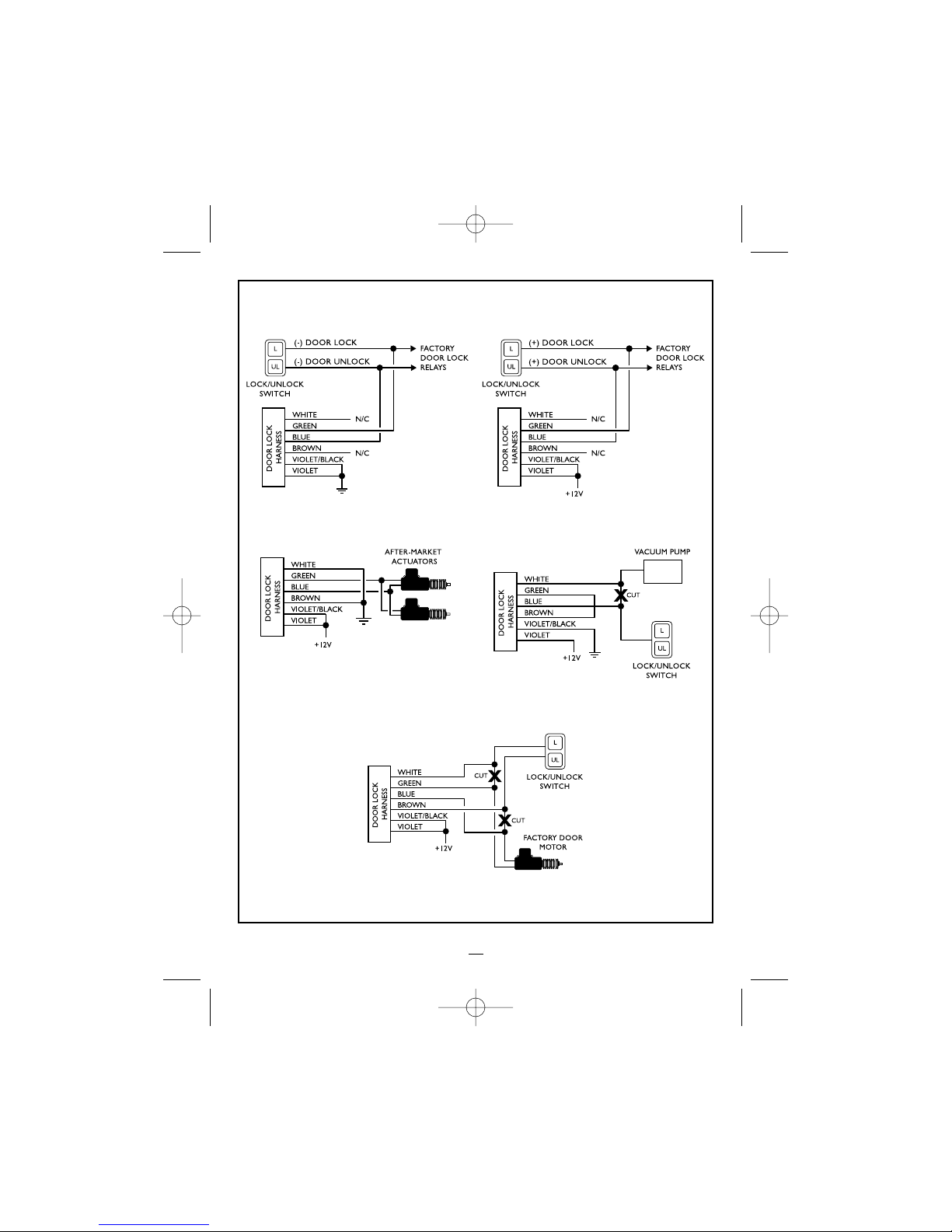

6-Pin Door Lock Connector

Plug-in connector for door lock harness.

• WHITEWIRE - Lock relay N/C (87a).

• GREENWIRE - Lock relay Common (30).

• BLUEWIRE - Unlock relay Common (30).

• BROWNWIRE - Unlock relay N/C (87a).

• VIOLET/BLACK WIRE - Lock relay N/O

(87).

• VIOLETWIRE - Unlock relay N/O (87).

Starter Defeat Connectors

Using a volt/ohm meter locate the starter

wire (normally a heavier gauge wire) at the

ignition switch. This wire will show +12V

only during cranking. When this wire is cut

the vehicle will be unable to start.

Cut the BROWN starter disable wire (with

the two female connectors),and connect one

side to the vehicle’s starter wire coming from

the key switch. Connect the other BROWN

wire to the wire going to the starter.

Plug the female connectors on the BROWN

wires to the .250 male spade lugs on the

module.With the BROWN wires connected

to the module, the vehicle should be able to

start.

Plug in Connectors

2-Pin Red Connector: Plug-in connector

port for LED. Mount LED in an area where

it may be easily seen from either side of the

vehicle.

2-Pin Blue Connector: Plug-in connector

port for valet switch. Mount switch in an area

that is easily accessible from the driver’s seat.

BW3750 new size.qxd 4/14/2004 9:09 AM Page 6

4-PinWhite ConnectorA: Plug-in connector

port for dual stage shock sensor.

4-PinWhite Connector B:Plug-in connector

port for optional dual stage radar sensor.

AddingTransmitters

To add a new transmitter to the system have

the desired transmitters ready and follow

the Code Learning sequence.

To enter Code Learning Mode:

1. Turn the ignition on,off,on,off and leave

on.

• The siren will chirp once.

2. Press and hold the Valet switch for 5

seconds.

• The siren will chirp 3 times.

3. Press the Lock Button on the

transmitter.

• The siren will chirp once.

4. Press Lock Button on the transmitter

again.

• The siren will chirp twice.

5. Repeat steps 3 and 4 for each additional

transmitter (up to 4 total).

6. Turn off the ignition.

• The siren will chirp 3 times.

Two Car Operation

With the supplied 5-button transmitter it is

possible to control a second vehicle using

the same primary transmitter. For Car 2

enter the Code Learning Mode as described

above then substitute the steps below for 3

and 4 above.

3. Press Button 5 twice followed by the

Lock Button.

• The siren will chirp once.

4. Press Button 5 twice followed by the

Lock Button again.

• The siren will chirp twice.

Entering Programming

To enter System Programming:

1. Turn on ignition.

2. Within 5 seconds, press valet switch 5

times.

• The siren will emit a long chirp, to

indicate entering program mode.

3. Press the valet switch the number times

equal to the desired feature.

• The siren will chirp each time the valet

switch is pressed. A long chirp is equal

to 5 presses.(Example:step 7 = 1 long

chirp and 2 short chirps.)

4. Within 5 seconds, press the transmitter

button corresponding to the desired

operating mode for that feature.

• The siren will chirp to indicate the

setting.

One chirp = Button 1

Two chirps = Button 2

Three chirps = Button 3

Four chirps = Button 4

5. Repeat steps 3 and 4 to change

additional features.

6. Turn off ignition to save changes.

Complete Default Reset

This procedure will set all Programmable

Features to factory default settings.

1. Enter System Programming.

2. PressTransmitter Button 3.

• The siren will chirp 6 times indicating

the reset signal was received.

• All Installer and User Programming

options are now set to factory default

settings.

3. Turn ignition off.

BW3750 new size.qxd 4/14/2004 9:09 AM Page 7

Programmable Features

1. Arming Mode. Select between manual

arming (Active), automatic arming (Passive),

and automatic arming with chirps that

countdown every 2 seconds until armed.

2. Parking Light Operation.Selects whether

the parking lights flash twice or remain on

for 30 seconds after disarming the system.

3. Auto Rearm. Automatically rearms the

system in case of accidental disarming.The

system must be armed for at least 10

seconds before disarming, and the

hood/trunk must not be opened or auto

rearm is bypassed.If button 3 is selected,the

doors will lock on auto rearm.

4. Arming Chirps. Select Normal or Silent

Arming.

5. Trunk Disarm Feature. When selected,

activating the Auxiliary function to open the

trunk will automatically disarm the system.

6. Ignition Locking.Automatically locks and

unlocks the doors with the ignition. The

system will not lock the doors if any door is

open when the ignition is turned on.

7. Ignition Unlocking.Automatically unlocks

all doors or only driver’s door with ignition.

8. Door Lock/Unlock Pulse. Selects

between a 1 second lock/1 second unlock

for standard vehicles, 3 second lock/3

second unlock for vacuum lock systems, 1

second lock/1 second unlock 2 times for

some Japanese vehicles, and 30 second

lock/1 second unlock to roll up windows

with lock on some German vehicles.

9. Passive Locking. Selects whether or not

the doors will lock with PassiveArming.

10. Open Door Report. Siren will chirp 4

times if a door remains open 10 seconds

after arming. If vehicle has delayed dome

light, program for 60 seconds (the sensor

and trunk still report after 10 seconds).

11. Siren / Horn Chirps.When set for Horn

Chirps the horn will honk when the alarm is

armed, disarmed, and triggered, allowing the

siren to NOT be installed.Button 3 adds horn

chirps with the warn away feature as well.

12. Auxiliary I. Selectable for Momentary,

Timed,or Latched operation.

Momentary operation - the output is active

as long as the transmitter button is held.

Timed operation - the output turns on for

30 seconds each time the transmitter button

is pressed. If the button is pressed again

during the 30 seconds,the output turns off.

Latched operation - the output turns on

when the transmitter button is pressed and

turns off when the transmitter button is

pressed again.

13. Auxiliary 2. Selectable for Momentary,

Timed,or Latched operation.

14. Auxiliary 3. Selectable for Momentary,

Timed, Latched operation or Ignition

Latched operation (turns on with ignition

and remains on until a door is opened).

15. Auxiliary 2 Auto Activate. When

selected, the Auxiliary 2 output can activate

upon system arming or upon system

disarming to turn on accessory items or turn

on sensors,etc.

16. Door Entry Delay with Passive Arming.

When selected,the door input trigger will be

delayed for 15 seconds, allowing access to

the emergency override switch. Only delays

when the system is armed passively.

17. Horn Honk Output. Selects between

pulsed or constant output for the

Brown/white wire.

18. Anti-Carjack Mode.Selects one of three

Anti-Carjacking modes: Active, Passive, or

Full-Time. Anti-Carjack Activation must be

enabled for any Anti-Carjack mode to

operate.

BW3750 new size.qxd 4/14/2004 9:09 AM Page 8

Active.Pressing transmitter button 4 with the

ignition on will manually activate the Anti-

Carjacking feature.

Passive. When selected, the Anti-Carjacking

feature will activate whenever a door is

opened while the ignition is on.

Full-time.When selected, the Anti-Carjacking

feature will automatically activate each time

the ignition is turned on.

Adjusting Sensors

The sensor test mode allows quick and easy

sensor tuning.

To adjust the sensor(s):

1. Turn on the ignition.

2. PressTransmitter Button 5 then button 4.

3. Test the sensors.

• The siren chirps indicate the zone.

Short chirp = warn (shock/optional)

Long chirp = ShockTrigger

2 long chirps = OptionalTrigger

4. Turn off the ignition.

Testing System

Arm and disarm system, checking that the

siren chirps and parking lights are functioning

normally. Make sure that the programmed

features are performing correctly,ie.:ignition

locks, passive arming, passive locks, etc. Test

the doors and hood/trunk inputs (make sure

all doors trigger the system, not just the

drivers door). Arm the system and try

starting the vehicle, it should not start.

Disarm the system using the emergency

override. Check the range of the remote

transmitters. Make sure the customer has

physical knowledge of the location of the

valet/override switch.

Programmable Features

Step Function Button 1 (default) Button 2 Button 3 Button 4

1. Arming Mode Active Passive Passive w/count

2. Parking Light Output Flash twice 30 seconds

3. Auto Rearm Off Auto rearm Auto rearm w/lock

4. Arming Chirps Normal Silent

5. Trunk Disarm Off On

6. Ignition Locking On Off

7. Ignition Unlocking All doors Driver only Off

8. Door Unlock Pulse 1sec L/1sec UL 3sec L/3sec UL 1 secL/1 ec UL x2 30sec L/1sec UL

9. Passive Locking Off On

10. Open Door Report 10 seconds 60 seconds

11. Siren / Horn Chirps Siren only Horn chirps Horn chirps w/warn

12. Auxiliary 1 Output Momentary Timed Latched

13. Auxiliary 2 Output Momentary Timed Latched

14. Auxiliary 3 Output Momentary Timed Latched Ignition latched

15. AutoActivate Aux 2 Off OnArming On Disarming

16. Entry Delay w/Passive Off On

17. Horn Honk Output Flashing Continuous

18. Car Jack Mode Off Active Passive Full-time

BW3750 new size.qxd 4/14/2004 9:09 AM Page 9

NEGATIVE PULSE LOCK SYSTEM POSITIVE PULSE LOCK SYSTEM

ADDING ACTUATORS VACUUM LOCK SYSTEM

REVERSE POLARITY LOCK SYSTEM

DOOR LOCK WIRING DIAGRAMS

BW3750 new size.qxd 4/14/2004 9:09 AM Page 10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Black Widow Alarme de voiture

Black Widow

Black Widow BW-2500 PREMIER PLUS Manuel utilisateur

Black Widow

Black Widow BW-2000 CLASSIC Manuel utilisateur

Black Widow

Black Widow BW-1150 LEGEND Manuel utilisateur

Black Widow

Black Widow BW 3900 Manuel utilisateur

Black Widow

Black Widow BW-2000 CLASSIC Manuel utilisateur

Black Widow

Black Widow BW 4150 Manuel utilisateur

Black Widow

Black Widow BWS 1000 Series Manuel utilisateur

Black Widow

Black Widow BW 4150 Manuel utilisateur

Black Widow

Black Widow 1R / 2-BUTTON SERIES Manuel utilisateur

Black Widow

Black Widow BW-1000 AVENGER Manuel utilisateur

Black Widow

Black Widow BW 550 Manuel utilisateur

Black Widow

Black Widow BW 2800 Manuel utilisateur

Black Widow

Black Widow BW 550 Manuel utilisateur

Black Widow

Black Widow BW-800 SMART SYSTEM Guide de démarrage rapide

Black Widow

Black Widow BW 2450 Manuel utilisateur

Black Widow

Black Widow 1000 Manuel utilisateur

Black Widow

Black Widow BW 2800 Manuel utilisateur

Black Widow

Black Widow BW-1500 CHALLENGER PLUS Manuel utilisateur

Black Widow

Black Widow BW1700 Manuel utilisateur

Black Widow

Black Widow BW-2500 PREMIER Manuel utilisateur

Black Widow

Black Widow BW-1500 Manuel utilisateur

Black Widow

Black Widow BW 3650 Manuel utilisateur

Black Widow

Black Widow REMOTE START SECURITY SYSTEM Manuel utilisateur

Black Widow

Black Widow BW 3000 Manuel utilisateur

Manuels Alarme de voiture populaires d'autres marques

Clifford

Clifford 3606X Manuel utilisateur

Ultra Start

Ultra Start 2500M SERIES Manuel utilisateur

Ultra Start

Ultra Start 650 Series Manuel utilisateur

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuel utilisateur

Sparkrite

Sparkrite SRA8 Manuel utilisateur

Viper

Viper 4708V Manuel utilisateur

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuel

Falcon

Falcon Predator XL3 Guide de l'utilisateur

Audiovox

Audiovox Auto Security XR91 Mode d'emploi

Clifford

Clifford Sabre II Manuel utilisateur

CrimeStopper

CrimeStopper CS-8717 Guide de démarrage rapide

Ultra Start

Ultra Start 450 SERIES Manuel utilisateur

Scytek electronic

Scytek electronic Vectra X3 Manuel utilisateur

Excalibur

Excalibur AL-1860-EDPB Manuel utilisateur

Clifford

Clifford CYBER 2 Manuel utilisateur

Gemini

Gemini 7057 Manuel utilisateur

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuel utilisateur

Magicar

Magicar FAI-440 Manuel utilisateur
