Black Stone 1859 Manuel utilisateur

17" TABLETOP

GRIDDLE

Parts & Assembly

MODEL 

SIDE BURNER STOVETOP & FRYER

North Atlantic Imports LLC | 1073 West 1700 North, Logan UT 84321 | Blackstoneproducts.com

Before proceeding, make certain

that you read and understand the

Owner’s Manual included with

your griddle.

Hazardous fire or explosion may

result if instructions are ignored.

It is the consumer’s responsibility

to see that the griddle is prop-

erly assembled, installed, and

maintained. Failure to follow the

instructions in this manual could

result in bodily injury and/or

property damage.

SAFETY ALERT KEY

Read and follow all of the notices

found throughout the manual.

INSTALLER/ASSEMBLER:

Leave these instructions with consumer.

CONSUMER:

Keep this manual for future reference.

TO REGISTER your Blackstone product please go to

www.blackstoneproducts.com/register-griddle

Model Number _____________________________

Serial Number______________________________

Date Purchased ____________________________

!DANGER

Indicates an imminently

hazardous situation which, if not

avoided, will result in death or

serious injury.

!WARNING

Indicates the possibility of serious

bodily injury if the instructions

are not followed.

!CAUTION

Indicates a potentially

hazardous situation which, if not

avoided, may result in minor or

moderate injury.

17” Tabletop Griddle Side Burner Stovetop & Fryer | Parts & Assembly

PARTS & ASSEMBLY

ILLUSTRATED PARTS LIST

01. Body (1 piece) 02. Griddle Top & Hood (1 piece) 03. Hood Handle (1 piece)

& Handle grommets (2 pieces)

& M6x16 bolts (2 pieces)

04. Cast Iron Grate (1 piece) 05. Knobs (2 pieces) 06. Griddle Handle (2 pieces)

07. Fryer Cage (1 piece) 08. Fryer Bin (1 piece)

& Fryer Lid (1 piece)

09. Fryer Basket (1 piece)

10. Cooking Thermometer (1 piece) 11. Grease Cup (1 piece) 12. M6X12 Screws (9 pieces)

13. Hard cover (1 piece)

& Hard cover handle (1 piece)

14. Rubber feet (4 pieces) 15. Regulator (1 piece)

17” Tabletop Griddle Side Burner Stovetop & Fryer | Parts & Assembly

ASSEMBLY INSTRUCTIONS

Please read all instructions thoroughly before proceeding. Make sure all

the plastic packing material is removed before assembling

Find a large, clean area to assemble your griddle. Please refer to the parts list

and assembly diagrams as necessary.

TOOLS NEEDED: Phillips Head

Screwdriver & Adjustable Wrench

STEP 01

Remove the griddle body from the packaging and lay it upside down on

a smooth, at surface. Attach the four (4) rubber feet to the bottom of the

griddle, then ip over and install the two (2) knobs by pushing them in place.

17” Tabletop Griddle Side Burner Stovetop & Fryer | Parts & Assembly

!CAUTION

Two people are recommended for

the assembly of this product.

!WARNING

The manufacturer has made every

eort to eliminate any sharp

edges. However, you should

handle all components with care

to avoid accidental injury.

Some parts may contain sharp

edges, especially as noted

in these instructions. Wear

protective gloves if necessary.

!WARNING

The use of alcohol, prescription

or non-prescription drugs may

impair the consumer’s ability

to properly assemble or safely

operate the appliance.

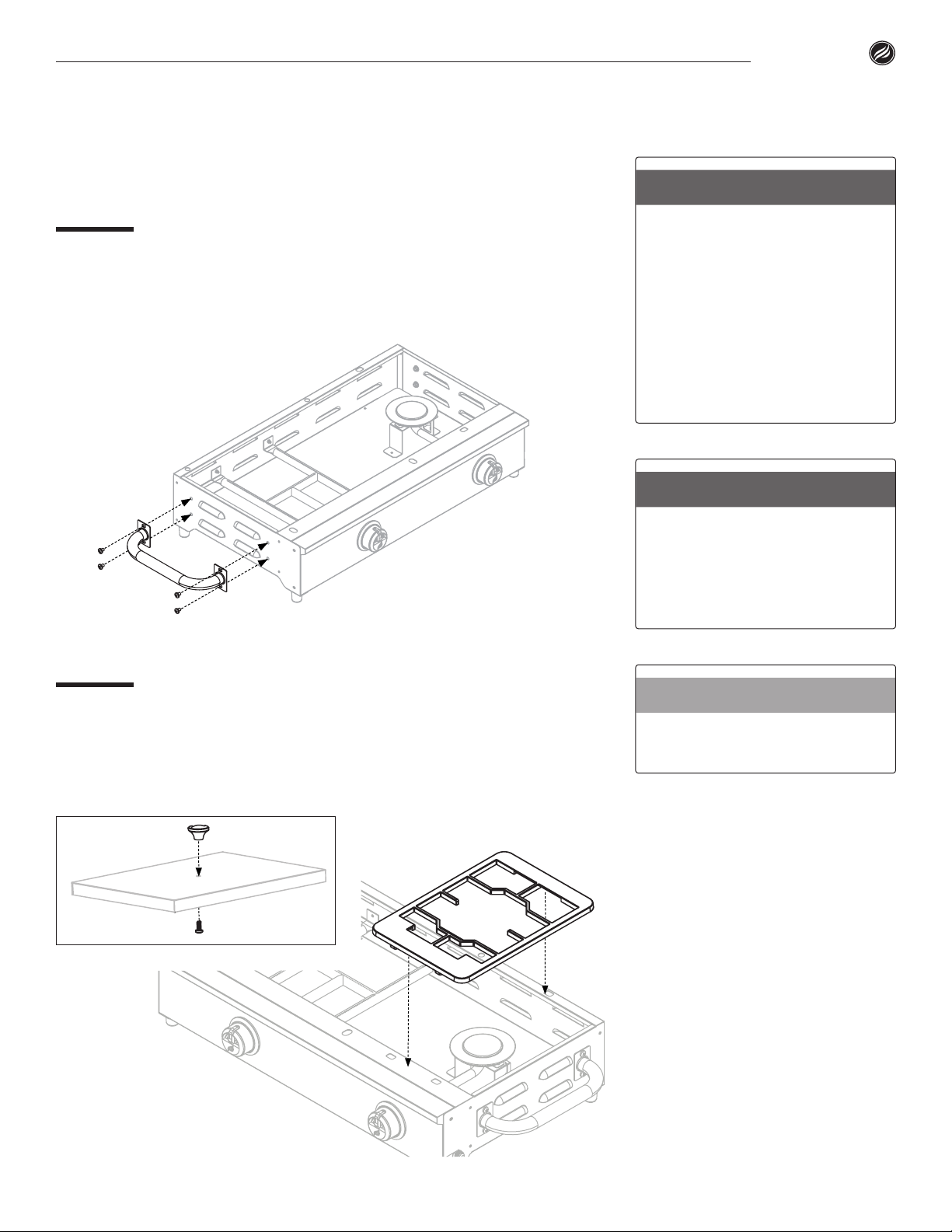

STEP 02

Attach the handle to the le side of the griddle body with four (4) M6X12

screws tightened from the outside. Repeat this step with an additional four (4)

M6X12 screws and four (4) Flange nuts on the right side of the griddle body.

STEP 03

Attach the handle to the hardcover with one (1) M6X12 screw secured from

the bottom. Then, place the cast iron grate on top of the side burner.

17” Tabletop Griddle Side Burner Stovetop & Fryer | Parts & Assembly

STEP 04

Place the fryer cage on top of the cast iron grate. It will t securely when

placed correctly. Then insert the fryer bin into the fryer cage.

STEP 05

Unfold the fryer basket handle and push the handle to lock it into place. Put

the fryer basket into the fryer bin. Place the lid on to the bin and the ther-

mometer into the lid’s slot to complete the fryer assembly setup.

!CAUTION

Place the included hardcover on

the burner when not in use or

if it begins to rain. Never leave

oil exposed in the rain. This can

lead to severe burns.

17” Tabletop Griddle Side Burner Stovetop & Fryer | Parts & Assembly

STEP 06

First, attach the handle to the hood with two (2) handle grommets and two (2)

M6x16 bolts, then place the griddle top onto the griddle body by aligning the

four pins to the holes on top of the body. Make sure the pins are fully seated

in the holes. Place the grease cup on the back of the griddle body in the center

of the unit.

STEP 07

Attach the regulator assembly to the griddle body ensuring that it is tight.

Proceed to seasoning instructions (pg 18) in the Owner’s Manual. Enjoy

cooking outdoors on your Blackstone 17” Tabletop Griddle Side Burner

Stovetop & Fryer!

NEED HELP? Call Blackstone Information

Center for missing parts, assembly or and

operation questions: 435-252-3030

or email us at:

support@blackstoneproducts.com

17” Tabletop Griddle Side Burner Stovetop & Fryer | Parts & Assembly
