OWNER ’S MANUAL
50-2815
A MAJOR CAUSE OF FIRES IS FAILURE
TO MAINTAIN REQUIRED CLEARANCES
(AIR SPACES) TO COMBUSTIBLE
MATERIALS. IT IS OF UTMOST
IMPORTANCE THAT THIS PRODUCT
BE INSTALLED ONLY IN ACCORDANCE
WITH THESE INSTRUCTIONS
WARRANTY REGISTRATION
blackolivegrill.com/registration
O W N E R ’ S M A N UA L
4001609 C H A R C O A L
Please read this entire manual before assembly and use of this
charcoal burning grill. failure to follow these instructions could
result in ProPerty damage, bodily injury or even death.
Contact local building or re ofcials about restrictions and installation inspection
requirements in your area.
Do not use indoors!
This barbecue is designed for outdoor use only. If used indoors, toxic fumes will accumulate and can
cause property damage, bodily injury or even death.
This barbecue should never be used as a heater as this is not its intended purpose.
Carbon monoxide poisoning
Carbon monoxide is a colorless and odorless gas, to prevent it from poisoning you or your family know
the symptoms of carbon monoxide poisoning: headache, dizziness, weakness, sleepiness, nausea,
vomiting, and confusion. Carbon monoxide reduces the blood’s ability to carry oxygen. Low blood
oxygen levels can result in loss of consciousness and death.
See a doctor if you or others develop cold or u-like symptoms while cooking or in the vicinity of this
appliance. Carbon Monoxide poisoning, which can easily be mistaken for a cold or u, is often detected
too late. Alcohol consumption and drug use increases the effects of carbon monoxide poisoning.
Carbon monoxide is especially toxic to mother and child during pregnancy, infants, the
elderly, smokers, and people with blood circulatory system problems, such as anemia, or
heart disease.
Do not! leave infants, children or pets anywhere near a unattended hot barbecue.
Improper assembly or use may be dangerous
Please follow the assembly instructions in this manual. Do not use barbecue unless all components
are properly installed. Make sure the ash pan is properly installed before lighting the grill.
Do not use this barbecue near combustible construction or material, you must follow the clearance to
combustibles section of the installation instructions.
Barbecue must be on a secure and level surface at all times. This barbecue is not to be installed in or
on any type of recreational vehicle or boat.
Keep electrical wires and cords away from the hot surfaces of the barbecue and away from high trafc
areas.
The use of alcohol, prescription or non-prescription drugs may impair the consumer’s ability to properly
assemble or safely operate the barbecue.
Use only on properly grounded outlet.
To protect against electrical shock do not immerse cord, plugs in water or other liquid.
Safety Precautions
2
3
Safety Precautions
Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions or
has been damaged in any manner. Return appliance to the nearest authorized service facility for
examination, repair or adjustment. Unplug from outlet when not in use before and after cleaning.
Allow to cool before putting on or taking off parts.
Your charcoal grill lights DIFFERENTLY from other grills
You must follow the included lighting instructions (pg.14) in order to prevent damage to your grill and
to achieve desired lighting results.
Do not! use gasoline, alcohol or other highly volatile uids to ignite or “freshen up” charcoal.
When opening your grill at high temperature (400OF+), it is important to “burp” the lid then slowly
open to prevent burn back. Failure to do this could result in serious injury.
Keep your charcoal DRY
Do not use wet charcoal. Keep your charcoal stored in a dry environment where it can’t absorb
moisture. Wet or damp charcoal will take longer to light and reduce performance.
After rst use, inspect all fasteners for tightness
The metal band on the Black Olive is designed to keep the top of your grill secure. Due to temperature
changes causing expansion and contraction, checking the tightness of these ttings after the rst few
uses is highly recommended.
DO NOT use water to clean the inside of your grill
The ceramics are porous and will absorb the water. Your grill is self-cleaning. Simply close the lid after
use, allowing any food residue to burn off and carbonize. At the beginning of your next cook, scrape
off the carbon remnants from the cooking surface with a wire brush.
The ceramics shell will also absorb moisture from the air, please keep a cover on grill when not in use.
The more water that the ceramic has absorbed the longer it will take to heat up.
Do not touch hot surfaces. Use handles or knobs.
Never touch the grill, charcoal grate, ashes, charcoal or the barbecue to see if they are hot. When
cooking with a charcoal grill, use appropriate protection and tools to avoid burning injuries. Do not
attempt to move a hot barbecue, Allow the grill to cool before moving.
Do not use water to control are-ups or to extinguish charcoal, as it may damage the ceramic shell.
Extinguish coals by closing cap and air control damper.
Disposal of ashes
Do not remove ashes until all charcoal is completely extinguished and grill is cool. Ashes should be
placed in a metal container with a tight-tting lid. The closed container of ashes should be placed on
a non-combustible surface well away from all combustible materials, pending nal disposal.
Any servicing on the Black Olive Charcoal Grill should be preformed by an authorized
service representative, please contact your local Black Olive dealer.
Save these instructions for future reference
4
Safety Precautions .................................................................................. 2
Table of Contents ..................................................................................... 4
Specications .......................................................................................... 5
Contents ................................................................................................. 6
Uncrating ................................................................................................ 7
Assembly ................................................................................................ 9
Installation Instructions .......................................................................... 12
Clearances ............................................................................................. 12
Lighting Instructions ............................................................................... 14
Operating Instructions ............................................................................ 15
Maintenance and Service ......................................................................... 16
Black Olive Accessories ............................................................................17
Parts Diagram .........................................................................................18
Parts List ................................................................................................20
Troubleshooting ......................................................................................22
Technical Specications ...........................................................................23
Warranty ................................................................................................24
Table of Contents
5

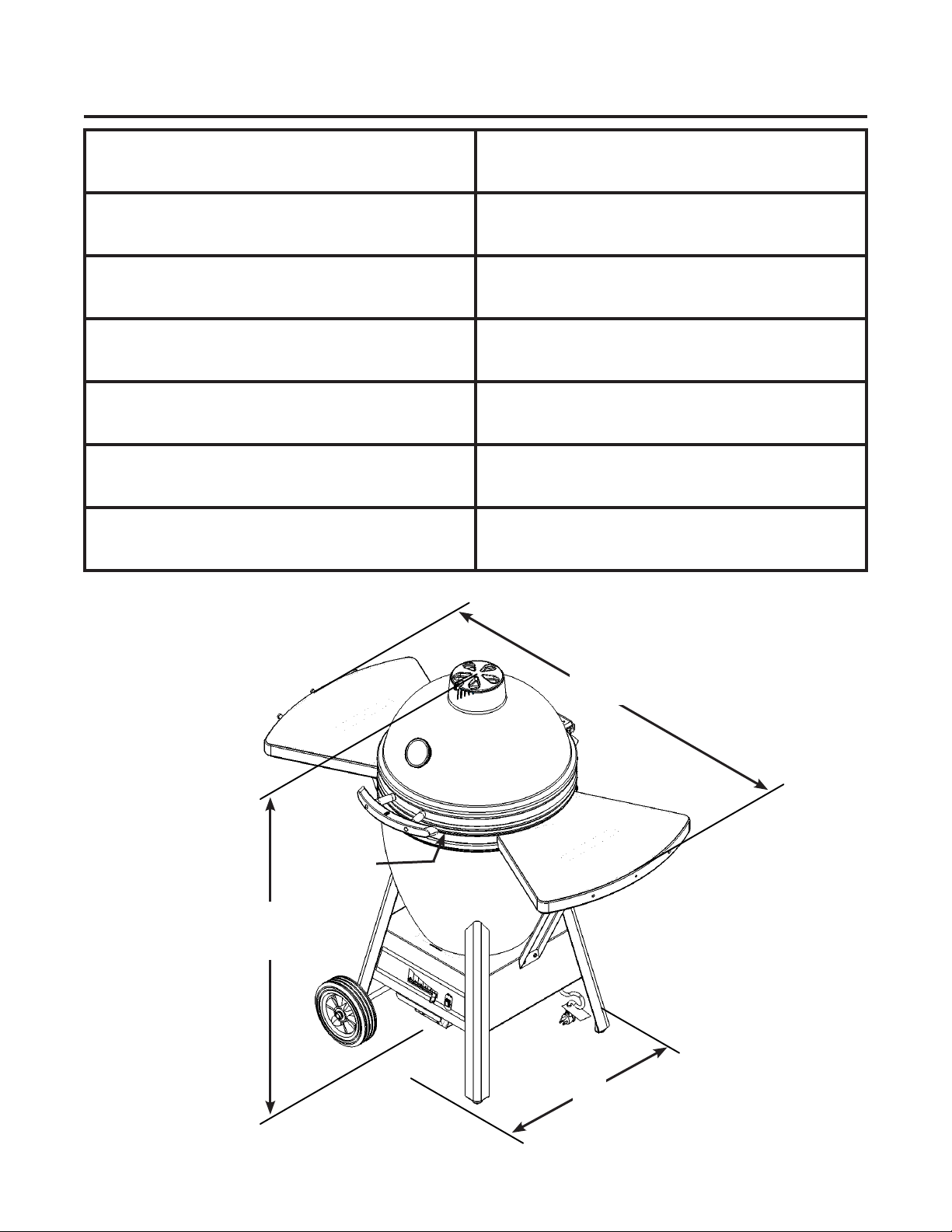

SPECIFICATIONS
Grilling Area 19 3/4” ( 306 sq in )
Maximum BTU 60,000 *
Ignition Time 3 minutes *
Grill Temp 150°F - 650°F+*
Electrical Requirements 120 Volts 3.55 Amps
Unit Dimensions H 49” W 49.5” D 28”
Fuel Lump Charcoal
* dePending on charcoal tyPe
Figure 1 Overall dimensiOns
28”
49”
22” dia.
49.5”
6
CONTENTS
Congratulations on your purchase of the Black Olive Charcoal Grill
The following instructions will walk you step-by-step through the correct assembly
process of your new Black Olive Grill:
For your safety two people are required to lift and assemble the Black Olive Grill.
Your crated Black Olive Grill come partially assembled with the remainder of the parts in a
separate box. Reference the Bill of Materials below to insure you have all the correct components
and fasteners.
12
3
4
Included Hardware
ITEM NO.
DESCRIPTION
QTY.
1
8
2
1/4"-20 Hex Nut, Plated
3
3
1/4" - 20 x 2.25" Base Bolt
8
.5” Plated Push Nut
4
1/4"-20 x .625” Shelf Bolt
1
Crate Contents:
• Assembled Ceramic Shell (complete with hinge, bands, handle, thermometer & cast cap)
• Ceramic Fire Basket
• Ceramic Fire Ring
• Stainless Steel Cooking Grill Support
Component Box Contents:
• Grill Base Assembly with Ash Pan
• Shelf Supports (2)
• Cast Charcoal Grate
• Shelves (2)
• Axle Shaft with 1 push nut installed
• Wheels (2)
• Charcoal scraper tool
• Shell Secure Mount with Ignitor Cover
• Ceramic Blanket
• Cast Iron Cooking Grill
• Grill Cover
• Grill Gripper Tool
• Manual bag with hardware
Tools Required for Assembly (not included):
• 7/16” wrench or socket Rubber mallet or hammer
•
}Inside Shell
• 5/16” socket or at screwdriver (Uncrating)
• Torx T20 screwdriver
• 3/8” socket or wrench
7
UNCRATING
Step 1: To remove the crating you will
need a 5/16” socket or at screwdriver.
Start by removing the screws in the
circled areas shown (see Figure 2) on
both sides of the crate. Both side cross
members can now be removed from the
crate (See Figure 3). DO NOT remove the
red side handles.
Figure 2: CrOss member remOval
Figure 3: Pallet sCrew remOval
Step 2: Remove all of the screws securing
the crate to the pallet using a 5/16” socket
(see Figure 3). There are three screws per
corner. DO NOT attempt to remove the crate
yet.
8
UNCRATING
Figure 4: Hinge braCket braCe
Figure 5: Hinge braCket
Figure 6
Step 3: Remove the two circled screws
shown (Figure 4) from the rear packaging
brace using a 5/16” socket. The crate
can now be removed from the pallet and
shell assembly.
Note: The shell assembly is now
unsupported, be careful not to knock it
over.
Step 4: Next, remove the two bolts on the rear
packaging brace (see Figure 5) using a 3/8” socket.
The rear packaging brace can now be removed
and recycled.
Note: The 3/8” bolts may be re-installed into the
hinge after the plastic bag and shrink wrap has
been removed.
Step 5: The shell assembly is now ready
to be installed onto the base assembly.
Remove all components from the other
box.
9
ASSEMBLY
Step 6: Install the wheels and axle shaft into the
base assembly by resting the base assembly on
its side as shown in Figure 7. Use a rubber mallet
or hammer to install the supplied push nut onto
the free end of the axle shaft. After installing
the wheels, right the base assembly and adjust
the leveling legs until it is level. Be careful not
to damage the air control damper on the
front of the unit.
Step 8: The red side handles can now be
removed (see Figure 9), using a 7/16” wrench
or socket, and recycled. Remove the plastic bag
and any other packaging material. KEEP THE
NUTS FOR MOUNTING THE SHELVES.
Figure 7: wHeel install
Figure 8
Figure 9 : Handle nuts
Step 7: Using the red handles lift the assembled
shell onto the base assembly(This is a two
person job). Make sure the handle and
thermometer are centered with the front of the
base, see Figure 8.
Figure 8: Centered unit
10
ASSEMBLY
Step 9: Open the shell assembly and remove
the ceramic re basket, ceramic ring, grill
support, and any packaging material from inside
the shell.
Step 10: place the 10” round ceramic blanket in
the bottom of the shell. Now take the stainless
steel shell secure plate with ignitor cover tube
attached, slide the ignitor cover tube over the
ignitor. The Ignitor cover tube will locate in the
hole the ignitor is coming up through in the
base. See gure 10.
Figure 10: seCuring tHe sHell
Step 11: Thread the three 1/4”-20 x 2.25”
base bolts through the secure plate into the
corresponding holes on the base assembly.
Tighten the bolts using a 7/16” wrench or socket.
Do not over tighten, stop if secure plate is
bending!
Step 12: Place ceramic re basket, ceramic re
ring, and charcoal grate into shell bottom as
show in gure 11.
Figure 11: inner CeramiCs and grate install
Step 13: Finally install grill support and grill.
The grill support will locate in holes drilled on
the inside the shell. Install as originally installed
when delivered. The smaller cutouts in the grill
locate on the grill support (See gure 12).
Figure 12: grill and suPPOrt install
