Black Box VSW-DVI3X1 Manuel utilisateur

BL A C K B O X®

Switch DVI video from three, four, or eight

sources to a single DVI screen.

3 x 1, 4 x 1, and 8 x 1 DVI-D Switches

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax

724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,

PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com

Customer

Support

Information

VSW-DVI3X1

VSW-DVI4X1

VSW-DVI8X1

Page 2 724-746-5500 | blackbox.com VSW-DVI3X1

FCC and IC RFI Statements

FEDERAL COMMUNICATIONS COMMISSION AND

INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio-frequency energy,

and if not installed and used properly, that is, in strict accordance with the

manufacturer’s instructions, may cause interference to radio communication.

It has been tested and found to comply with the limits for a Class A computing

device in accordance with the specifications in Subpart B of Part 15 of FCC rules,

which are designed to provide reasonable protection against such interference

when the equipment is operated in a commercial environment. Operation of

this equipment in a residential area is likely to cause interference, in which case

the user at his own expense will be required to take whatever measures may be

necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise

emission from digital apparatus set out in the Radio Interference Regulation

of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les

limites applicables aux appareils numériques de la classe A prescrites dans le

Règlement sur le brouillage radioélectrique publié par Industrie Canada.

Normas Oficiales Mexicanas (NOM)

Electrical Safety Statement

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el

aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para

referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

Page 3

724-746-5500 | blackbox.com

VSW-DVI3X1

NOM Statement

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,

cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,

etc..

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales

que sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá

lo descrito en las instrucciones de operación. Todo otro servicio deberá ser

referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,

alfombra o superficie similar puede bloquea la ventilación, no se debe

colocar en libreros o gabinetes que impidan el flujo de aire por los orificios

de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor

como radiadores, registros de calor, estufas u otros aparatos (incluyendo

amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del

tipo descrito en el instructivo de operación, o como se indique en el

aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la

polarización del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no

sean pisados ni pellizcados por objetos colocados sobre o contra ellos,

poniendo particular atención a los contactos y receptáculos donde salen

del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las

lineas de energia.

Page 4 724-746-5500 | blackbox.com VSW-DVI3X1

NOM Statement

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea

usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

Page 5

724-746-5500 | blackbox.com

VSW-DVI3X1

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks of

BB Technologies, Inc.

Any other trademarks mentioned in this manual are acknowledged to be

the property of the trademark owners.

Page 6 724-746-5500 | blackbox.com VSW-DVI3X1

Table of Contents

Contents

1. Specifications............................................................................................. 7

2. Overview .............................................................................................8

2.1 Introduction ....................................................................................8

2.2 Features .......................................................................................... 8

2.3 What’s Included ..............................................................................8

2.4 Hardware Description .....................................................................9

2.4.1 Front Panel............................................................................ 9

2.4.2 Back Panel .......................................................................... 10

2.4.3 Remote Control .................................................................. 11

3. Connection and Installation..................................................................... 12

4. Troubleshooting ...................................................................................... 13

4.1 No Picture is Present ..................................................................... 13

4.2 Contacting Black Box .................................................................... 13

4.3 Shipping and Packaging................................................................ 13

Appendix. DVI-D Pin Configuration ............................................................... 14

Page 7

724-746-5500 | blackbox.com

VSW-DVI3X1

Chapter 1: Specifications

1. Specifications

Approvals: FCC Class A, CE, RoHS

Frequency Bandwidth: 1.65 Gbps (single-link)

Maximum Resolution: Video: 1080p; VESA: 1920 x 1200

Connectors: VSW-DVI3X1: Input: (3) DVI-I F (single-link);

Output: (1) DVI-I F (single-link);

VSW-DVI4X1: Input: (4) DVI-I F (single-link);

Output: (1) DVI-I F (single-link);

VSW-DVI8X1: Input: (8) DVI-I F (single-link);

Output: (1) DVI-I F (single-link);

Power: Input: 110/220-VAC, 50/60-Hz;

Output: 5-VDC/2-A

Size: VSW-DVI3X1, VSW-DVI4X1: 2"H x 9.5"W x 4.5"D (5.1 x 24.1 x 11.4 cm);

VSW-DVI8X1: 2"H x 11"W x 4.5"D (5.1 x 27.9 x 11.4 cm)

Weight: VSW-DVI3X1, VSW-DVI4X1: 4 lb. (1.8 kg);

VSW-DVI8X1: 6 lb. (2.7 kg)

Page 8 724-746-5500 | blackbox.com VSW-DVI3X1

Chapter 2: Overview

2. Overview

2.1 Introduction

Route digital DVI video from various sources (such as a satellite receiver, DVD

player, and PC) to a high-definition display (such as a TV) with the economical

3 x 1, 4 x 1, or 8 x 1 DVI-D Switch from Black Box.

It features a signal enhancer that helps improve signal quality over a long-distance

transmission from source to screen. Running digital video over DVI cable longer

than 15 feet (1.5 m), you might very well experience signal degradation at the

remote screen. This switch, however, is designed to amplify the DVI video signal

as far as 60 feet (18.2 m).

Plus, it’s easy to install and operate. Connect all your digital video sources (DVD

players, satellite set-top boxes, PCs) to any of the inputs on the switch and con-

nect the output cable to your HD display. Then when you want to switch video

ports, simply press a button on the included remote controller or the switch’s

front panel.

NOTE: Equipped with DVI-I ports. Supports digital video only.

2.2 Features

• Switch on the front panel or from the included IR remote controller.

• Route video from three, four, or eight sources to a common digital display.

• Tested to guarantee resolution up to 1080p without signal degradation.

• Signal enhancer amplifies video as far as 60 feet (18.2 m).

• HDCP 1.1 and DVI 1.0 compliant.

• Ideal for use in conference rooms, classrooms, or corporate theaters.

2.3 What’s Included

Your package should include the following items. If anything is missing

or damaged, contact Black Box Technical Support at 724-746-5500

or info@blackbox.com.

• 3 x 1, 4 x 1, or 8 x 1 DVI-D Switch

• Infrared (IR) remote control

• 5-VDC, 2-A power supply

• This user’s manual

Page 9

724-746-5500 | blackbox.com

VSW-DVI3X1

Chapter 2: Overview

2.4 Hardware Description

2.4.1 Front Panel

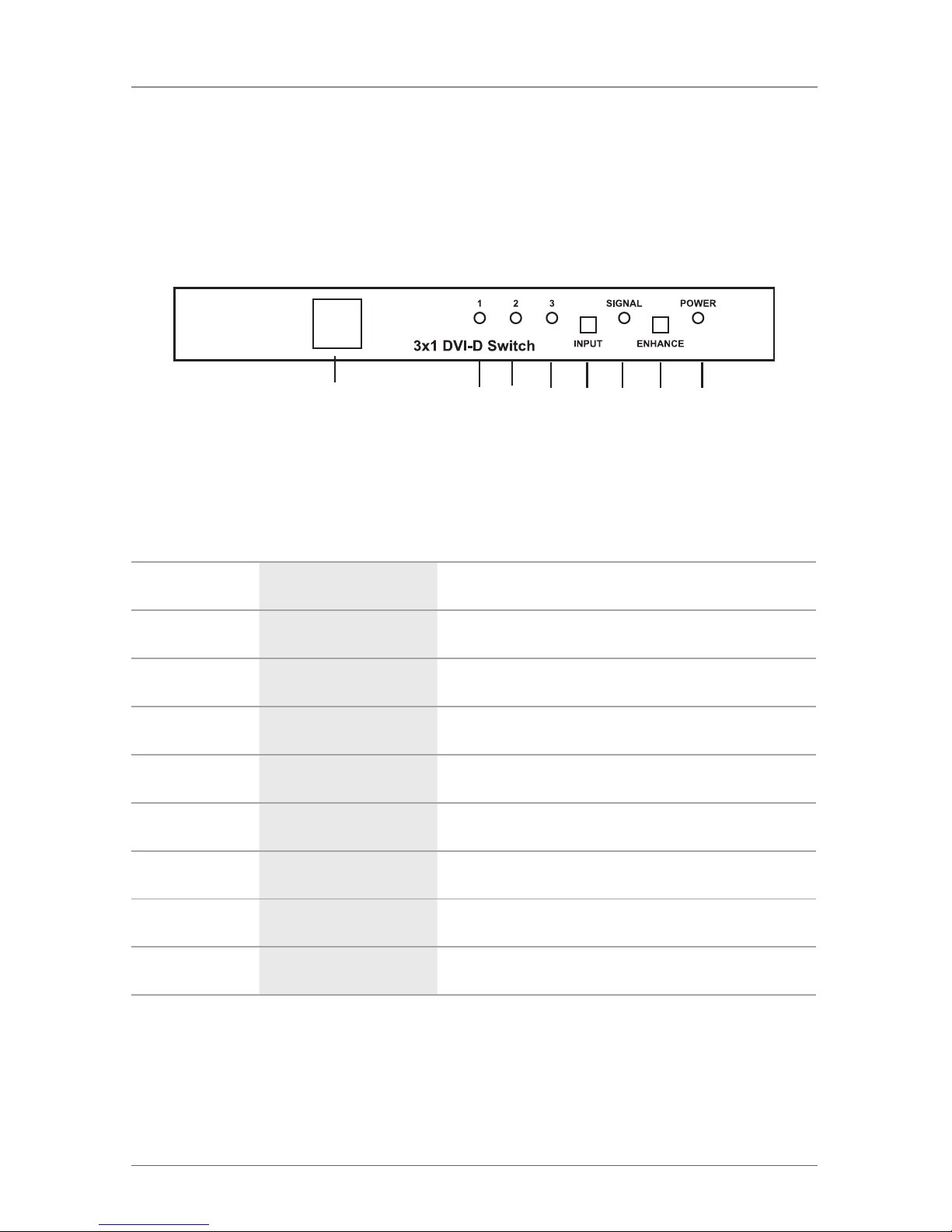

Figure 2-1 shows the 3 x 1 switch’s front panel. Table 2-1 describes its

components. The 4 x 1 and 8 x 1 switches function in the same way as the 3 x 1

switch, but they link one output to four or eight inputs.

1 2 3 4 5 6 7 8

Figure 2-1. Front panel.

Table 2-1. Front-panel components.

Number Component Description

1IR sensor Infrared remote control sensor.

2LED 1 Lights when source 1 is selected.

3LED 2 Lights when source 2 is selected.

4LED 3 Lights when source 3 is selected.

5Input selection button Push to select an input.

6Signal enhance LED Indicates that signal enhance is activated.

7Signal enhance button Press this button to enhance a long-distance transmission

signal.

8Power button Lights when power to the switch is on.

Page 10 724-746-5500 | blackbox.com VSW-DVI3X1

Chapter 2: Overview

2.4.2 Back Panel

Figure 2-2 illustrates the 3 x 1 switch’s back panel. Table 2-2 describes its

components. The 4 x 1 and 8 x 1 switches function in the same way as the 3 x 1

switch, but they link one output to four or eight inputs.

1 2 3 4 5

Figure 2-2. Back panel.

Table 2-2. Back-panel components.

Number Component Description

1DVI out connector Use a DVI-to-DVI cable to connect to your display.

2DVI 3 in connector Use a DVI-to-DVI cable to connect to source 3.

3DVI 2 in connector Use a DVI-to-DVI cable to connect to source 2.

4DVI 1 in connector Use a DVI-to-DVI cable to connect to source 1.

5DC power jack Plug in a 5-V, 2-A VDC power supply (included).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Black Box Changer

Black Box

Black Box LIG401A Manuel utilisateur

Black Box

Black Box ServSwitch DTX5002 Manuel utilisateur

Black Box

Black Box KV6222H Manuel utilisateur

Black Box

Black Box ServShare II KV421A Manuel utilisateur

Black Box

Black Box IC248A Manuel utilisateur

Black Box

Black Box ServSwitch ACU1006RA Manuel utilisateur

Black Box

Black Box EMERALD EMD200DP-T Manuel utilisateur

Black Box

Black Box SW621A-R3 Manuel utilisateur

Black Box

Black Box IC445A Manuel utilisateur

Black Box

Black Box ServSwitch 4site II Manuel utilisateur

Black Box

Black Box SW1046A Manuel utilisateur

Black Box

Black Box KV9316A-R2 Manuel utilisateur

Black Box

Black Box Code Operated Switch-16 Manuel utilisateur

Black Box

Black Box KV9508A Manuel utilisateur

Black Box

Black Box ServSwitch DTX5000 Manuel utilisateur

Black Box

Black Box KV2004A Manuel utilisateur

Black Box

Black Box AC1032A-2 Manuel utilisateur

Black Box

Black Box LGB5128A Manuel utilisateur

Black Box

Black Box IC1020A Manuel utilisateur

Black Box

Black Box VSW-HDMI2-3X1 Manuel utilisateur

Black Box

Black Box MT720A Manuel utilisateur

Black Box

Black Box LEH1104A-2GSFP Manuel utilisateur

Black Box

Black Box ICI104A Manuel utilisateur

Black Box

Black Box ServSwitch ACXCWDM4 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
