Step-By-Step Quick Install Guide for the

ServSwitch™

1. Introduction

This guide is designed to quickly show you how to attach cables and

equipment in order to install a ServSwitch system. For just the basics, look over

the diagrams on the next four pages. More detailed instructions begin on

page 4.

Power1

SERVSWITCH™ QUICK INSTALL GUIDE

RS-232

POWER

MONITOR/KEYBOARD/MOUSE

CPU 5 CPU 6CPU 7 CPU 8

CPU 2CPU 1CPU 4CPU 3

Labeled "MOUSE"

Unlabeled

ServSwitch

MONITOR/KEYBOARD/MOUSE

CPU 1

1Attach User Adapter Cable. 2Attach monitor

(VGA type shown). 3Plug in monitor.

5Use CPU Adapter Cable to attach CPU this way (PS/2 CPU shown):

HD15 Video.eps

SERVSWITCH™ QUICK INSTALL GUIDE

POWER

6Plug in CPU. 7Plug in

ServSwitch. 8Turn on

ServSwitch.

☞

4Attach your keyboard and mouse this way (PS/2 equipment shown):

Labeled "MOUSE"

Unlabeled

9Turn on monitor

and all CPUs.

SERVSWITCH™ QUICK INSTALL GUIDE

The rest of this guide is divided into five sections, one for each connection type:

Figure 1. Connection sequence.

Required: Section 2, User-Station Connections (see page 5).

Optional: Section 3, Cascade Connections (see page 10).

Required: Section 4, CPU Connections (see page 11).

Optional: Section 5, The RS-232 Connection (see page 18).

Required: Section 6, The Power Connection (see page 20).

RS-232

POWER

MONITOR/KEYBOARD/MOUSE

CPU 5 CPU 6CPU 7 CPU 8

CPU 2CPU 1CPU 4CPU 3

Power UserCPU

Cascade

RS-232

SERVSWITCH™ QUICK INSTALL GUIDE

2. User-Station Connections

Which cables you use for these and how you connect them to the ServSwitch

and to your user-station equipment will depend on what type of equipment

you’re using:

If your keyboard And if your Refer to this section

and mouse are monitor is this (on this page):

this type (with this type (with this

connector): connector):

IBM®PS/2®, RS/6000®, VGA/multisync Section 2.1 (page 6)

or SGI®(6-pin mini-DIN) (HD15)

IBM PC/AT®keyboard, VGA/multisync Section 2.2 (page 7)

(5-pin DIN), RS-232 (HD15)

serial mouse (DB9)

IBM PS/2 or RS/6000 RS/6000 (13W3) Section 2.3 (page 8)

(6-pin mini-DIN)

IBM PS/2 or SGI SGI (13W3) Section 2.4 (page 9)

(6-pin mini-DIN)

SERVSWITCH™ QUICK INSTALL GUIDE

2.1 IBM PS/2 C

OMPATIBLE

EYBOARD AND

OUSE

, VGA/M

ULTISYNC

ONITOR

If your keyboard and mouse are IBM PS/2 compatible (which includes current

RS/6000 and SGIkeyboards and mice, as well as the Microsoft®IntelliMouse®),

and your monitor is a VGA, SVGA, XGA, or multisync type with an HD15 video

connector, first choose your Monitor/Keyboard/Mouse Adapter Cable (User

Cable):

• If your video resolution is not higher than 1024 x 768 pixels, and if your

equipment is within 20 ft. (6.1 m) of the Switch, you can use the standard

(non-coaxial) cable with the product code EHN054.

• If your video resolution is higher than 1024 x 768, or if your equipment is

farther than 20 ft. (6.1 m) from the Switch, you should use the coaxial

cable with the product code EHN283.

When you have the correct cable, hook it up to the ServSwitch and your

equipment this way, as shown in Figure 2:

• Plug the cable’s DB25 connector into the Switch’s MONITOR/

KEYBOARD/MOUSE port.

• Plug the mouse into the cable’s 6-pin mini-DIN connector with the

“MOUSE” label on it.

• Plug the keyboard into the cable’s unlabeled 6-pin mini-DIN connector.

• Plug the monitor into the cable’s HD15 connector.

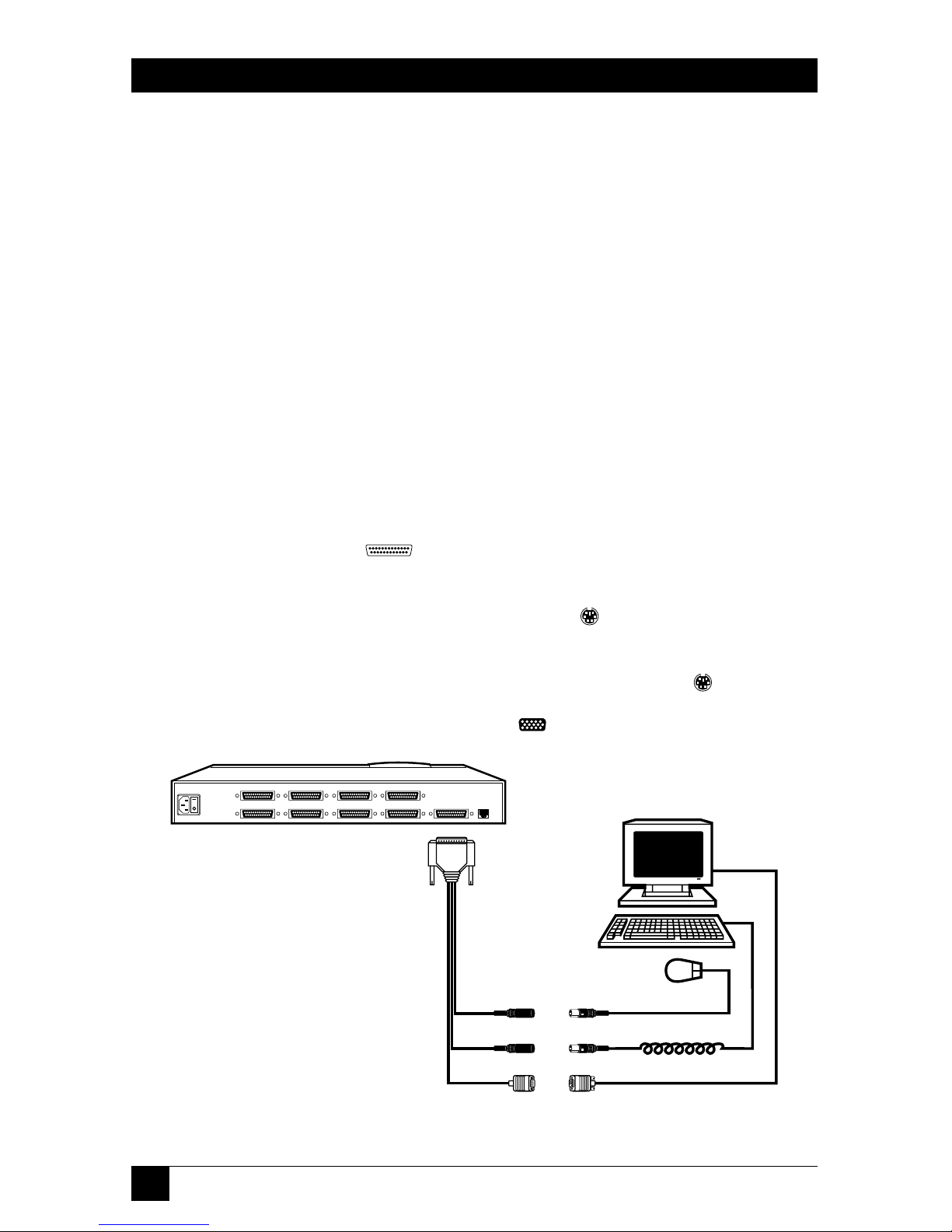

Figure 2. PS/2 type user-station connections.

RS-232

POWER

MONITOR/KEYBOARD/MOUSE

CPU 5 CPU 6CPU 7 CPU 8

CPU 2CPU 1CPU 4CPU 3

EHN054 or

EHN283

SERVSWITCH™ QUICK INSTALL GUIDE

2.2 IBM PC/AT C

OMPATIBLE

EYBOARD

, RS-232 S

ERIAL

OUSE

, VGA/M

ULTISYNC

ONITOR

If your keyboard is PC/AT compatible, your mouse is an RS-232 serial type,

and your monitor is a VGA, SVGA, XGA, or multisync type with an HD15 video

connector, first choose your Monitor/Keyboard/Mouse Adapter Cable (User

Cable):

• If your video resolution is not higher than 1024 x 768 pixels, and if your

equipment is within 20 ft. (6.1 m) of the Switch, you can use the standard

(non-coaxial) cable with the product code EHN052.

• If your video resolution is higher than 1024 x 768, or if your equipment is

farther than 20 ft. (6.1 m) from the Switch, you should use the coaxial

cable with the product code EHN270.

When you have the correct cable, hook it up to the ServSwitch and your

equipment this way, as shown in Figure 3:

• Plug the cable’s DB25 connector into the Switch’s MONITOR/

KEYBOARD/MOUSE port.

• Plug the mouse into the cable’s DB9 connector.

• Plug the keyboard into the cable’s 5-pin DIN connector.

• Plug the monitor into the cable’s HD15 connector.

Figure 3. PC/AT type user-station connections.

RS-232

POWER

MONITOR/KEYBOARD/MOUSE

CPU 5 CPU 6CPU 7 CPU 8

CPU 2CPU 1CPU 4CPU 3

EHN052 or

EHN270

SERVSWITCH™ QUICK INSTALL GUIDE

2.3 IBM PS/2 C

OMPATIBLE

EYBOARD AND

OUSE

, RS/6000 M

ONITOR

If your keyboard and mouse are IBM PS/2 compatible (which includes current

RS/6000 keyboards and mice, as well as the Microsoft IntelliMouse), and your

monitor is an RS/6000 type with a 13W3 video connector, use the coaxial

Monitor/Keyboard/Mouse Adapter Cable (User Cable) with the product code

EHN521-0001. (Note that this cable is available as a stock item only in a 1-ft.

[0.3-m] length; call for a quote if you need a longer version.) Hook this cable

up to the ServSwitch and your equipment this way, as shown in Figure 4:

• Plug the cable’s DB25 connector into the Switch’s MONITOR/

KEYBOARD/MOUSE port.

• Plug the mouse into the cable’s 6-pin mini-DIN connector with the

“MOUSE” label on it.

• Plug the keyboard into the cable’s unlabeled 6-pin mini-DIN connector.

• Plug the monitor into the cable’s 13W3 connector.

Figure 4. RS/6000 type user-station connections.

RS-232

POWER

MONITOR/KEYBOARD/MOUSE

CPU 5 CPU 6CPU 7 CPU 8

CPU 2CPU 1CPU 4CPU 3

EHN521-0001

SERVSWITCH™ QUICK INSTALL GUIDE

2.4 IBM PS/2 C

OMPATIBLE

EYBOARD AND

OUSE

, SGI M

ONITOR

If your keyboard and mouse are IBM PS/2 compatible (which includes current

SGI keyboards and mice, as well as the Microsoft IntelliMouse), and your

monitor is an SGI type with a 13W3 video connector, use the coaxial Monitor/

Keyboard/Mouse Adapter Cable (User Cable) with the product code

EHN501-0001. (Note that this cable is available as a stock item only in a 1-ft.

[0.3-m] length; call for a quote if you need a longer version.) Hook this cable

up to the ServSwitch and your equipment this way, as shown in Figure 5:

• Plug the cable’s DB25 connector into the Switch’s MONITOR/

KEYBOARD/MOUSE port.

• Plug the mouse into the cable’s 6-pin mini-DIN connector with the

“MOUSE” label on it.

• Plug the keyboard into the cable’s unlabeled 6-pin mini-DIN connector.

• Plug the monitor into the cable’s 13W3 connector.

Figure 5. SGI type user-station connections.

RS-232

POWER

MONITOR/KEYBOARD/MOUSE

CPU 5 CPU 6CPU 7 CPU 8

CPU 2CPU 1CPU 4CPU 3

EHN501-0001
