Black Box ICD202A Manuel utilisateur

ICD202A

INDUSTRIAL

OPTO-ISOLATED

RS-422/485

REPEATER

QUICK START GUIDE

24/7 TECHNICAL SUPPORT AT 877.877.2269 OR VISIT BLACKBOX.COM

STEP 1 - What’s Included

• ICD202A Industrial Opto-Isolated RS-422/485

Repeater

• This Quick Start Guide

USER-SUPPLIED COMPONENTS

• 10 to 48 VDC power supply; this repeater draws a

maximum of 2.3 Watts.

• RS-422/485 cables. Recommended characteristics:

(1) or (2) shielded or unshielded twisted pair/s.

STEP 2 - Certifications & UL C1/D2

• FCC Class A

• CE

• IEC 61850-3

• IEEE 1613

• RoHS

SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS A, B,

C AND D HAZARDOUS LOCATIONS, OR NONHAZARDOUS

LOCATIONS ONLY.

CONVENANT À L’EMPLOI DANS LES SITES DANGEREUX

DE CLASSE I, DIVISION 2, GROUPES A, B, C ET D, OU DANS

LES SITES NON HASARDEUX SEULEMENT.

WARNING - EXPLOSION HAZARD - SUBSTITUTION OF

ANY COMPONENT MAY IMPAIR SUITABILITY FOR CLASS

I, DIVISION 2.

ATTENTION - DANGER D’EXPLOSION - LA SUBSTITUTION

DE COMPOSANTS PEUT ENTRAÎNER UNE ADÉQUATION

À LA CLASSE I, DIVISION 2.

WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT

EQUIPMENT WHILE THE CIRCUIT IS LIVE OR UNLESS

THE AREA IS KNOW TO BE FREE OF IGNITABLE

CONCENTRATIONS.

ATTENTION - DANGER D’EXPLOSION - LA SUBSTITUTION

DE COMPOSANTS PEUT ENTRAÎNER UNE ADÉQUATION

À LA CLASSE I, DIVISION 2.

UL CLASS 1 / DIVISION 2 WARNING INFORMATION

Field wiring connections must be made using 105 °C minimum

copper supply wires.

Les connexions de câblage sur site doivent être réalisées

en utilisant des câbles d’alimentation en cuivre de 105 °C

minimum.

To be installed in accordance with control drawing 8513r001.

Pour être installé conformément au dessin de contrôle

8513r001.

Figure 1. Front Panel

Figure 2. Back Panel

STEP 3 - Front and Back Panels, DB9 Pin-out

TABLE 1. FRONT AND BACK PANELS

APower LED Red, “On“ when power is applied; see Section 9.

BData LEDs Green LEDs flash when data is on port; see Section 9.

CRS-422/485

Terminal Block Five-position, removable; see Sections 7 and 8.

DGrounding Lug Chassis ground to earth ground; see Section 5.

EDIP Switches Used to configure the repeater; see Section 4.

Power Terminal

Block 2-position, removable; see Section 6.

CB B

Figure 3. Switch Position 8 is not used. Illustration shows factory default settings.

STEP 4 - Configuration of DIP Switch

TABLE 2: COMMUNICATIONS MODEL SWITCH

1 2 3 4

RS-485 2-Wire

Half-Duplex On On On On

RS-485 4-Wire

Full-Duplex On Off Off Off

RS-422

Full-Duplex Off Off Off Off

TABLE 3: BUILT-IN TERMINATION RESISTOR SWITCH

Use the 120 Ohm built-in termination On

Use external or no termination Off

TABLE 5: BUILT-IN RECEIVE BIAS RESISTOR SWITCH

Use the external or no bias resistor On

Use the 1.2K Ohm receive bias resistor Off

For an explanation of RS-485 termination and biasing

requirements, refer to Black Box‘s white paper, “The Elements of

an RS-422 and RS-485 System.“ This publication can be

downloaded at www.blackbox.com > Resources > White Papers.

STEP 5 - Ground Connection

STEP 6 - Power Connection

Figure 5. Power Connections

Figure 4. Ground Connection

Black Box recommends that you ground the chassis as

shown in Figure 4. Connect a grounding wire from the

ground lug to a good grounding source.

Connect the power. Power requirements are 10 to

48 VDC, 2.3 Watts maximum. The terminal block will

accept 28 to 12 AWG wire.

STEP 7 -

RS-422/RS-485 Terminal Blocks

Figure 6. See cable recommendations in Section 1.

Figure 7. Terminal Block Wiring examples.

TABLE 6. TERMINAL CONNECTIONS

Terminal RS-422 RS-485

A and F –TDA(-)

B and G –TDB(+)

C and H Data A(-) RDA(-)

D and I Data B(+) RDB(+)

E and J Ground Ground

RS-485 2-Wire

STEP 8 -

Wiring Examples

J = Ground

I = Data B (+)

H = Data A (-)

E = Ground

D = Data B (+)

C = Data A (-)

Positions 5, 6, and 7 are used for termination and biasing.

See Section 4. Position 8 is not used.

RS-422/RS-485 4-Wire

During normal operation, the Power LED should be

illuminated.

When data is sent or received on either port, the

corresponding Data LED should flash.

Position 1 is ON for RS-485 and OFF for RS-422.

Positions 5, 6, and 7 are used for termination and biasing.

Position 8 is not used.

STEP 9 -

Operation

TABLE 7: RS-422/485 4-WIRE DIP SWITCH CONFIGURATION

1234567

On On On On XXX

TABLE 8: RS-422/485 4-WIRE DIP SWITCH CONFIGURATION

1234567

XOff Off Off XXX

J = Ground

I = RDB(+)

H = RDA(-)

G = TDB(+)

F = TDA(-)

E = Ground

D = RDB(+)

C = RDA(-)

B = TDB(+)

A = TDA(-)

Documentation Number: pn8868-r3_ICD202A_2318qsg

Table des matières

Autres manuels Black Box Répétiteur

Black Box

Black Box Twin Mux Repeater Module - UTP Manuel utilisateur

Black Box

Black Box WAP?300BGN Manuel utilisateur

Black Box

Black Box LPR110 Manuel utilisateur

Black Box

Black Box 5250 Manuel utilisateur

Black Box

Black Box LZ1500A-R3 Manuel utilisateur

Black Box

Black Box CityLAN 100 Series Manuel utilisateur

Black Box

Black Box LE4200A-R3 LE4202A-R3 Manuel utilisateur

Black Box

Black Box VR-HDMI-50M Manuel utilisateur

Black Box

Black Box TL170A Manuel utilisateur

Black Box

Black Box IC155A Manuel utilisateur

Black Box

Black Box LE8003A Manuel utilisateur

Black Box

Black Box IC155A Manuel utilisateur

Black Box

Black Box 3270 Repeater-Fiber Manuel utilisateur

Black Box

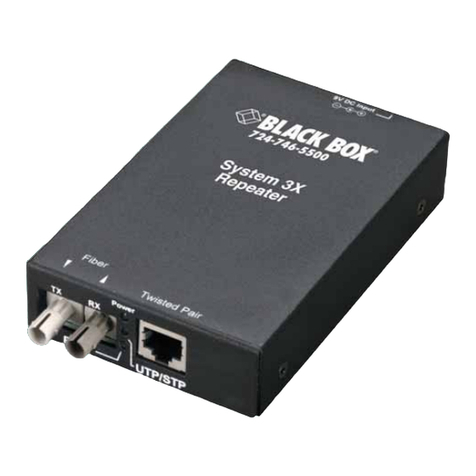

Black Box IC263A Manuel utilisateur
