Black Box EME1DC16 Manuel utilisateur

BL A C K B OX®

Adds 16 opto-isolated dry contacts,

so you can monitor more data points

from a ServSensor V4E.

ServSensor EXP DC16

March 2010

EME1DC16

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) •

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 •

Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 •

Web site: www.blackbox.com • E-mail: info@blackbox.com

Customer

Support

Information

724-746-5500 | blackbox.com

Page 2

724-746-5500 | blackbox.com

ServSensor EXP DC16

We‘re here to help! If you have any questions about your application

or our products, contact Black Box Tech Support at 724-746-5500

or go to blackbox.com and click on “Talk to Black Box.”

You’ll be live with one of our technical experts in less than 20 seconds.

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

724-746-5500 | blackbox.com

724-746-5500 | blackbox.com Page 3

FCC and IC RFI Statements

Federal Communications Commission and Industry Canada Radio Frequency Interference

Statements

This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict

accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to

comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules,

which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial

environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own

expense will be required to take whatever measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to

operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio

Interference Regulation of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de

la classe A prescrites dans le Règlement sur le brouillage radioélectrique publié par Industrie Canada.

724-746-5500 | blackbox.com

Page 4

724-746-5500 | blackbox.com

ServSensor EXP DC16

Instrucciones de Seguridad

(Normas Oficiales Mexicanas Electrical Safety Statement)

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca

de una alberca, etc.

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a lo descrito en las instrucciones de operación.

Todo otro servicio deberá ser referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no interfiera su uso. La colocación del aparato eléctrico

sobre una cama, sofá, alfombra o superficie similar puede bloquea la ventilación, no se debe colocar en libreros o gabinetes

que impidan el flujo de aire por los orificios de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como radiadores, registros de calor, estufas u otros

aparatos (incluyendo amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como

se indique en el aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados

sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

724-746-5500 | blackbox.com

724-746-5500 | blackbox.com Page 5

Table of Contents

1. Specifications ....................................................................................................................................................................................... 6

2. Overview.............................................................................................................................................................................................. 7

2.1 Introduction .................................................................................................................................................................................. 7

2.2 What’s Included ............................................................................................................................................................................ 7

2.3 Hardware Description.................................................................................................................................................................... 8

2.3.1 Front Panel ........................................................................................................................................................................... 8

2.3.2 Back Panel............................................................................................................................................................................ 9

3. Installation .........................................................................................................................................................................................10

3.1 Connecting to the Base Unit........................................................................................................................................................10

3.2 Setting Up a Sensor (Standard Configuration) .............................................................................................................................11

3.3 Setting Up a Sensor (Daisychained Configuration) .......................................................................................................................14

4. Notifications.......................................................................................................................................................................................18

4.1 Adding a Notification ...................................................................................................................................................................1 8

4.2 SNMP Traps..................................................................................................................................................................................19

724-746-5500 | blackbox.com

Page 6

724-746-5500 | blackbox.com

ServSensor EXP DC16

1. Specifications

Components: Manufactured using highly integrated, low-power surface-mount technology to ensure long-term reliability

Data Transfer Rate: 115.2 kbps

Expandability/E-modules: Daisychain multiple E-modules, including EME1X8 and EME1DC16, uses standard RJ-45 connections

and CAT5 LAN cable, connect up to 600 intelligent sensors

Maximum Cable Length: 1000 ft. (300 m)

Mean Time Between Failures (MTBF): 400,000 hours

Network Interface: (1) standard 10/100BASE-T Ethernet RJ-45 port

Connectors: Input: (16) 2-wire dry-contact inputs configured as opto-isolated (2-wire dry-contact inputs support up to 50 VDC

and 80 mA of current, (1) RJ-45 expansion module input (E-in), (1) RJ-45 expansion module output (E-out)

Indicators: (3) LEDs: (1) Power, (1) Network Connectivity, (1) Dry Contact Status

Temperature Tolerance: Operating: -31 to 131° F (-35 to +55° C)

Humidity: 20 to 80%, noncondensing

Power: Output: 7.0–9 VDC, 3 amps, configurable output signals (0–5 VDC) on any of the 8 RJ-45 sensor ports

Consumption: Typical 6.15 watts, 0.82 amps

Size: 1.8"H x 8.5"W x 5.4"D (4.6 x 21.6 x 13.7 cm)

Weight: 2.4 lb. (1.1 kg)

724-746-5500 | blackbox.com

724-746-5500 | blackbox.com Page 7

Chapter 2: Overview

2. Overview

2.1 Introduction

The ServSensor EXP DC16 (EME1DC16) expansion module extends the ServSensor V4E (EME134A) capabilities by connecting

an additional 16 opto-isolated dry contacts. This increases the number of data points that can be monitoried from a single

ServSensor V4E.

2.2 What’s Included

Your ServSensor EXP DC16 package should contain the following items. If anything is missing or damaged, contact Black Box

Technical Support at 724-746-5500 or info@blackbox.com.

• ServSensor EXP DC16

• (1) CD-ROM

• (1) 7.0 –9 V, 2.5 A power supply

• (2) Brackets for rackmounting

• (1) 5-ft. (1.5-m) straight cable

724-746-5500 | blackbox.com

Page 8

724-746-5500 | blackbox.com

ServSensor EXP DC16

2.3 Hardware Description

2.3.1 Front Panel

Figure 2-1 shows the ServSensor EXP DC16’s front panel, and Table 2-1 describes its components.

Figure 2-1. Front panel.

Table 2-1. Front panel components.

Number Component Description

1 Power LED Lights continuously when the ServSensor EXP DC16 is powered on.

If the LED is flashing, there is a problem with the CPU.

2 Link LED Lights when a network connection is present.

3 RJ-45 ports Expansion In/Expansion Out ports. These ports are named E-in and

E-out. The E-in port connects to your ServSensor V4E base unit via a

CAT5e straight-through cable. The E-out port is used to daisychain

additional expansion modules via a CAT5e straight-through cable.

4 Status/Online LEDs 1–16 LEDs numbered 1–16 indicate the connectivity status of the sensors

connected to each port. These LEDs also indicate system status

during various operations.

Table 2-2. Status/Online LED functions.

Function Description

Upgrade in progress The red LEDs will move from left to right to indicate activity, and the green LEDs indicate

overall progress of the upgrade. When all the red lights are off and all the green lights are

on, the upgrade/recovery process is complete.

Unit is operating in safe mode Used when the ServSensor EXP DC16 loads the operating system (OS) with a minimal set

of drivers. If your device enters safe mode after rebooting, contact Black Box Technical

Support at 724-746-5500 or info@blackbox.com.

Unit is in recovery mode The ServSensor EXP DC16 may enter recovery mode if a firmware upgrade is incomplete.

The unit displays a continuously lit row of red LEDs during recovery mode. If your device

enters recovery mode, contact Black Box Technical Support at 724-746-5500 or

info@blackbox.com.

724-746-5500 | blackbox.com

724-746-5500 | blackbox.com Page 9

Chapter 2: Overview

2.3.2 Back Panel

Figure 2-2 shows the ServSensor EXP DC16’s back panel, and Table 2-3 describes its components.

Figure 2-2. Back panel.

Table 2-3. Back panel components.

Number Component Description

5 (16) 2-pin ports The 2-pin dry contact ports, numbered 1–16, are used to connect the input

voltage.

6 (1) barrel connector This is a 7.5-VDC plug. Use a 7.0–9-V, 2.5-A power supply (included).

724-746-5500 | blackbox.com

Page 10

724-746-5500 | blackbox.com

ServSensor EXP DC16

3. Installation

3.1 Connecting to the Base Unit

To connect the ServSensor EXP DC16 to the ServSensor V4E, follow the steps listed below.

1. Connect the cable to your chosen port. See Figure 3-1.

Figure 3-1. E1 port.

2. Connect the other end to the “E-in” port. See Figure 3-2.

Figure 3-2. E-in port.

NOTE: Make sure that the 7.5 volt power supply is connected.

The expansion modules can be mounted in either a standard configuration or a daisychained configuration, as shown

in Figures 3-3 and 3-4.

Figure 3-3. Standard configuration.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Black Box Matériel réseau

Black Box

Black Box ETHERLINK IV Manuel utilisateur

Black Box

Black Box ACR2005A Manuel utilisateur

Black Box

Black Box LMX Series Manuel utilisateur

Black Box

Black Box AC1003A Manuel utilisateur

Black Box

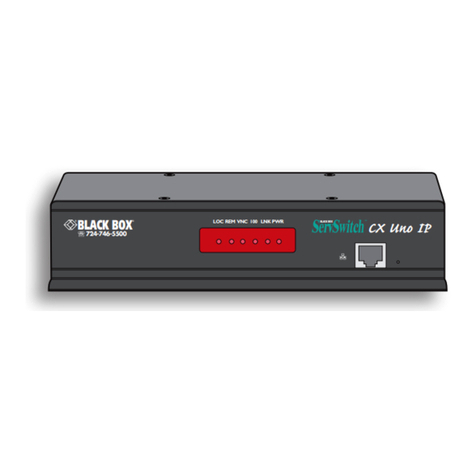

Black Box ServSwitch KV1081A Manuel utilisateur
