Black Box VX-SDI-FO-10KM Manuel utilisateur

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.

call 724-746-5500) • FREE technical support 24 hours a day, 7 days

a week: Call 724-746-5500 or fax 724-746-0746 • Mailing address:

Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: www.blackbox.com • E-mail: info@blackbox.com

Customer

Support

Information

BL A C K B O X®

Extend high-quality 3G-SDI video

up to 10 kilometers (6.2 mi.)

over secure single-mode fiber.

3G-SDI Fiber Extender

VX-SDI-FO-10KM

724-746-5500 | blackbox.com

Page 2

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks

of BB Technologies, Inc.

UL is a registered trademark of Underwriters Laboratories.

Any other trademarks mentioned in this manual are acknowledged

to be the property of the trademark owners.

724-746-5500 | blackbox.com Page 3

FCC and IC RFI Statements/NOM Statement

FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY

CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio-frequency energy,

and if not installed and used properly, that is, in strict accordance with the

manufacturer’s instructions, may cause interference to radio communication.

It has been tested and found to comply with the limits for a Class A computing

device in accordance with the specifications in Subpart B of Part 15 of FCC rules,

which are designed to provide reasonable protection against such interference

when the equipment is operated in a commercial environment. Operation of this

equipment in a residential area is likely to cause interference, in which case the

user at his own expense will be required to take whatever measures may be

necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise

emission from digital apparatus set out in the Radio Interference Regulation

of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant

les limites applicables aux appareils numériques de classe A prescrites dans le

Règlement sur le brouillage radioélectrique publié par Industrie Canada.

Normas Oficiales Mexicanas (NOM)

Electrical Safety Statement

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes

de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para

referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

724-746-5500 | blackbox.com

Page 4

NOM Statement

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,

cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,

etc.

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales

que sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más

allá a lo descrito en las instrucciones de operación. Todo otro servicio

deberá ser referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,

alfombra o superficie similar puede bloquea la ventilación, no se debe

colocar en libreros o gabinetes que impidan el flujo de aire por los orificios

de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor

como radiadores, registros de calor, estufas u otros aparatos (incluyendo

amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo

del tipo descrito en el instructivo de operación, o como se indique en el

aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la

polarización del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no

sean pisados ni pellizcados por objetos colocados sobre o contra ellos,

poniendo particular atención a los contactos y receptáculos donde salen

del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las

lineas de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no

sea usado por un largo periodo de tiempo.

724-746-5500 | blackbox.com Page 5

NOM Statement

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

724-746-5500 | blackbox.com

Page 6

Table of Contents

1. Specifications ................................................................................................7

2. Overview ................................................................................................8

2.1 Introduction........................................................................................8

2.2 Features ..............................................................................................8

2.3 What’s Included..................................................................................9

2.4 Hardware Description.........................................................................9

2.4.1 Transmitter ..............................................................................9

2.4.2 Receiver.................................................................................10

3. Typical Installation ......................................................................................12

Appendix. Troubleshooting.............................................................................. 13

A.1 Contacting Black Box........................................................................13

A.2 Shipping and Packaging ...................................................................13

724-746-5500 | blackbox.com Page 7

Chapter 1: Specifications

1. Specifications

Auto Reclocker Mode — Automatic detection: 270 Mbps/1.483 Gbps/

1.485 Gbps/2.97 Gbps/2.967 Gbps;

Automatic bypass: 177 Mbps/360 Mbps/540 Mbps<BR>

Cable Equalization — On coax connections: SD-SDI: 300 m (1000 ft.);

HD-SDI: 150 m (500 ft.);

3G-SDI: 90 m (295 ft.)

Data Rates — 270 Mbps, 1483 Mbps, 1485 Mbps, 2967 Mbps, 2970 Mbps

Distance (Maximum) — On single-mode fiber: 10 km (6.25 mi.)

Fiber Characteristics — SMPTE 297-2006 compliant;

Operating wavelength: 1310 nm;

Optical fiber: 8–10/125-micron single-mode;

Loss budget: 0–15 dB

Output impedance — 75 ohms

Protocols — SMPTE 259M (270 Mbps), SMPTE 259M (360 Mbps),

SMPTE 292M/HDTV (1.485 Gbps and 1.485/1.001 Gbps),

SMPTE 424M/HDTV (2.97 Gbps and 2.97/1.001 Gbps), DVB ASI (270 Mbps)

SDI Standards — SD/HD/3G-SDI

Video Bandwidth — 2.97 Gbps, 2.97/1.001 Gbps

Video Resolutions Supported — HD: 720p at 50/59.94/60 Hz, 1035i at

50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, 1080p at 24/30/59.94/60 Hz;

SD: NTSC at 59.94 Hz, PAL at 50 Hz

CE Approval — Yes

Connectors — Transmitter: SDI input: (1) BNC M (75-ohm);

SDI loopout: (1) BNC M (75-ohm);

Fiber interconnect: (1) LC simplex on SFP;

Receiver: SDI output: (1) BNC M (75-ohm); SDI loopout: (1) BNC M (75-ohm);

Fiber interconnect: (1) LC simplex on SFP

Indicators — Transmitter: (2) LEDs: (1) Power, (1) Signal;

Receiver: (2) LEDs: (1) Power, (1) Signal

Power — Input: AC input: 100–240 VAC, 50–60 Hz, 0.3 A;

Output: 5 VDC, 4 A

Size — Each unit: 1.2"H x 1.6"W x 4.6"D (3 x 4 x 11.6 cm)

Weight — Each unit: 0.3 lb. (0.14 kg)

724-746-5500 | blackbox.com

Page 8

Chapter 2: Overview

2. Overview

2.1 Introduction

The 3G SDI Fiber Extender transmits multirate SDI video, with embedded audio

and metadata, as far as 10 kilometers (6.2 mi.) over single-mode fiber. The

transmitter module receives one 3G/HD/SDI electrical input, and converts a

SMPTE 292M, SMPTE424M, or DVB-ASI electrical SDI signal to single-mode

fiber optic SDI signals. The receiver module receives the optical fiber signal from

the input SFP connector, and then converts it to an electrical SDI signal.

NOTE: Cable equalization distance depends on the characteristics and quality of

the cable and the type of SDI device.

Use the extender to link an SDI camera with SDI display or recording equipment

in another building. It’s ideal for a number of TV broadcast, video editing, and

post-production studio applications, the extender supports single-mode

distances up 10 kilometers (6.2 mi.) on its small form-factor pluggable (SFP)

interfaces for simplex fiber.

Also, the extender is immune to pathological test patterns (SMPTE RP-198),

which guarantees high-quality, flicker-free transmission.

2.2 Features

• Works with a range of SD-SDI, HD-SDI, or 3G-SDI devices.

• Features equalization on SDI input for extended distances.

• Also has video loopout ports for local and remote SDI connections.

• Automatically reclocks SDI signals to reduce video jitter.

• Boasts immunity to SMPTE RP-198 pathological test patterns.

• Transmits over just a single strand of single-mode fiber cable.

• Great for any TV broadcast, video editing, or post-production studio

application.

• Also use to reach SDI devices in high-level EMI/RFI environments.

• Autodetects SDI standard on its 75-ohm coax connectors.

• Handles higher SDI bandwidth of 2.97 Gbps (3G-SDI).

• Also works over mulitmode fiber at shorter distances.

• Wallmountable for space-saving installation.

• No software or driver installation required.

724-746-5500 | blackbox.com Page 9

Chapter 2: Overview

2.3 What’s Included

Your package should include the folllowing items. If anything is missing or

damaged, contact Black Box Technical Support at 724-746-5500 or

info@blackbox.com.

• (1) Transmitter

• (1) Receiver

• (1) single-mode simplex transmit SFP module (mounted in Transmitter)

• (1) single-mode simplex receive SFP module (mounted in Receiver)

• (2) power supplies with cords

• (4) mounting screws

• This user manual

2.4 Hardware Description

2.4.1 Transmitter

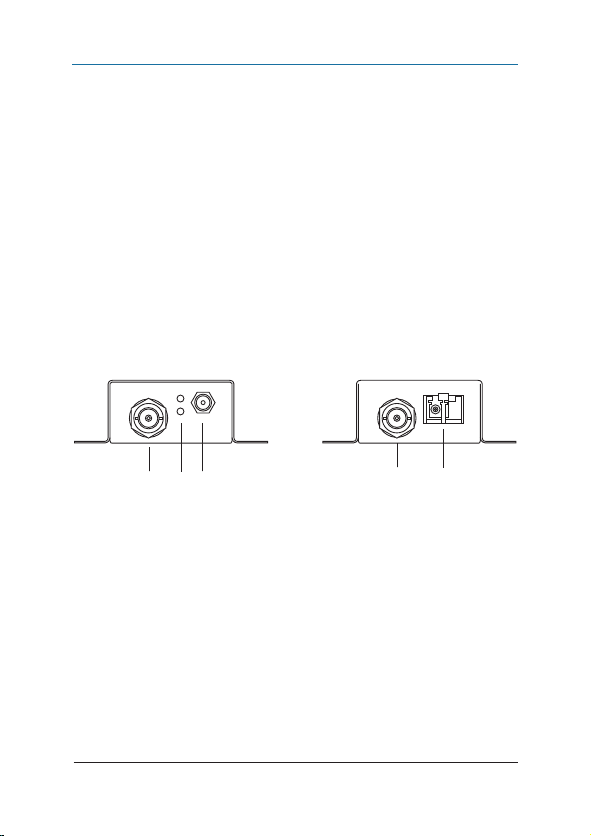

Figure 2-1 shows the front and back panels of the transmitter. Table 2-1

describes its components.

1 2 3 4 5

Figure 2-1. Transmitter’s front and back panels.

724-746-5500 | blackbox.com

Page 10

Chapter 2: Overview

Table 2-1. Transmitter components.

Number Component Description

1(1) BNC connector 3G/HD/SD–SDI input

2(1) Power LED

(1) Signal LED

Power LED lights when power is

active on 3G/HD/SD–SDI output

connector

Signal LED lights when a signal is

present on the 3G/HD/SD–SDI

output connector

3+5 VDC power connector Connects to a 5-VDC power

supply.

4(1) BNC connector 3G/HD/SD–SDI loop out

5(1) LC simplex on SFP Optical output

2.4.2 Receiver

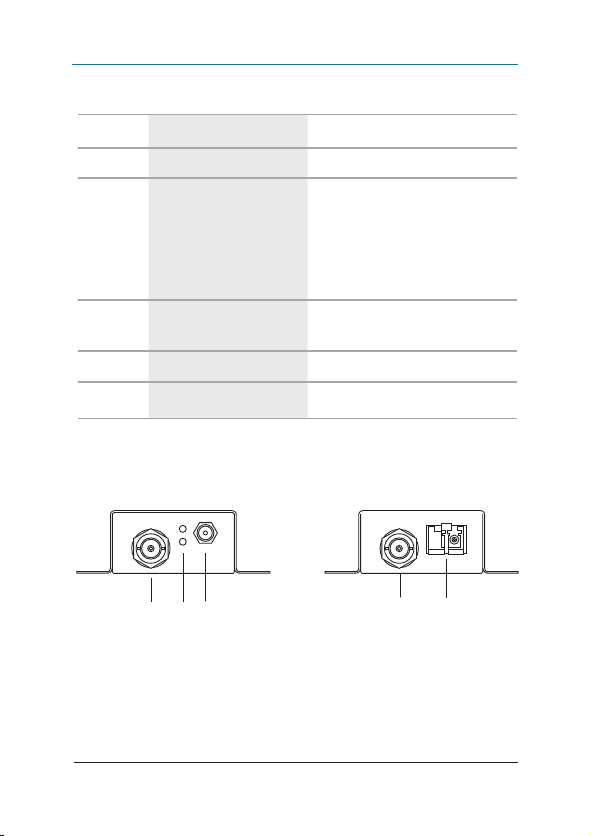

Figure 2-2 illustrates the front and back panels of the receiver. Table 2-2

describes its components.

6 7 8 9 10

Figure 2-2 Receiver’s front and back panels.

Table des matières

Autres manuels Black Box Extenseur

Black Box

Black Box ServSwitch II ACS250A Manuel utilisateur

Black Box

Black Box ACS2001A-R3 Manuel utilisateur

Black Box

Black Box AC555A Manuel utilisateur

Black Box

Black Box LB300A Manuel utilisateur

Black Box

Black Box AVX-HDMI2-HDB Manuel utilisateur

Black Box

Black Box ServSwitch ACU5002A Manuel utilisateur

Black Box

Black Box ServSwitch ACX300 Manuel utilisateur

Black Box

Black Box IC404A-R2 Manuel utilisateur

Black Box

Black Box LMC5220A Manuel utilisateur

Black Box

Black Box ACU1600A Manuel utilisateur

Black Box

Black Box ServSwitch Duo KV6EXTB-R2 Manuel utilisateur

Black Box

Black Box ACUREM Manuel utilisateur

Black Box

Black Box 3-Channel DVI Extender Manuel utilisateur

Black Box

Black Box IC404A-R2 Manuel utilisateur

Black Box

Black Box LB304A Manuel utilisateur

Black Box

Black Box AC1000A-R3 Manuel utilisateur

Black Box

Black Box ServSwitch Wizard ACU5050A-R2 Manuel utilisateur

Black Box

Black Box SDSL Network Extender 2000 Manuel utilisateur

Black Box

Black Box ACS2028A Manuel utilisateur

Black Box

Black Box VX-HDMI-TP-100M Manuel utilisateur

Black Box

Black Box ACS2009A-R2-xx Manuel utilisateur

Black Box

Black Box AVS-HDB-WPTX Manuel utilisateur

Black Box

Black Box ServSwitch ACU2500A Manuel utilisateur

Black Box

Black Box ServSwitch KV1400A Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
