4K DisplayPort over CATx Extender

UVX-DP-TP-100M

Distributes uncompressed 4K @30 Hz UHD video,

audio, power, RS-232, and USB 2.0 up to 330 feet

(100 m) over a single CAT6a/7 cable.

877-877-2269 | blackbox.com

Page 2

FCC and IC RFI Statements/NOM Statement

FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY

CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio-frequency energy, and if

not installed and used properly, that is, in strict accordance with the manufac-

turer’s instructions, may cause interference to radio communication.

It has been tested and found to comply with the limits for a Class A computing

device in accordance with the specifications in Subpart B of Part 15 of FCC

rules, which are designed to provide reasonable protection against such

interference when the equipment is operated in a commercial environment.

Operation of this equipment in a residential area is likely to cause interference,

in which case the user at his own expense will be required to take whatever

measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emis-

sion from digital apparatus set out in the Radio Interference Regulation

of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques

dépassant les limites applicables aux appareils numériques de classe A prescrites

dans le Règlement sur le brouillage radioélectrique publié par Industrie Canada.

Normas Oficiales Mexicanas (NOM)

Electrical Safety Statement

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas

antes de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas

para referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones

de operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

877-877-2269 | blackbox.com Page 3

NOM Statement

5. El aparato eléctrico no deberá ser usado cerca del agua — por ejemplo,

cerca

de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales

que sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio— El usuario no debe intentar dar servicio al equipo eléctrico más

allá a lo descrito en las instrucciones de operación. Todo otro servicio

deberá ser referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,

alfombra o superficie similar puede bloquea la ventilación, no se debe

colocar en libreros o gabinetes que impidan el flujo de aire por los orificios

de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor

como radiadores, registros de calor, estufas u otros aparatos (incluyendo

amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo

del tipo descrito en el instructivo de operación, o como se indique en el

aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la

polarización del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no

sean pisados ni pellizcados por objetos colocados sobre o contra ellos,

poniendo particular atención a los contactos y receptáculos donde salen

del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las

lineas de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no

sea usado por un largo periodo de tiempo.

877-877-2269 | blackbox.com

Page 4

NOM Statement

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

877-877-2269 | blackbox.com Page 5

Trademarks Used in this Manual

TRADEMARKS USED IN THIS MANUAL

Black Box and the Double Diamond logo are registered trademarks of

BB Technologies, Inc.

Blu-ray™is a trademark of Blu-ray Disc Association.

Any other trademarks mentioned in this manual are acknowledged to be

the property of the trademark owners.

Important Safety Instructions

1. Do not expose this apparatus to rain, moisture, dripping or splashing water

and do not place objects filled with liquids, such as vases, on the apparatus.

2. Do not install or place this unit in a bookcase, built-in cabinet or in another

confined space. Make sure the unit is well ventilated.

3. To prevent risk of electric shock or fire hazard caused by overheating, do not

obstruct the unit’s ventilation openings with newspapers, tablecloths,

curtains, and similar items.

4. Do not install near any heat sources such as radiators, heat registers, stoves,

or other apparatus (including amplifiers) that produce heat.

5. Do not place sources of flames, such as lighted candles, on the unit.

6. Clean this apparatus only with a dry cloth.

7. Unplug this apparatus during lightning storms or when unused for long

periods of time.

8. Protect the power cord from being walked on or pinched particularly at

plugs.

9. Only use attachments/accessories specified by the manufacturer.

10. Refer all servicing to qualified service personnel.

Disclaimer

Black Box Network Services shall not be liable for damages of any kind,

including, but not limited to, punitive, consequential or cost of cover damages,

resulting from any errors in the product information or specifications set forth

in this document and Black Box Network Services may revise this document at

any time without notice.

877-877-2269 | blackbox.com

Page 6

Table of Contents

1. Specifications........................................................................................ 7

2. Overview .............................................................................................. 9

2.1 Introduction ............................................................................... 9

2.2 Features...................................................................................... 9

2.3 What's Included ....................................................................... 10

2.4 Hardware Description.............................................................. 10

3. Connection and Installation............................................................... 12

877-877-2269 | blackbox.com Page 7

Chapter 1: Specifications

1. Specifications

Transmitter

Connectors (1) 12-VDC barrel connector,

(1) CATx OUT,

(1) 3-pin Phoenix connector,

(1) DisplayPort IN,

(1) Audio IN,

(1) Audio OUT,

(1) USB Type B host connector

Input

Resolution

Support

Up to 3840 x 2160 @30 Hz (UHD)

Maximum

Data Rate

10.2 Gbps

Maximum

Distance

Via CAT6a/7 cables:

Up to 328 feet (100 m) at 3840 x 2160 @30 Hz, 4:2:0,

or 1080p @60 Hz output resolution;

Via CAT5e/6 cables:

Up to 224 feet (70 m) at 3840 x 2160 @30 Hz;

Up to 328 feet (100 m) at 1080p @30 Hz resolution

Receiver

Connectors (1) 12-VDC barrel connector,

(1) CATx IN,

(1) 3-pin Phoenix connector,

(1) DisplayPort OUT,

(1) Audio IN,

(1) Audio OUT,

(2) USB Type A device connectors

Output

Resolution

Support

UHD30: 3840 x 2160 @30 Hz;

FHD: 1920 x 1080 @60 Hz;

HD: 1280 x 720 @60 Hz;

WUXGA: 1920 x 1200 @60 Hz;

WXGA: 1280 x 800 @60 Hz

877-877-2269 | blackbox.com

Page 8

Chapter 1: Specifications

1. Specifications (continued)

Receiver (continued)

Maximum

Distance

Via CAT6a/7 cables:

Up to 328 feet (100 m) at 3840 x 2160 @30 Hz, 4:2:0,

or 1080p @60 Hz output resolution;

Via CAT5e/6 cables:

Up to 224 feet (70 m) at 3840 x 2160 @30 Hz;

Up to 328 feet (100 m) at 1080p @30 Hz resolution

General (Transmitter and Receiver)

ESD Protection Human-body model:

±8 kV (air-gap discharge)/

±4 kV (contact discharge)

Operating

Temperature

32 to 113° F (0 to 45° C)

Storage

Temperature

-4 to +158° F (-20 to +70° C)

Humidity 10 to 90%, noncondensing

Power Input 100–240 VAC, 50/60 Hz, 1.5 A

Input Connector

Type

IEC320, C14

Power Output Each unit: (1) 12-VDC, 2-A power supply

Consumption 14.2 W (max.)

Power Supply

Cord Length

6 ft. (1.8 m)

Dimensions Each unit: 0.99"H x 7.91"W x 3.95"D

(2.51 x 20.09 x 10.03 cm)

Weight Each unit: 1.1 lb. (0.5 kg)

877-877-2269 | blackbox.com Page 9

Chapter 2: Overview

2. Overview

2.1 Introduction

The UVX-DP-TP-100M is a 4K DisplayPort over CATx Extender with USB 2.0 and

audio passthrough. It distributes uncompressed 4K @30 Hz UHD video, audio,

power, RS-232, and USB 2.0 together up to 330 feet (100 m) over a single

CAT6a/7 cable. The extender has a transmitter unit and a receiver unit.

With USB 2.0 passthrough, the extender enables users to control or monitor

a remote server from a harsh environment, or operate a physically inaccessible

PC, server, or workstation remotely. Bidirectional audio passthrough enables

audio distribution in both directions.

The extender units have 48 V PoH and only need one power supply at the

transmitter end to power both transmitter and receiver units. Secure the

transmitter's 12 V power supply with a screw-in connector to prevent the power

from being accidentally disconnected. Power LEDs on both units light when

power is applied to the unit. Signal status LEDs show connections between

devices.

2.2 Features

• Via CAT6a/7 cables, the extenders support 4K @30 Hz up to 330 feet

(100 meters) and 1080p @60 Hz up to 330 feet (100 meters).

• Via CAT5e/6 cables, the extenders support 4K x 2K @30 Hz output

up to 224 feet (70 meters).

• Supports DisplayPort 1.2 up to 4K @30 Hz.

• Provides USB 2.0 passthorugh over CATx, with USB-HOST built-in TX and USB-

DEVICE built-in RX.

• Supports bidirectional stereo line audio passthrough over CATx.

• Provides RS-232 and EDID passthrough over CATx

• All connectors are on one side of each unit for easy installation.

2.3 What's Included

Your package should include the following items. If anything is missing

or damaged, contact Black Box Technical Support at 877-877-2269

or info@blackbox.com.

• (1) DisplayPort Extender Transmitter

• (1) DisplayPort Extender Receiver

• (1) 12-VDC, 2-A power supply with US, EU, UK, and AU power clips

• (2) 3.5-mm, 2-pin male Phoenix connectors

877-877-2269 | blackbox.com

Page 10

Chapter 2: Overview

• (2) mounting brackets

• This user manual

2.4 Hardware Description

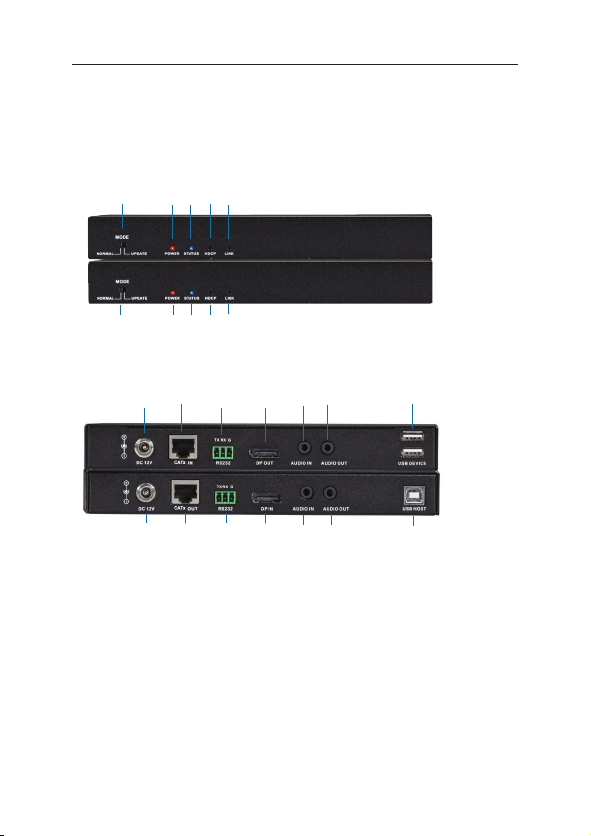

Figures 2-1 and 2-2 show the front and back panels of the receiver. Tables 2-1

and 2-2 describe their components.

1 2 3 4 5

Transmitter

(bottom

photo)

Receiver

(top photo)

1 2 3 4 5

Figure 2-1. Receiver and Transmitter front panels.

6 7 8 9 10 11 12

Transmitter

(bottom

photo)

Receiver

(top photo)

13 14 15 16 17 18 19

Figure 2-2. Receiver and Transmitter back panels.

Table des matières

Autres manuels Black Box Extenseur

Black Box

Black Box ServSwitch II ACS250A Manuel utilisateur

Black Box

Black Box IC443A-R2 Manuel utilisateur

Black Box

Black Box MDR3243A Manuel utilisateur

Black Box

Black Box SerSwitch ACS260A-U-MM Manuel utilisateur

Black Box

Black Box VX-HDMI-POE-MTX Manuel utilisateur

Black Box

Black Box ServSwitch KV1400A Manuel utilisateur

Black Box

Black Box LB323A Manuel utilisateur

Black Box

Black Box 232 Monitor Plus Manuel utilisateur

Black Box

Black Box ACS2009A-R2-xx Manuel utilisateur

Black Box

Black Box RemotePort Manuel utilisateur

Black Box

Black Box LRA3000A Manuel utilisateur

Black Box

Black Box AVU4001A Manuel utilisateur

Black Box

Black Box ServSwitch ACU6001A Manuel utilisateur

Black Box

Black Box Emerald Series Manuel utilisateur

Black Box

Black Box ACX1MR Series Manuel utilisateur

Black Box

Black Box IC402A-R2 Manuel utilisateur

Black Box

Black Box ACS253A-CT Manuel utilisateur

Black Box

Black Box ServSwitch Duo KV6EXTB-R2 Manuel utilisateur

Black Box

Black Box ServSwitch ACU1006RA Manuel utilisateur

Black Box

Black Box IC244A-R2 Manuel utilisateur

Black Box

Black Box ACS1009A series Manuel utilisateur

Black Box

Black Box LB300A Manuel utilisateur

Black Box

Black Box SDSL Network Extender 2000 Manuel utilisateur

Black Box

Black Box IC244A-R2 Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
