Black Box JPM397A Manuel utilisateur

24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM

DIN RAIL

FIBER

ENCLOSURE

JPM397A, JPM398A

USER MANUAL

TABLE OF CONTENTS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.877.877.2269

1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

1. SPECIFICATIONS........................................................................................................................................................................... 3

2. OVERVIEW...................................................................................................................................................................................... 4

2.1 Description................................................................................................................................................................................................4

2.2 What’s Included........................................................................................................................................................................................4

2.3 Part Numbers ...........................................................................................................................................................................................4

3. PRE-INSTALLATION...................................................................................................................................................................... 5

3.1 STEP 1: Enclosure Mounting ...................................................................................................................................................................5

STEP 1A: Optional Mounting Solutions...................................................................................................................................................................6

3.2 STEP 2: Bulk Fiber Cable Entry ...............................................................................................................................................................8

4. INSTALLATION ............................................................................................................................................................................ 10

4.1 STEP 1: Mounting the Enclosure to the DIN Rail..................................................................................................................................10

4.2 STEP 2: Cabling and Securing the Bulk Fiber to the Enclosure .........................................................................................................10

4.3 STEP 3: Terminating the Fiber Cable....................................................................................................................................................11

1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.877.877.2269

CHAPTER 1: SPECIFICATIONS

TABLE 1. JPM398A SPECIFICATIONS

SPECIFICATION DESCRIPTION

Dimensions 2.01" H x 5.31" W x 5.51" D (5.1 x 13.5 x 14 cm)

Weight 1.15 lb. (0.52 kg)

Metal Thickness 18-gauge (1.0 mm)

Color Black

Cable Grommet Range 4.0 mm to 8.0 mm

Fiber Adapter Ports One

TABLE 2. JPM397A SPECIFICATIONS

SPECIFICATION DESCRIPTION

Dimensions 3.93" H x 5.31" W x 5.51" D (10.0 x 13.5 x 14 cm)

Weight 2.0 lb. (0.907 kg)

Metal Thickness 18-gauge (1.0 mm)

Color Black

Cable Grommet Range 4.0 mm to 8.0 mm

Fiber Adapter Ports Two

41. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.877.877.2269

CHAPTER 2: OVERVIEW

2.1 DESCRIPTION

This inexpensive and very flexible DIN Rail Fiber Enclosure is an excellent choice when you need to run fiber terminations out on

an open external wall or in an open manufacturing floor environment. The DIN Rail Fiber Enclosure is small and made of steel.

It supports either one or two LGX fiber adapter panels with a side door that uses thumbscrews for easy access inside of the

enclosure. There are also many DIN rail mounting options around the enclosure, along with three bulk fiber points of entry, when

combined make this enclosure extremely flexible.

2.2 WHAT’S INCLUDED

Your package should include the following items for either the 1 or 2 port DIN Rail Fiber enclosure. If anything is missing or

damaged, contact Black Box Technical Support at 877-877-2269 or info @blackbox.com.

(1) DIN Rail Fiber Enclosure

(4) 1” x ½” stick-on cable organizers

(5) 4-inch cable ties

(10) 3-inch cable ties

(1) “L”-shaped rackmount bracket

1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.877.877.2269

CHAPTER 3: PRE-INSTALLATION

The pre-installation steps can be used for both the 1 and 2 ports DIN Rail enclosures. For illustration, we are only showing the 1 port

DIN Rail enclosure.

3.1 STEP 1: ENCLOSURE MOUNTING

First, determine where you wish to mount the enclosure. The DIN Rail Fiber Enclosures have several possible DIN rail mounting

options that the user can select. From the factory, the DIN rail bracket is located on the rear of the enclosure (see photo).

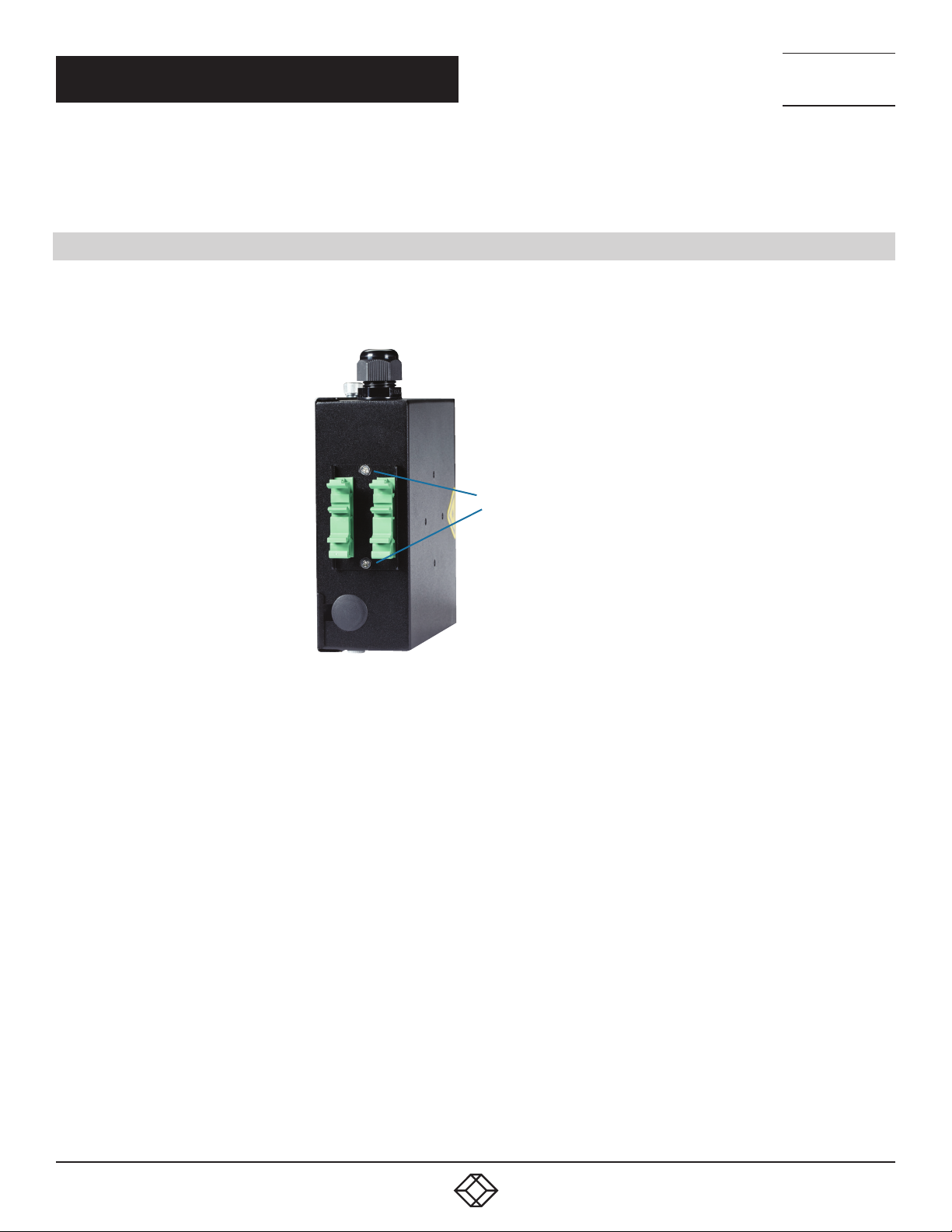

(2) screws on the

DIN rail mounting plate

FIGURE 3-1. DIN RAIL BRACKET ON THE ENCLOSURE

But, to mount the DIN Rail Fiber Enclosure in alternate locations, remove the screws on the DIN Rail mount plate and relocate it to

the new location. The alternate other mounting locations are on the top and bottom of the enclosure near the thumbscrews of the

door plate and the back side of the enclosure.

61. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.877.877.2269

CHAPTER 3: PRE-INSTALLATION

Top and bottom

mounting locations

Back side

mounting locations

FIGURE 3-2. TOP AND BOTTOM AND BACK SIDE MOUNTING LOCATIONS

STEP 1A: OPTIONAL MOUNTING SOLUTIONS

The DIN Rail Fiber Enclosure has several other optional mounting solutions. There is an optional Magnetic Bracket (sold separately,

part number ACC-MAGBRKT) and an “L” shaped Adapter bracket (included with the DIN Rail Enclosure) that can be used for the other

non-DIN rail mounting installations. (See Photo below) These optional mounting solutions are supported on either the one or two

port Din Rail Fiber Enclosure.

part number

ACC-MAGBRKT

included

FIGURE 3-3. OPTIONAL MAGNETIC BRACKET AND “L”-SHAPED BRACKET

1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.877.877.2269

CHAPTER 3: PRE-INSTALLATION

To use either one of these optional mounting solutions on your DIN Rail Fiber Enclosure, remove the green DIN Rail bracket from

the fiber enclosure. Choose either the magnetic bracket or the “L” shaped bracket for your application.

The Magnetic Bracket can be installed at the following locations on the DIN Rail Fiber Enclosure. Four screws must be used to

property mount the magnetic bracket to the enclosure.

One Port Enclosure – Only on the side for flush mounting

Two Port Enclosure – On the side for flush mounting and the rear side opposite the fiber ports

NOTE: The magnet bracket adapter uses four high-power rare earth magnets with a rubber coated base. These four magnets

together have tremendous holding power and should be used on metal surfaces where you may want to mount your DIN Rail Fiber

Enclosure.

CAUTION: Always use care when handling. Follow the precautions listed below.

Always wear safety goggles when handling large magnets.

Always wear gloves when handling magnets to prevent pinching.

Children should NEVER be allowed to play with Neodymium magnets.

WARNING: Keep magnets at least 7.9 inches (20 cm) away from devices such as sensitive electronic and storage devices,

mechanical watches, heart pacemakers, CRT monitors and televisions, credit cards, diskettes and other magnetically stored

media such as video tapes. These devices are all affected by powerful magnets.

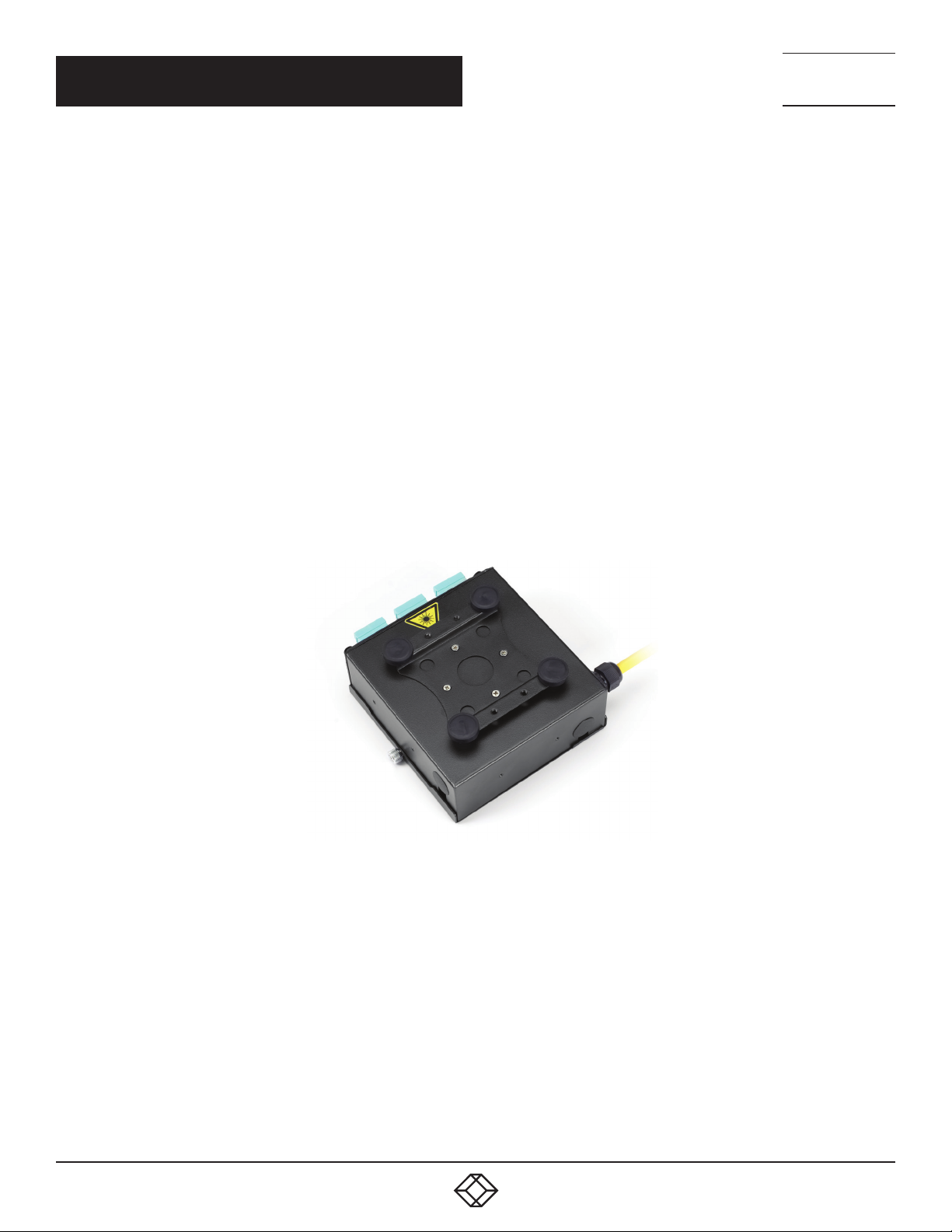

FIGURE 3-4. APPLICATION #1, MAGNETIC BRACKET

The “L” Shaped Adapter Bracket can be installed at the following locations on the DIN Rail Fiber Enclosure. Two screws are used

for to correctly mount the “L” Shaped bracket to the enclosure. It has oversized cup head holes to allow the user some flexibility in

mounting to a wide range of relay racks or cabinets.

One Port Enclosure – On the side for flush mounting and the rear side opposite the fiber ports

Two Port Enclosure – On all sides of the enclosure in various locations

81. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.877.877.2269

CHAPTER 3: PRE-INSTALLATION

NOTE: The “L” Shaped Adapter Bracket will not install on the top or bottom of the one-port enclosure.

FIGURE 3-5. APPLICATION #2, L-SHAPED BRACKET

3.2 STEP 2: BULK FIBER CABLE ENTRY

There are several points of entry where the incoming bulk fiber cable can enter the enclosure. From the factory, the point of entry is

located at the bottom of the enclosure and the other access points are plugged. The bulk fiber cable is secured by a small angled

bracket with a hand-tighten grommet and Kevlar®clamp. If an alternate bulk fiber point of entry is desired, you can relocate the

angled bracket to another available position.

Bulk fiber entry

Grommet nut

Kevlar®clamp

FIGURE 3-6. BULK FIBER CABLE ENTRY LOCATIONS

1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.877.877.2269

CHAPTER 3: PRE-INSTALLATION

To change the fiber point of entry:

1. Loosen the grommet nut and remove the angled bracket.

2. Find the new entry point and remove the plug cap and re-install the angled bracket.

3. Be sure to secure the angled bracket and re-install the plug cap in the previous location.

NOTE: Make sure that you do steps 1 and 2 first. This will make your installation easier.

10 1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.877.877.2269

CHAPTER 4: INSTALLATION

Now that you have made a DIN rail mounting and bulk fiber point of entry selection, you can begin to complete your installation.

Completing the installation will require mounting the enclosure to the DIN rail, cabling and securing the bulk fiber cable to the

enclosure, and making the fiber terminations.

4.1 STEP 1: MOUNTING THE ENCLOSURE TO THE DIN RAIL

1. Find a DIN rail bracket that is firmly secured to a wall.

2. Snap in the enclosure to the DIN rail on the wall until you hear a click (see photo).

3. Check that both green DIN rail brackets are locked and that the enclosure is firmly mounted.

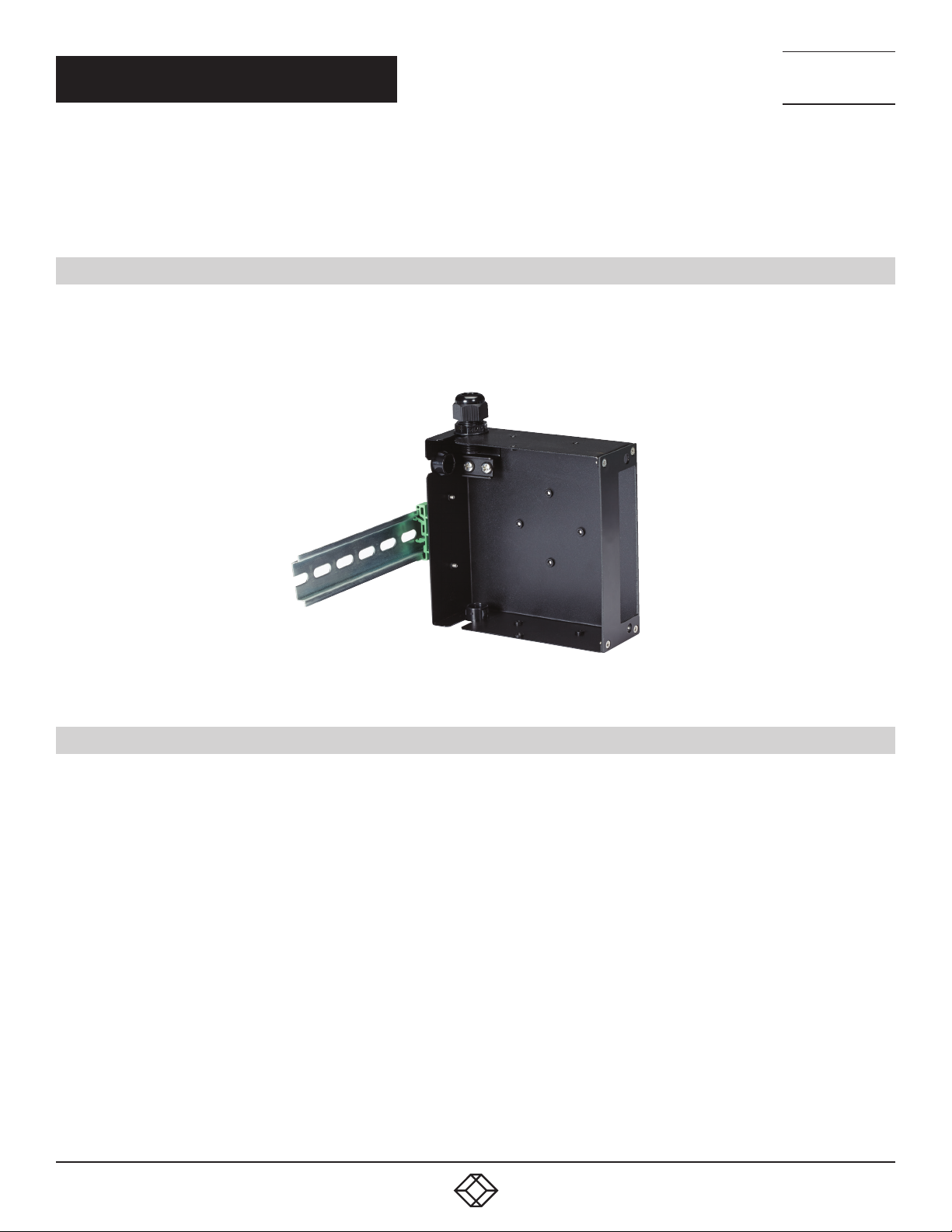

FIGURE 4-1. ENCLOSURE MOUNTING ON A DIN RAIL

4.2 STEP 2: CABLING AND SECURING THE BULK FIBER TO THE ENCLOSURE

Now that the enclosure is firmly mounted to the wall, you can finish the installation.

1. Remove the two screws on the Kevlar clamp and remove the large grommet nut outside the enclosure.

NOTE: Do this first (before you run bulk fiber cable in the enclosure).

2. Put the large grommet nut through the bulk fiber cable and feed the fiber cable end through the grommet on the enclosure.

3. Re-attach the large grommet nut to the grommet to firmly secure the fiber while you complete the installation. Make sure you

feed enough fiber cable through the enclosure so you can terminate the fiber connectors.

4. Next, strip the cable jacket back close to the tip of the grommet end. Trim back the Kevlar yarn so just enough is available to

firmly secure the Kevlar yarn to the clamp.

5. Attach the Kevlar yarn to the base and re-secure the 2 screws and tighten. This will hold the bulk fiber cable in the enclosure and

will not put any stress on the fiber connection inside the enclosure.

6. Repeat for any other bulk fiber cable points of entry.
