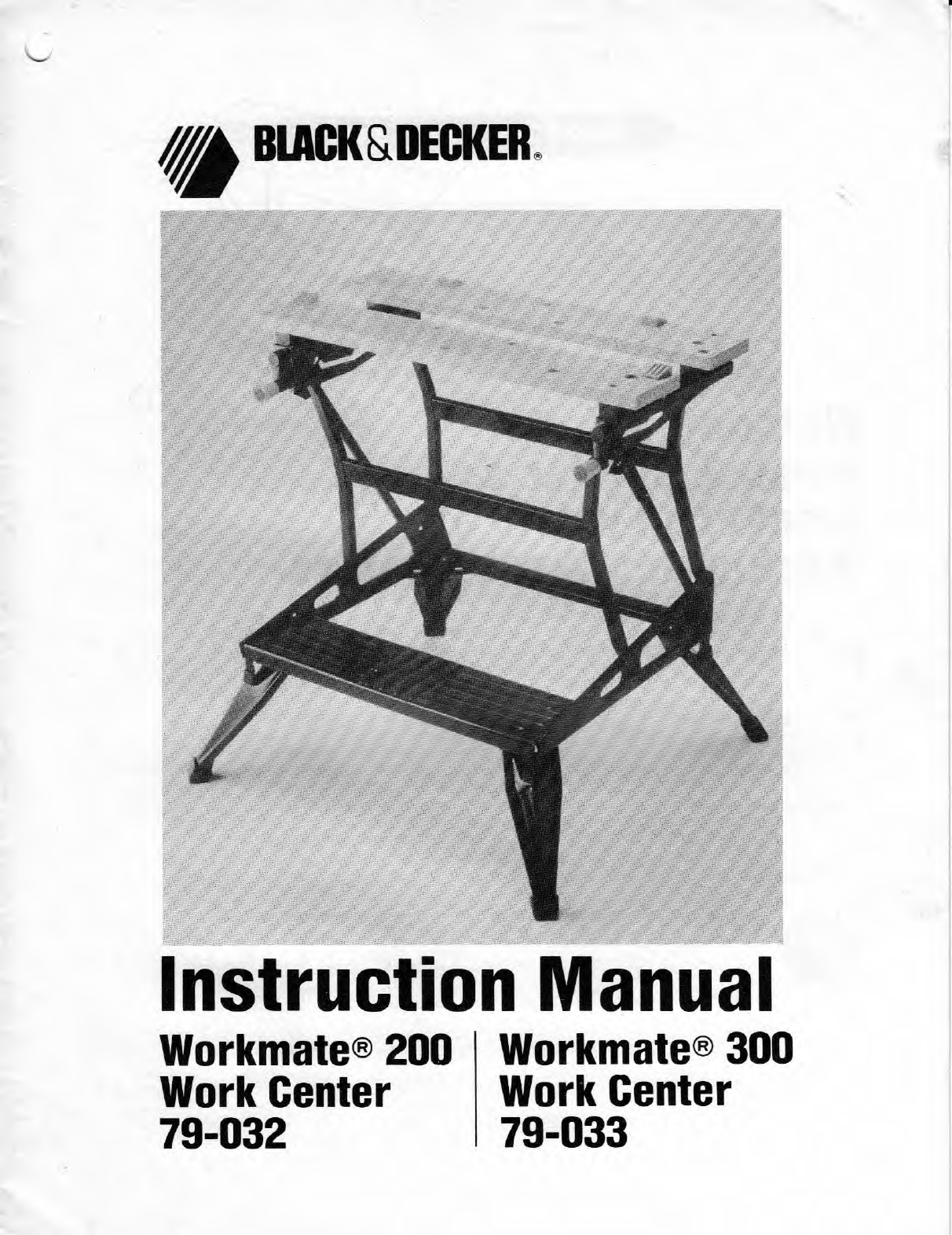

Instruction Manual

Workmate® 200 Workmate® 300

Work Center



Work Center

79-032



79-033

Welcome to

Black & Decker's

wonderful world of

Workmate® Work Centers.

If you already own a Black & Decker

Product, you know the pleasures a high

quality, high performance product can

deliver.

Your new Workmate® Work Center

is a quality piece of equipment that has

been carefully designed and

manufactured to provide years of

dependable service.

This instruction manual will

familiarize you with the Work Center. It

lists important facts and features which

describe the Work Center's construction

and basic working techniques.

So take a few minutes and

thoroughly read this manual. Complete

set-up and application instructions are

included. Only by being totally aware of

what the Work Center can do will you be

able to put it to the numerous tasks that it

is capable of performing.

Pay particular attention to the Safety

Rules we've provided for your protection.

We want you to enjoy your Work-

mate® Work Center, and the more you

know about it, and its capabilities, the

happier you'll be with it.

Thank you for selecting Black &

Decker.

And don't forget to send in your

owner's registration card.

BLACK&DECKER..

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS

Do not load with more than 350 pounds.

Do not apply an unbalanced load which could cause the

Work Center to tip over.

Do not use the Work Center as a step-ladder or standing

platform. Do not use the lower platform as a step when the

Work Center is in Workbench" position.

Do not store Work Center outdoors or in a damp location.

Avoid applying excessive force when clamping with the

swivel grips.

Be sure that the legs are fully open and be sure that the table

locks in the sawhorse position.

When using a power tool with the Work Center, follow the

safety instructions in the tool's Instruction Manual.

Always wear safety glasses when operating power tools.

See "Using Power Equipment" in this manual for correct

method of securing power tools in the Work Center. Never

mount power tools directly in vise jaws; pressure may

damage tools.

10.

An even pressure of the vise jaws on the work piece is

essential. Tighten both vise jaws uniformly.

11.

When assembling your Work Center, use only the Special

Plastic Wrench provided. Use of other wrenches or sockets

can damage your Work Center.

~/A

350 11

SAVE THESE INSTRUCTIONS FOR FUTURE USE.

Unthreaded

End of

Vise Screw

Fig 6

Raised

Post

Small

Hole

Assembly

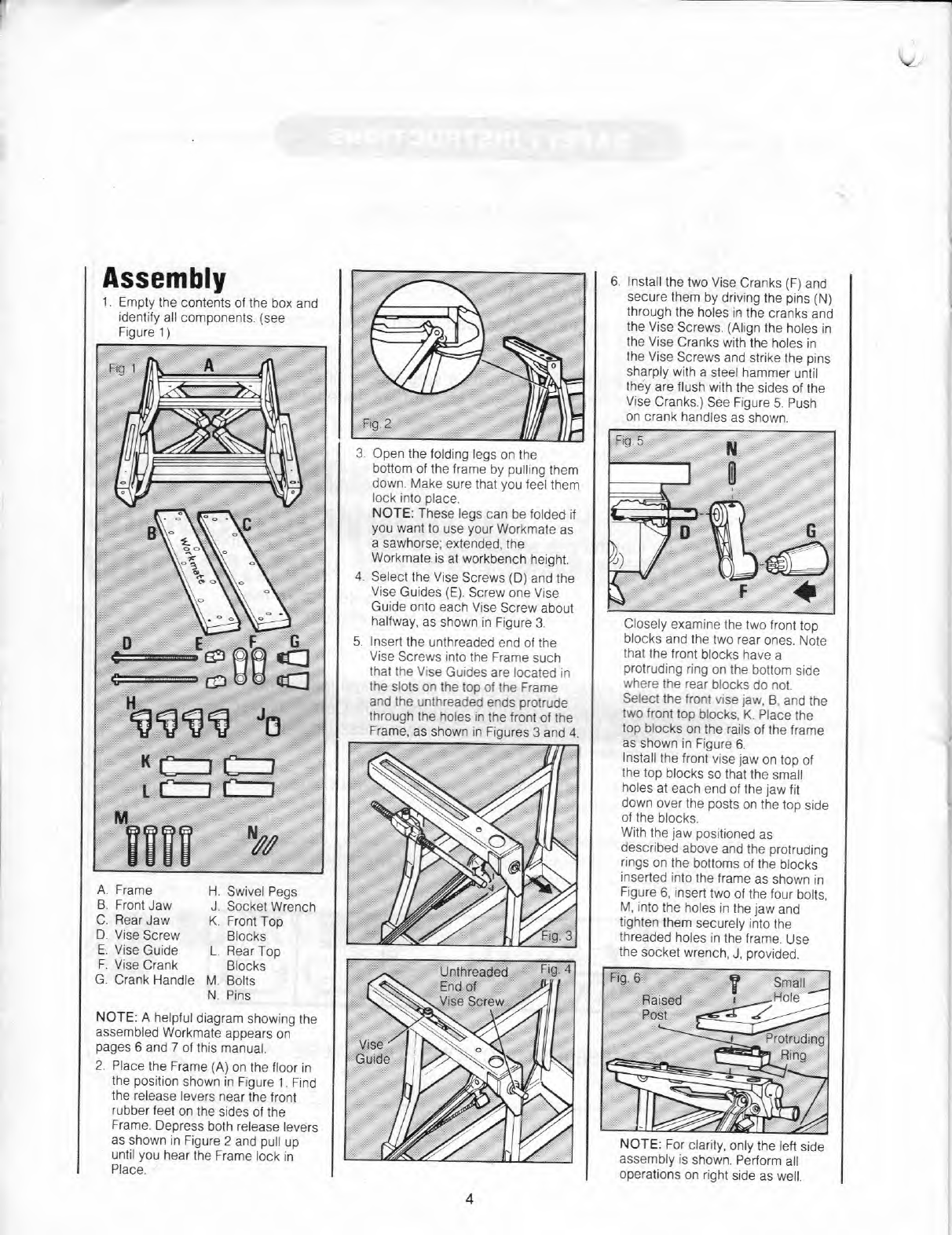

1. Empty the contents of the box and

identify at components. (see

Figure 1)

Frame



H. Swivel Pegs

Front Jaw



J. Socket Wrench

Rear Jaw



K. Front Top

Vise Screw



Blocks

Vise Guide



L. Rear Top

Vise Crank



Blocks

Crank Handle M. Bolts

N. Pins

NOTE: A helpful diagram showing the

assembled Workmate appears on

pages 6 and 7 of this manual.

2. Place the Frame (A) on the floor in

the position shown in Figure 1. Find

the release levers near the front

rubber feet on the sides of the

Frame. Depress both release levers

as shown in Figure 2 and pull up

until you hear the Frame lock in

Place.

Open the folding legs on the

bottom of the frame by pulling them

down. Make sure that you feel them

lock into place.

NOTE: These legs can be folded if

you want to use your Workmate as

a sawhorse; extended, the

Workmate is at workbench height.

Select the Vise Screws (0) and the

Vise Guides (E). Screw one Vise

Guide onto each Vise Screw about

halfway, as shown in Figure 3.

Insert the unthreaded end of the

Vise Screws into the Frame such

that the Vise Guides are located in

the slots on the top of the Frame

and the unthreaded ends protrude

through the holes in the front of the

Frame, as shown in Figures 3 and 4.

Install the two Vise Cranks (F) and

secure them by driving the pins (N)

through the holes in the cranks and

the Vise Screws. (Align the holes in

the Vise Cranks with the holes in

the Vise Screws and strike the pins

sharply with a steel hammer until

they are flush with the sides of the

Vise Cranks.) See Figure 5. Push

on crank handles as shown.

Closely examine the two front top

blocks and the two rear ones. Note

that the front blocks have a

protruding ring on the bottom side

where the rear blocks do not.

Select the front vise jaw, B, and the

two front top blocks, K. Place the

top blocks on the rails of the frame

as shown in Figure 6.

Install the front vise jaw on top of

the top blocks so that the small

holes at each end of the jaw fit

down over the posts on the top side

of the blocks.

With the jaw positioned as

described above and the protruding

rings on the bottoms of the blocks

inserted into the frame as shown in

Figure 6, insert two of the four bolts,

M, into the holes in the jaw and

tighten them securely into the

threaded holes in the frame. Use

the socket wrench, J, provided.

NOTE: For clarity, only the left side

assembly is shown. Perform all

operations on right side as well.

Assembly (Cont'd)

Select the rear vise jaw, C, and the

two rear top blocks, L Position the

rear top blocks on the frame rails

so that the hex shaped recesses in

the bottoms of the blocks fit over

the raised posts of the vise guides,

E, you installed in step 5 on page 4

Position the top blocks so their

raised posts are toward the rear of

the frame, as shown in Figure 7.

Now install the rear vise jaw so that

the small holes in the ends of the

jaw fit over the raised posts on the

top blocks you just.installed. Insert

the remaining two bolts, M, into the

holes in the jaw and through the

top blocks into the raised posts of

the vise guides. The holes in the

vise guides are not threaded so

you will feel resistance as you Cut

threads into them.

Setting Up

Workmate®

Work Center

How To Store

Your Workmate®

Work Center

The Work Center sets up easily

into two working heights: the lower

"sawhorse" height and the upper

'workbench" height. Choose the

position best suited to your particular

job. In each case, the Work Center

provides a convenient and rigid work

surface.

This is the lower "sawhorse'

height, measuring approximately 23"

high. Be sure the Work Center locks

into position.

Store swivel pegs, upside down in

vise jaws until next application

Fold in all four base legs.

Place one foot on footboard.

Using index fingers, simultaneously

press release latches, then pull top

toward you.

Close unit and clamp in locked

position.

You can now store Workmate®

conveniently in minimum space.

To raise the Work Center to its fu I

workbench height of approximately

30" extend the 4 base legs as shown.

position.

Always make sure that each leg

is swung into its extended position.

This will ensure safe use of the Work

Center at this upper working height.

Groove

Front Top

Block

Release

Latch

Footboard

(No Step)

Support

Legs

Holding

Irregular Shapes

With Workmate®

Work Center

Using the swivel pegs in the

appropriate holes and the

independent action of both vise

handles, the Work Center can secure

the most irregular shapes. Lets you

grip objects that used to be

impossible to hold.

Rotate swivel legs to accept

irregular shapes. Outside swivel pegs

extend vise capacity for approximately

27" for the 79-033 and 22" for the 79-

032 diagonal gr.

Working With

Your Workmate®

Work Center

The Work Center is a vise,

sawhorse and workbench all in one.

Its basic design and special features

help you perform a complete range of

workshop tasks from the simplest to

the most complicated.

The heart of the Work Center is in

the action of the two parallel vise jaws.

The two vise handles adjust the jaws

to a maximum of 5-1/4" jaw opening.

Because each handle works

independently, the opening can be

tapered from 0" to 5-3/4" maximum.

Use of the swivel pegs in the

appropriate vise holes extends the

vise capacity of the Work Center up to

12" wide, or up to approximately 27"

for the 79-033 and 22" for the 79-032

when objects are held diagonally.

Rear

Vise Jaw

Vise

Crank

Handle

Sawing

In its lower position, the Work

Center is a sawhorse.

Holds material securely.

Sawing tubular pieces is easy

when they are held horizontally in the

specially designed "V' grooves

running along the face of the vise jaws

CAUTION: Swivel pegs are to be

used only in cases where the

workpiece DOES NOT extend

beyond the surface of the two vise

jaws. Black & Decker supplies, at

extra cost, clamps for securing larger

projects to your Workmate and "C"

clamps are available at your local

hardware store.

Vertical "V" grooves in the face of

the vise jaws permit rigid vertical

grasping of tubular objects.

NOTE: Place your foot as shown

on the footboard of the Work Center to

steady it. DO NOT USE AS A STEP,

Planing,

Sanding, Routing

Your Workmate® Work Center

permits you to do a better job when

planing, sanding, and routing because

work is held securely.

Holds material at perfect height

and position. Strength and stability to

handle large and awkward sizes and

shapes.

Power sand the most irregular

shapes. "C" clamps hold material

securely.

Spec:al tasks won't mean special

problems any more. Routing can be

easy and the results more professional.

Using

Power Equipment

With Workmate®

Work Center

Construct individual mounting

boards for your power tools to save

workbench space. Makes your power

tools completely portable when placed

in the Work Center.

CAUTION:

Securely mourtt tool

accessories to mounting board with

screws or bolts. Always wear safety

glasses when using power tools with

the Work Center.

Power Tool

Mounting Board

Attachments such as Black &

Decker Vertical Drill Stand and the

Horizontal Drill Stand may be attached

with screws to a suitable sized piece

of plywood to the underside of which a

block of wood is attached. The block,

when gripped securely in the Work

Center vise jaws, provides rigidity for

the operation of the tools in the

attachments.

Suggested Sizes

Mounting Board 12" x 12" x 3/8'

Vise Block 2" x 4" x 6"

Retaining Board 3" x 3" x 1/4"

Bolt 5"

The block of wood on the

underside of the mounting board is

held in the jaws of the Work Center.

The power tool is secure for use.

Add power tools you thought you

never had room for. Securely holds

even the larger tools.

You'll want to use all of your

power tool accessories more often.

For instance, buffing—it's easier and

more convenient with the Workmate®

Work Center

General

Purpose Table

Suggested Sizes

2'x 6'x 1/4" plywood

2" x 4" stud, 30" long

4 bolts 5" long

CAUTION: Do not use nails or

screws. Use bolts. Center table top

over center of vise jaws.

When the project calls for extra

work space, you can make a work

table by attaching a block of wood to

the underside of a piece of plywood.

Makes an extra long table surface for

a work or play occasion. Center table

over center of vise jaws and clamp

block on underside firmly.

Important

To assure product SAFETY and

RELIABILITY, repairs, maintenance

and adjustment should be performed

by Black & Decker Service Centers or

other qualified service organizations,

always using Black & Decker

replacement parts.

Accessories

The accessories listed in this

manual are available at extra cost

from your local dealer or Black &

Decker Service Center

A complete listing of service

centers is included on the owner's

registration card packed with your

tool.

If you need assistance in locating

any accessory please contact:

Black & Decker (U.S.) Inc.

User Services Department

10 North Park Drive

P.O. Box 857

Hunt Valley, MD 21030-0857

Recommended accessories for

your tool are listed in this manual.

CAUTION: the use of any other

accessories or attachments may be

hazardous.

Workmate

Accessories

(Available at Extra Cost)

Cat. No. 79-010 Swivel Pegs

Packaged in pairs. Ideal for

holding large and irregular shaped

objects.

CAUTION: Swivel pegs are to be

used only in cases where the

workpiece DOES NOT extend

beyond the surface of the two vise

jaws. Black & Decker supplies, at

extra cost, clamps for securing larger

projects to your Workmate and 'C"

clamps are available at your local

hardware store.

Cat. No. 79-012 Workmate® Saw &

Miter Guide

Clamps into Workmate® Work

Center you hold material down

securely for acurate miter and

compound miter cuts. Accepts most

popular makes of 7-114" Circular

Saws and is ideal for cutting rafters

floor joists, studs, window baseboard

and decorative trim.

Cat. No. 79-013 Type 2 Workmate®

Router & Shape Guide

Professional router cuts made

easy. Holds Black & Decker and other

popular routers securely on

Workmate® Portable Work Center

table top. Gives sod 'hands off"

support for all types of router cuts.

Cat. No. 79-015 Workmate® Drill

Guide

Holds Black & Decker and most

other drills securely for vertical or 0

to 90° angular drilling. Use freehand

for accurate angles or horizontally in

Workmate® to hold drill for buffing,

sanding jobs

Cat. No. 79-016 Workmate® Clamps

(Pkg. of two)

Specially designed clamp

assembly to hold items on a Work

Center vise jaw for gluing, routing,

sanding, sawing, etc

Cat. No. 79-018 Workmate®

Horizontal Clamp

Fits into swivel peg holes in vise

jaws to aid in clamping horizontally.

Excellent as small gluing clamp.

Black & Decker's Full Two Year Home Use Warranty states that, in case of

a defect, you may return the tool to the place of purchase for a free replacement

(if it is a participating retailer) or you may take it to a Black & Decker Service

Center.

Home Use Warranty

(A Full Two Year Warranty)

Black & Decker (U.S.) Inc. warrants this product for two years against any

defects that are due to faulty material or workmanship. Please return the

complete unit, transportation prepaid, to the seller (if a participating retailer) for

free replacement (proof of purchase may be required). The unit may also be

returned to a Black & Decker Service Center listed under 'Tools Electric" in the

Yellow Pages for free replacement or repair at our option. This warranty does

not apply to accessories. This warranty gives you specific legal rights and you

may have other rights which vary from state to state. Should you have any

questions, contact your nearest Black & Decker Service Center Manager.

Black & Decker Workmate® Work Center covered by one or more of the

following U.S. patents: 3.615.087; 3.841.619: 4.034.684; 4.076.229; 4.127.260;

4.140.309; 4.154.435; 4.155.386; 4.157.174; 4.159.821; 4.169.606; 230.801;

D250.079; 4.253.212; 243.820; 4.248.411; 4.265.436; Pat. Ped. Corresponding

Patents in other countries.

See 'Tools-Electric'

—Yellow Pages—

for Service & Sales

BDECKER®



Form No. 741416

(SEP87) 1 987 Printed in Brazil

BLACK & DECKER (U.S.) INC., U.S. Power Tools Group, 10 North Park Drive, P.0.798, Hunt Valley, MD 21030-0798 U.S.A.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Black & Decker Rangement des outils

Black & Decker

Black & Decker Workmate 425 TYPE 5 Manuel utilisateur

Black & Decker

Black & Decker WorkMate 125 Manuel utilisateur

Black & Decker

Black & Decker Workmate 79-041 Manuel utilisateur

Black & Decker

Black & Decker WM2000 Manuel utilisateur

Black & Decker

Black & Decker Workmate 79-020 Manuel utilisateur

Black & Decker

Black & Decker WORKMATE 79-001 Manuel utilisateur

Black & Decker

Black & Decker WorkMate 125 Manuel utilisateur

Black & Decker

Black & Decker WM540 Manuel utilisateur

Black & Decker

Black & Decker WM835 Manuel utilisateur

Black & Decker

Black & Decker BEZ100 Manuel utilisateur

Black & Decker

Black & Decker Workmate 225 Type 6 Manuel utilisateur

Black & Decker

Black & Decker WM2000 Manuel utilisateur

Black & Decker

Black & Decker BDST98376BKAEV Manuel utilisateur

Black & Decker

Black & Decker Workmate 225 Type 6 Manuel utilisateur

Black & Decker

Black & Decker WM535 Manuel utilisateur

Black & Decker

Black & Decker Workmate 425 TYPE 5 Manuel utilisateur

Black & Decker

Black & Decker Workmate 79-041 Manuel utilisateur

Manuels Rangement des outils populaires d'autres marques

Ryobi

Ryobi RWB03 Manuel utilisateur

Husky

Husky H27CH5TR4BGK Manuel utilisateur

Scheppach

Scheppach ts 2100 Manuel utilisateur

Cornwell Tools

Cornwell Tools CTB360AKBK Manuel utilisateur

DIVERSIFIED WOODCRAFTS

DIVERSIFIED WOODCRAFTS SHAIN GSB-6024 Manuel utilisateur

Cassese

Cassese CS200 CART Manuel utilisateur

Kendall Howard

Kendall Howard ESDW-9630-1000 Manuel utilisateur

Lista

Lista Align Instructions de montage

Workzone

Workzone 99609 Manuel utilisateur

Stanley

Stanley STST83800-1 Manuel utilisateur

Homak

Homak PROFESSIONAL Series Manuel du système

Perel

Perel ROLLER SHUTTER STORAGE CABINET Manuel utilisateur

Husky

Husky H5CH2R Manuel utilisateur

BGS technic

BGS technic 4107 Manuel utilisateur

Clarke

Clarke CWB1250 Manuel utilisateur

Ryobi

Ryobi RWB02 Manuel utilisateur

Husky

Husky H52CH6HDV3WHT Manuel utilisateur

Sealey

Sealey PTB66004 Manuel utilisateur
