Bkav AI View S500-0233 Manuel utilisateur
Qualcomm products contained here in are products of Qualcomm Technologies, Inc. and/or its subsidiaries.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries.
The Made with Qualcomm Technologies logo is a trademark of Qualcomm Incorporated.
Ultra zoom Speed Dome
AI-based Camera
Model: S500-0233
INSTALLATION GUIDE

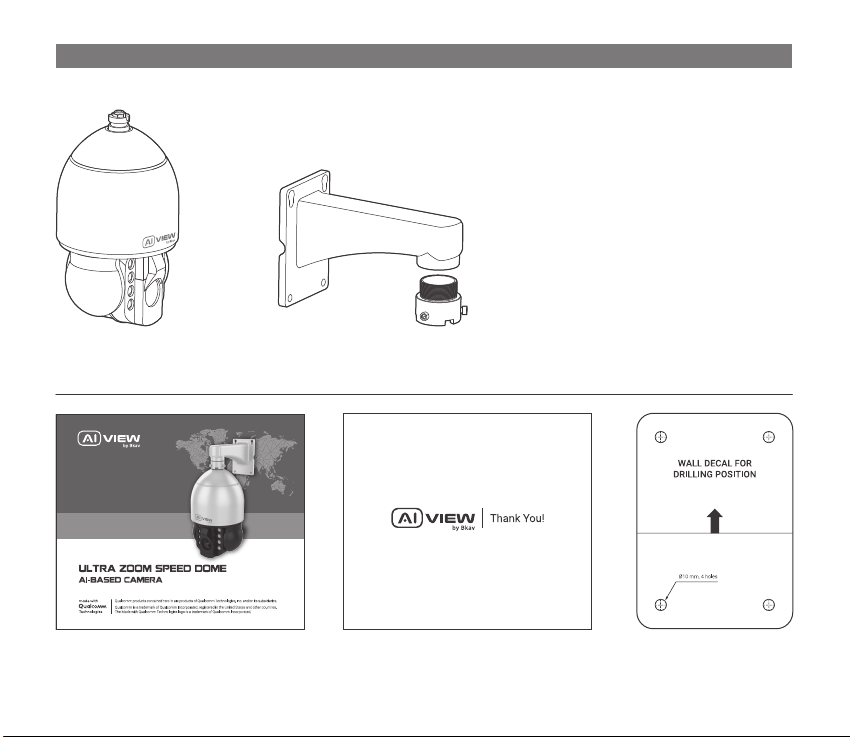

PRODUCT KIT
3
Installation guide Thank you letter Drilling position decal
Wall BracketCamera
4

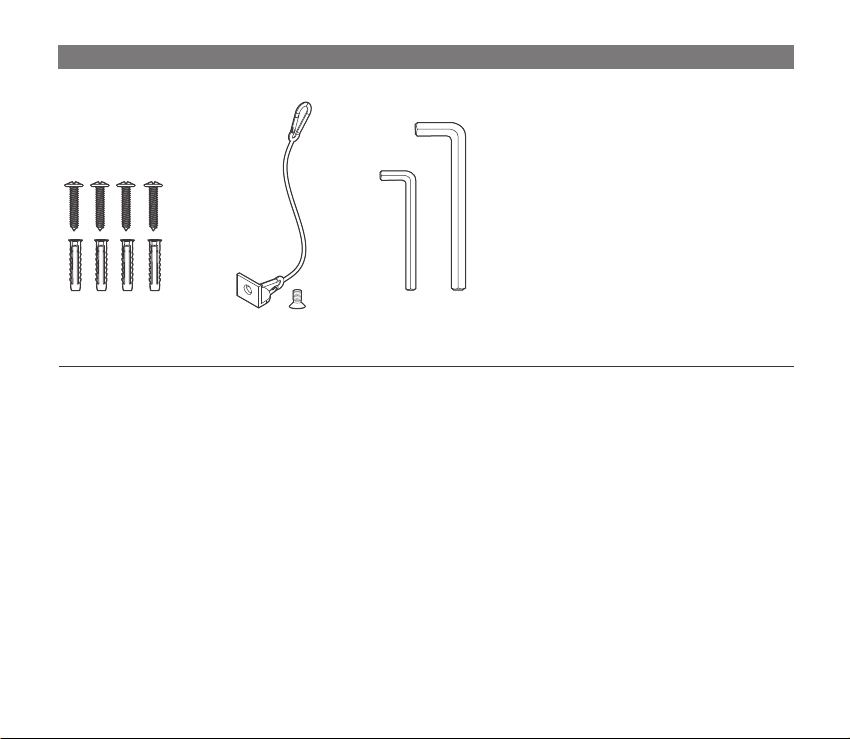

PRODUCT KIT
Set 4 of screws
and anchors
Hex tool
size 3, 5
Safety cable
5
TECHNICAL SPECIFICATION
Protection standards IP66, IK10
Resolution, frame rate FHD 1920x1080, Max 60fps
Digital zoom 4x
Optical zoom 33x
Focal length 4.5 - 148.5mm
Field of view (horizontal-vertical) Near: 60.1° - 36.2° / Far: 2.28° - 1.29°
Operating temperature
Dimentions (L x W x H) L380 x W290 x H450mm
4.67kgWeight
-40°C - 60°C (-40°F - 140°F)
Humidity 10 - 100%
Micro SD card External, up to 256GB
Power
Power consumption
Max 35W
Max 37W (with PTZ)
AC24V 5%
6

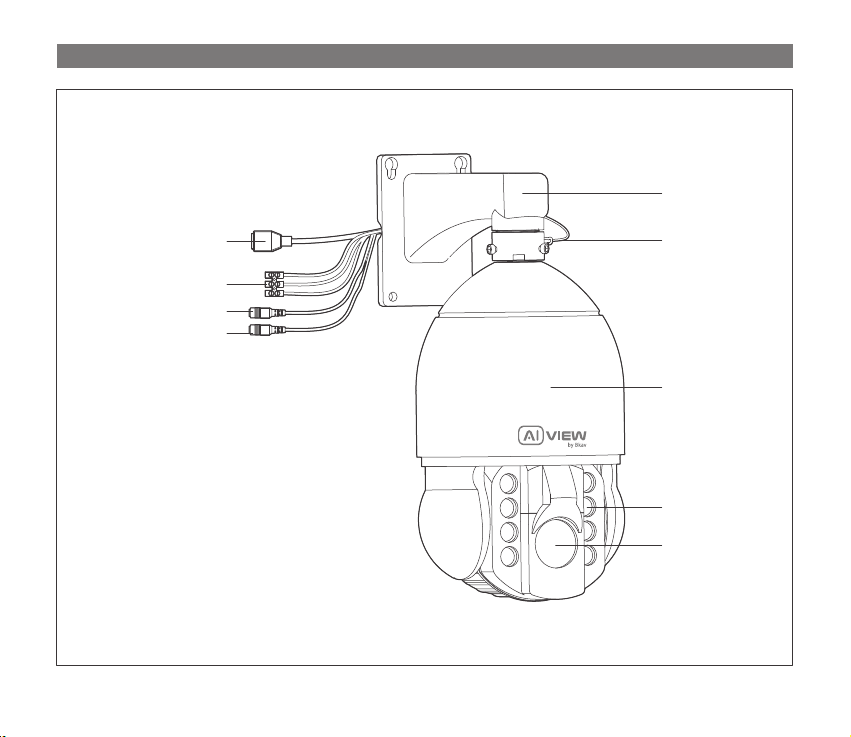

PRODUCT OVERVIEW
Camera body
Camera lens
Infrared LED
24VAC power supply
Audio in
Audio out
Ethernet interface
Wall bracket
Safety cable
INSTALLATION GUIDE
Step 1: Fix the camera on the bracket and tighten the screws it in the place (Figure 1).
Step 2: Assemble safety cable into the bracket (Figure 2).
7
21
8
INSTALLATION GUIDE
3
Drilling position decal

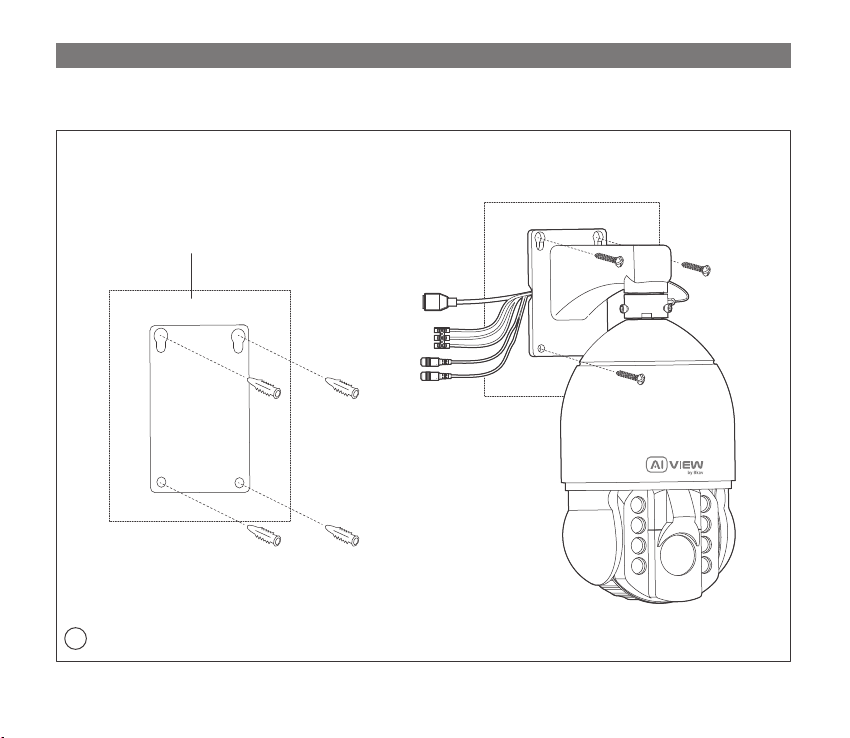

Step 3: Apply positions decal and drill 4 anchors to the wall. Fix the camera onto the wall with the screw (Figure 3).

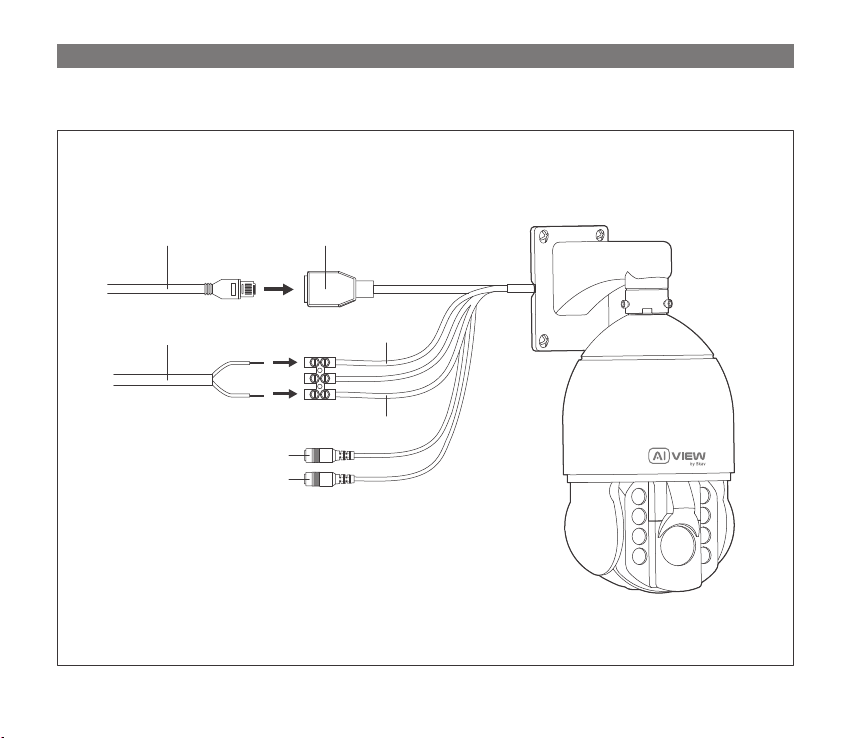

CONNECTING THE SIGNAL WIRE
Connect network signal and 24VAC power supply.
Network cable Ethernet interface
24VAC power supply Black wire
Red wire
Audio out
Audio in
9

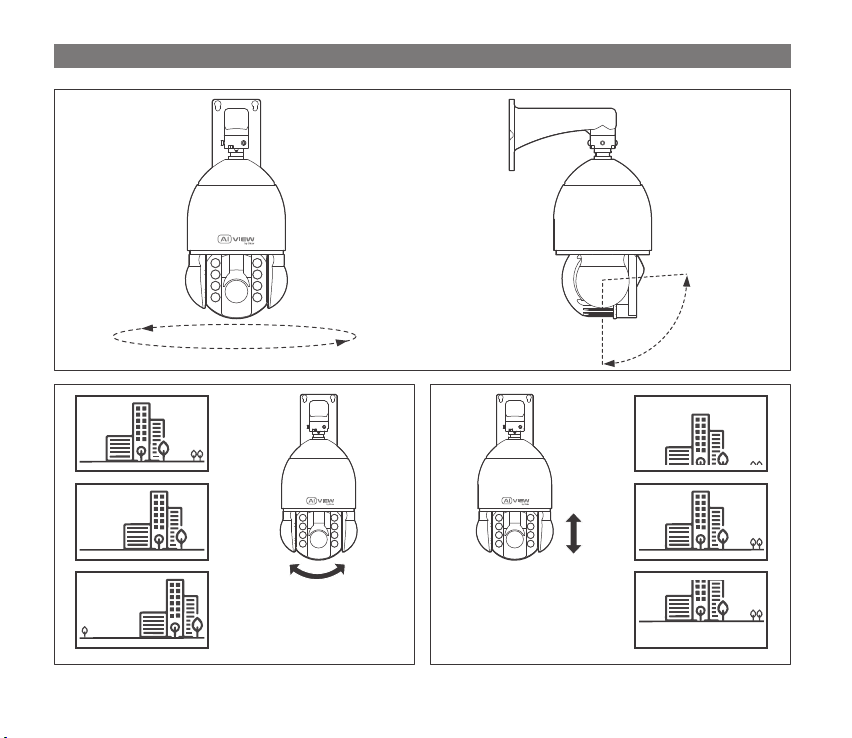

CAMERA FIELD OF VIEW
95°
360°
10
