Vehicles Tracking Device

BI-810 TREK

Operating Manual

Version 2019.09.1

2

www.bitrek.com.ua
[email protected]om.ua
+380 44 507 02 07

Table of Contents
Introduction............................................................................................3
Safety Requirements for Installation and Maintenance of Tracking
Device "BI-810 TREK"...........................................................................3
Transportation and Storage ...................................................................3
Warranty............................................................................................. 3
Device.................................................................................................... 3
Intended Use of the Device.................................................................... 3
Principle of Operation ...........................................................................4
Specifications ......................................................................................4
Tracking device design..........................................................................5
Scope of Delivery .................................................................................6
Preparation for Operation .........................................................................6
Inserting SIM–Card ..............................................................................6
Connection of the Power Supply, Discrete and Analog Sensors, as well
as Extra Devices ..................................................................................7
Installation and Commissioning .................................................................8
Installation Guide .................................................................................8
Electrical Connections ...........................................................................8
Connection to a Computer .....................................................................9
Indicators Description ...........................................................................9
List of SMS Commands........................................................................... 10
Structure of the SMS Commands.......................................................... 10
Configuring the Device........................................................................ 11
Detailed Description of Information Commands ...................................... 13
Detailed Description of Controlling Commands ....................................... 15
Basic Device Configuration .................................................................. 16
Security Settings ................................................................................... 16
Configuring I/O Components................................................................... 17
Configuring Alarms ................................................................................ 21
Description of Operator Selection Modes................................................... 22
Configuring Roaming Settings ................................................................. 22
Configuring the Device for Operation with RFID Readers............................. 23
Configuring the Device for Operation with Fuel Meter RS-485...................... 24
Use of Backup Server............................................................................. 25
Configuring Engine Lock ......................................................................... 25
Addendum 1. Device parameters ............................................................. 27
Addendum 2. List of I/O Components....................................................... 37







www.bitrek.com.ua

[email protected]om.ua

+380 44 507 02 07

Introduction

Safety Requirements for Installation and Maintenance of

Tracking Device "BI-810 TREK"

Compliance with the safety precautions is the responsibility of

technical personnel installing the tracking device, as well as employees in

charge of equipment on site.

To avoid damage to the device, please, keep it in a stress-resistant

case. Before using the device, please, place it so that its status LED

indicators are clearly visible. Prior to dismantling outputs of the device,

please, disconnect its power supply unit.

Transportation and Storage

The tracking device in the manufacturer's package can be

transported by any closed land and sea transport mode (in railroad cars,

containers, closed trucks, cabins, etc.). It can also be transported in

heated aircraft cabins.

When transporting and storing the device, the package instructions

on the labels must be observed.

Warranty

The warranty period for the tracking device shall be 12 months of

the date of commissioning. The commissioning date must be recorded

per requirements set forth in the certificate for the tracking device; if no

such data are available in the certificate, the warranty period shall be

counted starting with the tracking device shipment to the customer.

Manufacturer's warranty shall only be valid provided that the

customer complies with the requirements of this Manual. In the event of

their violation, or in the presence of mechanical or electrical damage

caused by the factors that are not covered in this Manual, the Warranty

shall be deemed void.

Device

Intended Use of the Device

Tracking device BI-810 TREK is used for navigation tasks, remote

control and monitoring of a vehicle or other remote object.

The tracking device is intended for installation to any mobile or

remote stationary object in order to:

determine geographical coordinates, speed and direction of

movement;

collect data coming from the external devices;

control actuators;

voice communication;

transfer the data to a dispatch center.

www.bitrek.com.ua

[email protected]om.ua

+380 44 507 02 07

GSM 900/1800 or GSM 850/900/1800/1900 mobile carrier network

is used as a medium for data transfer. To determine the coordinates,

NAVSTAR GPS system is used. To detect vehicle movement, the data

obtained from GPS or GPS/GLONASS and internal acceleration meter are

used.

The device must be installed in a spot unavailable to a driver.

Principle of Operation

In real time, the tracking device:

using an in-built GPS or GPS/GLONASS receiver, determines the

location and motion parameters of an object (time, geographical

coordinates, speed, direction of travel);

collects and processes information coming from analog and

discrete sensors;

controls actuators upon the command from the operator panel.

The data obtained are recorded and stored in the internal log that

is based on a non-volatile memory chip. Records from this log are

transferred to the operator panel through a GSM channel with a

predetermined frequency or on an event basis. Information exchange is

done via GPRS and SMS. Voice communication is also supported.

On-line terminal operation is only possible provided there is GSM

coverage. Beyond the GSM network coverage area, the tracking device is

in the mode of a "black box", i.e. it records all logged information to the

non-volatile memory and transfers it when a vehicles enters into a GSM

coverage area.

Specifications

Table 1. Device Specifications

No.

Item

Specifications

Data transfer standard

GSM 900/1800 or GSM

850/900/1800/1900

GSM network communication channel

GPRS, SMS, voice

communication

GPRS grade

Navigation system types

GPS or GPS/GLONASS

GPS and GSM antennas

External

Auxiliary digital interfaces

RS-485

Motion sensor

Acceleration meter

www.bitrek.com.ua

[email protected]om.ua

+380 44 507 02 07

No.

Item

Specifications

Secure power supply input

yes

Number of SIM cards

Number of 0-active discrete inputs

Number of 1-active discrete inputs

Number of discrete outputs

Discrete inputs voltage range

from 0 V to 40 V

Type of discrete outputs

open collector

Full-load amperage of discrete outputs

0.5 А

Number of analog inputs

Analog input voltage range

from 0 V to 27 V

Power

Voltage

from 6 v to 40 V

Normal input current (12 V)

60 mA

Max. current (12 V)

350 mA

Non-volatile memory capacity

2 MB (or 65,000 entries)

Internal battery Li-Ion

1,000 mAh

Operating temperature

from -30°С to +80°С

80 ± 15%

Dimensions (W х L х H)

85 х 95 х 29 mm

Weight

175 g

Body

IP 65 (plastic РА 6)

Tracking device design

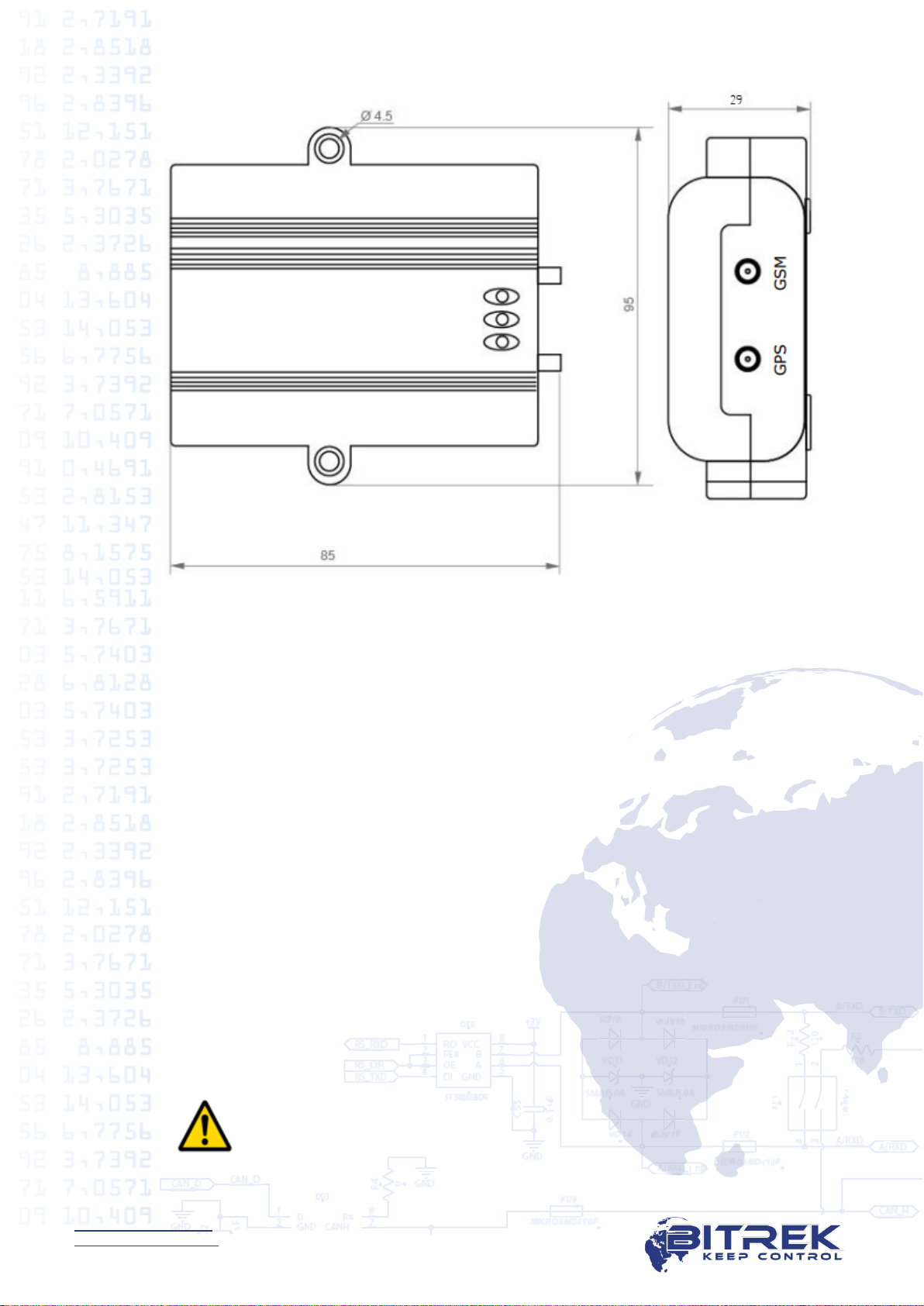

Fig. 1. Appearance and Dimensions of Tracking Device BI-810 TREK.

www.bitrek.com.ua

[email protected]om.ua

+380 44 507 02 07

Scope of Delivery

1. Tracking Device BI-810 TREK - 1 pc.

2. GPS antenna –1 pc.

3. GSM antenna –1 pc.

4. Certificate –1 pc.

5. Warranty sheet –1 pc.

6. Packing box –1 pc.

Preparation for Operation

Inserting SIM–Card

To operate on a GSM network, a SIM-card has to be inserted into

the device. Contacts of the SIM-card must not be saved, PIN-code must

be disabled (a SIM-card with an enabled PIN-code can be used provided

that the PIN-code has been entered into the device settings).

To insert a SIM-card all device connectors must be disconnected

and its top cover must be removed. There is a slot on the top of the

circuit board. Then the device has to be reassembled in the reversed

order.

ATTENTION! The manufacturer does not supply a SIM-

card necessary for connecting to a GSM network!

www.bitrek.com.ua

[email protected]om.ua

+380 44 507 02 07

Connection of the Power Supply, Discrete and Analog Sensors,

as well as Extra Devices

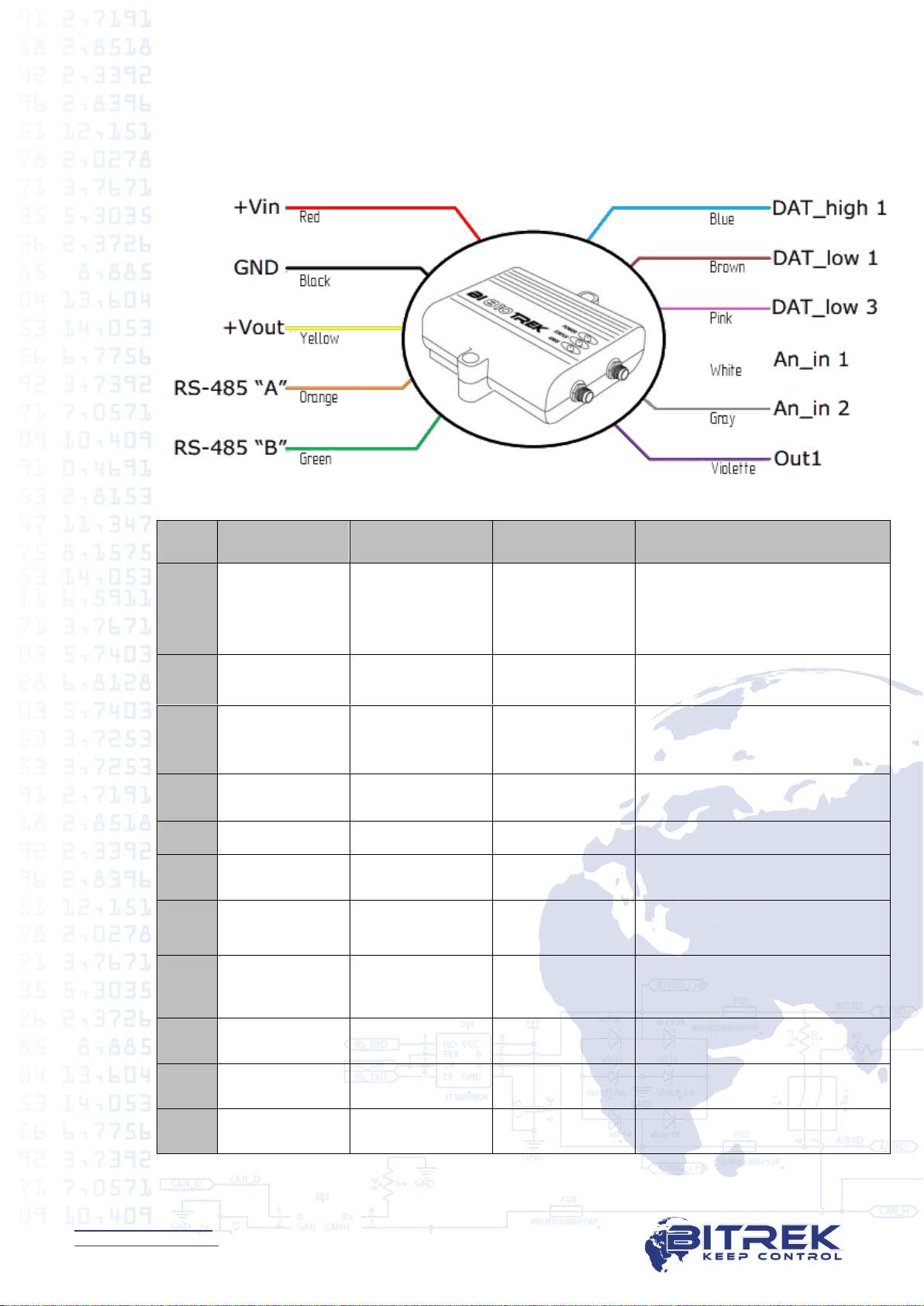

Fig. 2. BI-810 TREK Contact Pins

Table 2. Pin legends

No.

Color

Pin legend

Signal type

Pin purpose

Red

+ Vin

Power

"+" on-board power

terminal (nominal

voltage is 12 VDC or 24

VDC)

Black

GND

Power

Ground (earth)

Yellow

+ Vout

Power

Secure power input for

extra sensors. Voltage +

Vin (350 mA max)

Oragnge

Input/Output

"A" signal RS-485

Green

Input/Output

"B" signal RS-485

Blue

Ignition

Input

1-active discrete input

Reserved for ignition

Brown

DAT_low 1

Input

0-active discrete input

Pink

DAT_low 3

Input

0-active discrete input

White

A_in 1

Input

Analog input No.1

Gray

A_in 2

Input

Analog input No.2

Violette

Out 1

Output

Discrete output

www.bitrek.com.ua

[email protected]om.ua

+380 44 507 02 07

Installation and Commissioning

Installation Guide

Tracking device location must ensure connections of sockets and

avoid potential of accidental damage; it also must eliminate exposure to

direct sunlight, moisture, etc. Recommended location of installation in a

vehicle is the empty space under the dashboard inside a vehicle.

GPS and GSM antennae shall also be located in the empty space

under the dashboard of a vehicle.

Antennae cables must be located and clamped along the entire

length with straps clamped to the clamping sites. Cabling must be done

so as to avoid any damage during the operation, when closing

doors/hatches.

Electrical Connections

Power cable shall be passed through special ports in a vehicle body

from the normal battery location to the location where the tracking

device is to be installed. Power cables shall be connected to respective

battery terminals.

ATTENTION! When performing welding operations during

repairs of a vehicle, MAKE SURE to disconnect power cable

and periphery cables!

Discrete inputs with active "0" respond to connection of these

inputs to GND (ground). This input is inactive when it is not connected

(input is 'blank').

Discrete inputs with active "1" respond to the voltage of over 8 V

on them (connection of the input to the "+" terminal of vehicle network).

This input is inactive when it is not connected (input is 'blank').

Voltage on the analog input may vary from 0 to 24 VDC.

Discrete output is "open collector" type. Load must be connected

into the open between the discrete output and power supply "+"

terminal. When the output is activated it closes to the GND. Max. load

current of the discrete output should not exceed 0.5 А! If high-amperage

currents need to be switched, the discrete outputs must be connected

using additional relay.

ATTENTION! Voltage on the discrete inputs and outputs

should not exceed 30 V.

Voltage on the analog inputs should not exceed 30 V.

Device input voltage should not exceed 36 V.

Otherwise, the device can be damaged.

www.bitrek.com.ua

[email protected]om.ua

+380 44 507 02 07

Connection to a Computer

The tracking device can be connected to a computer for

configuration and servicing. The device has UART output interface for

that purpose. In order to connect the device to a computer a USB-UART

adapter should be used that can be purchased from the dealer as an

option.

Fig. 3. BI-810 TREK Connection Diagram

A terminal program can be used for data exchange with the device.

Terminal configuration settings: bit rate –115,200 bps, data bit –8, stop

bit –1, without parity check, without stream control.

Once the link is up, the device will start sending its status data to

the terminal. Using the terminal program, a user can send commands to

the device and receive responses to them. But the device first needs to

send access password to the terminal in the following format:

TPASS: password;

where password is an access password for the terminal (by default,

11111 is used).

Once sent, the password will be valid for 60 seconds. After this

timeout, the password needs to be sent again so that the data can be

exchanged with the device.

Indicators Description

The top panel of the tracking device has 3 LEDs that indicate

current status of the device.

www.bitrek.com.ua

[email protected]om.ua

+380 44 507 02 07

No.

LED mode

Red

Yellow

Green

Permanently

External

power is on

The devices is

connected to the

server and the data

are transmitted

Off

No external

power

No satellites

available

Blinks once

every 0.5

seconds

Trying to connect

to the server

Blinks once

every 0.1

seconds

Failure to connect

to the server, the

attempt will be

repeated in 2

minutes

Blinks once

every 2

seconds

Satellites are

available,

coordinates

have been

established

List of SMS Commands

SMS commands are used for getting current state of the device,

troubleshooting potential errors, configuring the settings, etc. An SMS

command should be sent together with login and password; the sender's

number must be included to the list of authorized contacts (when such

list is used).

Structure of the SMS Commands

Any SMS with commands includes login/password pair (when

configured) and a list of different commands. The commands are

delimited with semicolon delimiter.

SMS commands entered to the tracking device should be of the

following format:

<login><space><password><space><command1>;<space><co

mmand2>;<space><commandN>;

Example of an SMS command:

abcd 1234 getgps; getstatus;

ATTENTION! Total length of an SMS command string

should not exceed 160 Latin characters. Number of

commands per one SMS is only limited by the maximum

length of an SMS.

Table des matières

Autres manuels BITREK GPS

BITREK

BITREK BI-520L TREK Manuel utilisateur

BITREK

BITREK BI 530R TREK Manuel utilisateur

BITREK

BITREK BI-868 TREK HW2 Manuel utilisateur

BITREK

BITREK BI-530P TREK Manuel utilisateur

BITREK

BITREK BI-910 TREK Manuel utilisateur

BITREK

BITREK BI-820OBD TREK Manuel utilisateur

BITREK

BITREK BI 820 TREK OBD Manuel utilisateur

BITREK

BITREK BI 810 TREK Manuel utilisateur

BITREK

BITREK BI-530C TREK Manuel utilisateur

BITREK

BITREK BI 868 TREK Manuel utilisateur

Manuels GPS populaires d'autres marques

Raven

Raven Cruizer II Manuel

Hama

Hama 53118 Manuel utilisateur

Garmin

Garmin SOUNDER 125 Manuel utilisateur

Garmin

Garmin DEZL 580 Manuel utilisateur

Jigabot

Jigabot EX Manuel utilisateur

Pointer

Pointer Cellocator CelloTrack XT LTE Guide d'installation

Queclink

Queclink GV55LITE Manuel utilisateur

Voxson

Voxson Voxtrack GPS500 Manuel d'instructions

Garmin

Garmin ECHOMAP PLUS Manuel utilisateur

Starcom Systems

Starcom Systems Kylos Compact Manuel utilisateur

Garmin

Garmin 15 H Series Manuel utilisateur

Cobra

Cobra Marine MC 600Ci Manuel utilisateur

Cellocator

Cellocator CelloTrack T Manuel utilisateur

Enfora

Enfora Mini-MT GSM2228UG001 Manuel utilisateur

Magellan

Magellan eXplorist 100 Manuel utilisateur

LTE

LTE G50B Manuel utilisateur

Garmin

Garmin DEZL OTR500 Manuel utilisateur

SkyGolf

SkyGolf SkyCaddie SG1 Manuel utilisateur
