1 Introduction

BinTec CS 300 system telephones are manufactured exclusively for BinTec by elmeg,

the leading manufacturer of ISDN telephones and PABX systems.Not all features de-

scribed in the User’s Manual are currently available with your XCENTRIC.Latest imple-

mentation data is available for you at:

http://www.bintec.de/XCENTRIC/de/loesungen/index.html

2 Description

These operating instructions describe the functions for the Bin Tec CS300 ISDN

telephone.

You can connect the ISDN telephone at the Euro-ISDN point-to-point connection

(DSS1 protocol) provided by your network service provider, or at the internal ISDN con-

nection (point-to-point connection DSS1 protocol) in a PABX system. The ISDN tele-

phone is linked to the ISDN network via an ISDN jack (Western or RJ45). After being con-

nected to the ISDN network, your ISDN telephone is immediately ready for operation

and can fully utilize its configured performance features.

Up to eight (8) ISDN terminal devices can be connected and managed at a network ter-

mination of a network service provider. Of these eight (8) available lines, one supply line

(max. 4 W) is available for ISDN telephones without their own internal power supply. A

link can be set up simultaneously for two (2) ISDN terminal devices at each base access

terminal (2 B channels, 1 D channel).

An internal ISDN connection for a PABX system is comparable to an ISDN base access

terminal (point-to-point connection) of a network service provider. Up to eight (8) ISDN

terminal devices can be connected and managed at each internal ISDN connection. The

power available at this internal ISDN connection determines how many terminal devices

can be supplied with power by the PABX system. Refer to the operating instructions for

your PABX, or contact the PABX manufacturer for more details about this. A link can be

set up simultaneously for two (2) ISDN terminal devices at each internal ISDN connec-

tion.

The CS300 ISDN telephone provides certain system features when connected to an

XCentric. The internal connection (S0 bus) on this PABX system interfaces with the

CS300 ISDN telephone. Please refer also to the User’s Manual for your XCentric.

2.1 Safety instructions

Unauthorized opening of the system telephone and improper repairs may

result in risk of injury for the user.

Description

G:\BinTec\cs300\v1\Engl\Bed\BinTec300_engl_v10x1.vp

Montag, 30. Oktober 2000 08:21:36

Farbprofil: Generic CMYK printer profile - None

Komposit Standardbildschirm

Do not expose the inside of the system telephone to any liquids. This can

result in electric shock. If you expose the inside of the telephone to liquids

the telephone can be destroyed.

You should not connect or disconnect any lines during thunderstorms.

To prevent mutual interference, do not install your system telephone in the

immediate vicinity of electronic devices such as stereo equipment, elec-

tric office equipment or microwave units.

Avoid installing your PABX near sources of excessive heat, e.g. radiators

or in rooms with excessive humidity.

The ambient temperature must not be below 0° and should not exceed

40°C.

2.2 Contents of package

BinTec CS300 ISDN- telephone

handset with handset connecting cord

ISDN connecting cord (approx. 3m)

RS232 connecting cable RJ12 / D-SUB 9-pin (approx. 3m)

operating instruction

Label for direct dialing/function keys

WIN-Tools CD-ROM with: detailed operating instruction;

configuration manager, telephone directory manager and download

manager;

TAPI driver

Adobe Acrobat file for the printing of individual labels

2.3 Cleaning and maintenance

The ISDN system telephone has been manufactured for normal, everyday use. When re-

quired, clean the ISDN system telephone with a slightly moistened cloth, or with an

anti-static cloth. Never use a solvent to clean the phone! Never use a dry cloth. Electro-

static charges could damage the electronics in the system. It is essential that no liquids

penetrate into the inside of the ISDN system telephone, as this could destroy the phone.

2.4 Placing the telephone

Please note that the plastic feet of your ISDN system telephone may leave marks on sen-

sitive surfaces, such as furniture. The manufacturer of the ISDN system telephone is not

liable for any such damage. Therefore, use appropriate non-skidding pads under the

phone.

Description

G:\BinTec\cs300\v1\Engl\Bed\BinTec300_engl_v10x1.vp

Montag, 30. Oktober 2000 08:21:36

Farbprofil: Generic CMYK printer profile - None

Komposit Standardbildschirm

2.5 User interface of your system telephone

Description

FESC C

01.04.00\10:34\\\\\\\\\}

tbook vip quiet

123

456

789

ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

1 Speaker

2 Label panel for VIP keys and

function keys

3 7 direct dialing/ function keys

with LED

4 Shift button with LED

5 Display

6 4 softkeys

7 Microphone

8 Function key

9 C-button

10 Escape

11 Acknowledgement

12 Arrow buttons »left« / »right«

13 Open listening/ hands-free

14 Disconnect

15 Redial

16 Enquiry

17 Asterix button / number symbol

18 Dial / VIP buttons

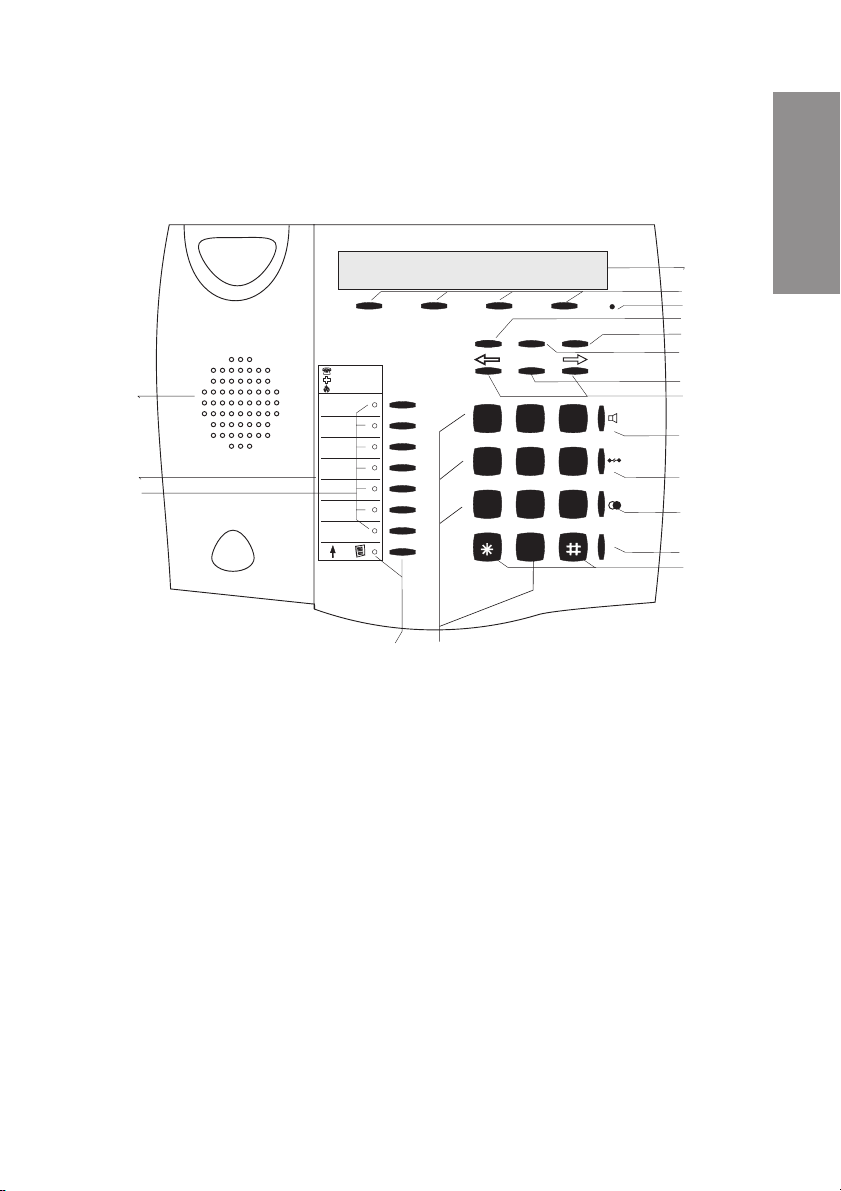

Fig. 1: User interface of your telephone

G:\BinTec\cs300\v1\Engl\Bed\BinTec300_engl_v10x1.vp

Montag, 30. Oktober 2000 08:21:40

Farbprofil: Generic CMYK printer profile - None

Komposit Standardbildschirm

2.6 Display, Buttons, LEDs, Pictographs and signals

2.6.1 Display

After you connect the system to the ISDN connection,

the date and time are shown on the top line of the dis-

play. The date and time are imported automatically

from the PABX system, or from the ISDN network

when you have successfully made a call. Terms are

displayed in capital and small letters on the first line.

The functions of the softkeys are displayed in capital

or small letters (depending on your settings) in the

second line.

ˆ01.04.00 10:34 }

ˆtbook vip quiet

The text displayed for a function on line 2 is always lo-

cated above the corresponding softkey. When you

press the softkey, the next level is displayed.

ˆ Functions

ˆaudib adjust prog config

SSSS

2.6.2 Buttons

FFunction button: This key opens the pro-

gramming menu. If you are already lo-

cated in a menu and then press the key,

either menu-specific functions are shown,

or you are moved back one programming

step.

ˆ Functions

ˆaudib adjust prog config

Description

1st line

2nd line

24 chars

SSSS

4 softkeys

Text assignment

to softkey

Date Time

Arrow: further menu items

accessible with arrow buttons

01.04.00\10:34\\\\\\\\\}

tbook\ vip \\quiet

Fig. 2: Display of your telephone

G:\BinTec\cs300\v1\Engl\Bed\BinTec300_engl_v10x1.vp

Montag, 30. Oktober 2000 08:21:43

Farbprofil: Generic CMYK printer profile - None

Komposit Standardbildschirm

EEscape button: Pressing the Esc button

during programming returns the tele-

phone to its idle status.

ˆ Functions

ˆaudib adjust prog config

OOK key: Pressing this button stores a setting in the telephone. You then hear

the acknowledgement signal.

CC-button: Press this button to move back one menu step in the menu. If you

are currently in the input mode, this button can be used to delete individual

characters.

<> Arrow buttons: The arrows »{« and »}«in

the right corner on the top line of the dis-

play indicate that you can call up further

functions on the second line using the ar-

row buttons.

ˆ01.04.00 10:34 }

ˆ vip quiet

ˆ01.04.00 10:34 {}

ˆunpark rate

Special feature for changing existing entries

You have various options available to you for changing existing entries (e.g. names or

numbers).

Example 1:

You wish to change an existing number / MSN (see page 14), as the telephone is to be

used at a different ISDN connection.

tWhen you use the pushbutton set to enter

the first digit of the new number the exist-

ing number is deleted completely.

ˆ program dia number

ˆMSN1>123456

ˆ program dia number

ˆMSN1>9_

tEnter the other digits of the new number. ˆ program dia number

ˆMSN1>987654_

Example 2:

You wish to change parts of a name in a telephone directory listing (see page 46), be-

cause the name has changed (e.g. after a wedding).

Using the arrow keys, first select the let-

ters of the entry that are to be changed (in

this example: the surname »MILLER«) and

delete this name using the C button.

ˆChange tbook data input

ˆname>TINA_MILLER

ˆChange tbook data input

ˆname>TINA _

Description

G:\BinTec\cs300\v1\Engl\Bed\BinTec300_engl_v10x1.vp

Montag, 30. Oktober 2000 08:21:43

Farbprofil: Generic CMYK printer profile - None

Komposit Standardbildschirm

tNow enter the new letters for the new

name (in the example the surname

»PETERS«).

ˆChange tbook data input

ˆname>TINA PETERS_

2.6.3 Entering letters and numbers

The following buttons are configured for the entry of letters and numbers (e.g. telephone

directory, VIP-memory).

Button 1. press 2. press 3. press 4. press 5. press 6. press

2ABC2Ä

3DEF 3

4GHI 4

5JKL5

6MNO6 Ö

7PQRS7ß

8TUV8Ü

9WX Y Z 9

0(space) . , - 0 /

Description

G:\BinTec\cs300\v1\Engl\Bed\BinTec300_engl_v10x1.vp

Montag, 30. Oktober 2000 08:21:43

Farbprofil: Generic CMYK printer profile - None

Komposit Standardbildschirm

Table des matières

Autres manuels BinTec Téléphone

BinTec

BinTec elmeg T444 Manuel utilisateur

BinTec

BinTec elmeg S560 Manuel utilisateur

BinTec

BinTec elmeg T240 Manuel utilisateur

BinTec

BinTec elmeg CS290 Manuel utilisateur

BinTec

BinTec elmeg CS410 Manuel utilisateur

Manuels Téléphone populaires d'autres marques

GE 2-9480 Manuel utilisateur

Geemarc

Geemarc PHOTOPHONE 155 Manuel utilisateur

D-Link

D-Link DWR-720/PW Manuel utilisateur

Interquartz

Interquartz Gemini IQ333 Manuel utilisateur

SSS Siedle

SSS Siedle HT 840-0 Manuel utilisateur

Motorola

Motorola TITANIUM Manuel utilisateur

Panasonic

Panasonic ICX Manuel utilisateur

LG H870DS Manuel utilisateur

Samsung

Samsung GT-I9500 Manuel utilisateur

AT&T

AT&T Trimline 205 Manuel utilisateur

Selta

Selta zenyth 600 Manuel utilisateur

Doro

Doro AFTI 20 Manuel utilisateur

UNIQCELL

UNIQCELL A1 Manuel utilisateur

Panasonic

Panasonic KX Series Manuel utilisateur

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuel utilisateur

BT Decor 425 Manuel utilisateur

NEC

NEC SV8500 Manuel utilisateur

Teledex

Teledex PEARL Manuel utilisateur
