Billion BiPAC 7402 Manuel utilisateur

ADSL2+ VPN Firewall Router with

3DES Accelerator

Express Internet Access - capable of ADSL2/ADSL2+

BIPAC 7402 complies with ADSL worldwide standard. It supports basic downstream rate of 8Mbps with ADSL,

capable up to 12/24 Mbps with ADSL2 / ADSL2+, and upstream rate up to 1 Mbps. Users enjoy not only high-

speed ADSL services but also wider range of broadband multimedia applications such as interactive gaming, video

streaming and real-time audio much easier and faster than ever.

Fast and Responsive Net Connection

Quality of Service (QoS) gives users the full control over which type of outgoing data traffic given priority by the

router, ensuring important data like gaming packets, customer information, or management information move

through the router at lightning speed, even under heavy load. The transmission speed can be throttled both

inbound and outbound data passed through the router to ensure P2P users not to saturate uploading bandwidth, or

office browsing not bring client web serving to a halt. In addition, the priority type of upload data can be changed in

order to let the router sort out the actual speeds.

Ease of Use with Quick Installation Wizard and Auto-scan ADSL

Settings

The Web-based Graphic User Interface (GUI) allows easy installation of the BIPAC 7402. With this simple wizard

and Auto-scan ADSL settings, the end user can enter the necessary ISP information and start surfing the Internet

immediately.

SOHO Firewall Security with DoS and SPI

Along with the built-in NAT natural firewall feature, the router also provides advanced hacker pattern-filtering

protection. It can automatically detect and block Denial of Service (DoS) attacks. The router is built with Stateful

Packet Inspection (SPI) to determine if a data packet is allowed through the firewall to the private LAN.

Virtual Private Network (VPN)

The router supports embedded VPN protocols, including PPTP client/server, IPSec (IKE, powerful 3DES

accelerator and AES) and L2TP within IPSec, for establishing a private encrypted tunnel over the public Internet to

ensure transmission security between two or more sites.

•Express Internet Access, capable of ADSL2/2+

•Ease of Use with Quick Installation Wizard and Auto-scan ADSL

Settings

•With powerful 3DES accelerator, VPN throughput with 3DES is

up to 3.5 Mbps

•Universal Plug and Play (UPnP) Compliant

•SOHO Firewall Security with DoS Prevention and SPI

•Parental Control with URL Content Filtering and Packet Filtering

•Dynamic Domain Name System (DDNS)

•Available Syslog monitoring

•Traffic Prioritization and Bandwidth Management for QoS Control

•Ideal for Office Users

BIPAC 7402

Powerline

ADSL Router and Adapter

VoIP ADSL Modem/Router Broadband Router

SHDSL Bridge / Router Wireless ADSL Router

Security Router

iBusiness

Security Appliance

ADSL Modem / Router

ADSL Compliance

•Compliant with ADSL Standard

- Full-rate ANSI T1.413 Issue 2

- G.dmt (ITU G.992.1)

- G.hs (ITU G.994.1)

- ADSL over ISDN/U-R2

•Capable of ADSL2 Standard

- G.dmt.bis (ITU G.992.3)

•Capable of ADSL2+ Standard

- G.dmt.bisplus (ITU G.992.5)

Network Protocols and Features

•

NAT, static routing and RIP-1/2

•

Universal Plug and Play (UPnP) Compliant

•

Dynamic Domain Name System (DDNS)

•

Virtual Server and DMZ

•

SNTP, DNS relay and IGMP proxy

•

POP3 (email account checking)

Firewall

•

Built-in NAT firewall

•

Stateful Packet Inspection (SPI)

•

Prevent DoS attacks including IP Spoofing, Land

Attack, Smurf Attack, Ping of Death, TCP SYN

Flooding, etc.

•

Packet Filtering - port, source IP address,

destination IP address, MAC address

•

URL Content Filtering - string or domain name detection in

URL string

Quality of Service Control

•

Support DiffServ approach

•

Traffic prioritization and bandwidth management

based-on IP protocol, port number and address

Hardware Specification

Physical Interface

•WLAN: antenna (7402W only)

•WAN: ADSL port

•LAN: 4-port 10/100M auto-crossover

(MDI/MDI-X) Switch

•Console: PS2

•Factory default reset button

•Power jack

•Power switch

Physical Specification

•Dimensions: 7.32" x 5.04" x 1.81"

(186mm x 128mm x 46mm)

Power Requirement

•Input: 12V DC, 1A

Specifications are subject to change without notice.

ATM and PPP Protocols

•ATM Adaptation Layer Type 5 (AAL5)

•Multiple Protocol over AAL5

(RFC 2684, formerly RFC 1483)

•Bridged or routed Ethernet encapsulation

•VC and LLC based multiplexing

•PPP over Ethernet (PPPoE)

•PPP over ATM (RFC 2364)

•Classical IP over ATM (RFC 1577)

•MAC Encapsulated Routing (RFC 1483 MER)

•OAM F4/F5

Virtual Private Network (VPN)

•Embedded IPSec & PPTP client/server

•IKE key management

• DES, 3DES and AES encryption for IPSec

• Embedded powerful 3DES accelerator

•MPPE Encryption for PPTP

• L2TP within IPSec

• L2TP/PPTP/IPSec pass-through

Management

• Quick Installation Wizard and Auto-scan ADSL

settings

•Web-based GUI for remote and local management

• Firmware upgraded and configuration data upload

and download via Web-based GUI

•Firmware upgradeable to ADSL2/ADSL2+ standards

•Embedded Telnet server for remote and local man-

agement

• Available Syslog monitoring

•SNMP v3, MIB-I and MIB-II support

•Support DHCP server/client/relay

Operating Environment

•Operating temperature: 0 ~ 40ºC

•Storage temperature: -20 ~ 70ºC

•Humidity: 20 ~ 95% non-condensing

Feature & Specification

Billion Electric Co., Ltd.

8F, No.192, Sec.2, Chung Hsing Road,

Hsin Tien City, Taipei Hsien, Taiwan

TEL : +886-2-2914-5665

FAX : +866-2-2918-6731,+886-2-2918-2895

E-mail : [email protected]

www.billion.com

BIPAC 7402

Autres manuels pour BiPAC 7402

Table des matières

Autres manuels Billion Routeur réseau

Billion

Billion BIPAC 7402W Manuel utilisateur

Billion

Billion BiPAC 7404VGP Manuel utilisateur

Billion

Billion BiPAC 4700ZU Manuel utilisateur

Billion

Billion BiPAC 7300M Manuel utilisateur

Billion

Billion BiPAC 5200N Manuel utilisateur

Billion

Billion BiPAC 5200G Series Manuel utilisateur

Billion

Billion BiPAC 7300G RA Manuel utilisateur

Billion

Billion BiPAC 8500 Manuel utilisateur

Billion

Billion BiPAC 7560G Manuel utilisateur

Billion

Billion BiPAC 5200S RC Series Manuel utilisateur

Billion

Billion BiPAC 7404VGOX Manuel utilisateur

Billion

Billion BiPAC 9800 Manuel utilisateur

Billion

Billion BiPAC 7300VGP Manuel utilisateur

Billion

Billion BiPAC 7404VNOX Manuel utilisateur

Billion

Billion BiPAC 7800VDPX Manuel utilisateur

Billion

Billion BiPAC 7402G Manuel utilisateur

Billion

Billion BiPAC 8500/8520 Manuel utilisateur

Billion

Billion BiPAC 5200N Manuel utilisateur

Billion

Billion VoIP/(802.11g) ADSL2+ Router BiPAC 7300VGP Manuel utilisateur

Billion

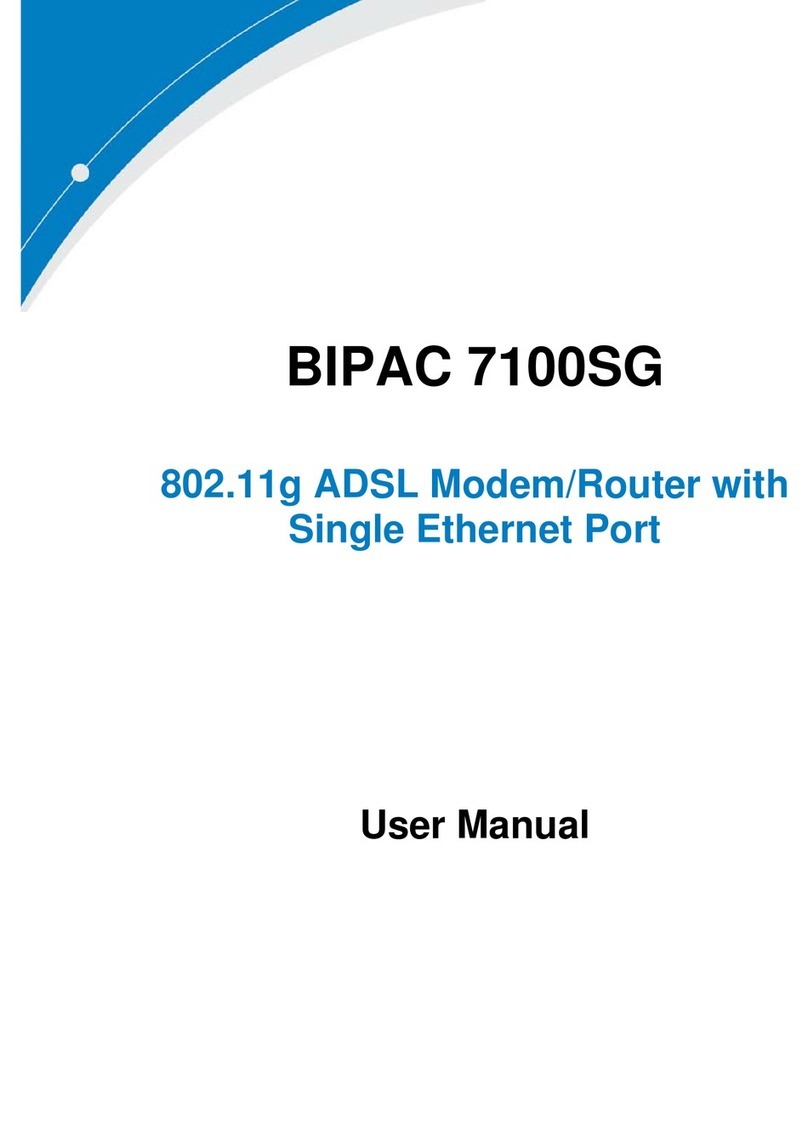

Billion BiPAC 7100SG Manuel utilisateur
