Bigassfans Mobile Light Series Manuel utilisateur
INSTALLATION
GUIDE
Mobile Light Series
For help, call 877-BIG FANS or visit
www.bigassfans.com/support
IMPORTANT SAFETY INFORMATION
ATTENTION
This guide contains important instructions and safety information. Leave with
owner after installation.
!CAUTION: Risk of electric shock. Disconnect power before servicing.
The light source contained in this fixture shall only be replaced by the
manufacturer or his service agent or a similar qualified person.
Suitable for damp locations.
Not for use in dwellings.
The Big Ass Fans product warranty will not cover equipment damage or failure
caused by improper installation.
This product contains high intensity LED devices. The fixture should be
positioned so that prolonged staring into the luminaire at a distance closer than
6 ft (1.8 m) is not expected.
Installation Guide
October 2018
Rev. E
10/18/2018
This product was manufactured in a plant whose Management System is certified as being in
conformity with ISO 9001.
www.bigassfans.com/patents • www.bigassfans.com/product-warranties
WWW.BIGASSFANS.COM © 2016 DELTA T LLC ALL RIGHTS RESERVED 1

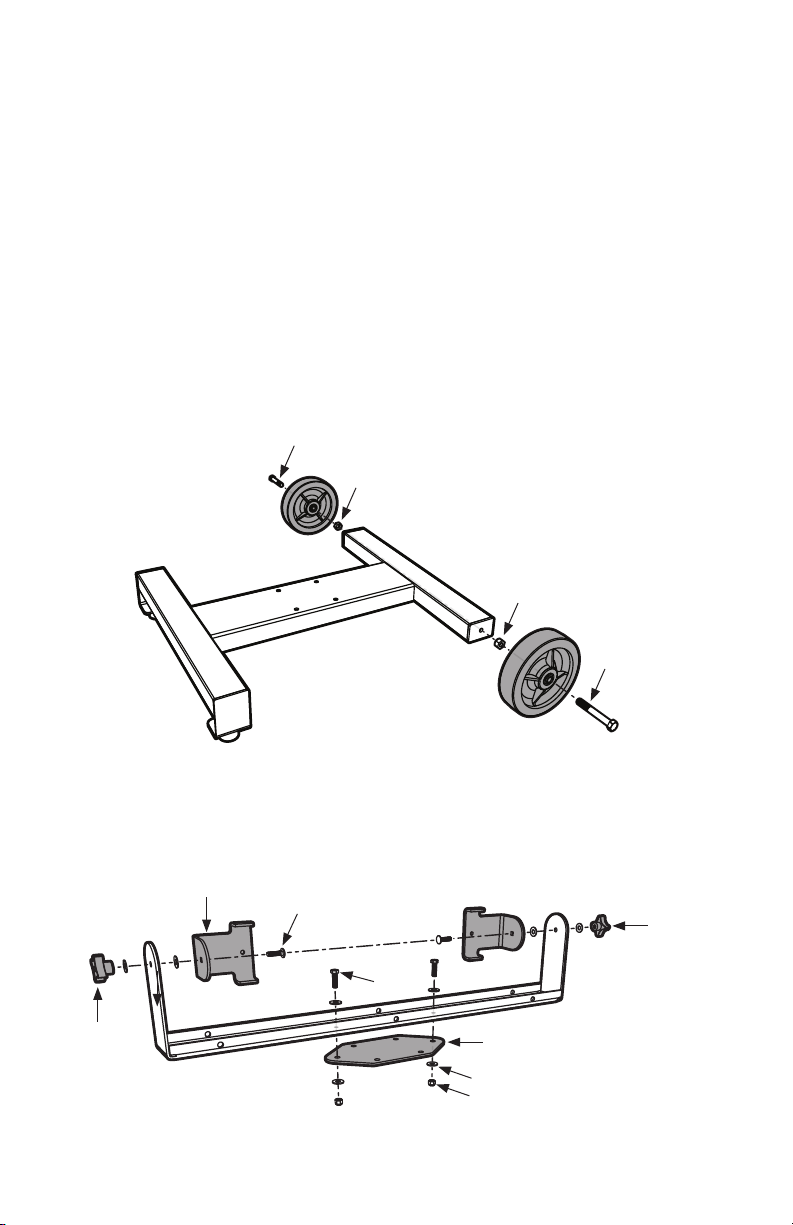

2. Assemble bracket
Main
bracket
c
e
End
bracket
d
Mount adapter plate
f
g
h
1. Assemble portable base
a. (2) 1/2-13 x 3-1/2” hex head cap screw
b. (2) 1/2” hex nut
c. (2) Angle adjustment knob
d. (2) Carriage bolt
e. (4) Carriage bolt washer
f. (10) 3/8-16 x 1” bolt*
g. (12) 3/8” washer*
h. (10) 3/8”-16 nylock nut*
a
a
b
b
INSTALLATION
*If two pedestals are ordered, four additional bolts, eight additional washers, and four additional nuts will be included.
HARDWARE
WWW.BIGASSFANS.COM © 2016 DELTA T LLC ALL RIGHTS RESERVED
2

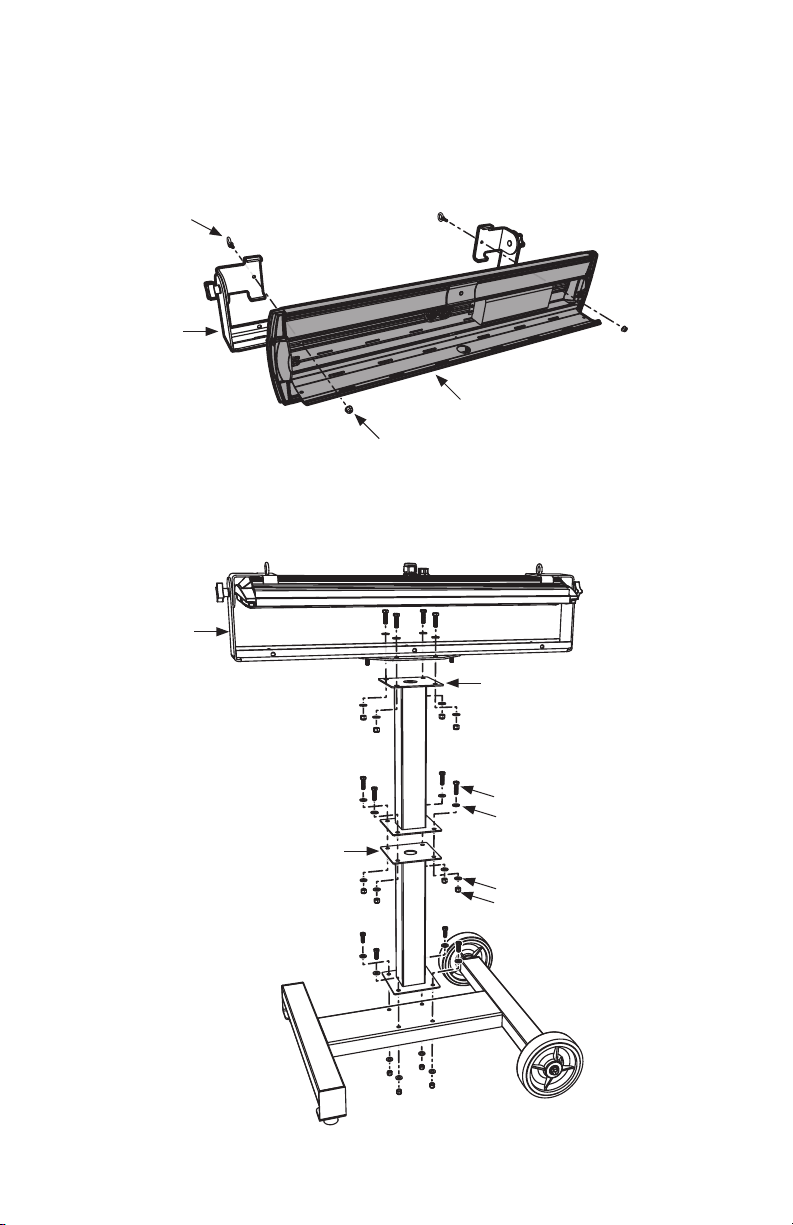

3. Bolt fixture to bracket assembly
Loosen the two-quarter turn screws and open the cover. Remove and discard the
nylon locking nuts to remove the eyebolts. Position the fixture in the bracket as
shown. Reattach the eyebolts using the provided nuts.
Bracket
Eyebolt
Nut
Fixture
4. Secure bracket and portable base to pedestal(s)
f
g
Pedestal
(optional)
h
Bracket
g
Pedestal
WWW.BIGASSFANS.COM © 2016 DELTA T LLC ALL RIGHTS RESERVED 3
MAINTENANCE
Electrical preventive maintenance
Big Ass Fans suggests an electrical preventive maintenance program similar to
that described in NFPA 70B: Recommended Practice For Electrical Equipment
Maintenance by the National Fire Protection Association.
Cleaning the lenses
Do not clean the fixture—especially the lenses—with scouring pads, alkaline
cleaning substances, gasoline, thinner, benzene, heating oil, glycol, alcohol, or
polishing powder. Do not pressure wash or use a water hose to clean the fixture.
Clean the lenses periodically to ensure optimal performance. Remove lenses
and wipe with a clean, damp cloth. Allow to dry thoroughly before replacing. If
necessary, use a mild soap or a gentle liquid cleaner.
Cord safety
If the external flexible cable or cord of this luminaire is damaged, it shall be
exclusively replaced by Big Ass Fans or a Big Ass Fans service agent or a similar
qualified person in order to avoid a hazard. For assistance, please contact
Customer Service.
QUESTIONS?
Customers in the United States
For questions about your product, please contact a customer service
representative at 877-BIG-FANS (877-244-3267) or visit
www.bigassfans.com/support
Customers outside the United States
For questions about your product or customer service inquiries, please contact
your local Big Ass Fans representative or visit www.bigassfans.com/support
HBL-INST-103-ENG-01
REV E
10/18/2018
2251 Innovation Drive, Lexington, KY 40511
1 (877) BIG-FANS | WWW.BIGASSFANS.COM
