Biasi Riva Advance Combi Instructions d'installation

Riva

BOILER INSTALLATION, OPERATION

INSTRUCTIONS

Riva

ADVANCE COMBI

WALL HUNG GAS BOILER FOR

CENTRAL HEATING SUPPLY

Please Read Instructions Carefully

Save for Future Reference

— Do not store or use gasoline or other ammable vapors and liquids

in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your

building.

• Immediately call your gas supplier from a neighbor’s phone.

Follow the gas supplier’s instructions.

• If you can not reach your gas supplier call the re department.

— Installation and service must be performed by a qualied installer,

service agency or the gas supplier.

WARNING: If the information in this manual is not followed

exactly, a re or explosion may result causing property

damage, personal injury or loss of life.

Quincy Hydronic Technology Inc.

3560 Lafayette Rd. Bldg. 2 Unit A

Portsmouth, NH 03801

Phone: 603-334-6400

Fax: 603-334-6401

2 RIVA ADVANCE COMBI MANUAL

Dear Customer:

Thank you for buying a Biasi Riva Advance Combi.

The Riva Advance Combi is a high efciency condensing, wall mounted gas boiler which

provides central heat supply water.

We realize that it is not possible to answer all questions about the Riva Advance Combi system

in this manual. Reading this installation manual does not make the reader an expert in all

aspects of installation and operation, and does not replace the need for a qualied, licensed

heating contractor. We urge you to contact your installing contractor or distributor if you are

in question about any aspect of your boiler’s performance. Our main concern is that you

are satised with your boiler and its performance. We require that your contractor complete

efciency tests using instruments.

The external controls and accessories listed in this manual (excluding those supplied inside the

boiler) are intended to serve as guidelines rather than specic recommendations. We realize

that other makes and models of such devices are available and can be used as successfully as

those we specify. The installing contractor is the best judge of a system’s specic requirements,

as well as the local availability of certain makes and models of controls and accessories. The

preceding does not apply, however, to the equipment that comes with every boiler, such as

the overheat control and pressure relief valves. The installation of the specic devices

supplied with every boiler is absolutely necessary to the safe operation of the boiler and

protection of the heating system.

All BIASI wall hung boilers are built in accordance with the ASME boiler and pressure vessel

code, and bear the “H” stamp. The Entire range of applications for the Riva Advance Combi

has been tested to standard ANSI Z21.13/CSA 4.9 and is CSA compliant.

This Riva Advance Combi has a 2 year warranty, a copy of which is provided with the boiler.

Please be sure to return the warranty registration card as the warranty will be void without your

boiler’s serial numbers (located on the ratings label afxed to the boiler), date of installation

and the name of your installer being on record in our les.

Thank you for purchasing our Riva Advance Combi. If you have questions or comments, please

don’t hesitate to contact us immediately. Our goal is 100% customer satisfaction.

QHT inc.

RIVA ADVANCE COMBI MANUAL 3

Table of Contents

Section Title Section Number Page Number

Warnings - 5-6

Important Information - 7

General Information 1 8

Technical Information (M210.32 CM) 2 8-9

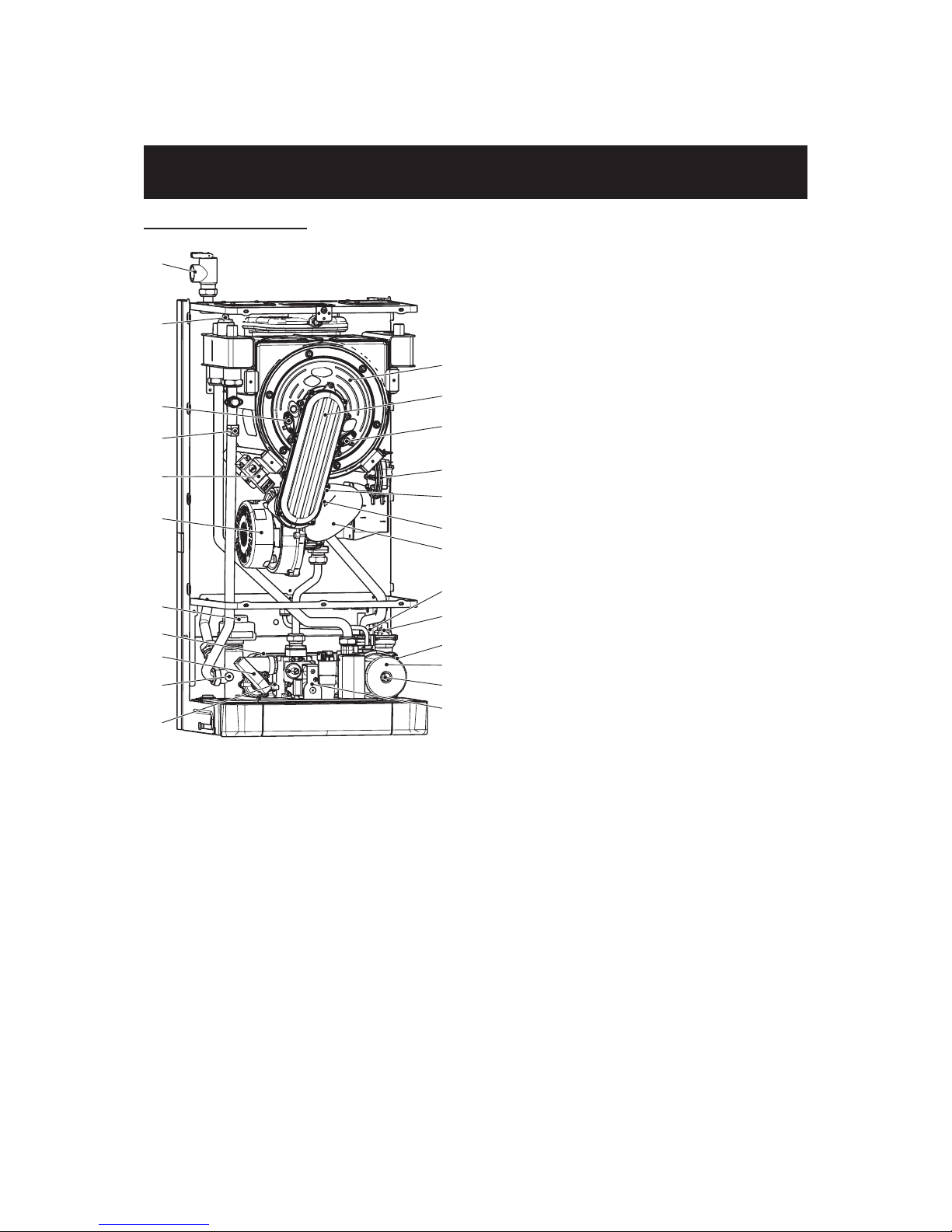

Parts List 3 10

Internal Piping and Parts List 4 11

Electric Diagrams 5 12-14

Sequence of Operation 5.1 13

Installation Location 6 15

Exhaust Pipe Location 7 16

Mounting Bracket 8 17

Venting 9 18-

Requirements for Massachusetts - 19

Fitting the Flue System 9.1 20

Choice of Flue 9.2 20

Pipe Connections 10 

Gas Pipe Connections 11 2

Electrical Connections/Wiring -3

Power Connection 12.1 3

Connection to the Electricity Supply 12.2 3

Room Thermostat Connection 12.3 3

Relay Panel Connection 12.4 3

Finishing 12.5 3

Installing the External Temperature Probe 12.6 3

Electric Connection Between the Boiler and

the External Probe 12.7 3

Remote Control Electric Connection 12.8 3

Remote Enabling Operation with the

External Probe 12.9 3

Circulator Sizing 13 

Circ. Cap. as a Function of Flow Rate 13.1 

Expansion Vessel 13.2 

Piping 14 -4

Primary-Secondary Piping 14.1 

Primary-Secondary with Zone Valves 14.2 

Manifold Piping with Zone Valves 14.3 4

4 RIVA ADVANCE COMBI MANUAL

Table of Contents

Section Title Section Number Page Number

Commissioning 15 42-53

For Proper System Operation, Make

Sure That 15.1 43

Initial Filling of the System 15.2 43

Condensate Pipe and Traps 15.3 44

Lightning the Boiler 15.4 45

Checking the Gas Pres. at the Burner 15.5 46

Gas Setting and Operations 15.6 46

15.7 49

Labels Placement 15.8 52

Checking the Flue System and Comb 15.9 52

Instructing the User 15.10 53

Gas Conversion 16 54-57

Annual Maintenance 17 58-63

Warnings 17.1 58

Dismantling the External Panels 17.2 58

Emptying the D.H.W. System 17.3 58

Emptying the D.H.W. Circuit 17.4 59

Combustion Analysis Check 17.5 59

Cleaning the Condensing Heat Exchanger

and Burner 17.6 59

Checking the Pressurization in the

Expansion Vessel 17.7 60

Cleaning the Burner 17.8 60

Checking the Flue 17.9 60

Drain Pipe Inspection 17.10 60

Visual Inspection of Appliance 17.11 60

Gas Pressures and Soundness 17.12 60

Water Inhibitor Concentration 17.13 61

Checking the Condensate Drain Pipe 17.14 61

Setting the Boiler Chimney Sweep Function 17.16 61

Spare Parts 18 64-68

Installer Notes 19 69-71

Lightning and Safety instructions 15 42

Checking the Low Water Cutoff 17.15 61

RIVA ADVANCE COMBI MANUAL 5

WARNING

Boiler is certied as an indoor appliance. Do not install boiler outdoors or locate where it will

be exposed to freezing temperatures.

— Do not store or use gasoline or other ammable vapors and liquids in the

vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the

gas supplier’s instructions.

• If you can not reach your gas supplier call the re department.

— Installation and service must be performed by a qualied installer, service

agency or the gas supplier.

WARNING: If the information in this manual is not followed

exactly, a re or explosion may result causing property

damage, personal injury or loss of life.

DANGER

Caution: Do not store or use ammable materials, chemicals or ammable liquids,

especially gasoline, in the vicinity of this heating appliance.

Caution: Should overheating occur or the gas supply fail to shut off, do not turn off

or disconnect the electrical supply to the pump. Instead, shut off the gas supply at a

location external to the appliance.

Caution: Do not use this boiler if any part has been under water. Immediately call

a qualied service technician to inspect the boiler and to replace any part of the

control system and any gas control which has been under water.

6 RIVA ADVANCE COMBI MANUAL

WARNING

Any appliance that burns natural gas, propane gas, fuel oil, wood or coal is capable of

producing carbon monoxide (CO). Carbon Monoxide (CO) is a gas which is odorless,

colorless and tasteless but is very toxic. CO is lighter than air and thus may travel throughout

the building.

BRIEF EXPOSURE TO HIGH CONCENTRATIONS OF CO, OR

PROLONGED EXPOSURE TO LESSER AMOUNTS OF CO MAY

RESULT IN CARBON MONOXIDE POISONING. EXPOSURE CAN BE

FATAL AND EXPOSURE TO HIGH CONCENTRATIONS MAY RESULT

IN THE SUDDEN ONSET OF SYMPTOMS INCLUDING

UNCONSCIOUSNESS.

Symptoms of CO poisoning include the following:

dizziness vision problems shortness of breath

headache loss of muscle control unclear thinking

nausea weakness unconsciousness

The symptoms of CO poisoning are often confused with those of inuenza, and the highest

incidence of poisoning occurs at the onset of cold weather or during u season.

A victim may not experience any symptoms, only one symptom, or a few symptoms.

Suspect the presence of carbon monoxide if symptoms tend to disappear when you

leave your home.

The following signs may indicate the presence of carbon monoxide:

• Hot gasses from appliance, venting system pipes or chimney, escaping into the living

space.

• Flames coming out around the appliance.

• Yellow colored ames in the appliance.

• Stale or smelly air.

• The presence of soot or carbon in or around the appliance.

• Very high unexplained humidity inside the building.

If any of the symptoms of CO occur, or if any of the signs of carbon monoxide are present,

VACATE THE PREMISES IMMEDIATELY AND CONTACT A QUALIFIED HEATING

SERVICE COMPANY OR THE GAS COMPANY OR THE FIRE DEPARTMENT.

ONLY QUALIFIED, LICENSED SERVICE CONTRACTORS SHOULD PERFORM WORK

ON YOUR BIASI RIVA ADVANCE COMBI.

RIVA ADVANCE COMBI MANUAL 7

IMPORTANT INFORMATION

Please read this page carefully.

• ALL BOILERS MUST BE INSTALLED IN ACCORDANCE WITH NATIONAL, STATE

AND LOCAL PLUMBING, HEATING AND ELECTRICALCODESAND ORDINANCES,

AS WELL AS THE REGULATIONS OF THE SERVING ELECTRICAL, WATER AND

GAS UTILITIES.

• All systems should be designed by competent contractors, and only persons

knowledgeable in the layout and installation of heating systems should attempt

the installation of any boiler. It is the responsibility of the installing contractor

to see that all controls are correctly installed and operating properly when the

installation is completed.

• This boiler is intended for use, only with propane or natural gas. All ammable

liquids (especially gasoline), chemicals, rags, paper, wood scraps, debris, etc.,

should be kept away from the boiler at all times. Keep the boiler area clean and

free of all re hazards.

• Please read the literature and warranties supplied by the manufacturers of the

various accessory equipment. This equipment is warranted by the respective

manufacturers, not by Quincy Hydronic Technology, Inc. Each piece of

equipment must be installed and used according to the recommendations of the

manufacturer.

Codes and Regulations:

Installation of the boiler and related equipment must conform to national, state and

local regulating agencies and codes applicable to the installation of the equipment. Where

required by the authority having jusrisdiction, the installation must conform to the Standard

for Controls and Safety Devices for Automatically Fired Boilers, ANSI/ASME CSD1. In

the absence of local requirements, the following codes apply:

A. ANSI/NFPA

#70 National Electric Code

B. ANSI/NFPA - #211 Chimneys and Vents

C. ANSI/NFPA - #Z223.1 National Fuel Gas Code

C. ANSI/NFPA - Domestic Gas Conversion Burner

D. CAN/CGA - B149 Installation Codes

E. ANSI/ASME - CSD-1

The above codes are available from:

National Fire Protection Association (NFPA) CANADIAN STANDARDS ASSOCIATION

Battery March Park STANDARDS DIVISION

Quincy, Massachusetts, 02269 5060 Spectrum Way, Suite 100

http://www.nfpa.org Mississauga, Ontario, L4W 5N6

8 RIVA ADVANCE COMBI MANUAL

1. General Information

2. Technical Information (M210.32 CM)

The Riva Advance Combi is a high efciency condensing, wall mounted gas boiler which

provides central heat. The boiler features a gas valve which modulates the energy input from

32,000 BTU/h to 125,000 BTU/h. The boiler is shipped fully assembled with the components

listed on pages 10-11. All units are pressure and combustion tested at the factory prior to

shipping.

Key Features:

• Wall mountable - saving valuable oor

space.

• Several ue options available

• Electronic spark ignition

• Safety ow switch - positioned on the

main circuit, which monitors the ow and

protects the main heat exchanger from

thermal shock should there be a lack of

water in the system.

• Frost protection - contains an integral frost

protection system to prevent frost damage

which can occur in areas susceptible to

very cold weather conditions.

• Boiler operation recognition system

- should the boiler not be used for

longer than 24 hours, it then performs

a controlled system test to ensuring the

motorized components within the boiler

do not become inoperable due to lack of

use.

• Gas valve modulation - the gas input

modulates based off central heating

temperature to within ± 2 ºF.

• Diagnostic information system equipped

with three LED diagnostic lights for quick

error assessment.

GENERAL

Height in 31.6

Width in 15.7

Depth in 13.8

Weight lb 109.5

ELECTRICAL

Voltage V120

Frequency Hz 60

Current A 1.6

Power consumption W180

RESTRICTORS

REFERENCES

Gas

(ø mm)

Air

(color)

Natural N/A BLUE

Propane 548 BLUE

CENTRAL HEATING

Maximum working temp. °F 185

Temp. Regulation range* °F 100-185

Maximum pressure psi 30.0

Minimum pressure psi 4.35

Max head loss (at 4.4 GPM) ft 8.25

*At the minimum useful output

RIVA ADVANCE COMBI MANUAL 9

2. Technical Information Cont.

ENERGY CAPACITY

Nominal heat input

(0/2000 ft) MBH 125.0

Nominal heat input

(2000/4500 ft) MBH 112.5

Minimum heat input MBH 32.0

Maximum useful output

(0/2000 ft) MBH 112.5

Maximum useful output

(2000/4500 ft) MBH 107.0

Minimum useful output MBH 28.8

GAS PRESSURE SUPPLY

Gas Min Max Normal

Natural inwc 6.8 10.0 7.0

Propane inwc 10.0 13.0 11.0

FLUE DESIGN

Minimum Venturi pressure inwc 0.64

Flue pipe diameter

Coaxial in 2.25/4

3.25/5

Twin split pipes in 3.25/3.25

Nominal heat ow rate

(0/2000 ft) MBH 125.0

Nominal heat ow rate

(2000/4500 ft) MBH 112.5

Max Exhaust temperature °F 190

GAS FLOW RATE

Gas Min Max

Natural ft³/h 31.0 121.0

Propane lb/h 1.5 5.7

CLEARANCE TO COMBUSTIBLES

Front in 18

Back in 0

Top in 10

Sides in 2

Bottom in 8

Flue pipe enclosed in 2

Flue pipe free air in 0

Hot water pipes in 1”

FLUE GAS FIGURES

(at nominal heat input)

Gas Min Max

CO2 content with Natural gas 8.8% 9.8%

CO2 content with Propane gas 9.6% 11.0%

O2content 4.3% 5.0%

FLUE GAS FIGURES

(at minimum heat input)

Gas Min Max

CO2 content with Natural gas 8.8% 9.8%

CO2 content with Propane gas 9.6% 11.0%

O2content 4.3% 5.0%

DOMESTIC HOT WATER

Maximum temperature °F 131

Minimum temperature °F 95

Maximum pressure psi 145

Minimum pressure psi 4.35

D.h.w. ΔT 25°C / 45°F gpm 4.5

D.h.w. ΔT 30°C / 54°F gpm 3.8

D.h.w. ΔT 35°C / 63°F gpm 3.2

D.h.w. ΔT 40°C / 72°F gpm 2.8

10 RIVA ADVANCE COMBI MANUAL

3. Parts List

Primary Components:

1 Central heating pressure relief valve

2 Condensing heat exchanger air purger

valve

3 Ignition electrodes

4 Safety thermostat

5 Spark generator

6 Fan

7 Three-way diverter valve

8 D.h.w. heat exchanger

9 Primary circuit ow switch

10 C.h. temperature probe NTC

11 D.h.w. temperature probe NTC

12 Gas valve

13 Pump vent plug

14 Pump

15 Main circuit drain valve

16 Automatic air purger valve

17 Condensate trap

18 Air hose

19 Transformer

20 Air box (air/gas mixer)

21 Air pressure switch

22 Flame-detecting electrode

23 Burner

24 Condensing heat exchanger

25 Flue temperature probe NTC

26 D.h.w. ow switch

27 Gas valve inlet pressure test point

28 Gas valve outlet pressure test point

29 C.h. expansion tank

30 By-pass valve

31 Domestic water circuit lter

32 D.h.w. ow limiter

33 Flue outlet pipe

34 Air intake pipe

35 Flue exhaust sampling point

36 Air sampling point

37 Condensate drain pipe

38 C.h. return valve

39 Domestic cold water inlet valve

40 Gas inlet valve

41 D.h.w. outlet pipe

42 C.h. ow valve

43 Pressure reducing automatic ll valve

(Not Supplied)

44 Backow preventer (Not Supplied)

45 Water supply inlet cock
