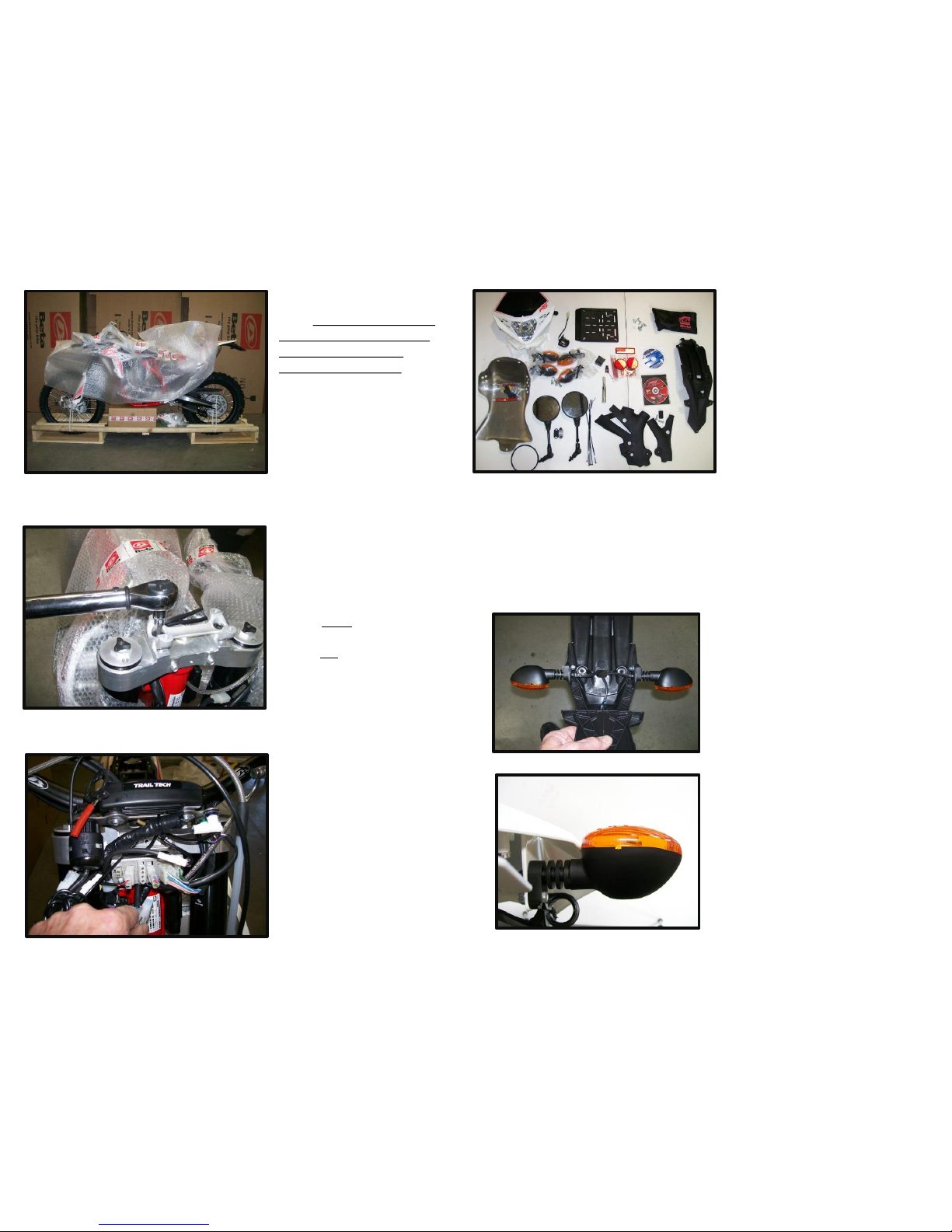

Beta 400 RS 2014 Manuel utilisateur

2014 400-520 RS

Set Up Manual

12/2013

1) Remove cardboard from

crate. Remove bag with bolts

and upper handle bar clamp

taped to the protective

covering over the seat.

Remove all items from bottom

of crate

2) Remove wood support from

lower bar mount and discard wood

while keeping the two bolts for the

top handlebar mount.

Torque lower handlebar clamps to

40 nm. Install handlebars and

torque top handlebar mounts to 25

nm.

3) Install voyager GPS unit using the

two 6mm bolts that are already

threaded into the top triple clamp.

Install the switch wires to their

corresponding plugs.

4) Remove additional items from the

box supplied. Item list is as follows:

-Headlight assembly

-Skid plate

-Frame guards

-Tool kit

-Battery Strap

-Mirrors

-Clutch/brake mounts (used w/o

mirrors)

-Rear extended fender

-Turn Signals

-Rear license plate light

-License plate holder with reflectors

-Turn signal flasher

-Voyager thumb drive

-Voyager GPS manual (CD)

-Owners manual (CD)

-Tool Kit

5) Install the rear turn signals on the

rear fender extender using the 6mm

bolts with the 6mm flange nuts. Also

install the license plate light using

the small self-tapping screw. There

are two different turn signals

provided. Two are designed for the

RH side and two are for the left side.

This is determined by the small drain

hole at the bottom of the lens which

will always point down. (see picture)

6) Remove the “mid” rear fender

and install the turn signal and

license plate light wires through

the hole and attach to the

appropriate wires. Note, On the

rear turn signals, the wire colors

do not match therefore you will

plug the purple to green and the

other will be green to purple. Re

install the mid and lower fender

making sure the wires are tucked

in so that none of the screws will

go through any wires.

7) This is what the assembled

assembly will look like.

8) Install the front turn signals

onto the headlight mask, again

making sure the drain holes on

the signals are pointed down. On

the front, plug the wires into

their matching colors. Green to

green and purple to purple.

9) Install the headlight mask bottom

by inserting the lower tab into slot

located in the front fender brace.

11) Finish by securing the rubber

straps located on the sides of the

mask to the upper fork legs. Turn

the handlebars making sure that all

wires are free of any obstructions.

10) Press the front brake line and

speedometer wire through the slot

on the guide located on the left

side of headlight mask.

12) Locate the skid

plate and install the

four foam buffers as

shown.

13) Install the skid

plate clips to the tabs

on the lower front frame

rails. Use the two 6mm

bolts to secure the front

of the skid plate.

14) Using the threaded

hole at the lower rear

of the frame, secure the

rear of the skid plate using

the remaining 6mm bolt.

15) Install the right and left frame

guards with zipties and the one bolt

into the swingarm pivot. Make sure

there is one ziptie tied around the

rear brake master cylinder also.

16) Remove the air filter and

while wearing a glove, use your

finger to apply a bead of grease

around the inside edge of the air

filter. This will help keep debris

from passing through. Re-install

the filter making sure all corners

are firmly in place.

17) Install both mirrors. All RS

models are provided with extra

clutch and brake mounts without

mirror mounts if your customer

wishes to use his or her RS for off

road use.

19) Remove the foil seal from

the top of the battery, line up

the cells on the container with

the holes on the top of the

battery. Push down to puncture

the foil covers . This will allow

the electrolyte to drain into the

Battery.

20) Firmly push solution cover

on so it sits flush with top of

Battery. Let Battery sit for 1

hour before charging.

21) Charge the Battery at 1 or 2

Amps for 6 to 8 hours.

Install battery and fill the

motorcycle with oil.

23) Congratulations! You have just set up

a new Beta!

Follow the checklist on the customer’s

warranty registration card for a complete

pre-delivery inspection before delivery.

22) After the battery has been

installed, check to make sure all

of the lights and other

electronics function properly.

18) Intstall the small rubber

pad to the front of the Voyager

GPS unit. This will protect it

from the headlight mask.
