S800Na

Product Features

S800Na is compact dual eight inch active full range plastic speaker. The whole cabinet volume

is very compact and well shaped. S800Na is 2-way system, electronic limiter protection. Include one

8 inch mid-bass and one 8 inch coaxial neodymium full range transducer. The coaxial transducer of

S800Na is Elder's latest unique design of neodymium transducer. Unique structure of coaxial

neodymium transducers combining middle-low and HF range with one single magnetic circuit has

effectively solved the phase deviation problem which usually occurs between high frequency and

middle-low frequency sections along X.Y and Z axis. The diaphragm is made of specially coated

material which decreases the distortion due to unsynchronized vibration of different parts of the

suspension system. Sandwich type structure of voice coil, linear symmetrical magnetic circuit and

aluminum short loop weakens the speaker's harmonic distortion. Line array clusters of speakers can

be set up by connecting rigging points.

SPECIFICATION

LF:8" 1 MF:8" 1 HF: 34mm 1

80Hz-20kHz

126dB

2kHz

Unbalanced10k

Line 500mV

12dB

XLR J3P / XLR K3P

AC 115V/230V, 50Hz/60Hz

200W+50W

15kg

18kg

265 292 480mm

353 325 550mm

90 90

120dB

Transducers

Frequency Response(-3dB)

Dispersion(H V)

Max SPL(1m)

SPL(1m)

Amplifier Power

THD

Input Connectors

Net Weight

Gross Weight

Dimensions (W D H)

Packing Dimensions(W D H)

Power Supply

Input Sensitivity

Crossover Point

Range for volume

Input Impendence

SMS-YXSJ-S800Na-ED 3-EN

S800Na

1 0 0

dBS

180

9 0 108

8 0 36

7 0 - 36

6 0 - 108

5 0 - 180

50 100 200 500 1k 2k 5k 10k 20k20 Hz

D e g

1 4 0

Deg

1 1 0

8 0

5 0

2 0

- 1 0

50 100 200 500 1k 2k 5k 10k 20k20 Hz

180

108

- 36

- 108

- 180

D e g

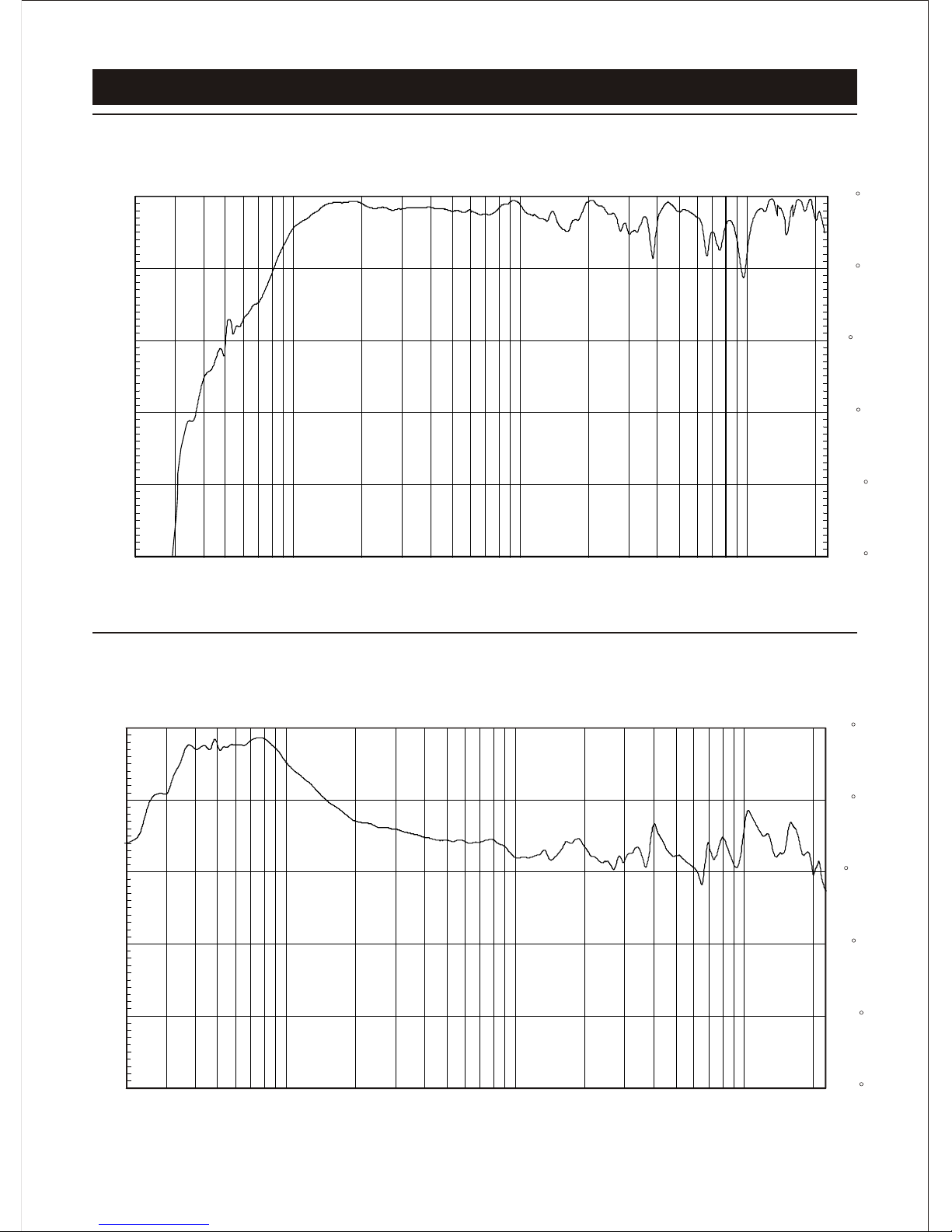

FREQUENCY RESPONSE

PHASE RESPONSE

SMS-YXSJ-S800Na-ED 3-EN

S800Na

- 10

- 15

- 20

- 25

2 00 50 0

2K 5K 1 0K 2 0K1 50 Hz

1.5

3.0

4.5

- 5

20 50 100 200 500 1k 2k 5k 10k 20k20 Hz

100.0

dBSPL

90.0

80.0

70.0

50.0

60.0

180

108

- 36

- 108

- 180

D e g

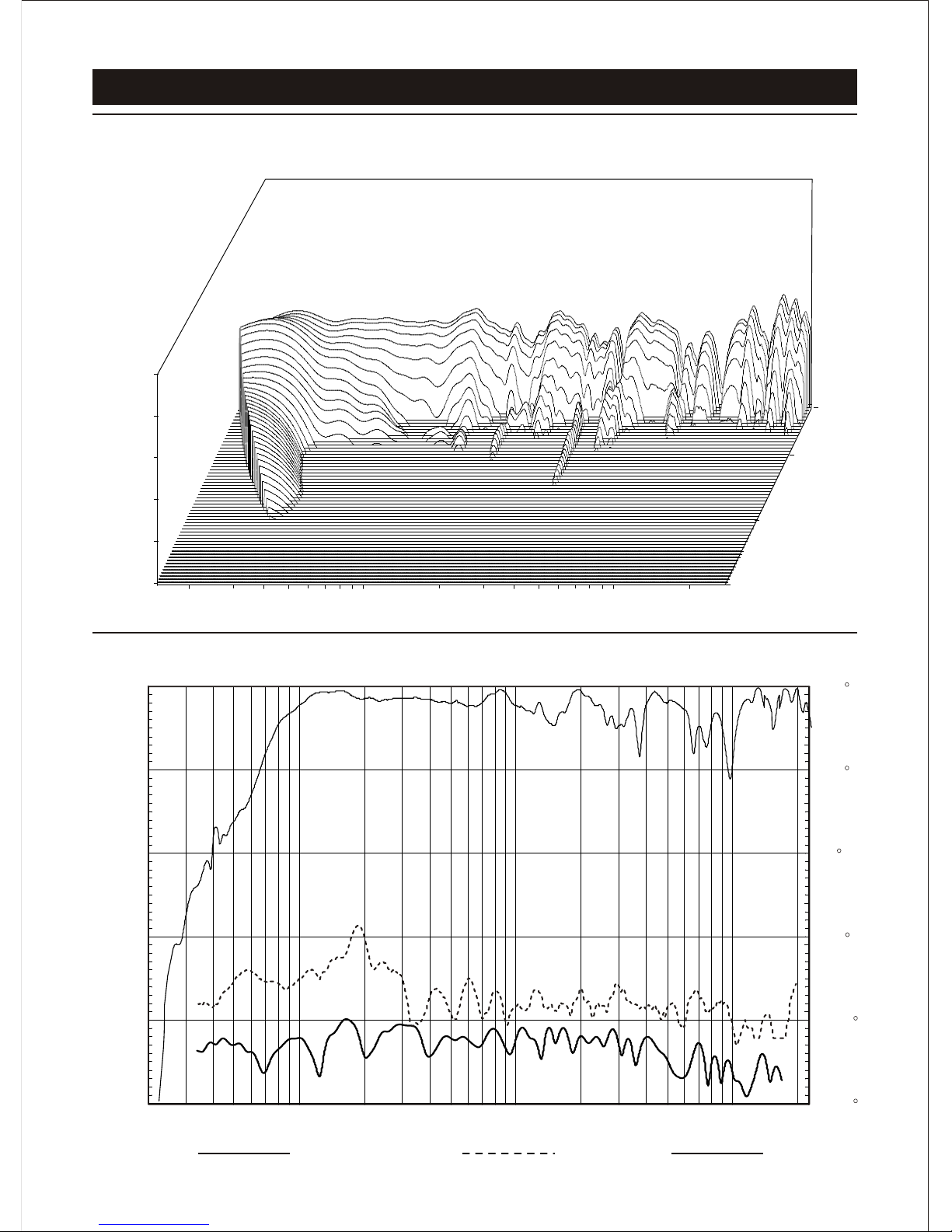

THD

WATERFALL

Frequency Response 2nd Distortion 3rd Distortion

SMS-YXSJ-S800Na-ED 3-EN

100Hz 160Hz 200Hz

400Hz 630Hz 1.0kHz

1.6kHz 3.15kHz

6.3kHz 10kHz 16kHz

2.5kHz

S800Na

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

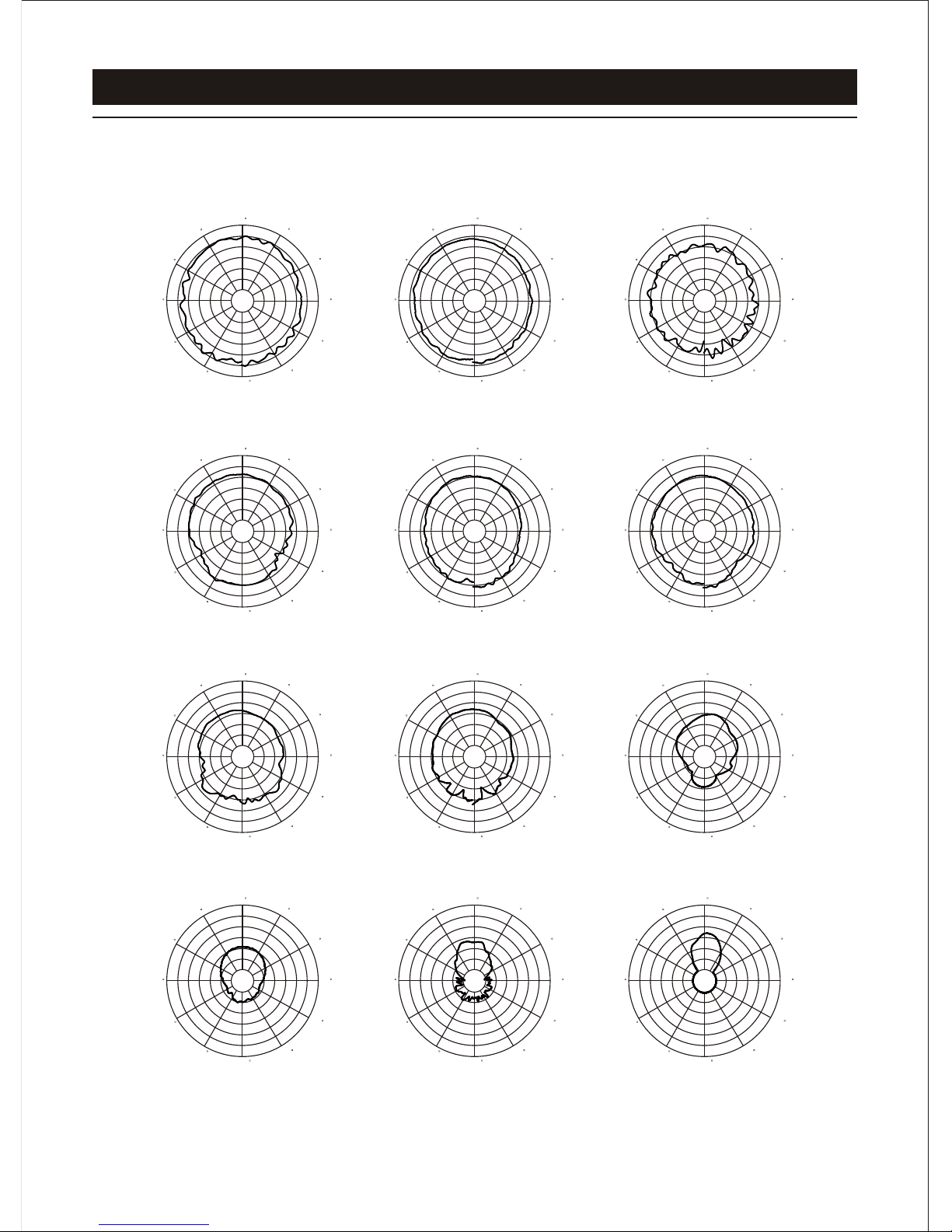

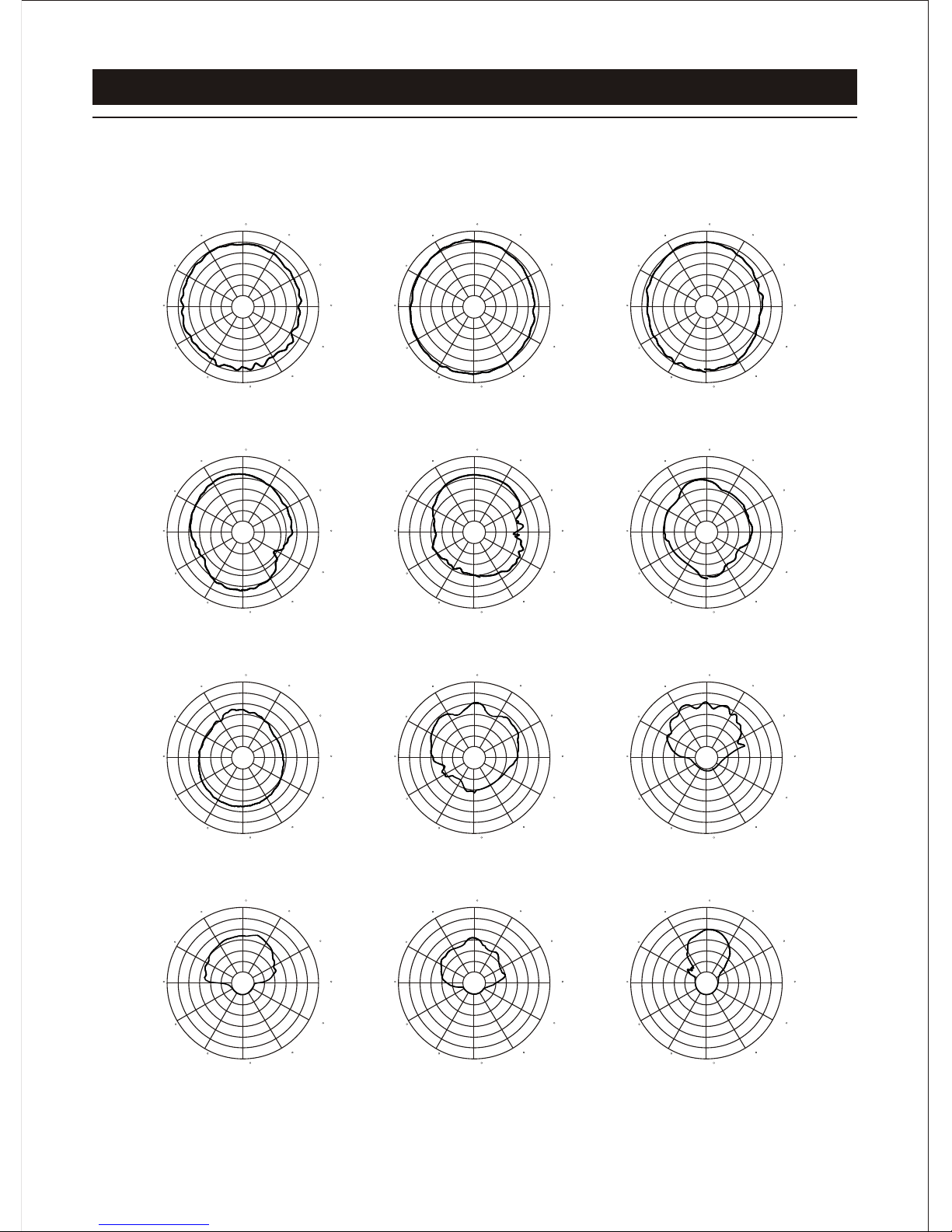

HORIZONTAL DIRECTIVITY

The data of S800Na horizontal directivity were collected by testing the speaker system in a big anechoic

chamber.

The scale is stepped by 6dB increment.

SMS-YXSJ-S800Na-ED 3-EN

S800Na

100Hz 160Hz 200Hz

400Hz 630Hz 1.0kHz

1.6kHz 3.15kHz

6.3kHz 10kHz 16kHz

2.5kHz

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

120

150

180

210

240

270

300

330

VERTICAL DIRECTIVITY

The data of S800Na vertical directivity were collected by testing the speaker system in a big anechoic

chamber.

The scale is stepped by 6dB increment.

SMS-YXSJ-S800Na-ED 3-EN

S800Na

LINE INPUT LINE OUTPUT SIG PEAK

VOLUME

Elder Audio Manufacture Co., Ltd

This series of products are authorized to be produced by Elder Audio

Manufactory with Germany computer aided design software and testing

system according to IEC standard.

OFF

115V 50-60Hz

ACTIVE 2 WAY FULL RANGE ELECTRONIC COMPENSATION SPEAKER

POWER: 250W+50W

230V 50-60Hz

S800Na

AMPLIFICATION MODULE

ACTIVE AMPLIFIER

230V230V

SMS-YXSJ-S800Na-ED 3-EN

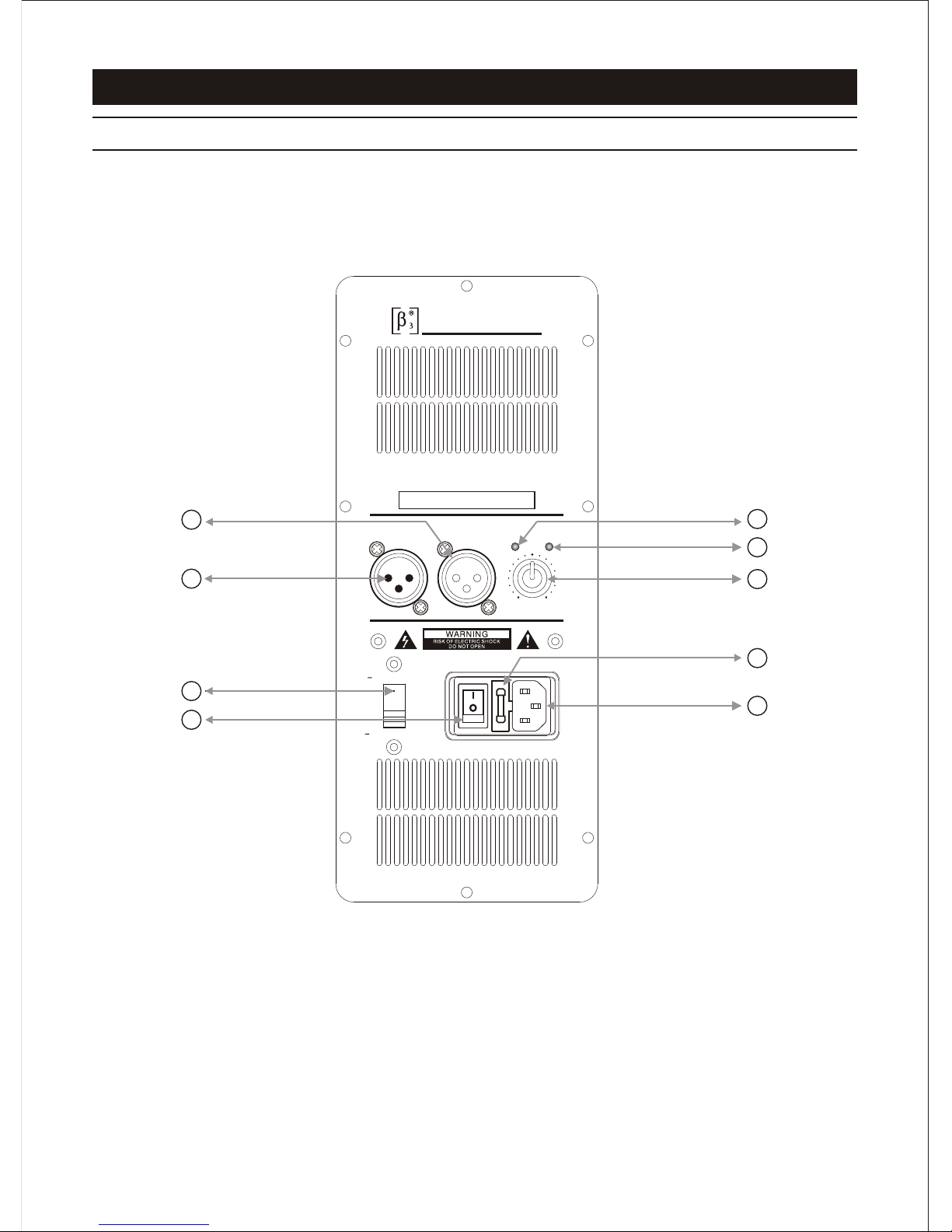

Power supply switch

Line signal indicator

indicatorOverloading

1. Line signal output

2. Line signal input

3. Voltage switch

7. Volume

8. Fuse

9. Power supply input

S800Na

480mm

265mm

292mm

µõ×°µõ×°

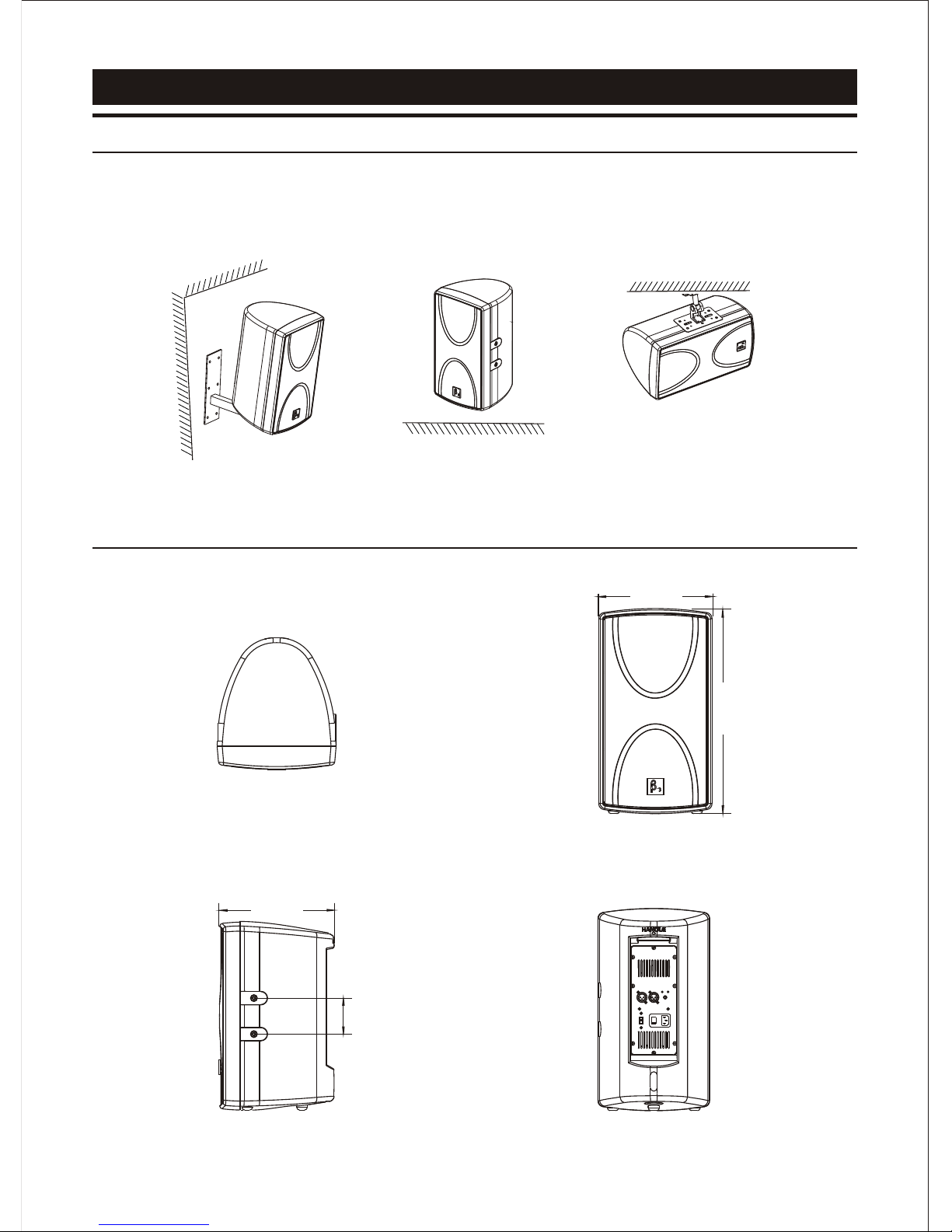

INSTALLATION

DIMENSIONS

Top view Front view

Side view Back view

SMS-YXSJ-S800Na-ED 3-EN

92mm

S800Na

LIMITED WARRANTY

If malfunction occurs during the specified warranty period from the date of original purchase,

the product will be repaired or replaced without charge by Elder Audio.

The Limited Warranty does not apply to:

(a)exterior finish or appearance;

(b)certain specific items described in the individual product data sheet or owner's manual;

(c)malfunction resulting from use or operation of the product other than as specified in the

individual product data sheet or owner's manual;

(d)malfunction resulting from misuse or abuse of the product;

(e)malfunction occurring at any time after repairs have been made to the product by anyone

other than Elder Audio Service or any of its authorized service representatives.

To obtain warranty service, customer must deliver proof of purchase of the product in the form

of a bill of sale or receipt invoice.

S800Na Speakers and Speaker Systems are guaranteed against malfunction due to defects in

materials or workmanship for a period of three (3) years from the date of original purchase. The

Limited Warranty does not apply to burned voice coils or malfunctions such as cone and/or coil

damage resulting from improperly designed enclosures. Additional details are included in the

Limited Warranty statement.

S800Na Accessories are guaranteed against malfunction due to defects in materials or workmanship

for a periodof one (1)year from thedate of originalpurchase.Additional details areincluded in the

Limited Warrantystatement.

S800Na Flying Hardware (including enclosure-mounted hardware and rigging accessories) is

guaranteed against malfunction due to defects in materials or workmanship for a period of one

(1) year from the date of original purchase.Additional details are included in the Limited Warranty

statement.

Specifications are subject to change without notice.

SMS-YXSJ-S800Na-ED 3-EN
