Beta Motorcycles Minicross E Manuel utilisateur

ENGLISH

Thank you for the trust granted and congratulations for your optimal choice. With

this manual we intend to give you the necessary information for a correct use

and a suitable maintenance.

SAFETY WARNINGS

ATTENTION

• This vehicle is not a toy it can only be used for the practice of the offroad always under the

supervision of an adult. The practice of the offroad has risks an adult person must control at all

times that the motorbike is not used in a dangerous way.

• Put on the suitable protections. Helmet boots and gloves are fundamental protection elements

to be able to use this vehicle in a correct way. It is also advisable to use kneepads shinpads and

other protections for the back.

• Do not manipulate the vehicle all maintenance operations must be made by an authorised

professional. The motorbike has been designed with enough protections to avoid contact with

the most dangerous mobile elements such as the chain and brake discs. It is totally unadvisable

to take them away.

• Avoid electronic components getting into contact with water. The motorbike has not been

designed to circulate with rain or in flooded areas. It can also not be washed with pressurised

water. To clean the motorbike use a damp cloth.

ENGLISH

GUARANTEE

1. Procedure:

If you wish to make a guarantee claim you must always go to the official dealer that has performed

the sale even in the cases in which the purchaser and seller are from places far away from each other.

ATTENTION. The network of official dealers Beta Trueba reserves the right not to process

guarantees of products that are not commercialised by the same agent.

2. Guarantee limits:

2.1. All replacements repairs or handling made outside authorised official services will result in the

loss of the guarantee.

2.2. Vehicles that have taken part in any competition are excluded from a guarantee.

2.3. Those used for rental services are excluded from a guarantee.

2.4. Wearing elements such as batteries chain drives pinions crown tyres and brake pads have

by nature a useful life that is much lower than the guarantee period. Beta Trueba reserves the

right to study if the incidence results from a normal or abnormal wear.

2.5. Vehicles which have been used or maintained in a different way to that established in this

manual.

2.6. Before an incidence during the second year of use of the vehicle the consumer will be the

one who will have to prove that the possible lack of conformity existed when the vehicle was

delivered.

2.7. Damages and deformations of the chassis swinging arm wheels and shocks produced by

the use of the vehicle on extreme conditions are excluded from the guarantee. By extreme

conditions we mean:

2.7.1. Use by a pilot weighing more than 28 kg.

2.7.2. Sports driving jumps obstacles or any type of acrobatics.

Index

. CHAPTER . KNOWLEDGE OF THE VEHICLE

1.1. Identification .....................................................................................5

1.2. Power switch .....................................................................................6

1.3. Technical information ......................................................................7

2. CHAPTER 2. OPERATION AND USE

2.1. Control and maintenance ..............................................................8

2.2. Battery charging .............................................................................11

2.3. Rear shock .......................................................................................13

ENGLISH

Chapter 1, Knowledge of the veh cle

. . Identification: On the driving pipe of your vehicle you have the identification number.

.2. Power switch

ATENTION

• The ignition switch is an important safety element so that the motorbike is not started in an

involuntary way. Close the ignition system when the motorbike is not being used; as the engine

does not make any noise someone may start the throttle control thinking that the motorbike

is stopped.

• A responsible adult must control the switch to avoid the vehicle being used without its

supervision.

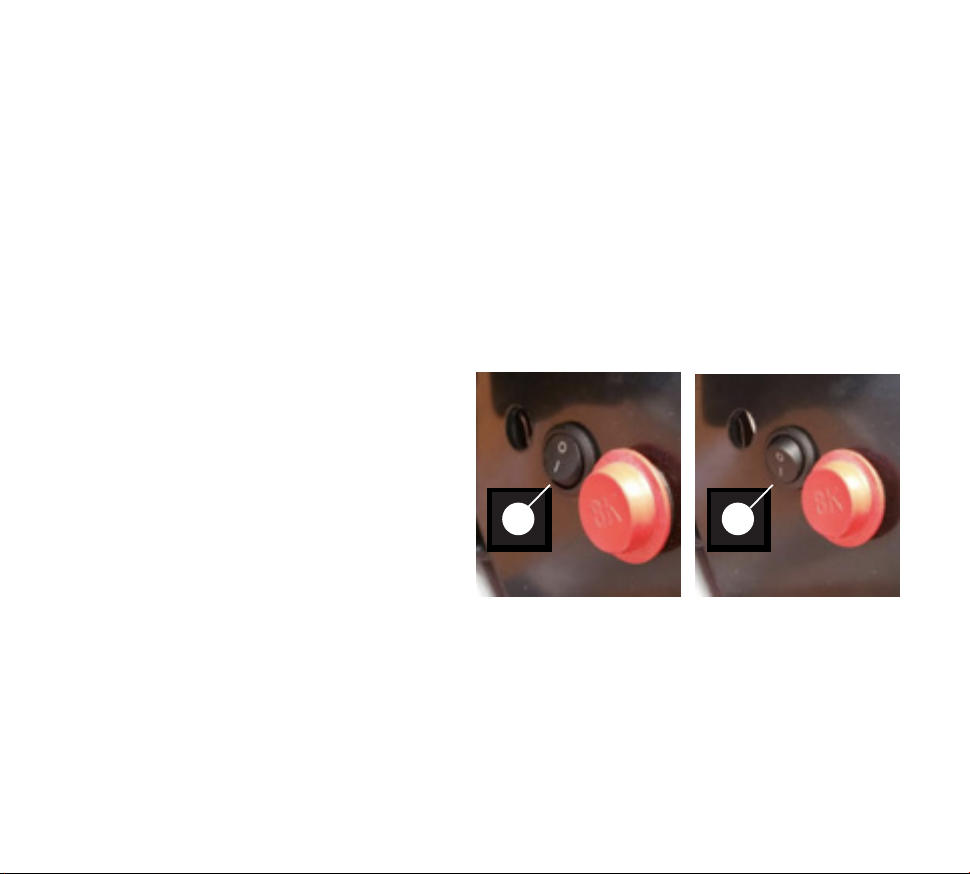

Positions of the switch of 36V version:

A. Disconnected

B. Connected

Steps for 48V version :

1. Turn the switch as shown in picture

2. Wait until a bright warning signal

turns on the controller. Once the

light has turned on and you hear

a slight sound signal you can

operate the accelerator.

A B

ENGLISH

.3. Technical data

• Weight: 43 Kg. (36v) 45Kg. (48v)

• Total lenght: 1400mm.

• Total width: 600mm.

• Total height: 900mm.

• Distance between axles: 1025mm.

• Seat height: 695mm.

• Distance to the ground: 290mm.

• Front fork: bars of 33mm compression of spring hidraulic system in oil bath.

• Back shock absorber: Adjustable moto shock absorber of air and spring.

• Brakes: Disc with hydraulic control.

• Motor: Electric 0 75 kw. for 36v versión 1 35 kw. for 48v version.

• Capacity of batteries: 36V 9 Ah – Pb. / 48V 17 8Ah – Lithium Ion.

• Battery format: 3x12V in series for 36v

•

Frame and swinging arm: Steel.

•

Swinging arm: Duralumin with thermal treatment.

•

Wheel rims: 12” front / 10” rear.

•

Tyres: Front 60/100-12 Rear 70/100-10

Tyre pressure: 0 7 bar.

Chapter 2, operat on and use

2. . Control and maintenance

It is advised that all repair or replacement operations are made by a qualified professional but

for an optimal maintenance it is also advised that you perform these operations before or after

each use.

2. . . Chain drive.

To extend the useful life of the chain it is advised to grease it after each use by means of

specific grease for chains. For the maintenance of the chain it is also pertinent to periodically

control its tightening. To tighten or loosen the chain:

• Loosen nut A

• Act on B register (tighten to detension or

loosen to tension).

• Proceed on the same way on the

placing it on the same position. Check

that the distance on both screws of the

• Check that the chain is aligned with

the pinion of the engine. In order for

the chain not to go out of the crown

it is important for it to work straight with

regard to the pinion.

• Tighten nut A.

ENGLISH

2. .2. Steering

To adjust steering it is enought to

loosen the nut B C y D tighten the

A nut and tighten the B C y D nuts

again.

2. .3. Regulation of brakes

The front and rear brakes are disc

brakes with hydraulic control. To

adjust leveler position it is enought

to loosen the nut A to move the

internal stick.

2. .4. Brake pads

To control the status of the front and back brake pads it is enough to observe the end of the

pads which must show as a minimum a Ferodo of 0.5mm. If it is less than 0.5 mm you must go

to an official Beta Trueba spot for its replacement.
