MANUAL OF MAGNETIC HEAT PRESS MANUAL OF MAGNETIC HEAT PRESS

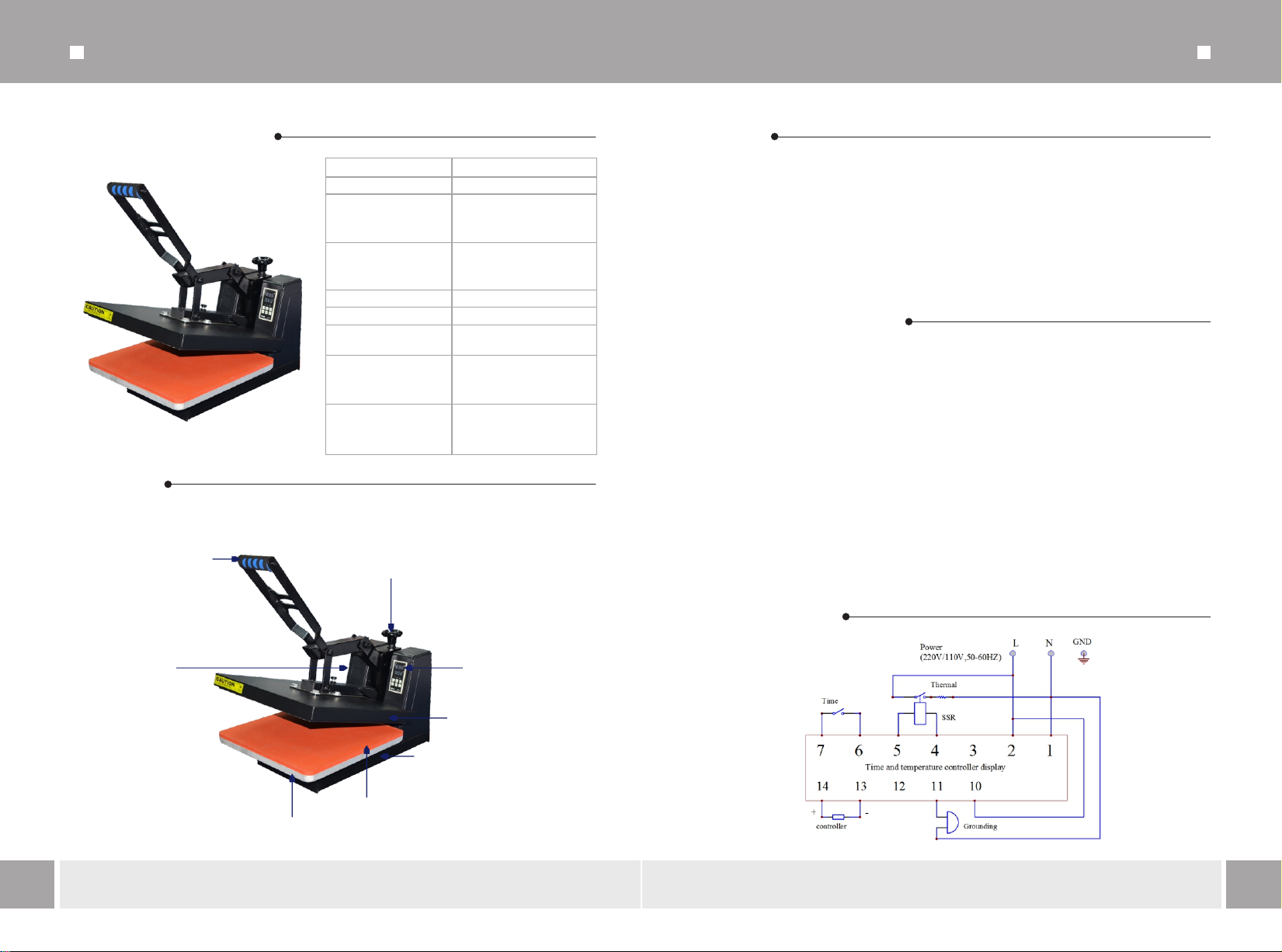

Technical Parameter
Item No. SB3A
Voltage 110V / 220V
Working Size
Size A: 38*38cm
Size B: 40*50cm
Size C: 40*60cm
Power
Size A: 1800W
Size B: 2200W
Size C: 2500W
Time Range Adjustable
Temperature Range 0-399℃
Packing Strong carton box with
form inside
Packing Size
Size A: 73*46*45cm
Size B: 78*68*46cm
Size C: 80*71*46cm
Weight
Size A: 27kg
Size B: 34kg
Size C: 38kg
Structure
Temperature&
Time Controller
Power Switch
Heating Plate
Silicone Mat
Aluminum Plate
Handle Pressure Adjuster
Warning
1. Make sure the machine connected with the safe ground!
2. Check the voltage before operating.
3. Prevent from keeping the machine idle runing for a long time. Whenever finish you
transfer press, please turn off the machine
4. During operation, do NOT touch the heating plate in case of injury.
5. Be care of the handle when open in case of hurt.
6. Adjust the printing pressure carefully.
Keep the machine out of the reach of children.
Operation Procedures
1. Connet the machine with power, turn on the power switch, then the power indicator starts
lighting.
2. Set the “time and temperature controller” for the proper printing time and temperature
(normally at 180℃).
3. Temperature set: Press the left “SET” button, temperature value will be displayed.
Press ▲ and ▼ to set the temperature you need , from 160℃ to 220℃. It costs about
2 minutes temperature rising.
4. Time set: press the “SET” button on the right. Press ▲ and ▼ to set the time.
5. Adjust the pressure adjuster for the proper working pressure.
6. Place the sublimation item, fixed with sublimation paper, on the silicon mat, (please note
the right surface of the paper), when the temperature reaches the set figure, press the
handle down to trigger transfer printing. Be careful the pressure should be less than
30KG or the handle will be distorted.
7. When time's up, the heating board will be automatically bounced up.
8. Take out the printing item and turn off the machine.
Circuit Diagram
Base
