Best Barns Millcreek Guide de sécurité

Manufactured by Reynolds Building Systems, Inc.

This manual is copyrighted. Under the copyright laws, this manual

may not be copied, in whole or in part, without consent from Reynolds

12'x 20'

Assembly Book

Best Barns USA

the Millcreek

205 Arlington Drive Greenville, PA 16125

Revised September 19, 2017

When measurements are given for a board

length or width, it is from the longest side.

measure from here

Tool List

Hammer & Hand Saw

Framing Square & Level

Power Circular Saw

Power Drill/screwdriver

Measuring Tape

2-8' Step Ladders

Always wear safety glasses when cutting ornailing!

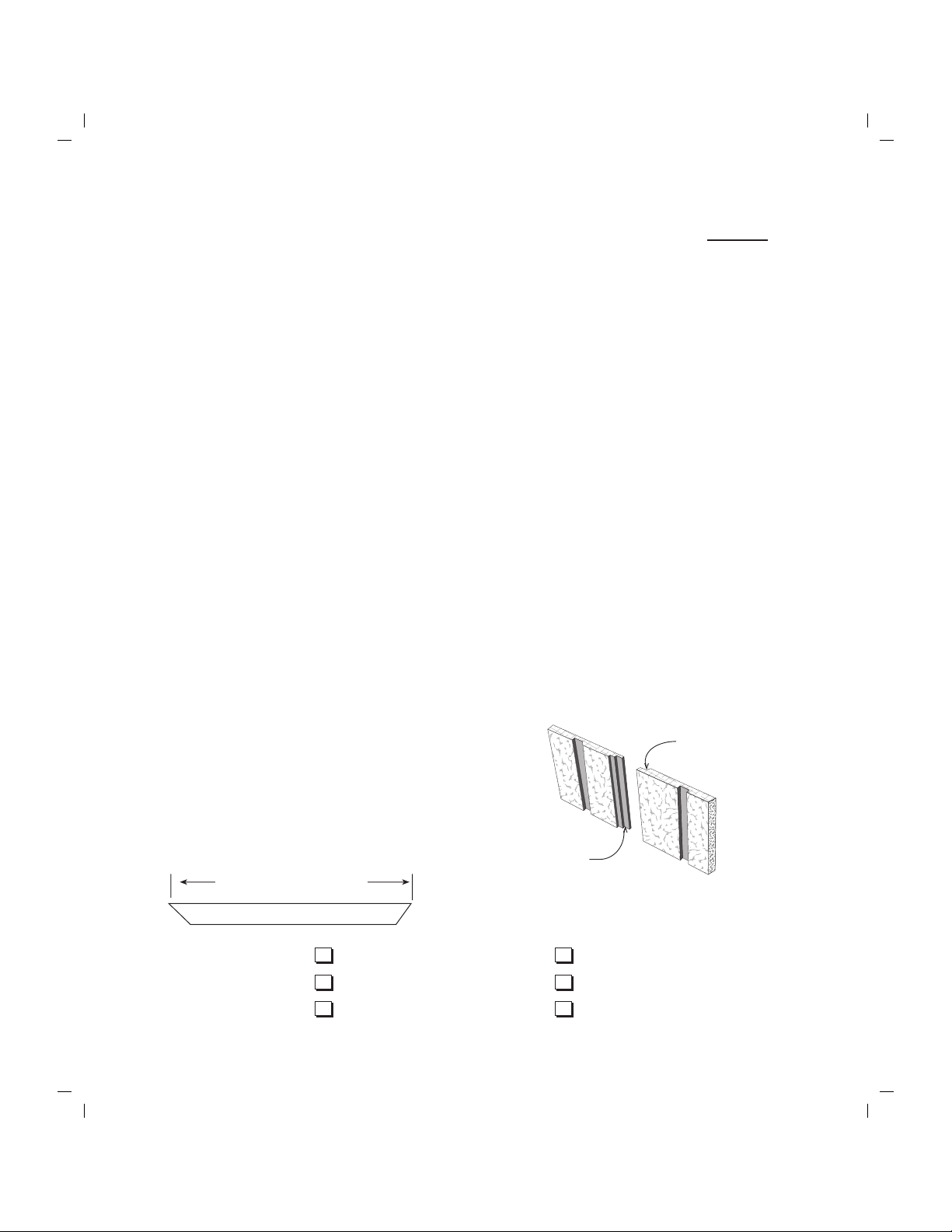

IMPORTANT INFORMATION ABOUT YOUR SHED KIT

To identify which edge we want you to use,

we will refer to the edge as either the 'LAP'

Edge or the Tongue Edge.

Tongue Edge

LAP Edge

Download the most current instruction book at www.barnkits.com; use the "manuals"

link on the menu bar and then select your building kit and size.

Thank you for purchasing our shed kit. Read the instructions before starting the assembly

of the building. If you have any questions about assembling the kit, call 800-245-1577.

Business hours (8:00-5:00 ET) Monday thru Friday. After business hours call 724-866-

HELP (4357) or email to [email protected].

The material that is included in our kit is listed on the back page. The optional floor package,

if purchased, will be supplied by a local lumber supplier.

Our kit does not include the shingles, the quantity needed is listed on the back page. The

siding is primed. You will need to apply a finish coat using latex acrylic paint.

Some of the framing lumber was used in the shipping pallet. Unpack the material from the

pallets. Unscrew the OSB panels and the 2x4s from the shipping pallet. The 2x4s will be

used for wall bracing and to support the loft beams. The bit for the screws is packed in the

hardware bag.

Most buildings are installed on a wood floor and the siding was designed to extend over the

wood flooring. If the foundation is a concrete floor cut the siding flush with the bottom of

the wall plate to prevent the concrete from contacting the siding.

Stacking the boards, according to size, will make them easier to find when needed. Do Not

discard any material until your building is complete.

Before you begin construction, be sure to study this assembly manual. Also, obtain a building

permit and check all pertinent building code regulations for your area.

Thank you for your purchase. Bill & Linda Rinella, owners

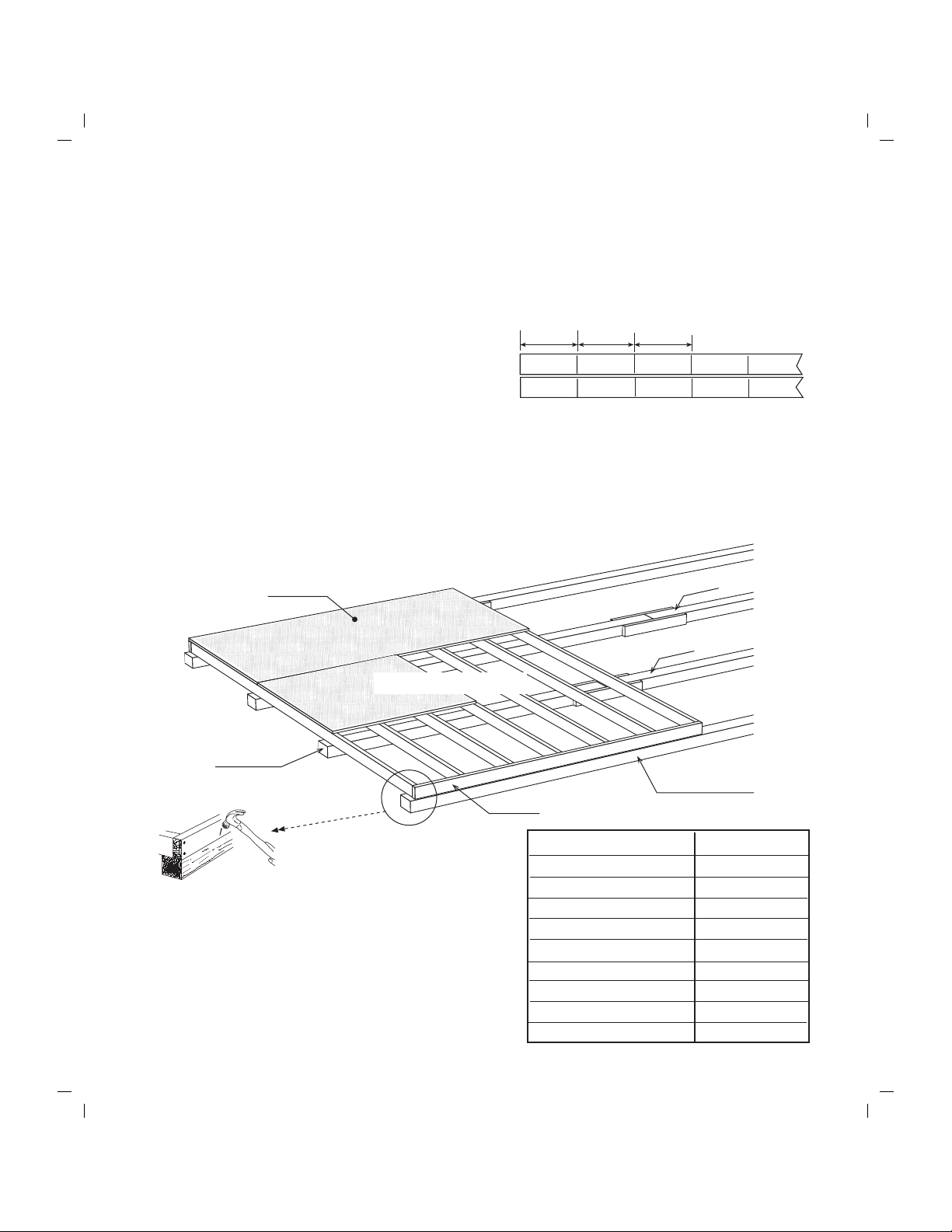

1. Stagger the 4x4 timbers as shown below. Cut (2) two 2x4- 8' boards into 2' long blocks

to secure the 4x4s where they butt together.

Assembly Instructions for

Rear Floor Section

4. Install the floor joists cut above between the 8' joist headers. Secure with 16d galv. deck nails.

5. Place floor assembly over the 4x4s. Square floor assembly. Measure the floor diagonally

(corner to corner) and then the opposite corners; these measurements will be the same when

the floor is square. Toenail frame (headers & joists) to the 4x4 runners.

2. Cut (2) two 2x4-8' to a length of 8' -0". They

will be used for the joist headers. Layout, from

left, for 16" on center joist spacing. 'X' marks

where floor joist will be placed.

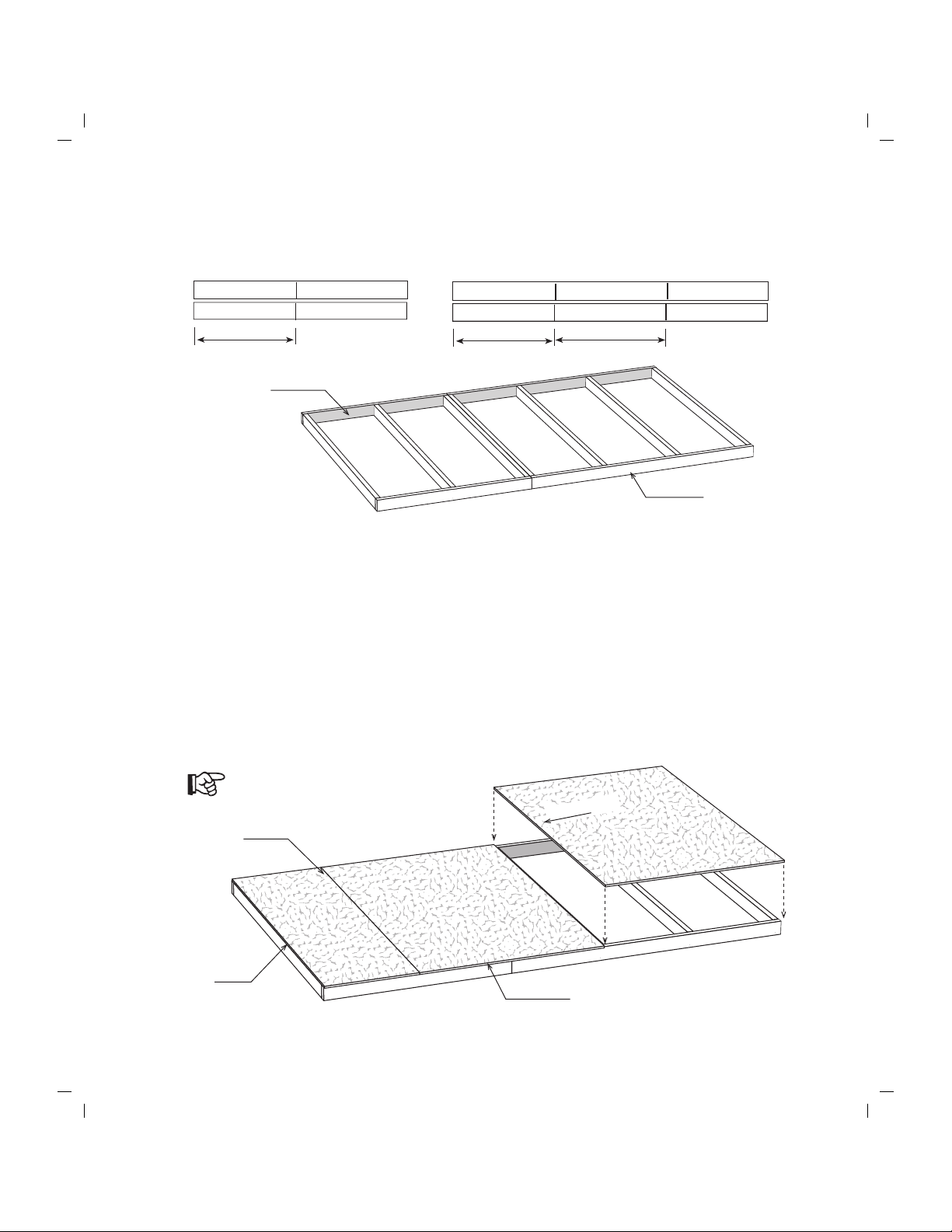

6. Cut (2) two 2x4-12' to a length of 12' -0". Layout

for 16" joist spacing, See above.

7. Install floor joists between the joist headers. Square

the floor section and install against the section

assembled above. Toenail to the 4x4s runners.

8. Install 4x8 flooring over the 2x4s. Use 8d

galvanized spiral floor nails spaced 8" apart.

Material Description 12' x 20'

2x4 Treated Blocking 2 pcs. 8'

2x4 PT Joist Headers 2 pcs. 8'

2x4 PT Joist Headers 2 pcs. 12'

2x4 PT Floor Joist 17 pcs. 12'

4x4 Treated Runners 4 pcs. 8'

4x4 Treated Runners 4 pcs. 12'

Flooring 5/8" or 3/4" 8 pcs. 4x8

Galv Spiral Floor Nails 3 lb. 8d

Galvanized Deck Nails 5 lb. 16d

Foundation size is 12'-0" x 20'-0". Check local building codes in your area, the construction may

have to change. For a concrete slab, install sill sealer as a moisture barrier between the concrete

and the wall plates. Foam sill sealer can be purchased at home centers in rolls 3-1/2" or wider.

Constructing Details for Deluxe Floor System

Deluxe floors include 4x4 runners, standard floors do not.

3. Cut (17) seventeen 2x4-12' treated boards to 11' -9". These will be the floor joists. Treated

lumber may be thicker than 1-1/2". Take this into account when cutting the length of floor

joists. Shorten joist measurements if necessary to obtain 12'-0" building width.

XXXX

15-1/4" 16" 16"

4x4-8' Treated

Runner

4x8 Flooring

2x4-8' Joist Header

4x4-12' Treated

Runner

4x4-8' Runner

4x4-12' Runner

Front Floor Section

:::

:::::::

...

......

2. Repeat to assemble a second Gable Plate.

72" Long 2x6 w/ Notch

72" Long 2x6

without notch

36" Long 2x6 w/ Notch

36" Long 2x6

w/ Notch

GLUE

4. To provide additional strength, install 2-1/2" wood screws spaced 16" apart as shown below.

5. Repeat steps to assemble a second Loft Beam.

Step 2 Assemble Gable Plates

1. Butt (2) two 72" long 2x4s together and secure them by nailing a 3-1/2" x 42-3/4" long

plywood gusset across the top where they butt together. The gusset needs to be centered

on the 2x4s (approximately 50-5/8" of the 2x4s will be exposed on each side of the gusset).

Use wood glue and (2) two rows of (20) twenty 6d common nails to secure the gusset.

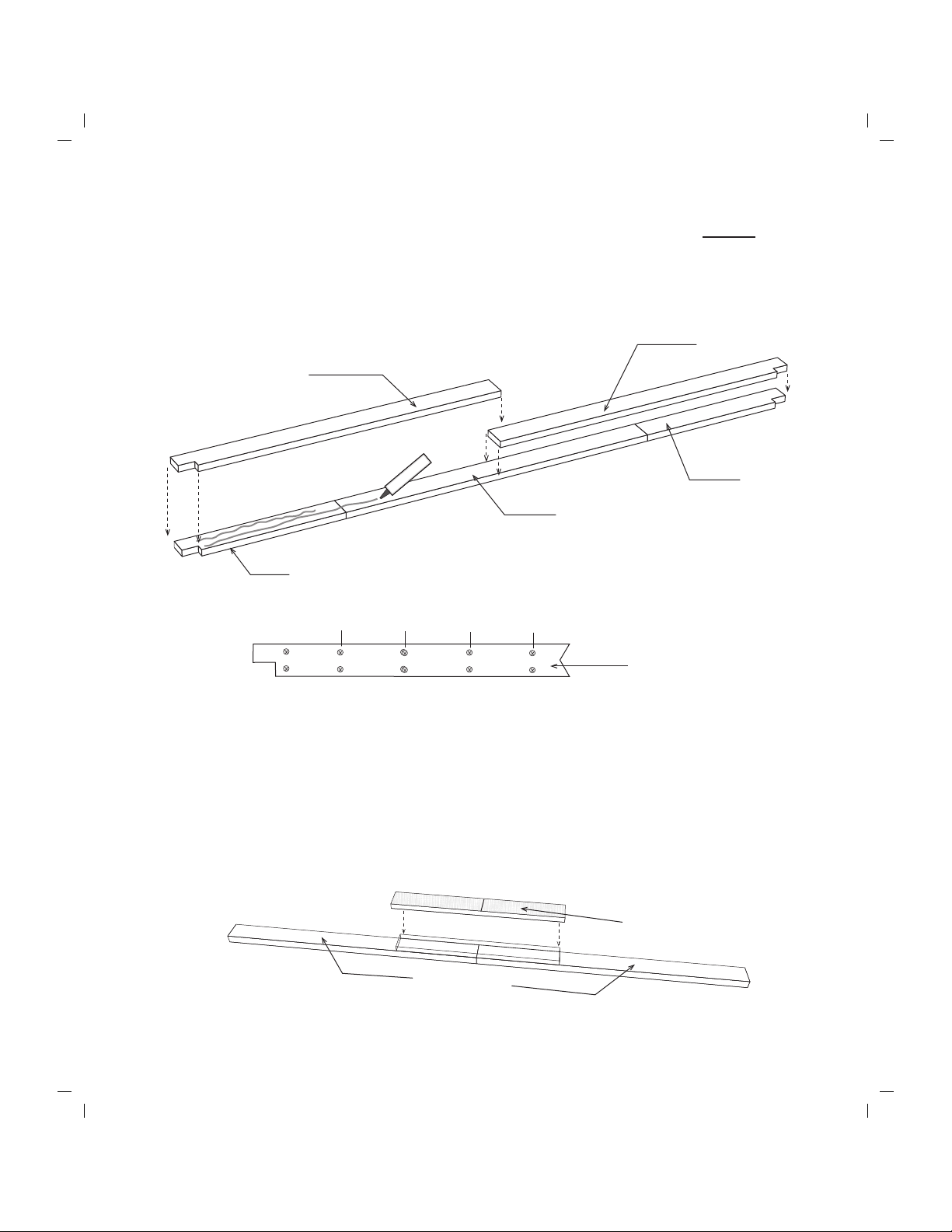

Step 1 Assemble Loft Beams

1. Locate (2) two 36" long 2x6 boards with a notch on one end and a 2x6 board without a

notch. Position these 2x6 boards on a flat surface as shown below.

2. Apply a coat of glue to the top surface using wood glue supplied in the kit.

3. Locate (2) two 72" long 2x6 boards with a notch on one end. Install these 2x6 boards

over the bottom boards.

72" long 2x4

3/4" Plywood Gusset

2x6 Beam

16" 16" 16"

2x4 Block

Gable Plate Assembly

2x4 Block

Gable Plate

4. Nail a 31-3/4" long 2x3 block where the trusses meet at the top with 10d coated sinker

nails. Secure with a 32" wood gusset. Apply wood glue between the gusset and truss and

nail with (25) twenty-five 6d common nails.

5. Turn the truss over and install a gusset to the other side of the truss.

6. Repeat this process to assemble (8) eight more trusses.

32" Top Gusset

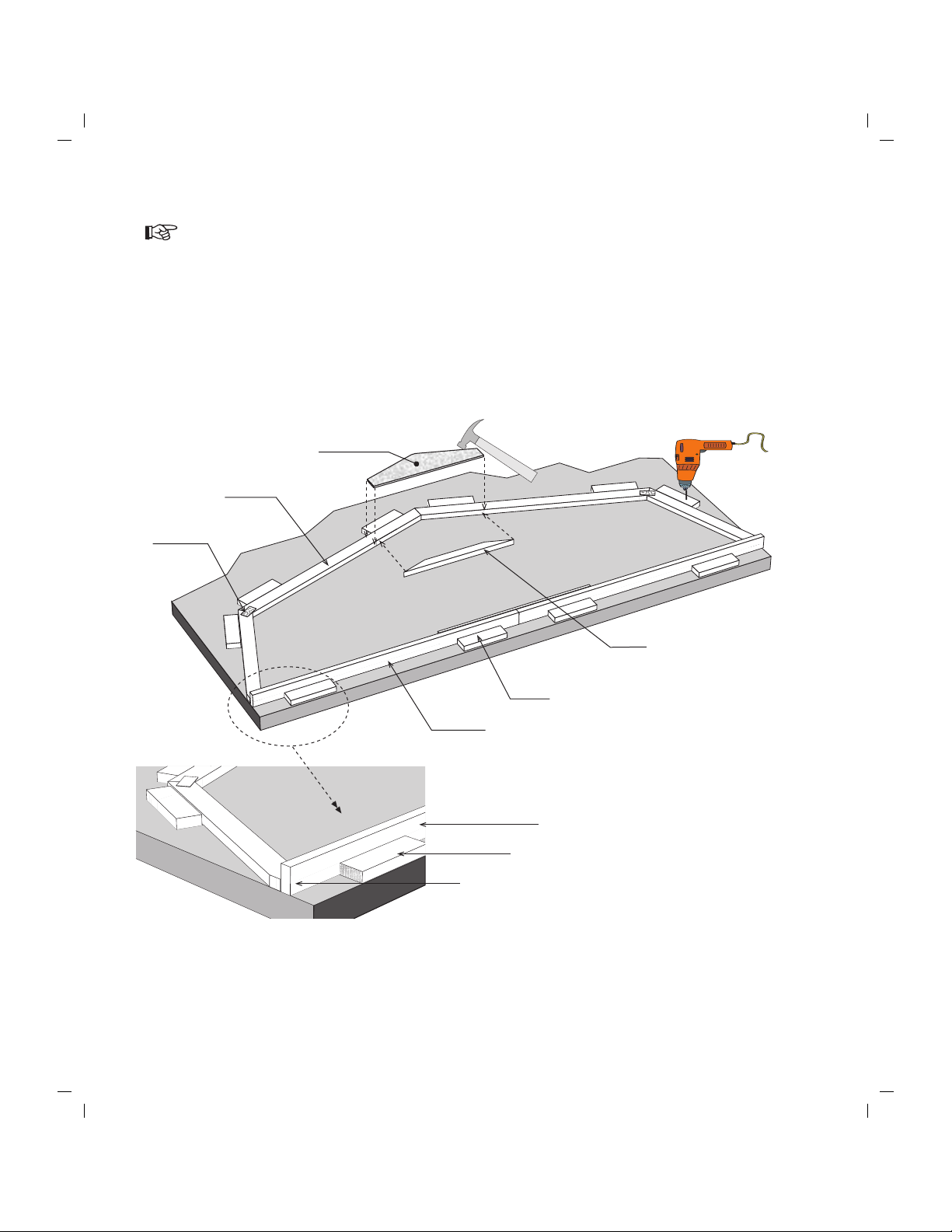

1. Position a Gable Plate (from Step 2) on the floor with the narrow edge side down. Use 2x4

blocks to hold the 2x4 plate straight.

2. Position (2) two truss halves (2x4s connected with a metal plate) with the short legs against

the 2x4 Gable Plate Assembly. DO NOT attach the Gable Plate Assembly to the truss. It is

temporarily used to help hold the 2x4 truss parts in place and will be attached in a later step.

3. Secure 2x4 blocks around the perimeter of truss to hold truss parts in place.

Do Not Fasten Truss Legs to Gable Plate

Step 3 Assemble Trusses

31-3/4" Long 2x3 Block

Truss Half

Metal Plate

Building Tip: To aid in the assembly of the trusses, temporarily tack-nail or screw 2x4

blocks to the floor using short 2x4 packing blocks supplied in kit. This will ensure

that all the trusses are assembled the same.

32"

3. Install a 42-3/4" long 2x4 board in the

opening 32" from top of wood gusset.

Secure with 1"x4" metal barbed plates.

7. Position 2nd gable plate and repeat steps to assemble the front roof gable. Read note below:

DO NOT use trusses from Step 3 to assemble the roof gables.

1. Place (2) two truss halves together and secure the top with a 1"x4" barbed metal plate.

2. Nail a 31-3/4" long 2x3 board to the truss at the ridge with 10d coated sinkers.

3. Cut a 42-3/4" long 2x4 to fit and install in the center of the gable. Nail through gable plate

and plywood gusset with (2) two 10d sinkers. Secure the top with a 1x4 barbed metal plate.

4. Butt (2) two 40-3/4" long 2x4s against the wood gusset. Secure the bottoms to the 2x4 gable

plate by nailing through plate with (2) two 10d sinkers. Secure the tops with a barbed plate.

5. Install (2) two 30-3/4" long 2x4s with barbed plates and nails.

6. Nail truss leg to 12' Gable Plate with 10d sinkers.

30-3/4" Long 2x4

2x4 Cut to Fit

40-3/4" Long 2x4

31-3/4" Long 2x3 Block

Wood Gusset

Step 4 Assemble Roof Gables

If you want the loft doors to open, repeat steps 1-6

substituting number step 3 with directions below:

1"x4" Drive-on Plate

2. Install (2) two 61" long 2x3 boards with blue marking at

one end. Install this end at the top of front gable ony.

Ensure 2x3 is flush with gable frame. Use 10d sinkers.

3. Install (2) two 42-1/2" long 2x3s. Use 10d sinkers.

61" Long 2x3

42-1/2" Long 2x3

Blue ends

4. Assemble the loft doors. The loft door frames are

temporarily held together with corrugated fasteners;

this is the back side of the door frame. Place the doors

on level surface, face side down. Cut the siding from

above step to the size of the door frame. Secure the

siding panel to the frame with 1" screws provided.

Siding Extends

3/4" Below Plate

LAP

'Tongue' Edge

1. Install siding on right working left. Lay out the first (2) two pieces of siding on frame.

Important: Do not nail to frame if loft doors are to open. Mark and cut so siding is flush

with top and right side of loft door opening. Cut to bottom of siding below gable plate. Nail

first two pieces of siding to frame. Lay out next siding panel, do not nail if loft doors are

to open, and repeat cut for left side door opening. Nail last two pieces of siding to frame.

Step 5A Apply Siding to Rear Roof Gable

1. Remove 2x4 blocks and turn gable frame over.

2. Install pre-cut siding on rear gable. First piece

will have a 'Tongue' edge. Start from left and

install siding extending 3/4" below gable plate.

Siding must not extend above the top frame. Use

8d galvanized box nails along the gable plate and

6d galvanized box nails on studs and truss frame.

Space nails 8" apart.

The rear gable trim is installed

in Step 18, however you can

install the trim now.

Step 5B Apply Siding to Front Roof Gable

Cut the siding flush with the

bottom plate if installing the

building on a cement slab.

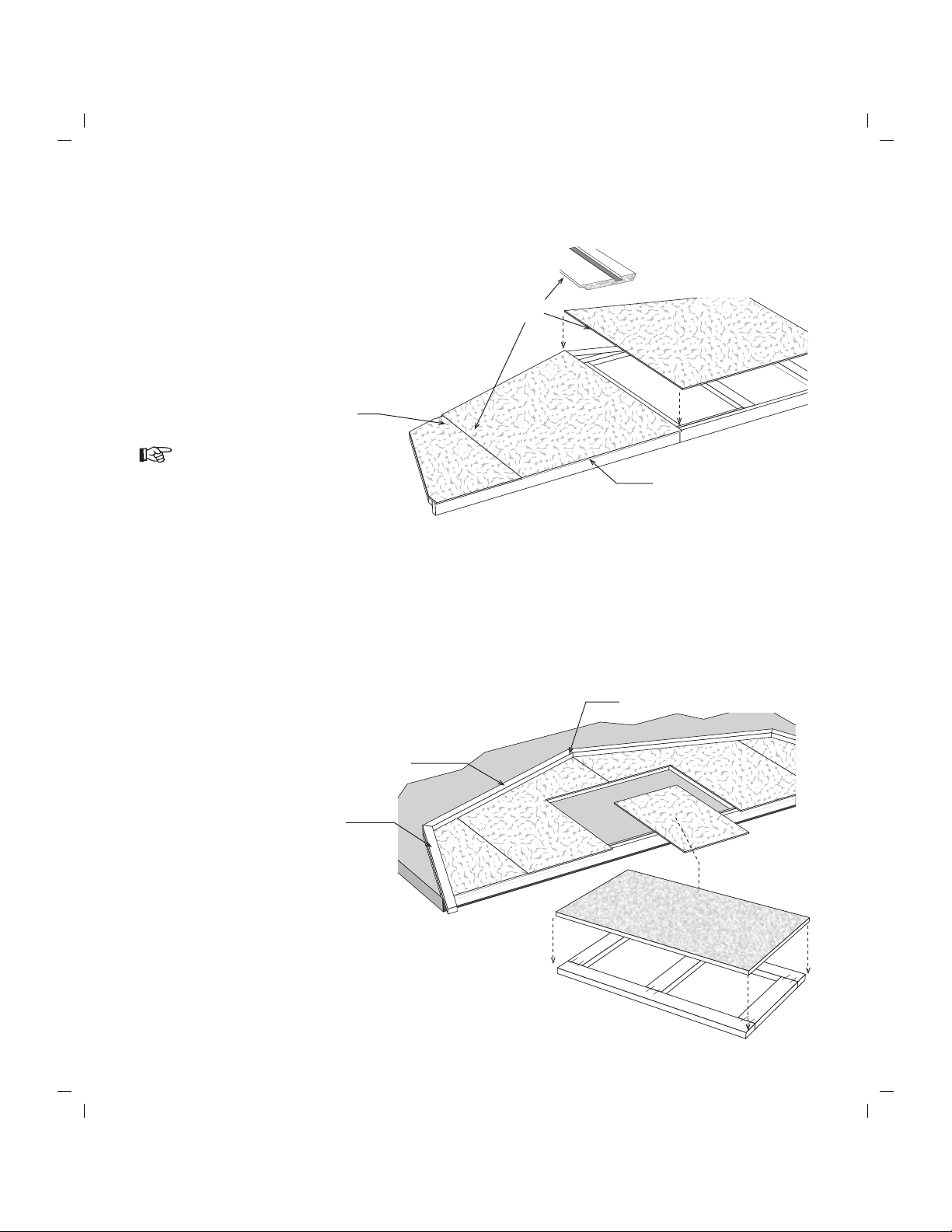

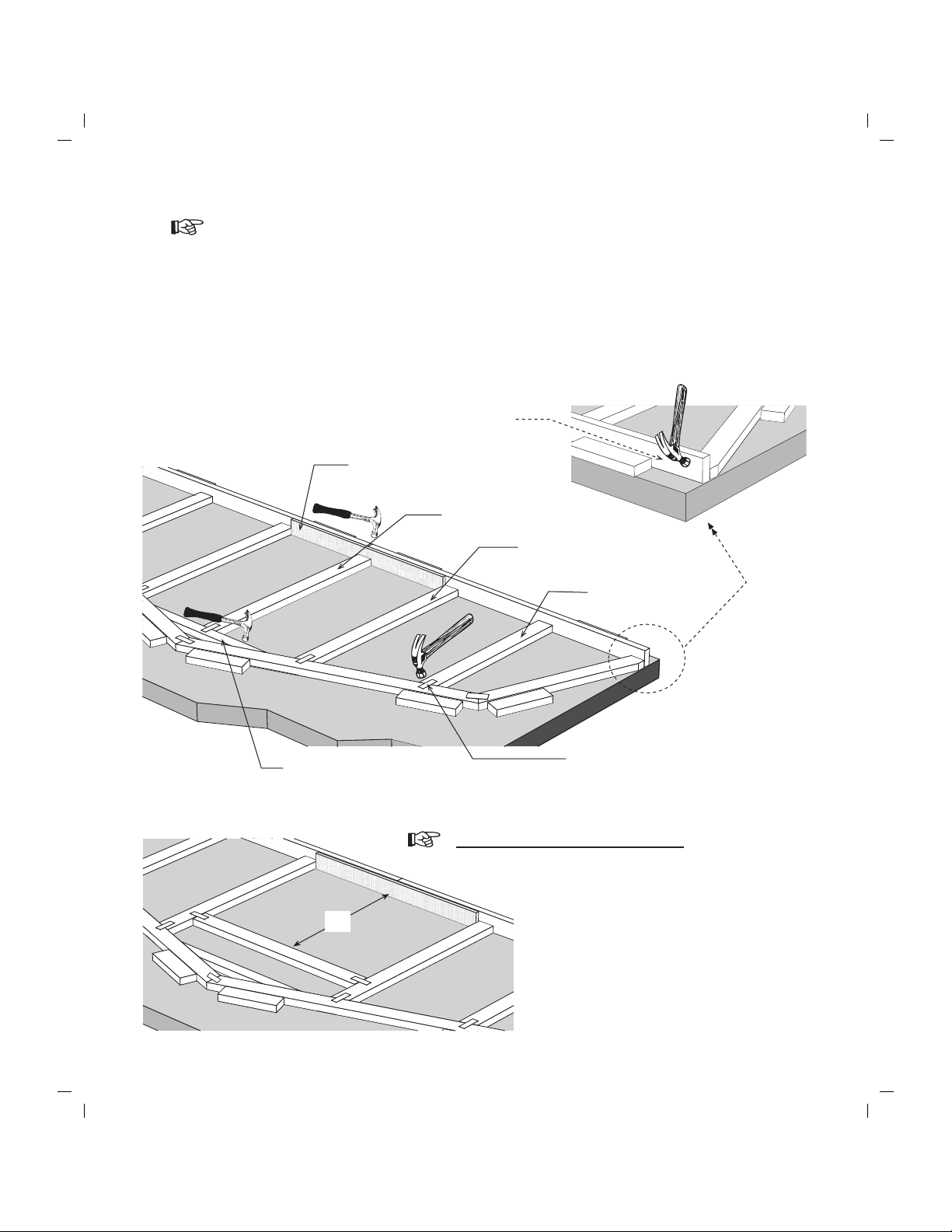

Step 6A Assemble 10' Sidewalls

4. Cut one of the 48" wide siding panels in half lengthways.

5. Square wall frame.

Measure diagonally (corner to corner); the measurements will

be the same when the wall is square.

Select the 2' wide panel, with the 'tongue' edge, and install this panel with the 'cut'

edge flush with the end of the wall and extending 3/4" below the bottom plate. Use

8d galvanized nails spaced 8" apart.

7. Install (2) two more siding panels.

Siding Extends 3/4" Below Plate

LAP Edge

1. Position (2) two 2x4-48" boards and (2) two 2x4-72" boards together and indicate

with 'X' marks where the wall studs will be located.

2. Install (7) seven 80-1/4" long wall studs between the wall plates. Use (2) two 10d sinkers

at each end of stud. Nail the frames together with (5) five 10d sinkers, alternating sides.

3. Repeat to assemble (3) three more 10' long sidewall frames. You will need to cut (2) two

64" long 2x4s to a length of 48" to assemble the last 48" wall frame.

8. Select (1) one of the 10' wall frames and repeat to apply siding to a second sidewall frame.

24"

23-1/4"

72" Wall Plate

48" Wall Plate

23-1/4"

Cut Edge

Tongue Edge

72" Wall Plate

48" Wall Plate

:::::::

4. Repeat to apply siding to the other 10' wall frame.

Step 6B Assemble Sidewalls for 20' Building Length

1. Select one of the 10' sidewalls assembled in Step 6. Butt a 10' wall frame against the

wall with siding. Do Not nail these frames together so they can be separated later.

10' Wall Panel from Step 5

6' Wall Plate

2. Square the wall frame. Install a full width siding panel using 8d galvanized box nails spaced

8" apart. Do Not nail along the long edge that overlaps the 10' wall frame. You can nail

this edge after the wall panels are installed. This will enable you to separate the wall panels

making them easier to handle.

Do Not Nail Along This Edge

LAP Edge

4' Wall Plate

3. Install another full width siding panel and

the 2' wide siding panel.

3. Square wall frame. Measure diagonally (corner to corner); the measurements will be the

same when the wall is square.

Install the 1st siding panel with the 'LAP' edge extending 3-1/2" past the wall frame. Use

8d galvanized box nails spaced 8" apart. The bottom will extend 3/4" below the bottom

plate, or trim flush for cement slab.

5. Install the other siding panels. Cut the last panel to extend 3-1/2" beyond the wall frame.

68-1/2" Wall Plate

23-1/4"

68-1/2" Wall Plate

19-3/4" 24" 24"

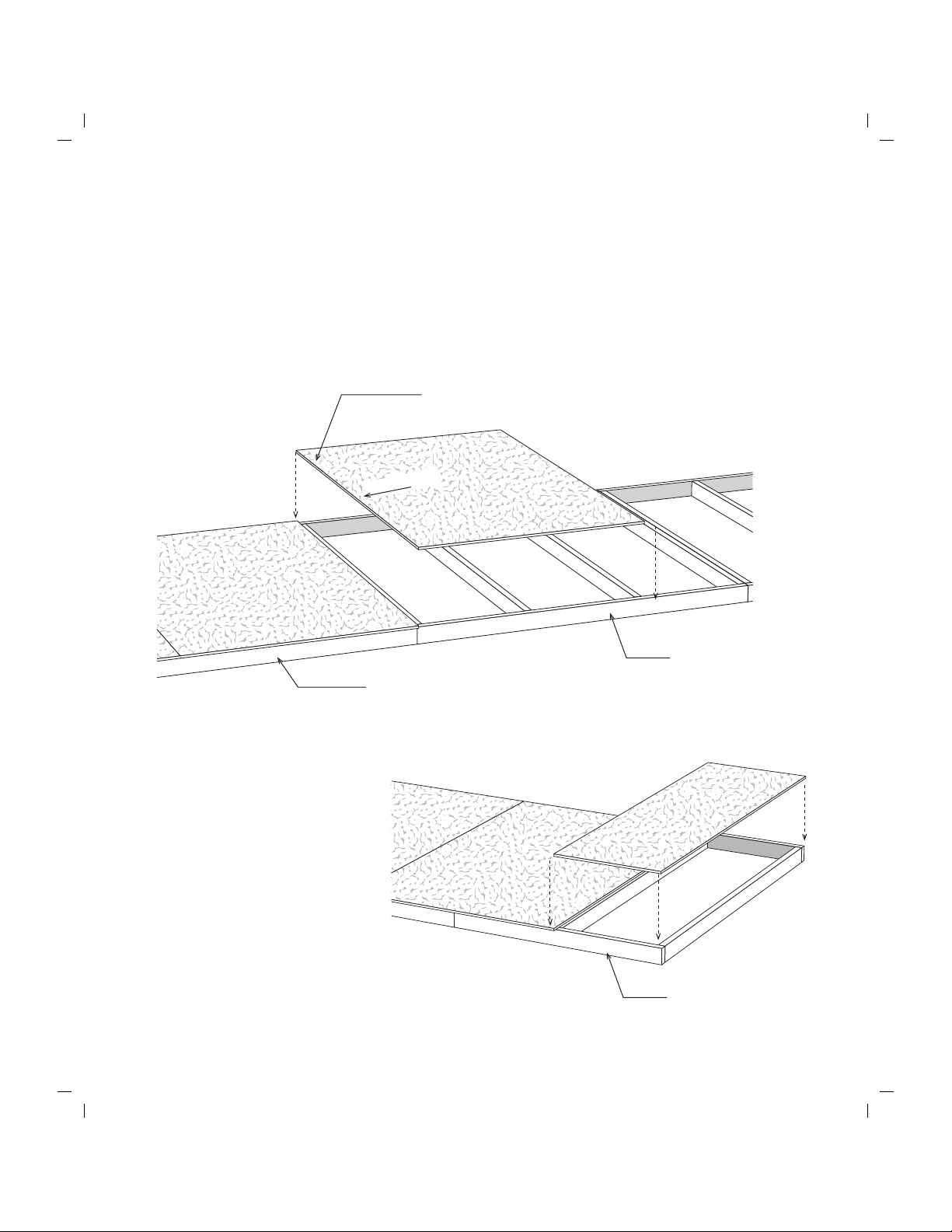

Step 7 Assemble Back Wall

1. Position (4) four 68-1/2" 2x4 boards together and indicate with 'X' marks where the wall studs

will be located. Mark the ends that will butt together with the letters 'A' and 'B'.

2. Install (8) eight 80-1/4" long wall studs, between the wall plates, over the 'X' marks and where

the plates meet. Use (2) two 10d coated sinkers at each end of a stud. Nail wall sections

together using (5) five 10d coated sinker nails, alternating each side of the studs.

Siding to extend 3/4”

below bottom plate

LAP

Edge

Siding Extends 3-1/2"

Past 2x4 Stud

80-1/4” Wall Studs

68-1/2" Wall Plate

Autres manuels pour Millcreek

Table des matières

Autres manuels Best Barns Entreposage extérieur

Best Barns

Best Barns the Homestead-R Guide de sécurité

Best Barns

Best Barns South Dakota II Guide de sécurité

Best Barns

Best Barns Weston Guide de sécurité

Best Barns

Best Barns Denver Guide de sécurité

Best Barns

Best Barns the Hanover Guide de sécurité

Best Barns

Best Barns the Elm R Guide de sécurité

Best Barns

Best Barns Fairview-R Guide de sécurité

Best Barns

Best Barns Belmont II Guide de sécurité

Best Barns

Best Barns the Fairview Guide de sécurité

Best Barns

Best Barns Geneva Guide de sécurité

Best Barns

Best Barns Brandon-R Guide de sécurité

Best Barns

Best Barns Mansfield-R Guide de sécurité

Best Barns

Best Barns Hampton Guide de sécurité

Best Barns

Best Barns the Greenbriar Guide de sécurité

Best Barns

Best Barns the Hanover Guide de sécurité

Best Barns

Best Barns Brookfield-R Guide de sécurité

Best Barns

Best Barns Cypress R Guide de sécurité

Best Barns

Best Barns the Aspen Guide de sécurité

Manuels Entreposage extérieur populaires d'autres marques

USP

USP DURAMAX 10 Ft x 8 Ft StoreMax Plus Manuel utilisateur

TYGO

TYGO Nyland Manuel utilisateur

Duratuf

Duratuf GL105 Manuel utilisateur

Viking

Viking SD5300SS Manuel technique

USP

USP DURAMAX Apex Pro 10.5 Ft x 8 Ft 40116 Manuel utilisateur

ModuLaro

ModuLaro Lojo WC202200 Manuel utilisateur

Lifetime

Lifetime 6418 Manuel utilisateur

rollaway container

rollaway container ARPCA24 Manuel utilisateur

Duratuf

Duratuf Havelock Manuel utilisateur

X-METAL

X-METAL 4065 Manuel utilisateur

Outdoor Life Products

Outdoor Life Products FP2030 F Manuel utilisateur

Royalcraft

Royalcraft Faro 295L Storage Box Manuel utilisateur

Riverlea

Riverlea Duratuf KIWI KS3 Manuel utilisateur

OLT

OLT GS84D-FJ-Plywood Manuel utilisateur

Rubbermaid

Rubbermaid 5L45 Manuel utilisateur

garofalo

garofalo TUSCANY EVO Manuel utilisateur

Duratuf

Duratuf Kiwi MK1 Manuel utilisateur

Eden

Eden CA2988 Manuel utilisateur
