Fitting Guide

COMPACT POWER PLUS, COMPACT POWER, MICRO, POWER, NANO

Fitting Guide

Compact Power Plus, Compact Power,

Power, Micro and Nano BTE Hearing Systems

Table of Contents

Hearing Systems Overview 4

Selection Chart for Acoustic Options 6

Fitting Ranges 7

Attaching and Removing the Earhook or Thin Tube Adapter 8

Changing the Dome 9

Installation of Right/Left Indicators 9

Replacing the Battery Door 11

DAI and FM Adapters 13

Attaching and Removing the DAI and FM Adapters 13

Using the FM Adapter 14

Using the DAI Adapter 14

Fitting a BTE with Oasis 15

Attaching the Programming Cables 15

FittingLINK 17

Ordering Information 19

Behind-the-ear (BTE) hearing instruments are available in different styles and with various acoustic

options, depending on the patient’s degree of hearing loss, the anatomy of the client’s ear,

and individual style preferences. This guide is designed to help you t and manage BTE hearing

instruments.

Compact Power Plus (CPx) and Compact Power (CP) BTE with Earhook

(also available with thin tube system)

Micro BTE with Thin Tube System

(also available with earhook)

Bernafon Veras IFU micro BTE

VR_ILU_microBTEwithHook_BW_HI

1 Multi control

2 Microphone

2a Second microphone

3 Earhook

4 Sound outlet

5 Battery door

6 Direct Audio Input

(with an optional

DAI adapter)

1 Multi control

2 Microphone

2a Second microphone

3 Adapter

4 Thin tube

5 Sound outlet

6 Dome

7 Concha clip

8 Battery door

9 Direct Audio Input

(with an optional

DAI adapter)

Bernafon Veras IFU micro BTE

VR_ILU_microBTEwithSpira_BW_HI

Hearing Systems Overview

COMPACT POWER PLUS, COMPACT POWER, MICRO, POWER, NANO

Power BTE with Earhook

(also available with thin tube system)

Nano BTE with Thin Tube System

(also available with earhook)

Bernafon nano BTE IFU

VR_ILU_nanoBTEwithSpira_BW_HI

31 Push button

2 Microphone

2a Second microphone

3 Adapter

4 Thin tube

5 Sound outlet

6 Dome

7 Concha clip

8 Battery door

1NE_ILLU_P_Earhook_front_BW

231 Multi control

2 Microphone

2a Second microphone

3 Earhook

4 Sound outlet

5 Battery door

6 Direct Audio Input

(with an optional

DAI adapter)

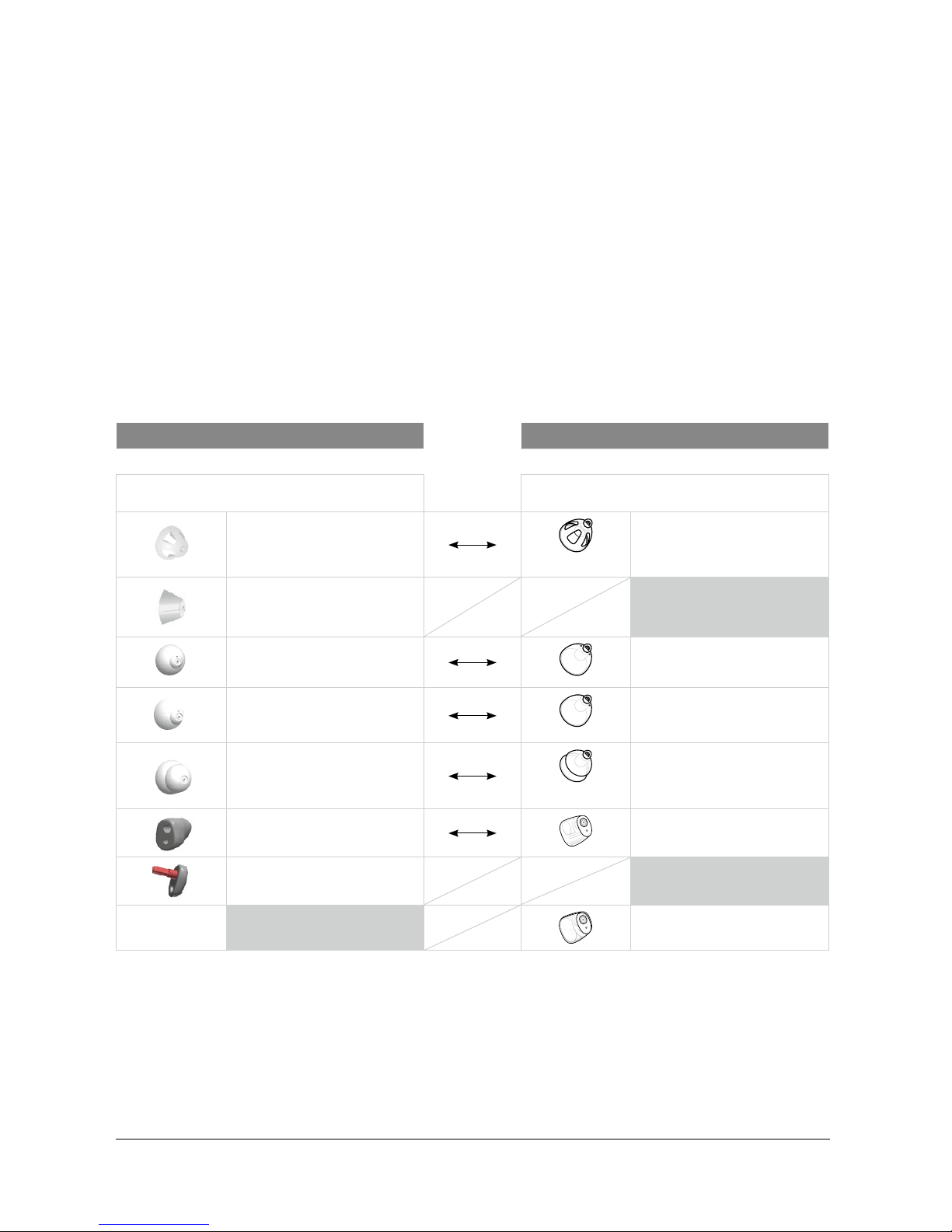

Selection Chart for Acoustic Options

All BTE models covered in this Fitting Guide can either be tted with a conventional earhook or with a

thin tube system. Traditional earhooks are used with a custom earmold.

The thin tube systems can be combined with a variety of different domes and customized earpieces.

All Compact Power Plus, Compact Power, Power, Micro and Nano BTEs can be tted with the Spira

Flex and the miniFit thin tube system.

Please note that, for each BTE model, in the tting software only one set of options (either Spira Flex

or miniFit) is given. However, the table below will help you make the appropriate selection when you

wish to use the other set of options.

Spira Flex miniFit

Thin Tube 0.9 mm

Thin Tube 1.3 mm

Thin Tube 0.9 mm

Thin Tube 1.3 mm

Open Dome

(6, 8, 10 mm)

Open Dome

(6, 8, 10 mm)

Tulip Dome n.a.

Dome, Large Vent

(8, 10, 12 mm)

Bass, Double Vent

(6, 8, 10, 12 mm)

Dome, Small Vent

(8, 10, 12 mm)

Bass, Single Vent

(6, 8, 10, 12 mm)

Power Dome

(6, 8, 10 mm)

Power Dome

(6, 8, 10, 12 mm)

Canal Mold Micro Mold

Custom Tip n.a.

n.a. Lite Tip

Note: Never attach a Spira Flex earpiece onto a miniFit thin tube and vice versa, as it could fall off in

the client’s ear canal.

COMPACT POWER PLUS, COMPACT POWER, MICRO, POWER, NANO

BTE hearing instruments offer a variety of different styles which are appropriate for mild to severe

hearing losses. Expected tting ranges of each hearing instrument style are shown below.

Fitting Ranges

250 500 1. 000 2.000 4.000 8.000

100

120

dB HL

Frequency (Hz)

250 500 1. 000 2.000 4.000 8.000

100

120

dB HL

Frequency (Hz)

100

120

250 500 1. 000 2.000 4.000 8.000

dB HL

Frequency (Hz)

100

120

250 500 1. 000 2.000 4.000 8.000

dB HL

Frequency (Hz)

100

120

250 500 1. 000 2.000 4.000 8.000

dB HL

Frequency (Hz)

Compact Power Plus BTE Power BTE

Compact Power BTE Micro BTE

Nano BTE

Attaching and Removing the Earhook or

Thin Tube Adapter

All BTE hearing instruments are available with either the thin tube system or

a conventional earhook.

Compact Power Plus, Compact Power, Power, and Micro BTE

1 Use the pointed end of the disassembly tool to push the lock pin free

2 Replace the hook or adapter with the desired part

3 Replace the lock pin (tweezers make this easier)

Nano BTE

1 Pull the adapter or the hook upwards from the instrument

2 Replace with a new hook or an adapter by pushing the desired part rmly onto the instrument

Use the pointed end of the disassembly tool

to push the lock pin.

VR_ILU_MicroCompactBTERemovePin_CMYK_HI

Remove hook or adapter.

VR_ILU_MicroCompactBTERemoveHook_BW_HI

VR_ILU_NanoBTERemoveSpira_BW_HI

VR_ILU_NanoBTERemoveHook_BW_HI

COMPACT POWER PLUS, COMPACT POWER, MICRO, POWER, NANO

Installation of Right/Left Indicators

Changing the Dome

The soft domes are a disposable part.

The client should be supplied with spare

domes and shown how to change them.

1 Open the battery door and insert the marker end into slot as shown

2 Twist and rotate the stick to break off the marker

3 Close the battery door

Micro BTE

Nano BTE

1 Pull the used dome off the thin tube and

discard

2 With clean hands, rmly push a new dome

onto the thin tube as far as it will go

If the dome is not pushed all the way onto the

thin tube, it could fall off in the ear canal.

VR_ILU_MicroCompactBTEInstMarking1_CMYK_HI

VR_ILU_MicroCompactBTEInstMarking2_CMYK_HI

VR_ILU_MicroCompactBTEInstMarking3_CMYK_HI

VR_ILU_NanoBTEInstMarking1_BW_HI

VR_ILU_NanoBTEInstMarking2_CMYK_HI

VR_ILU_NanoBTEInstMarking3_CMYK_HI

Compact Power Plus and Compact Power BTE

1 Open the battery door

2 Insert the marker end into the slot as shown

3 Twist and rotate the stick to break off the marker

4 Close the battery door

Power BTE

1 Open the battery door

2 Insert the marker end into the slot as shown

3 Rotate the stick to break off the marker

4 Close the battery door
