IN-THE-EAR

HEARING AIDS

Fitting Guide

For Juna, Acriva, Saphira,

Carista, and Nevara

Hearing Systems Overview 4

Fitting Ranges 5

Wax Protection System 6

Microphone Protection System 7

Fitting an ITE with Oasis 9

Ordering Information 11

Table of Contents

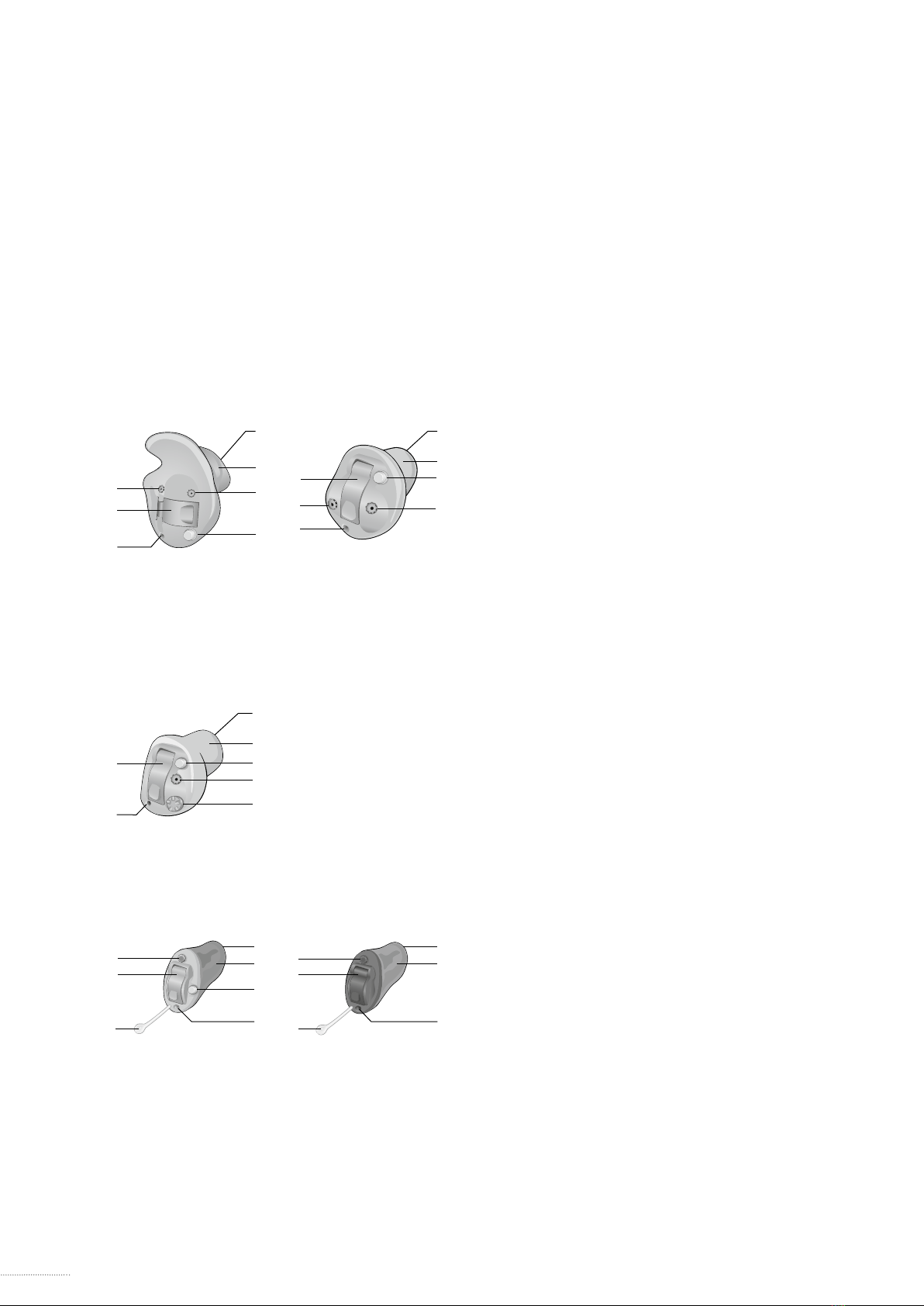

Hearing Systems Overview

In-the-ear (ITE) hearing instruments are available in different styles depending on the patient’s

degree of hearing loss, anatomy of the ear, and individual style preferences. This guide is designed

to help you t and manage in-the-ear hearing systems. Please note that the hearing instrument

may look slightly different compared to the illustrations below.

* Push button can be programmed

for volume control use

1 Vent

2 Canal

3 Sound outlet with

wax protection

4 Microphone opening

with O-cap lter

1 Vent

2 Canal

3 Sound outlet with

wax protection

4 Microphone opening

with O-cap lter

1 Vent

2 Canal

3 Sound outlet with

wax protection

4 Microphone opening

with T-cap lter

5 Battery door

6 Push button

(optional)*

5 Battery door

6 Push button

(optional)

7 Volume control

(optional)

5 Battery door

6 Push button

(optional)*

7 Pull-out string

ITEPD/ITED ITCPD/ITCD

ITC

AR_ILLU_ITED_BW

AR_ILLU_ITCPD_BW

AR_ILLU_ITC_BW

CICP/CIC/CICx IICx/IIC

AR_ILLU_CICP_BW

AR_ILLU_IIC_BW

* For Juna/Saphira/Nevara CICP and CICx

the push button can be programmed for

volume control use

IN-THE-EAR HEARING AIDS

Fitting Ranges

In-the-ear hearing instruments offer a variety of different styles which are appropriate for mild

to severe hearing losses. Expected tting ranges of each ITE style are shown below.

100

110

120

250

500

750

1000

1500

2000

3000

4000

6000

8000

07 ITCD, ITC

ITCD/ITC

Frequency (Hz)

dB HL

100

110

120

250

500

750

1000

1500

2000

3000

4000

6000

8000

06 ITED, ITCPD

ITED

Frequency (Hz)

dB HL

100

110

120

250

500

750

1000

1500

2000

3000

4000

6000

8000

31 ITEPD/ITCPD

ITEPD/ITCPD

Frequency (Hz)

dB HL

100

110

120

250

500

750

1000

1500

2000

3000

4000

6000

8000

09 CICx

CICx/CIC

Frequency (Hz)

dB HL

100

110

120

250

500

750

1000

1500

2000

3000

4000

6000

8000

32 IICx/IIC

IICx/IIC

Frequency (Hz)

dB HL

100

110

120

250

500

750

1000

1500

2000

3000

4000

6000

8000

08 CICP

CICP

Frequency (Hz)

dB HL

Wax Protection System

CIC and IIC models are supplied with the ProWax miniFit system. All other in-the-ear hearing

instruments are supplied with the ProWax system.

1 Take a new tool from the turtle

2 Insert the empty end of the tool into the instrument’s existing lter and pull it out

3 Insert the new wax lter into the instrument

4 Discard the used tool

CIC and IIC models shall be used with

ProWax miniFit only. All other in-the-ear

instruments shall be used with the

ProWax system. Using other wax

protection systems could damage

the instrument.

12 3

ProWax miniFit ITE hearing instrument models

IIC

CIC

ProWax ITE hearing instrument models

IICx ITCD

CICx ITCPD

CICP ITED

ITC ITEPD

IN-THE-EAR HEARING AIDS

Microphone Protection System

In-the-ear hearing instruments are supplied with either the T-Cap or O-Cap for microphone

protection.

O-Cap Filter for ITEPD, ITED, ITCPD, ITCD, and ITC

The tool has two ends, one for the removal of the O-Cap (A) and one with the new

O-Cap attached (B).

1 Use the removal end (A), insert it into the opening of the used O-Cap and pull it out slowly.

Keep the stick straight.

2 Use the other end of the tool (B), insert the new O-Cap into the opening and gently

remove the stick

3 Discard the tool and the used O-Cap lter

AR_ILLU_miniBTE_O_Cap1_BW_Hi

AR_ILLU_miniBTE_O_Cap2_BW_Hi

AR_ILLU_miniBTE_O_Cap3_BW_Hi

AR_ILLU_miniBTE_O_Cap4_BW_Hi

12 3

T-Cap Filter for CICP, CICx, CIC, IICx, and IIC

The tool has two ends, one for the removal of the T-Cap (A) and one with the new

T-Cap attached (B).

1 Use the removal end (A) and push it under the top edge of the used T-Cap

2 Lift the used T-Cap up and out

3 Use the other end of the tool (B), insert the new T-Cap into the opening and slightly twist

the handle so that the new T-Cap is free

4 Discard the tool and the used T-Cap lter

AR_ILLU_miniBTE_T_Cap1_BW_Hi

AR_ILLU_miniBTE_TCap2_BW_Hi

AR_ILLU_miniBTE_T_Cap3_BW_Hi

AR_ILLU_miniBTE_T_Cap4_BW_Hi

12 3

IN-THE-EAR HEARING AIDS

Fitting an ITE with Oasis

All in-the-ear hearing instruments are programmed with Oasis 24.0 or higher software, New Standard

(no.2) programming cables, and either the Programming Adapter Mini or the FlexConnect Mini.

CIC and IIC

CIC and IIC are programmed with the Programming Adapter Mini.

1 Gently remove the battery door by pulling it up and away from the instrument as shown on the picture

below. Do not use a twisting action.

2 Attach the battery-like end of the Programming Adapter Mini to the instrument. Ensure that the hinge

pin on the hearing instrument is connected to the adapter.

3 Gently push the adapter in the direction shown, similar to the way that you would normally close the

batter drawer

4 Once the adapter is in the position shown, it is ready to be used with the tting software

When nished programming, detach the Programming Adapter Mini as you did in step 1

then reattach the battery drawer.

12 3 4

All Other ITEs

Except the CIC and IIC, all other ITE models should be tted using the FlexConnect Mini.

Use FlexConnect Mini Do not use FlexConnect

Not okOk

FC_MINI_ILLU_Overview_BW

FC_MINI_ILLU_Attaching1_BW

FC_MINI_ILLU_Attaching2_BW

12 3

1 Insert a fresh battery, and open the battery door slightly. With the black dot facing up, insert the end of

the FlexConnect Mini into the space between the battery door and the hinge until the black dot touches

the faceplate. Close the battery door.

2 Plug the end of the cable into the FlexConnect Mini programming socket

3 Place the instrument in the patient’s ear and drape the strip over and behind the ear
