TGR-85 THERMOSTAT USER GUIDE

THIS THERMOSTAT IS SUITABLE FOR WATER HEATING,

ELECTRIC HEATING AND GAS BOILER

TGR-85 THERMOSTAT USER GUIDE

Thank you for your trust and support.By adopting higher-end technology and

more perfect technology,your new thermostat will provide you with the right

temperature environment every day in the future,making your life more

comfortable and your living environment more stylish and beautiful.For

detailed instructions on the installation and use of this thermostat,please read

this manual carefully.Please contact a professional to install the thermostat for

you and install and use the product to the extent permitted by law

Intelligent digital temperature controller is a floor heating system suitable for

room temperature control and household temperature control.It controls the

operating state of the floor heating equipment by comparing the ambient

temperature with the set temperature,which improves comfort and achieves

energy saving.This digital temperature controller adopts microcomputer

control technology and is equipped with full-screen display touch buttons,

which is elegant in design and easy to use.The thermostat has manual

automatic,programmable and state memory functions.

Welcome

Application

TGR-85 THERMOSTAT USER GUIDE

User Notes

1.Please read this manual carefully. Improper operation may damage the

product or cause dangerous conditions.

2.The installation personnel must be well-trained and experienced service

technicians.

3.After installation, please read this manual carefully and operate the product

according to the instructions.

Caution: Risk of electric shock or equipment damage.

Wiring Diagram

Note: WP for water heating; EP for electric heating; WPB for gas boiler

TGR-85 THERMOSTAT USER GUIDE

Installation procedure

This product is installed with a standard 86 control switch (in compliance with

1.Turn the fixator so that the arrow is

aligned with the display screen.Remove

2.Remove the mounting plate in this direction

4.Insert the thermostat into the mounting plate

from top to bottom and reuse ,The screwdriver will

rotate the fixator 180 degrees to complete the installation.

European regulations)

the mounting plate

3.Fix the mounting plate on

the cassette with a screw

TGR-85 THERMOSTAT USER GUIDE

Product packaging

Thermostat host---------------

Qualification certificate------

Sensing line (optional)-------

1 PC

1PC

1 PC

Manual---------------1 PC

Screw----------------- 2 PCS

Product Model

WP Plumbing 3A

EP Electric Heating 16A

WPB linkage,gas boiler 3A

TGR-85 THERMOSTAT USER GUIDE

Description of display &Icon

ICON TIME ADJUST DEFAULT ADJUST

06:00 20℃

08:00 15℃

11:30 15℃

12:30 15℃

17:00 22℃

22:00 15℃

08:00 22℃

23:00 15℃

TGR-85 THERMOSTAT USER GUIDE

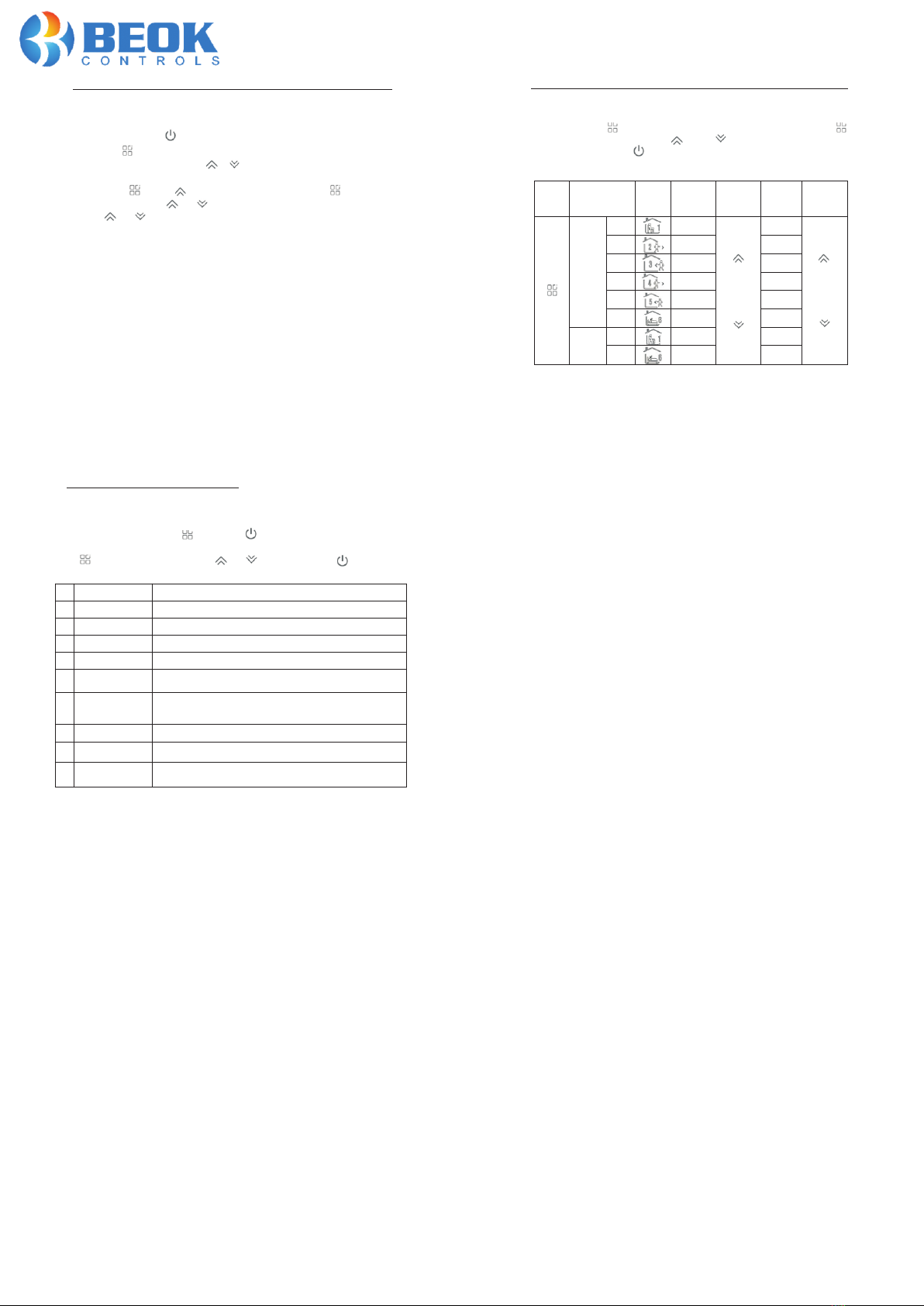

Time programming instructions

key to enter the programming setting,short press the

key to switch the option,press the key or key to adjust each option

key to exit and save.

KEY OPTION

workday

Holiday

Press and hold the

parameter,and press the

TGR-85 THERMOSTAT USER GUIDE

Operating Instruction

1.Power on/off:press to turn on/off the thermostat.

Press the key to switch between manual and automatic modes.

In the automatic mode,press or to adjust the temperature to enter the

automatic temporary mode.This mode runs for only one session.

4.Long press key and key to enter the clock setting,press key to switch

Settings Item,press and keys to adjust the value of each parameter.

5.Press and for 5 seconds to add or cancel the child lock.

TGR-85 THERMOSTAT USER GUIDE

Advanced options

When POWER OFF,press the

advanced option setting.

key and the key for 5 seconds to enter the

Press to enter the next option,press and to adjust,and press to exit the

height Level option.

1Temperature

compensation

The default value of the calibration room temperature is -2℃.Press the up and

down keys to adjust.The adjustable range is 9.9℃to -9.9℃.

2 Sensor selection

The temperature sensor is selected as IN by default.Press the up and down keys to

adjust as IN respectively,indicating that the internal.

3Modify the temperature

limit

The default temperature limit value is 35℃.Press the up and down keys to adjust

the range from 5℃to 60℃.

4Temperature difference

start

The default temperature difference is set to 1 °C.Press the up and down keys to

adjust the range to 1-10 degrees.

5 Antifreeze function

Set the default anti-freeze function to OFF,display OFF,press the up key to turn

on anti-freeze and display ON

Holiday option and turn

off weekly

programming

Set the default rest day as double OFF.Press the up and down keys to adjust it to

double OFF (1-5), single OFF (1-6), no OFF (1-7)and turn off week programming

(OFF).

Primary and secondary

reverse selection

Set the default main and auxiliary reversal to 0.Press the up and down keys to

adjust 0 to turn off the main and auxiliary reversal.01 means auxiliary reverse,02

means auxiliary reverse,03 means main and auxiliary reverse,shutdown and

antifreeze is not on,stop output

Passive linkage output

delay time

Set the default passive linkage delay time to 0.Press the up and down keys to

adjust the range of 0-5 minutes.

9Set upper temperature

limit

The default value of the set temperature upper limit is 60℃,and the adjustment

range is 35-95℃by pressing the up and down keys.

Restore Factory

Defaults

Set to restore the factory default setting to display.Press the up button to adjust the

display,press the enter button to restore the factory settings.
