Bentone RSA 60 Caractéristiques techniques

Providing sustainable energy solutions worldwide

CR00349 178 144 56-3 2021-08-04

Installation- and maintenance instruction

B 45 A2.2R

LMO24.255C2E

RSA 60

Translation of the original instructions.

2Bentone

example Beispielexempel

352011030141

Designation

Type

Model

Serial no.

Motor supply

Main supply

MADE IN SWEDEN BY

LIGHT OIL 35-90kW 1,25-6,0 cSt 7-14bar

BF 1 KS 76-24

BF 1

BF 1 KS 76-24

1234567

1~230V 1,0A 50Hz IP 20

Man.Year 2019

Cap. Min-Max

-sv

1. Manualer på övriga språk

2. www.bentone.com\

nedladdning

eller scanna QR-koden.

3. Skriv in brännarens

artikelnummer som ﬁnns på din

typskylt (se bild) och välj ditt

språk.

Detaljerad ecodesign information

kan laddas ner på:

www.bentone.com/ecodesign.

-en

1. Manuals in other languages

2. www.bentone.com\download

or scan QR-code.

3. Enter the burner`s article

number on your data plate (see

picture) and select language.

Detailed ecodesign information

can be downloaded at:

www.bentone.com/ecodesign.

-da

1. Manualer på andre sprog

2. www.bentone.com\download

eller scan QR-koden.

3. Indtast brænderens

artikelnummer, der ﬁndes på

typeskiltet (se billede), og vælg

dit sprog.

Detaljerede oplysninger om

ecodesign kan downloades på:

www.bentone.com/ecodesign.

-fr

1. Manuels dans d’autres

langues

2. www.bentone.com\download

ou scannez le code QR.

3. Saisir le numéro d’article

du brûleur sur votre plaque

signalétique (consultez

l’illustration) et sélectionnez la

langue.

Des informations détaillées

sur l’écodesign peuvent être

téléchargées à l’adresse:

www.bentone.com/ecodesign.

-de

1. Gebrauchsanweisungen in

anderen Sprachen

2. www.bentone.com\download

oder scannen Sie den QR-Code.

3. Geben Sie die Artikelnummer

des Brenners auf Ihrem

Typenschild ein, (siehe Bild) und

wählen Sie die Sprache aus.

Detaillierte Informationen zum

Ecodesign können unter

www.bentone.com/ecodesign

heruntergeladen werden.

3Bentone

Table of contents

1. Safety Information ___________________________________ 4

2. Technical data _______________________________________ 7

2.1 Dimensions B 45 A2.2R ___________________________ 7

2.2 Working ﬁeld B 45 A2.2R__________________________ 8

2.3 Electric Speciﬁcation______________________________ 8

2.4 Setting of brake plate and air ﬂow___________________ 9

2.5 Recommended nozzle and pressure ________________ 9

2.6 Burner installation ________________________________ 9

2.7 Nozzle table ____________________________________ 10

2.8 Description_____________________________________ 12

3. General instructions ________________________________ 14

3.1 General rules ___________________________________ 14

4. Installation ________________________________________ 15

4.1 Handling and lifting instruktion_____________________ 15

4.2 Acceptance inspection ___________________________ 16

4.3 Preparations for installation _______________________ 16

4.4 Distribution of oil ________________________________ 16

4.5 Electrical connection_____________________________ 16

4.6 Mount the burner on the boiler ____________________ 17

4.7 Check oil line seals ______________________________ 17

4.8 Setting Damper motor 2-stage ____________________ 18

4.9 Examples of basic setting B 45 2.2 ________________ 19

4.10 Setting values for nozzle and air damper ____________ 20

5. Burner servicing ____________________________________ 21

5.1 Servicing the combustion assembly _______________ 21

5.2 Servicing air dampers ___________________________ 22

5.3 Replacement of damper motor ____________________ 23

5.4 Servicing the fan ________________________________ 24

5.5 Replacement of oil pump _________________________ 25

5.6 Vibration _______________________________________ 26

5.7 Pump Danfoss RSA 60___________________________ 27

6. Replacement of electrical components _______________ 30

7. Oil burner control ___________________________________ 31

7.1 Wiring diagram ________________________________ 31

7.2 Function LMO14/24 _____________________________ 32

7.3 Colour codes LMO14/24 _________________________ 33

7.4 Fault codes LMO14/24___________________________ 33

8. Fault Location ______________________________________ 34

8.1 Burner will not start ______________________________ 34

8.2 Burner will not start after normal use _______________ 34

8.3 Delayed ignition _________________________________ 35

8.4 Noise in pump __________________________________ 35

8.5 Pump pressure _________________________________ 36

9. Log of ﬂue gas analysis _____________________________ 37

10. Oil burners maintenance instructions _______________ 38

4Bentone

1. Safety Information

This Installation and Maintenance manual:

• is to be regarded as part of the burner and must always be kept near

the installation site.

• is intended for use by authorised personnel.

• must be read prior to installation.

• must be observed by all who work with the burner and associated

system components.

• work with the burner may only be carried out by certiﬁed installers/

personnel.

• Enertech AB is not liable for any typographical errors and reserves the

right to make design changes without prior notice.

• The burner may only be used for its intended purpose in accordance

with the product’s technical data.

• The burner may only be installed and operated by authorised

personnel.

• The product is packaged to prevent damage from occurring during

handling. Handle the product with care. Lifting equipment must be

used to lift larger packages.

• The products must be transported/stored on a level surface in a dry

environment, max. 80% relative humidity, no condensation.

Temperature -20 to +60 °C.

• Check that the burner is compatible with the boiler’s output range.

• The label information on the rating plate refers to the burner’s minimum

and maximum power.

• The power data on the type sign refers to the burner’s min. and max.

power.

• All components must be installed without being bent, twisted or

subjected to mechanical or thermal forces which can affect the

components.

• The burner must be installed so that it complies with local regulations

for ﬁre safety, electrical safety, and fuel distribution.

• Make sure when installing the equipment that there is enough space to

service the burner.

• Permitted ambient temperature during operation -0 to +60 °C. Max

80% relative humidity, no condensation.

• The installer must ensure that the room has adequate air supply.

• The room must comply with local regulations pertaining to its intended

use.

• The installation site must be free of chemicals.

• Burner pipes, fan wheels and air dampers may contain sharp edges.

• The surface temperature of the burner’s components can exceed

60°C.

• Caution: The burner has moving parts, and there is risk of crushing

injuries.

165 105 01

5Bentone

• The electrical installation must be professionally carried out in

accordance with applicable high voltage regulations, as per Enertech’s

recommendations.

• Before servicing, shut off the fuel supply and turn off the power to the

burner.

• Leak checks must be performed during installation and servicing to

prevent fuel leakage.

• Care should be taken by the installer to ensure that no electrical cables

or fuel lines are crushed or otherwise damaged during installation or

servicing.

• If the boiler is equipped with an access hatch, this must be equipped

with a hatch opening switch connected to the burner's safety system.

• When in operation, the burner’s noise level can exceed 85 dBA.

Use hearing protection.

• The burner must not be put into operation without proper safety and

protection devices.

• A Class BE ﬁre extinguisher is recommended.

• It is forbidden to alter the design or use accessories which have not

been approved by Enertech in writing.

• Prior to operation, the following points must be checked:

-ﬁtting and installation work has been completed and approved.

-electrical installation has been correctly performed.

-ﬂue gas ducts and combustion air ducts are not blocked.

-all actuators and control and safety devices are in working order and

correctly set.

• After commissioning, if a steady red light on the burner control is

displayed, contact your installation technician.

6Bentone

Components Service life – Recommended

replacement

Service life – Recommended

replacement Operating cycles

Control system 10 years 250 000 cycles

Pressure switch 10 years 250 000 cycles

Flame guard 10 years 250 000 cycles

UV ﬂame sensor 10 000 hrs N/A

Damper motor 500 000 cycles

Contaktor 10 years 500 000 cycles

Burner 1 year 3000 hrs

Filter 1 year 3000 hrs Change

Oilhose 1 year Control/change

Nozzle 1 year Change 3000 hrs Change

Electrods 1 year Change/cleaning 3000 hrs Change/cleaning

Brake plate 1 year Change/cleaning 3000 hrs Change/cleaning

Motor 1 year 3000 hrs

Cuppling chaft 1 year Control/change 3000 hrs Control/change

Fan wheel “1 year Change when dirty /

unbalance”

“3000 hrs Change when dirty /

unbalance”

Oil ﬁlter 1 year 3000 hrs Change

Oil valve Tightness check 1 year Replacement in case of leakage

The burner and its components must be recycled according to applicable regulations.

Burner servicing schedule

Servicing must be carried out once a year or after 3000 hours of operation.

Component replacement intervals

Delivery check

• Make sure everything is delivered and the goods have not been

damaged during transit.

• If something is wrong with a delivery, report it to the supplier.

• Transport damage must be reported to the shipping company.

7Bentone

165 305 37-2

* Min. recommended distance to ﬂoor.

2. Technical data

The burner is intended for:

• Light oil, B10 heating oil/biofuel blend (as deﬁned in DIN V51603-6).

and is used for:

• Water heating generators

• Hot air generators (these require LMO 24 255 C2E)

2.1 Dimensions B 45 A2.2R

A Ø B Ø C D E F G H I *J

B 45 240/340 159 134 480 252 328 335 262 515 200

IAD

øB

øC

8Bentone

2.2 Working ﬁeld B 45 A2.2R

2.3 Electric Speciﬁcation

Burner correspond to IP 20

Type Motor Complete

burner

Sound

B 45 450W 230V

50/60Hz 10µF 230V 4,63 A 50Hz 84 dBA ± 0,5 dBA

Max operating current, see data plate.

-1,0

0,0

1,0

2,0

3,0

4,0

5,0

6,0

7,0

8,0

9,0

50 100 150 200 250 300 350 400 450 500 550

mbar

8.5-45.5 kg/h

101-540 kW

160303-389

9Bentone

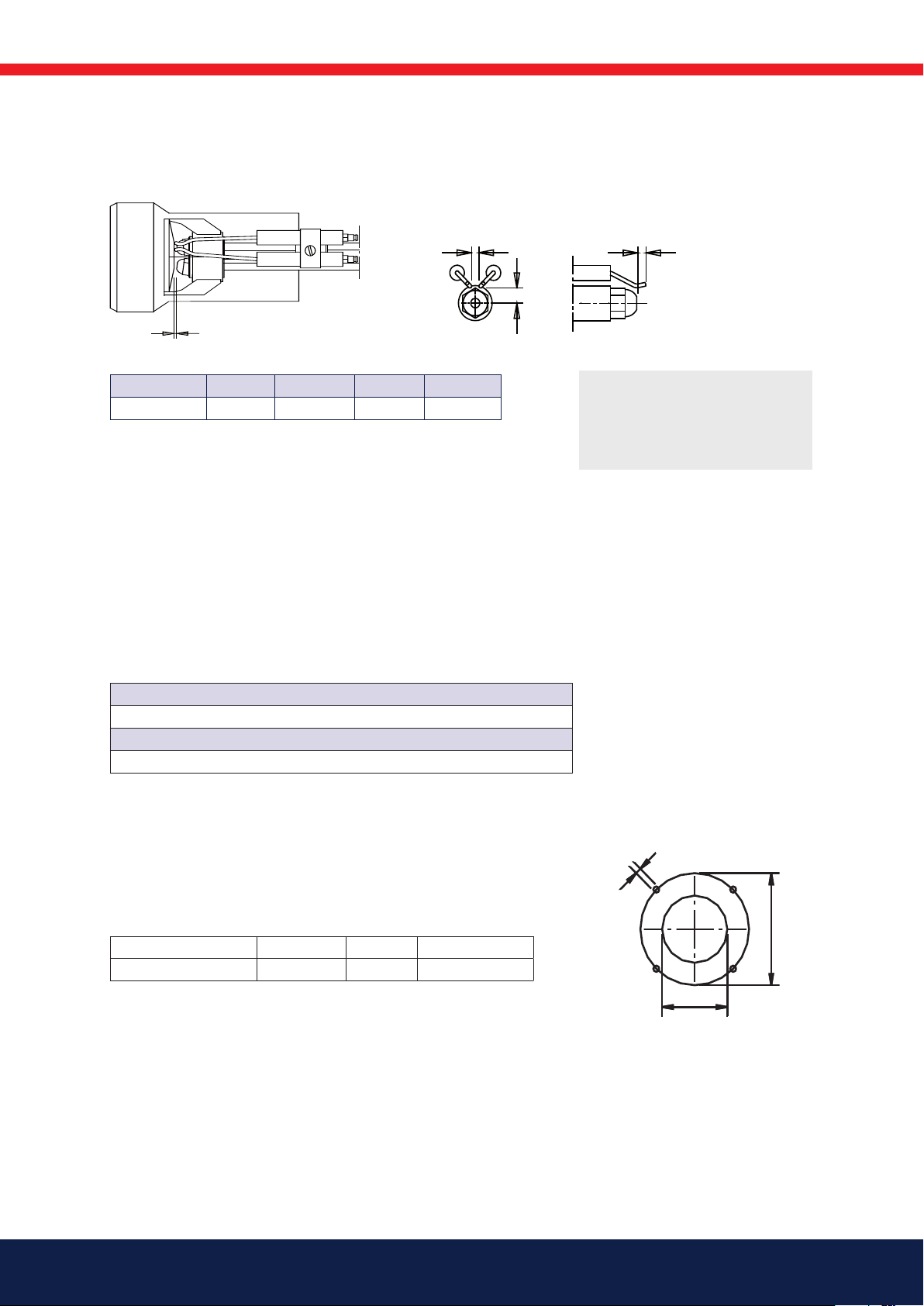

2.5 Recommended nozzle and pressure

Nozzle: 45° Solid/semisolid

60° Solid/semisolid

80° Solid/semisolid

Pump pressure 14 bar (8-25 bar) depending on pump model

2.6 Burner installation

2.6.1 Hole patten

Make sure the hole pattern on the boiler is designed for burner ﬂange.

Combustion device d1d2d3

B 45 ø (135) 165 M14 ø (200) 224-270

Because of the various boiler types with varying furnace geometries and

furnace loads, it is impossible to commit to a certain scattering angle or a

speciﬁc distribution pattern.

It should be noted that the scattering angle and distribution pattern changes

with pump pressure.

!*NB It is important

that the spark does

not strike against the

brake plate or nozzle.

2.4 Setting of brake plate and air ﬂow

a b c d

B 45 3,5-4,0 7,0-9,0 2,0-3,0 5,0-6,0

10 Bentone

Pump pressure bar

The table applies to oil with a viscosity of 4.4 mm 2/s at a density of 830 kg/m 3..

2.7 Nozzle table

10 11 12 13

Gph kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h

1,00 3,72 44 38 3,90 46 40 4,08 48 42 4,24 50 43

1,10 4,09 48 42 4,29 51 44 4,48 53 46 4,67 55 48

1,20 4,47 53 46 4,68 55 48 4,89 58 50 5,09 60 52

1,25 4,65 55 47 4,88 58 50 5,10 60 52 5,30 63 54

1,35 5,02 59 51 5,27 62 54 5,50 65 56 5,73 68 58

1,50 5,58 66 57 5,85 69 60 6,11 72 62 6,36 75 65

1,65 6,14 73 63 6,44 76 66 6,73 80 69 7,00 83 71

1,75 6,51 77 66 6,83 81 70 7,14 85 73 7,42 88 76

2,00 7,45 88 76 7,81 93 80 8,16 97 83 8,49 101 87

2,25 8,38 99 85 8,78 104 90 9,18 109 94 9,55 113 97

2,50 9,31 110 95 9,76 116 100 10,19 121 104 10,61 126 108

2,75 10,24 121 104 10,73 127 109 11,21 133 114 11,67 138 119

3,00 11,16 132 114 11,71 139 119 12,23 145 125 12,73 151 130

3,50 13,03 154 133 13,66 162 139 14,27 169 146 14,85 176 151

4,00 14,89 176 152 15,62 185 159 16,31 193 166 16,97 201 173

4,50 16,75 199 171 17,57 208 179 18,35 218 187 19,10 226 195

5,00 18,62 220 190 19,52 231 199 20,39 242 208 21,22 252 216

5,50 20,48 243 209 21,47 255 219 22,43 266 229 23,34 277 238

6,00 22,34 265 228 23,42 278 239 24,47 290 250 24,46 302 260

6,50 24,20 287 247 25,37 301 259 26,51 314 270 27,58 327 281

7,00 26,06 309 266 27,33 324 279 28,55 339 291 29,70 352 303

7,50 27,92 331 285 29,28 347 299 30,59 363 312 31,83 377 325

8,00 29,79 353 304 31,23 370 318 32,63 387 333 33,95 403 346

8,50 31,65 375 323 33,18 393 338 34,66 411 353 36,07 428 368

9,00 33,59 398 343 35,14 417 358 63,71 435 374 38,19 453 389

9,50 35,37 419 361 37,09 440 378 38,74 549 395 40,31 478 411

10,00 37,23 441 380 39,04 463 398 40,78 484 416 42,44 503 433

11,00 40,96 486 418 42,94 509 438 44,86 532 457 46,68 554 476

12,00 44,68 530 456 46,85 556 478 48,94 580 499 50,92 604 519

14,00 52,12 618 531 54,65 648 557 57,10 677 582 59,41 705 606

16,00 59,57 706 607 62,46 741 637 65,26 774 666 67,90 805 692

18,00 67,02 795 683 70,27 833 717 73,41 871 749 76,39 906 779

20,00 74,47 883 759 78,08 926 796 81,57 967 832 84,87 1007 865

22,00 81,91 971 835 85,89 1019 876 89,73 1064 915 93,36 1107 952

24,00 89,36 1060 911 93,70 1111 956 97,88 1161 998 101,85 1208 1039

26,00 96,81 1148 987 101,50 1204 1035 106,04 1258 1081 110,33 1308 1168

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bentone Brûleur

Bentone

Bentone B40A Caractéristiques techniques

Bentone

Bentone B10E Caractéristiques techniques

Bentone

Bentone B 45i A2.2H J/K Caractéristiques techniques

Bentone

Bentone BG 450 LN Caractéristiques techniques

Bentone

Bentone B 30 A Caractéristiques techniques

Bentone

Bentone 45 A2.2 Caractéristiques techniques

Bentone

Bentone BG 550 LN Caractéristiques techniques

Bentone

Bentone B45-2 MF Caractéristiques techniques

Bentone

Bentone BG 950 M Caractéristiques techniques

Bentone

Bentone LMO14.113C2E Caractéristiques techniques

Bentone

Bentone BG 400-2 Caractéristiques techniques

Bentone

Bentone BF 1 K10K Super Caractéristiques techniques

Bentone

Bentone B 30 A Caractéristiques techniques

Bentone

Bentone BG 650i M J/K IP54 Caractéristiques techniques

Bentone

Bentone B 55-2 Caractéristiques techniques

Bentone

Bentone B 55-2 Caractéristiques techniques

Bentone

Bentone B 55-3R Caractéristiques techniques

Bentone

Bentone BG 450 M J IP20 Caractéristiques techniques

Bentone

Bentone B45A 2.2H Caractéristiques techniques

Bentone

Bentone BG550-2 Caractéristiques techniques

Bentone

Bentone B 45 A Caractéristiques techniques

Bentone

Bentone B 45 A2.2H Caractéristiques techniques

Bentone

Bentone B 45i A2.2H Caractéristiques techniques

Bentone

Bentone BG 700 Caractéristiques techniques

Manuels Brûleur populaires d'autres marques

Riello

Riello RS 28/M Guide de démarrage rapide

True Induction

True Induction TI4B Manuel utilisateur

Weishaupt

Weishaupt WG20 Series Manuel utilisateur

Carolina Cooker

Carolina Cooker M116672 Manuel utilisateur

Riello

Riello RX 500 S/PV Mode d’emploi

Unigas

Unigas HTP2000 Manuel utilisateur

baltur

baltur BT 250 DSG 4T Manuel utilisateur

muenkel design

muenkel design round burner Manuel utilisateur

Ecoflam

Ecoflam Multicalor 170.1 Manuel utilisateur

baltur

baltur BT 14 DSGW Manuel utilisateur

artisan

artisan Art-SB1 Mode d’emploi

Riello

Riello P 140 T/G Guide de démarrage rapide

AESYS

AESYS TurboFire II Manuel utilisateur

Riello

Riello RG1RKD Guide de démarrage rapide

IKEA

IKEA GRILLSKÄR Manuel utilisateur

RUSTA

RUSTA SAREK Manuel utilisateur

PROPOINT

PROPOINT 8933657 Manuel utilisateur

baltur

baltur TBL 1000 ME Manuel de référence
