BenQ PX9210 Manuel utilisateur

PX9210/PU9220/PU9220+

Digital Projector

User Manual

Table of contents2

Ta b l e o f c o n t e n t s

Important safety

instructions ................... 3

Introduction.................. 7

Projector features.....................................7

Shipping contents ......................................8

Projector exterior view...........................9

Controls and functions ..........................11

Positioning your

projector ..................... 16

Choosing a location................................16

Installing or removing the

optional lens .............................................17

Adjusting projected image position

using lens shift..........................................18

Obtaining a preferred projected

image size..................................................22

Connection ................. 25

Connecting video source devices........26

Playing sound through the projector..27

Operation ................... 28

Starting up the projector ......................28

Adjusting the projected image .............29

Using the menus......................................31

Securing the projector...........................32

Utilizing the password function ...........32

Switching input signal .............................35

Magnifying and searching for details ...36

Selecting the aspect ratio ......................36

Optimizing the image .............................38

Setting the presentation timer.............42

Remote paging operations ....................43

Freezing the image ..................................43

Hiding the image ..................................... 43

Locking control keys.............................. 44

Operating in a high altitude

environment............................................. 44

Adjusting the sound ............................... 45

Using the test pattern............................ 46

Using the quick install............................ 46

Shutting down the projector ............... 47

Menu operation ...................................... 48

Maintenance ............... 61

Care of the projector............................ 61

Lamp information ................................... 62

Cleaning the filter ................................... 66

Replacing the filter.................................. 66

Troubleshooting......... 70

Specifications.............. 71

Projector specifications......................... 71

Dimensions .............................................. 72

Timing chart............................................. 73

RS232 command control ...................... 79

Warranty and Copyright

information................. 81

Important safety instructions 3

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information

technology equipment. However, to ensure safe use of this product, it is important that

you follow the instructions mentioned in this manual and marked on the product.

Safety Instructions

1. Please read this manual before

you operate your projector. Save

it for future reference.

2. Do not look straight at the

projector lens during operation.

The intense light beam may damage

your eyes.

3. Refer servicing to qualified

service personnel.

4. Always open the lens shutter or

remove the lens cap when the

projector lamp is on.

5. In some countries, the line voltage is

NOT stable. This projector is

designed to operate safely within a

mains voltage between 100 to 240

volts AC, but could fail if power cuts

or surges of ±10 volts occur. In

areas where the mains voltage

may fluctuate or cut out, it is

recommended that you connect

your projector through a power

stabilizer, surge protector or

uninterruptible power supply

(UPS).

Important safety instructions4

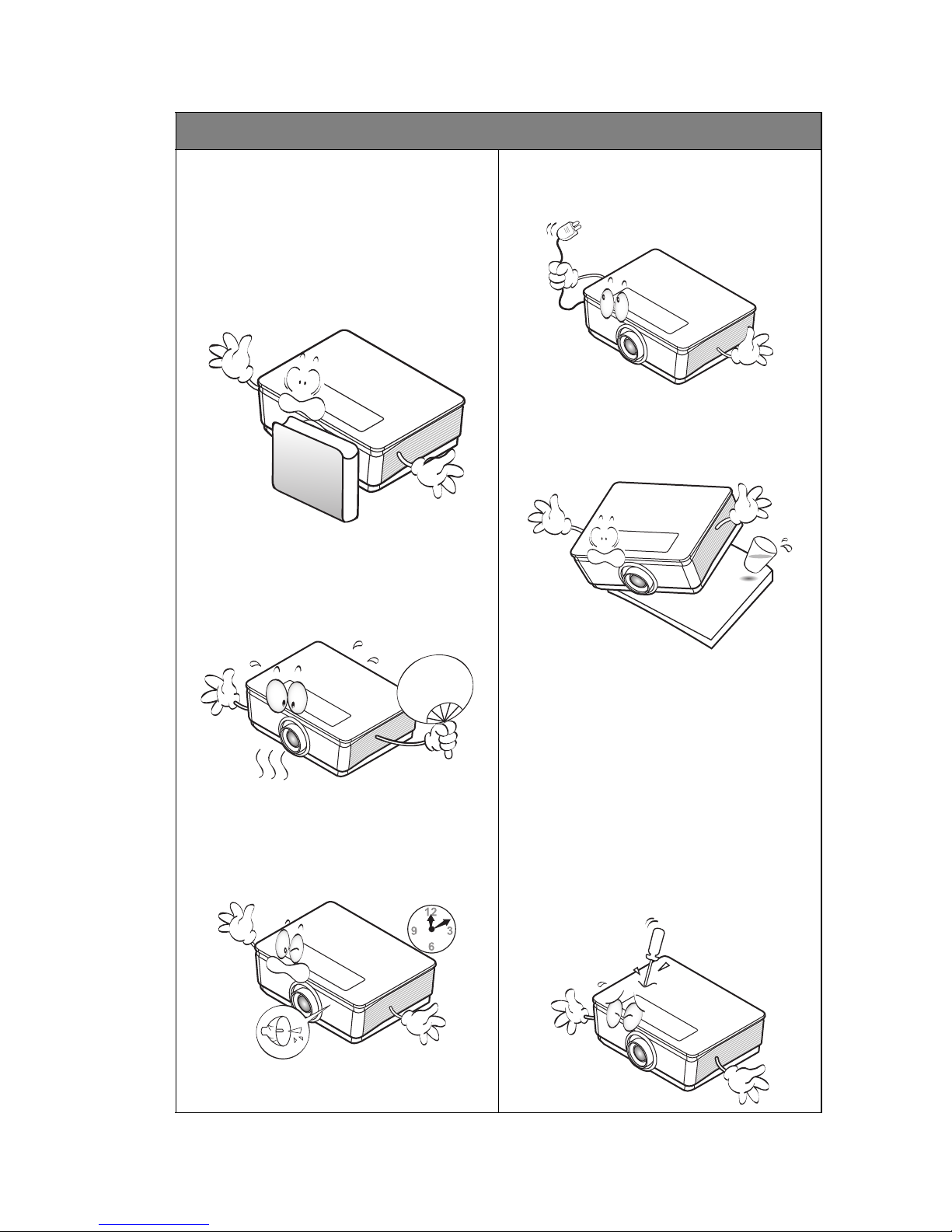

Safety Instructions

6. Do not block the projection lens with

any objects when the projector is

under operation as this could cause

the objects to become heated and

deformed or even cause a fire. To

temporarily turn off the lamp, press

BLANK on the projector or remote

control.

7. The lamp becomes extremely hot

during operation. Allow the projector

to cool for approximately 45 minutes

prior to removing the lamp assembly

for replacement.

8. Do not operate lamps beyond the

rated lamp life. Excessive operation of

lamps beyond the rated life could

cause them to break on rare

occasions.

9. Never replace the lamp assembly or

any electronic components unless the

projector is unplugged.

10. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining serious

damage.

11. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause death

if you should come into contact with

live parts. The only user serviceable

part is the lamp which has its own

removable cover.

Under no circumstances should you

ever undo or remove any other

covers. Refer servicing only to

suitably qualified professional service

personnel.

Important safety instructions 5

Safety Instructions (Continued)

12. When the projector is under

operation, you may sense some

heated air and odor from its

ventilation grill. It is a normal

phenomenon and not a product

defect.

13. Do not place this projector in any

of the following environments.

- Space that is poorly ventilated or

confined. Allow at least 50 cm

clearance from walls and free flow of

air around the projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows rolled

up.

- Locations where excessive humidity,

dust, or cigarette smoke may

contaminate optical components,

shortening the projector's life span

and darkening the image.

- Locations near fire alarms

- Locations with an ambient

temperature above 40°C / 104°F

- Locations where the altitudes are

higher than 3000 m (10000 feet).

14. Do not block the ventilation holes.

- Do not place this projector on a

blanket, bedding or any other soft

surface.

- Do not cover this projector with a

cloth or any other item.

- Do not place inflammables near the

projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

15. Always place the projector on a

level, horizontal surface during

operation.

- Do not use if tilted at an angle of more

than 10 degrees left to right, nor at

angle of more than 15 degrees front

to back. Using the projector when it is

not fully horizontal may cause a

malfunction of, or damage to, the

lamp.

3000 m

(10000 feet)

0 m

(0 feet)

Important safety instructions6

Safety Instructions (Continued)

16. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury or

resulting in damage to the projector.

17. Do not step on the projector or place

any objects upon it. Besides probable

physical damage to the projector,

doing so may result in accidents and

possible injury.

18. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet,

disconnect it from the power supply's

wall socket and call BenQ to have the

projector serviced.

19. This product is capable of displaying

inverted images for ceiling mount

installation.

Use only BenQ's Ceiling Mount Kit for

mounting the projector and ensure it is

securely installed.

Ceiling mounting the

projector

We want you to have a pleasant experience

using your BenQ projector, so we need to bring

this safety matter to your attention to prevent

possible damage to person and property.

If you intend to mount your projector

on the ceiling, we strongly recommend

that you use a proper fitting BenQ

projector ceiling mount kit and that

you ensure it is securely and safely

installed.

If you use a non-BenQ brand

projector ceiling mount kit, there is a

safety risk that the projector may fall

from the ceiling due to an improper

attachment through the use of the

wrong gauge or length screws.

You can purchase a BenQ projector

ceiling mount kit from the place you

purchased your BenQ projector. BenQ

recommends that you also purchase a

separate Kensington lock compatible

security cable and attach it securely to

both the Kensington lock slot on the

projector and the base of the ceiling

mount bracket. This will perform the

secondary role of restraining the

projector should its attachment to the

mounting bracket become loose.

Hg - Lamp contains mercury. Manage

in accordance with local disposal laws.

See www.lamprecycle.org.

Introduction 7

Introduction

Projector features

The projector offers the following features

•BLANK saves lamp power

By pressing the BLANK button to hide the image and immediately lower lamp power

at the same time.

•USB TYPE B jack to use the page up/down commands (like Microsoft PowerPoint)

using the remote control when connected a PC.

•USB TYPE A jack to support 5V/1.5A output.

•Less than 0.5W in standby condition

Less than 0.5W power consumption under standby mode.

•Network Control

Integrated RJ45 connector for wired network control allowing management of

projector status from a computer using a web browser.

•Crestron RoomView®, PJ Link and AMX supported

The projector supports Crestron eControl and RoomView, PJ Link and AMX allowing

you to control and manage equipment from a remote computer via LAN connection.

•One-key auto-adjustment

Pressing AUTO on the keypad or remote control to show the best picture quality

immediately.

•Built-in 5W speaker(s)

Built-in 5W speaker(s) providing stereo audio when an audio input is connected.

•Quick Cooling, Auto Power Off, Signal Power On, Direct Power On, Quick

Cooling function speeds up the cooling process when turning off the projector. Auto

Power Off function allows the projector to turn off automatically if no input signal is

detected after a set period of time. Signal Power On function turns on your

projector automatically once detecting COMPUTER-1 or COMPUTER-2 the signal

input and Direct Power On boots up the projector automatically when the power is

connected.

•3D Function supported

Various 3D formats make the 3D function more flexible. By presenting the depth of the

images, you can wear BenQ 3D glasses to enjoy the 3D movies, videos and sporting

events in a more realistic way.

• The apparent brightness of the projected image will vary depending on the ambient lighting

conditions, selected input signal contrast/brightness settings, and is directly proportional to

projection distance.

• The lamp brightness will decline over time and may vary within the lamp manufacturers

specifications. This is normal and expected behavior.

Introduction8

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items

are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those illustrated.

Optional accessories

*The warranty card is only supplied in some specific regions. Please consult your dealer for

detailed information.

Projector Remote control with battery

Power cord VGA cable

Quick start guide User manual CD Warranty card*

1. Spare lamp kit

2. Ceiling mount kit

3. 3D glasses

Digital Projector

Quick Start Guide

Introduction 9

Projector exterior view

1. External control panel

(See "Projector" on page 11 for

details.)

2. Vent (cool air intake)

3. Anti-dust cap

4. COMPUTER-1 input jack

5. AUDIO IN-1 jack

6. COMPUTER-2 input jack

7. Power button

8. Indicator light (POWER,

TEMPerature, LAMP)

9. HDMI input jack

10. DVI input

11. 3D SYNC OUT jack

12. DISPLAY PORT

13. RJ45 LAN input jack

14. USB TYPE-A port

15. MONITOT-OUT output jack

16. AUDIO OUT jack

17. USB TYPE-B port

18. Rear IR remote sensor

19. Front adjuster foots

20. RS232 control port

21. 12V TRIGGER

22. WIRED REMOTE

23. AUDIO IN-3 input jack

24. AUDIO IN-4 input jack

25. VIDEO input jack

26. S-VIDEO input jack

27. AC power cord inlet

28. AC Power Switch

29. COMPONENT Y/Pb/Pr input

30. COMPUTER-3, RGBHV(H+V), Y/

Pb(CB)/Pr(Cr) input

31. Kensington anti-theft lock slot

32. AUDIO IN-2 jack

Front/upper side

Rear side

172024 212627 19 1825 2322

974 5 6 8 10 11 14151612 13

293032 3119 28

Introduction10

33. Front adjuster foots

34. Ceiling mount holes

Bottom side

34 34

333433 3434

Autres manuels pour PX9210

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels BenQ Projecteur

BenQ

BenQ Home Entertainment Series Manuel utilisateur

BenQ

BenQ PB8120 - SVGA DLP Projector Manuel utilisateur

BenQ

BenQ Portable Series Manuel utilisateur

BenQ

BenQ LU9235 Manuel utilisateur

BenQ

BenQ TK700 Series Manuel utilisateur

BenQ

BenQ CM00G3 Manuel utilisateur

BenQ

BenQ MW814ST Manuel utilisateur

BenQ

BenQ LH770 Manuel utilisateur

BenQ

BenQ Joybee GP2 Manuel d'utilisation et d'entretien

BenQ

BenQ MX723 Manuel utilisateur

BenQ

BenQ MX520 Manuel utilisateur

BenQ

BenQ PB8120 - SVGA DLP Projector Manuel utilisateur

BenQ

BenQ MX819ST Manuel utilisateur

BenQ

BenQ LX890UST Manuel utilisateur

BenQ

BenQ PB6200 - XGA DLP Projector Manuel utilisateur

BenQ

BenQ W1700 Manuel utilisateur

BenQ

BenQ MX852UST Manuel utilisateur

BenQ

BenQ Home Entertainment W500 Manuel utilisateur

BenQ

BenQ SP920 - XGA DLP Projector Manuel utilisateur

BenQ

BenQ MP721 - XGA DLP Projector Manuel utilisateur

BenQ

BenQ MS524AE Manuel utilisateur

BenQ

BenQ W1350 Manuel utilisateur

BenQ

BenQ MP670 - XGA DLP Projector Manuel utilisateur

BenQ

BenQ LW61ST Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
