Preparation

Your BenQ projector is equipped with the wired and/or wireless network function. You

can manage and control the projector from one or more remote computers using a web

browser when they are properly connected to the same local area network. You can also

sent the contents of your computer to the projector for projection using the QPresenter.

Connecting the projector with your computer

Wireless connection (for selected models)

1. Plug a BenQ wireless dongle (optional) to the USB Type A connector on the

projector.

2. Do one of the following:

•PressNETWORK SETTING on the remote control. The Network

Settings page is displayed.

•PressMENU/EXIT and then press / until the SYSTEM SETUP:

Advanced menu is highlighted. Press to highlight Network Settings and

press MODE/ENTER. The Network Settings page is displayed.

3. Highlight Wireless LAN and press MODE/ENTER.

4. Make sure the Status is Connect.

5. Make sure the SSID Display is On.

6. Make sure the SSID information is displayed. The default SSID is "NetworkDisplay".

7. Press to highlight Connection Mode and press / to select AP or

Infrastructure.

8. Press to highlight Apply and press MODE/ENTER.

Depending on the Connection Mode you selected, there are two ways to continue:

Preparation4

In the AP mode

The projector is able to operate as a wireless LAN access point, which is the default

setting of the projector. In this mode, the projector establishes a wireless LAN which

allows computers to connect to this specific wireless LAN.

1. Make sure the BenQ wireless dongle (optional) is plugged to the USB Type A

connector on the projector.

2. Press SOURCE to display the source bar and select Network Display to access

the SSID. The default SSID is "NetworkDisplay".

3. Search for this wireless LAN by the projector’s SSID from your computer.

4. Click "Connect" in your wireless network connection window.

Laptop computer

Desktop computer

Projector

Wireless dongle

QPresenter 5

QPresenter

QPresenter is an application running on the host PC. It helps connect your computer to an

available network projector and transfer the desktop contents and/or audio signal to the

network projector via local network connection.

Minimum system requirements

• Supported OS: Windows®XP 32 bit/64 bit, Windows®7 32 bit/64 bit, Mac OS 10.5

and Mac OS 10.6.

• CPU: Intel Pentium 4, 3.0G CPU (for1:1audio output through projector’s speaker),

Core2 Duo 2.40GHz CPU (for broadcasting function)

• Memory: 1 GB (for1:1audio output through projector’s speaker) or 2GB (for

broadcasting function)

• Free HDD space: 32 MB or more

• Web browser: Internet Explorer version 7 or 8 (Java Plug-in should be installed and

JavaScript should be enabled.)

BenQ does not guarantee the compatibility in respective user environments. Different PC/notebook may have

different compatibility results.

Downloading QPresenter

There are several ways to do it:

• From the projector

The projector also provides QPresenter for Mac computers. If you are using a Mac computer, the projector

automatically provides Mac version of the QPresenter for you to download.

i. Connect the computer to the projector. See "Connecting the projector with

your computer" on page 3 for detail.

ii. Enter the address of the projector in the address bar of your browser and press

Enter.

iii. Click the Download icon.

• From the user manual CD (for selected models)

i. Insert the user manual CD that comes with your projector into your CD-ROM

drive.

ii. Download QPresenter-Broadcast.setup.

• From BenQ.com

i. Please go to your local BenQ.com to download the latest version of QPresenter.

Installing QPresenter

For PC

1. When the download is complete, click the exe file.

2. Click "Next" to continue.

3. Click "I agree" to agree the License Agreement.

4. Click "Next" to install the component.

5. Click "Next" to confirm the installation path.

QPresenter6

6. Set user name and password of Qpresenter and then click "Next".

7. Click "Install" to complete the process.

For MAC

1. When the download is complete, click the dmg file.

2. Double-click the file, and this will mount the disk image called QPresenter.

3. Double-click the disk image "QPresenter" in order to view the contents.

Using QPresenter

1. The Search page allows you to search and connect to a projector.

• To connect to a projector, type the projector IP address and click Connect.

• To search for projectors, simply click Search to list all the projectors on the

same local area network. Click the desired projectors in the Search result list,

and click Connect. You can also type a desired projector name and click Search.

2 5

QPresenter 7

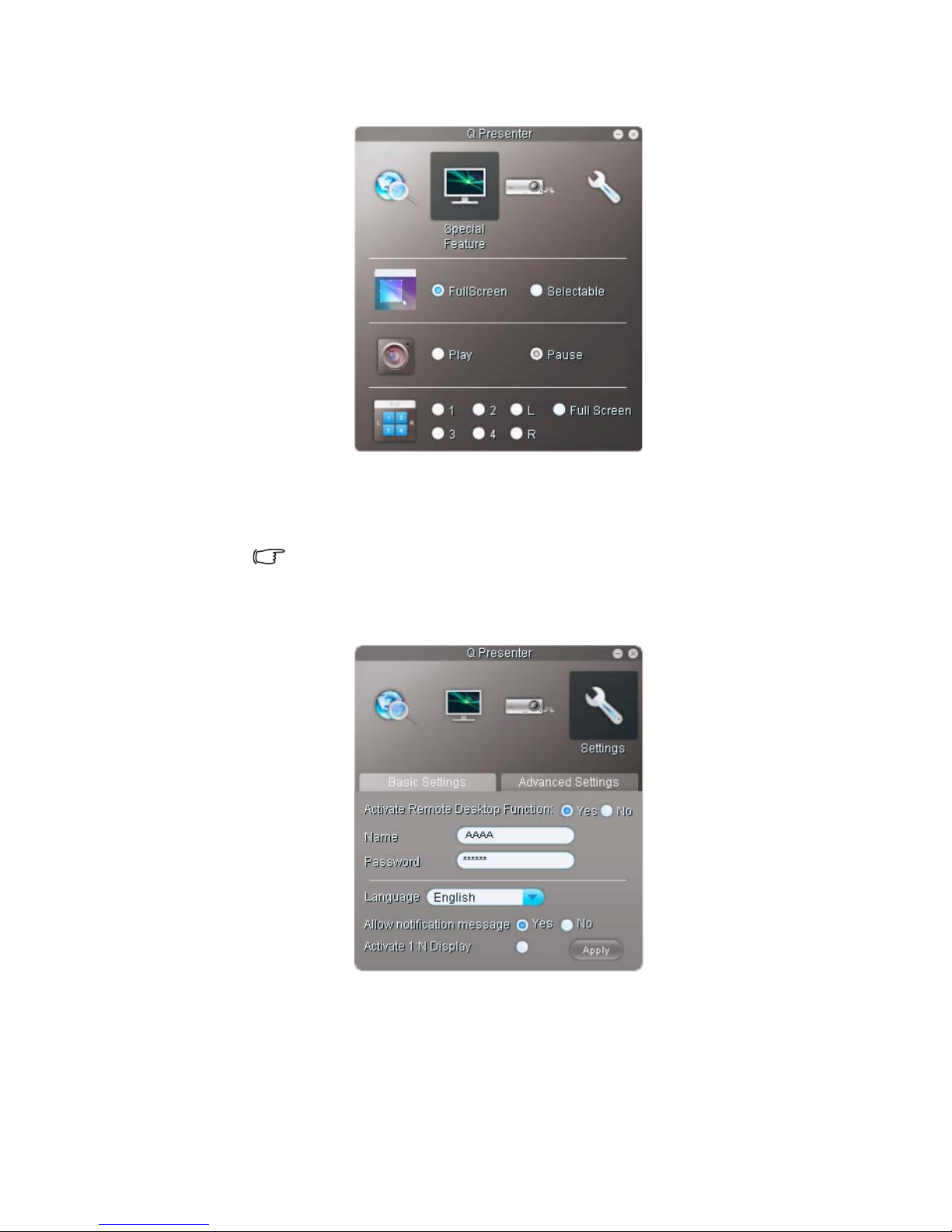

2. The Special Feature page provides some advanced functions to manage the projected

images.

• To display a full screen, click Full Screen.

• To display a partial screen, click Selectable. A square appears on your screen.

You can adjust its size and place it where you want to project.

This function is not available when audio out is activated.

• To pause projection, click Pause.

3. The Basic Settings page allows you to configure QPresenter.

• The QPresenter only accepts up to 8 characters consisting of English

capitalized letters and digits 0-9 for the name, full 6 digits consisting of 1 to 4

for the password.

• To change the QPresenter interface language, click the down arrow to reveal a

drop-down list and select a desired language. Click Apply.

• To allow notification messages to appear, click Yes. Click Apply.

QPresenter8

4. The Advanced Settings page allows you to configure QPresenter.

• To display still pictures, click the down arrow to reveal a drop-down list and

select Graphic. Click Apply. To display video clips, click the down arrow to

reveal a drop-down list and select Video. Click Apply.

Graphic mode: worse image quality but faster transmission speed.

Video mode: better image quality but slower transmission speed.

However, the actual transmission speed was determined by the network traffic

at that time.

• To adjust the capture rate, move the slide bar. The network bandwidth may

also affect the performance.

• To launch QPresenter when your computer operating system is started, click

Yes for Boot and launch. Click Apply.

• To link to the Projector Network Display System web page, click Link.

5. Disconnect

To disconnect from the projector(s), click the Disconnect icon.

• Be sure to turn off other virtual network control programs before using QPresenter.

• Firewall in the PC must be switched off to allow QPresenter and USB Display to work.

• Wireless keyboard mouse combo is not supported by Pixelworks currently.

Controlling the projector remotely through a web browser 9

Controlling the projector remotely through a

web browser

This function is not available when the broadcasting function is activated.

Once you have the correct IP address for the projector and the projector is on or in

standby mode, you can use any computer that is on the same local area network to control

the projector.

• Make sure you are using Microsoft Internet Explorer version 7.0 or 8.0.

• The screenshots in this manual are for reference only, and may differ from the actual design.

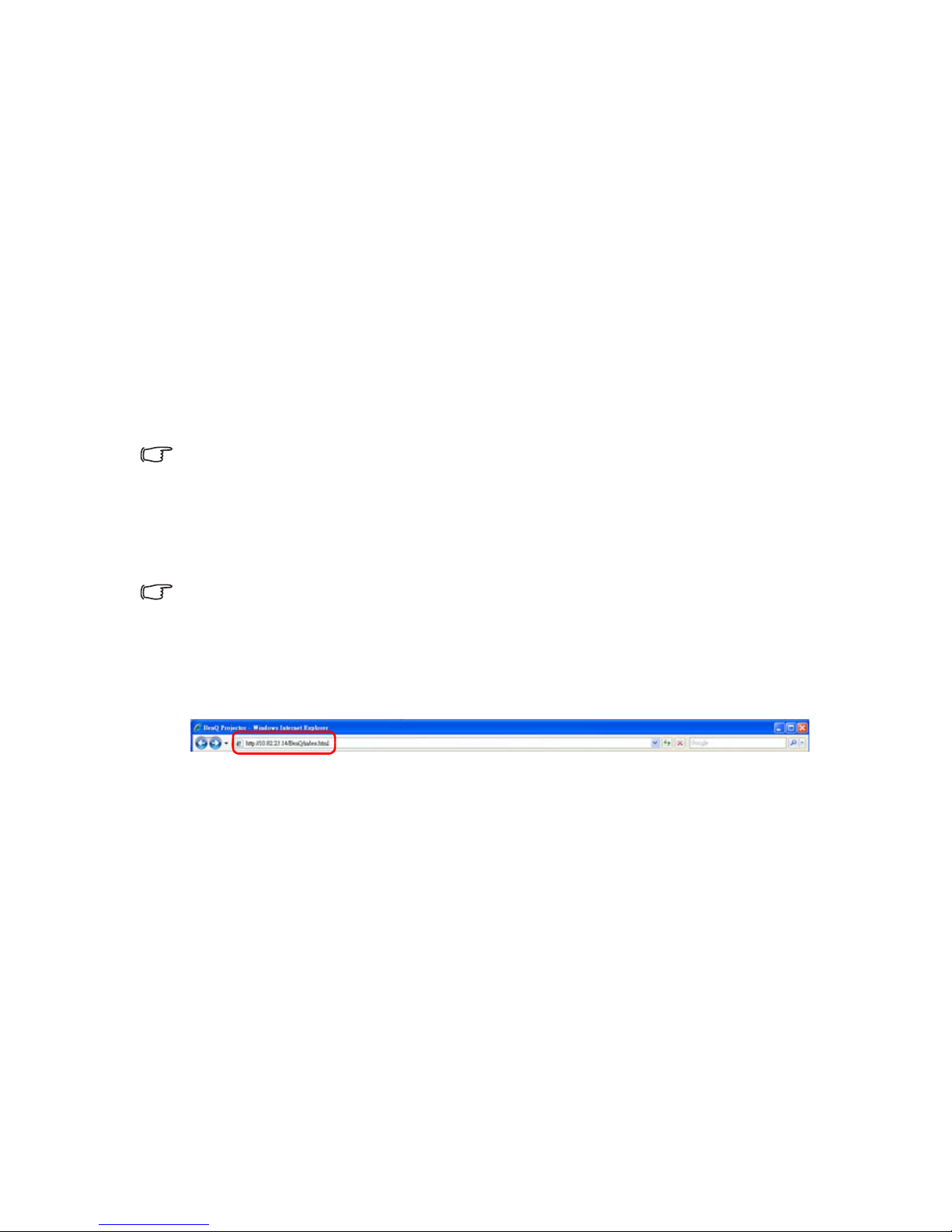

1. Enter the address of the projector in the address bar of your browser and press

Enter.

2. The main page of the Projector Network Display System appears. This web page

provides access to a variety of functions with a simple click.

3. Click Download to save QPresenter software on your computer. See "Installing

QPresenter" on page 5 for details.

Controlling the projector remotely through a web browser10

4. The Virtual Keypad page displays a virtual keypad with which you can control the

projector as if using the physical keypad on the projector. See the chapter "Controls

and functions" in the user manual for how to operate it.

5. The Display Setting page provides some selective OSD menu items necessary for

controlling the projector or adjusting the projected pictures. See the chapter "Menu

operation" in the user manual for how to use them.
