BenQ MW811 ST Manuel utilisateur

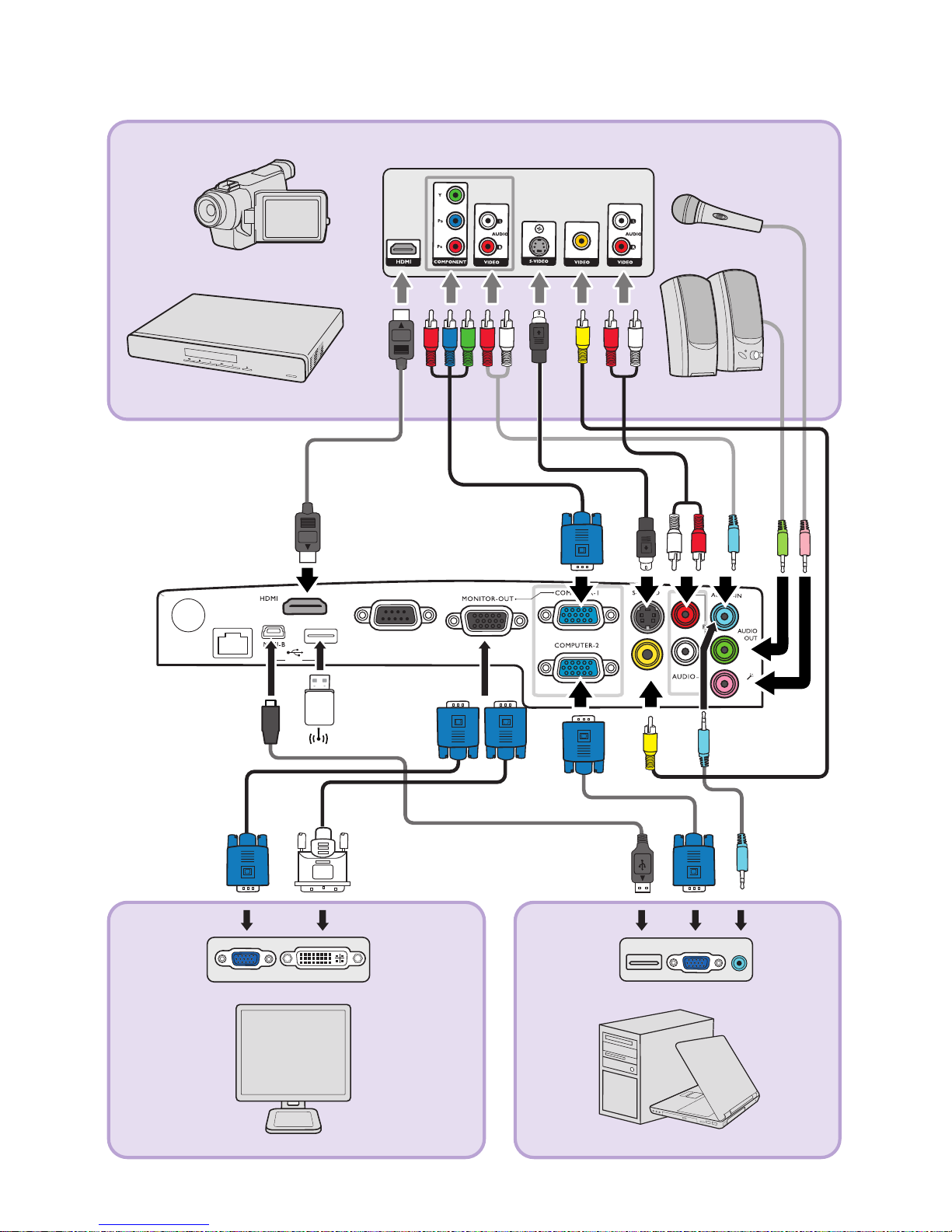

MIC

VIDEO

TYPE-A

LAN

AUDIO-OUT

USB

RS-232

(MX762 ST only)

(DVI)(VGA) or

Projection dimensions (MX713 ST/MX762 ST)

40 1016 813 610 494 91

50 1270 1016 762 617 114

60 1524 1219 914 741 137

80 2032 1626 1219 988 183

100 2540 2032 1524 1235 229

120 3048 2438 1829 1481 274

150 3810 3048 2286 1852 343

200 5080 4064 3048 2469 457

220 5588 4470 3353 2716 503

250 6350 5080 3810 3086 572

300 7620 6096 4572 3704 686

Center of lens

Screen

(a) Screen size(b) Distance

from screen

(mm)

offset

(mm)

DiagonalHeight

(mm)

Width

(mm)

Inches mm

There is 3% tolerance among these numbers due to optical component variations. BenQ

recommends that if you intend to permanently install the projector, you should physically test

the projection size and distance using the actual projector in situ before you permanently

install it, so as to make allowance for this projector's optical characteristics. This will help you

determine the exact mounting position so that it best suits your installation location.

(a)

(b)

(c)

Projection dimensions (MW714 ST 1/3)

(a)

(b)

Center of lens

Screen

(c)

A1 (a)

(b)

Center of lens

Screen

(c)

(a) Screen sizeProjected picture size (b) Distance

from screen

(mm)

offset

(mm)

DiagonalHeight

(mm)

Width

(mm)

Height

(mm)

Width

(mm)

Inches mm

50 1270623 1107623 1107541 68

80 203299617719961771866 110

100 254012452214124522141082137

120 304814942657149426571298164

150 381018683321186833211623205

180 457222413985224139851947247

200 508024914428249144282164274

220 558827404870274048702380301

240 609629895313298953132597329

270 685833625977336259772921370

300 762037366641373666413246 411

50 1270623 1107 623 996487 31

80 20329961771 996 1594779 50

100 25401245221412451992974 62

120 30481494265714942391 1168 75

150 381018683321186829891461 93

180 457222413985224135861753 112

200 508024914428249139851947125

220 558827404870274043832142137

240 609629895313298947822337149

270 685833625977336253802629168

300 762037366641373659772921187

(a) Screen sizeProjected picture size (b) Distance

from screen

(mm)

offset

(mm)

DiagonalHeight

(mm)

Width

(mm)

Height

(mm)

Width

(mm)

Inches mm

Table A1: The screen aspect ratio is 16:9 and the projected picture is 16:9

Table A2: The screen aspect ratio is 16:9 and the projected picture is 16:10

Projection dimensions (MW714 ST 2/3)

(a) Screen sizeProjected picture size (b) Distance

from screen

(mm)

offset

(mm)

DiagonalHeight

(mm)

Width

(mm)

Height

(mm)

Width

(mm)

Inches mm

(a) Screen sizeProjected picture size (b) Distance

from screen

(mm)

offset

(mm)

DiagonalHeight

(mm)

Width

(mm)

Height

(mm)

Width

(mm)

Inches mm

Table B1: The screen aspect ratio is 4:3 and the projected picture is 4:3

Table B2: The screen aspect ratio is 4:3 and the projected picture is 16:10

50 127076210167621016596 57

80 20321219162612191626953 91

10025401524203215242032 1192 114

120304818292438182924381430137

150381022863048228630481787171

180457227433658274336582145206

200508030484064304840642383229

220558833534470335344702622251

240609636584877365848772860274

2706858 4115 5486 4115 54863217309

300762045726096457260963575343

50 12707621016635101649732

80 20321219162610161626794 51

100 25401524203212702032993 64

120 30481829243815242438 1192 76

150 381022863048190530481490 95

180 457227433658228636581787 114

200 508030484064254040641986127

220 558833534470279444702185140

240 609636584877304848772383152

270 6858 4115 5486342954862681171

300 762045726096381060962979191

(a)

(b)

Center of lens

Screen

(c)

B1 (a)

(b)

Center of lens

Screen

(c)

Projection dimensions (MW714 ST 3/3)

(a) Screen sizeProjected picture size (b) Distance

from screen

(mm)

offset

(mm)

DiagonalHeight

(mm)

Width

(mm)

Height

(mm)

Width

(mm)

Inches mm

Table C : The screen aspect ratio is 16:10 and the projected picture is 16:10

There is 3% tolerance among these numbers due to optical component variations. BenQ

recommends that if you intend to permanently install the projector, you should physically test

the projection size and distance using the actual projector in situ before you permanently

install it, so as to make allowance for this projector's optical characteristics. This will help you

determine the exact mounting position so that it best suits your installation location.

50 1270 673 1077 673 1077 526 34

80 2032 1077 1723 1077 1723 842 54

100 2540 1346 2154 1346 2154 1053 67

120 3048 1615 2585 1615 2585 1263 81

150 3810 2019 3231 2019 3231 1579 101

180 4572 2423 3877 2423 3877 1895 121

200 5080 2692 4308 2692 4308 2105 135

220 5588 2962 4739 2962 4739 2316 148

240 6096 3231 5169 3231 5169 2526 162

270 6858 3635 5816 3635 5816 2842 182

300 7620 4039 6462 4039 6462 3158 202

(a)

(b)

Center of lens

Screen

(c)

452.65

397.40

364.40

84.00

145.50 282.95

163.45

118.45

228.00

75.95 149.50

242.04

62.34

289.98

Ceiling Mount screw:

M4 x 8 (Max L = 8 mm)

Unit: mm

MIC

TYPE-A

LAN

AUDIO-OUT

USB

RS-232

2 2
