BenQ LU960UST Manuel utilisateur

Installation Guide

Digital Projector

Installation Projector

㕟ἴ㉼⽘㩆⭰壄㋮⌾

ރ܎ڧߑ؍ܶԧ

Guide d’installation du projecteur numérique

Digitalprojektor Installationsanleitung

Guida all'installazione del proiettore digitale

Руководство по установке цифрового проектора

♈㫴䉬G䘸⦐㥑䉤G㉘㾌G㙼⇨㉐

儫儜儣兏儻兑儜儋儓儣儈兗儝儬兠兏儐儈儭

| LU960UST

English

Table of Contents

Notice..................................................................................................... 2

Notice on laser ............................................................................................................... 2

Cooling notice ................................................................................................................ 3

Product information ............................................................................. 5

Packing content.............................................................................................................. 5

Specication ................................................................................................................... 5

Terminals ........................................................................................................................ 6

Remote control .............................................................................................................. 7

Installation ............................................................................................. 9

Projection table.............................................................................................................. 9

LED indicator ........................................................................................ 11

Projector dimension ............................................................................. 14

RS232 command control...................................................................... 15

RS232 pin assignment.................................................................................................... 15

RS232 serial port with a crossover cable..................................................................... 15

PJLink .............................................................................................................................. 23

Please visit below website for latest version of User Manual / Installation Guide.

http://business-display.benq.com/

V1.00

English

Notice

Notice on laser

This symbol indicates that there is a potential hazard of eye exposure to

laser radiation unless the instructions are closely followed.

yLaser class

(for USA) This Laser Product is designated as Class 3R during all procedures of

operation and complies with IEC/EN 60825-1:2007.

(for WW) This Laser Product is designated as Class 1 during all procedures of

operation and complies with IEC/EN 60825-1:2014.

LASER LIGHT - AVOID DIRECT EYE EXPOSURE.

Do not point laser or allow laser light to be directed or reected toward other

people or reective objects.

Direct or scattered light can be hazardous to eyes and skin.

There is a potential hazard of eye exposure to laser radiation if the included

instructions are not followed.

Caution – use of controls or adjustments or performance of procedures other than

those specied herein may result in hazardous radiation exposure.

yLaser parameters

Wavelength 450nm - 460nm (Blue)

Mode of operation Pulsed, due to frame rate

Pulse width 1.34ms

Pulse repetition rate 120Hz

Maximum laser energy 0.698mJ

Total internal power >100w

Apparent source size >10mm, at lens stop

Divergence >100 mili Radian

yLaser light instruction

Laser aperture

English

Cooling notice

Allow at least 50 cm (19.7 inch) for clearance around the exhaust vent. Make sure no objects block

air inlet within 50 cm (19.7 inch).

Keep the outlet at least 1 m away from the inlets of other projectors.

Air inletAir outlet

• The projector can be installed at any angle.

English

• Allow at least 50 cm of clearance around the exhaust vent.

• Ensure that the air intake vents do not recycle hot air from the exhaust vent.

• When operating in an enclosed space, make sure that the surrounding air temperature does

not exceed the projector's operating temperature and that the air intake and exhaust vents are

unobstructed.

All enclosures should pass a certied thermal evaluation to ensure that the projector does not

recycle exhaust air. Recycling exhaust air may cause the projector to shutdown even if the ambient

temperature is within the acceptable operating temperature range.

Minimum 50 cm

(19.69 inch)

Minimum 50 cm

(19.69 inch)

Minimum 50 cm

(19.69 inch)

Minimum 50 cm

(19.69 inch)

English

Product information

Packing content

Remote Control

Power Cord(s) Regulatory Statement

Specication

LU960UST

Projection system 1-CHIP DMD

Native resolution 1920*1200 pixels, 16:10

Light source Laser diodes

Power consumption 500Watts (Normal mode)/ 380Watts (Eco mode)

Dimension 480 x 157.4 x 473 mm

Weight 12 kg

Note:

• The brightness output will vary depending on each units and actual usage.

• Please nd the latest user’s manual on the local website.

English

Terminals

MINI-B

Support Mini USB type B for service only.

LAN

For connection to RJ45 Cat5/Cat6 Ethernet cable to

control the projector through a network.

HDBaseT

For connection to a HDBaseT transmitter via an

Ethernet cable (Cat5/Cat6) to input up to 4K 30Hz,

RS232 control signal and IR

control signal. The HDBaseT port does not support

LAN control.

HDMI 2

Connection to HDMI source.

HDMI 1

Connection to HDMI source.

DISPLAYPORT

Connection to a Display Port source.

HDMI OUT

Connection to HDMI device.

PC IN

15-pin VGA port for connection to RGB, component

HD source, or PC.

MONITER OUT

Connection to other display equipment for concurrent

playback display.

AUDIO OUT

Connection to a speaker amplier or headset.

AUDIO IN

Connection to an audio input source via an audio cable.

REAR LIGHT

Illumination for terminals.

USB 1.5A

Support 5V/1.5A output.

3D SYNC IN

Connect 3D-sync in cable from a computer or an

enabled device.

3D SYNC OUT

Connection to 3D IR sync signal transmitter.

RS-232 IN

Standard 9-pin D-sub interface for connection to PC

control system and projector maintenance.

12V TRIGGER

3.5mm mini earphone jack, employs 200mA display

relay to provide 12(+/-1.5)V output and short circuit

protection.

WIRED REMOTE

Connection to wire remote controller.

Caution:

Make sure the port is valid before inserting a wired remote controller. The remote controller may be damaged in

case of an invalid port, e.g. a wired remote controller is connected to trigger output. For more information about

upgrading rmware via Lan, please contact BenQ service.

English

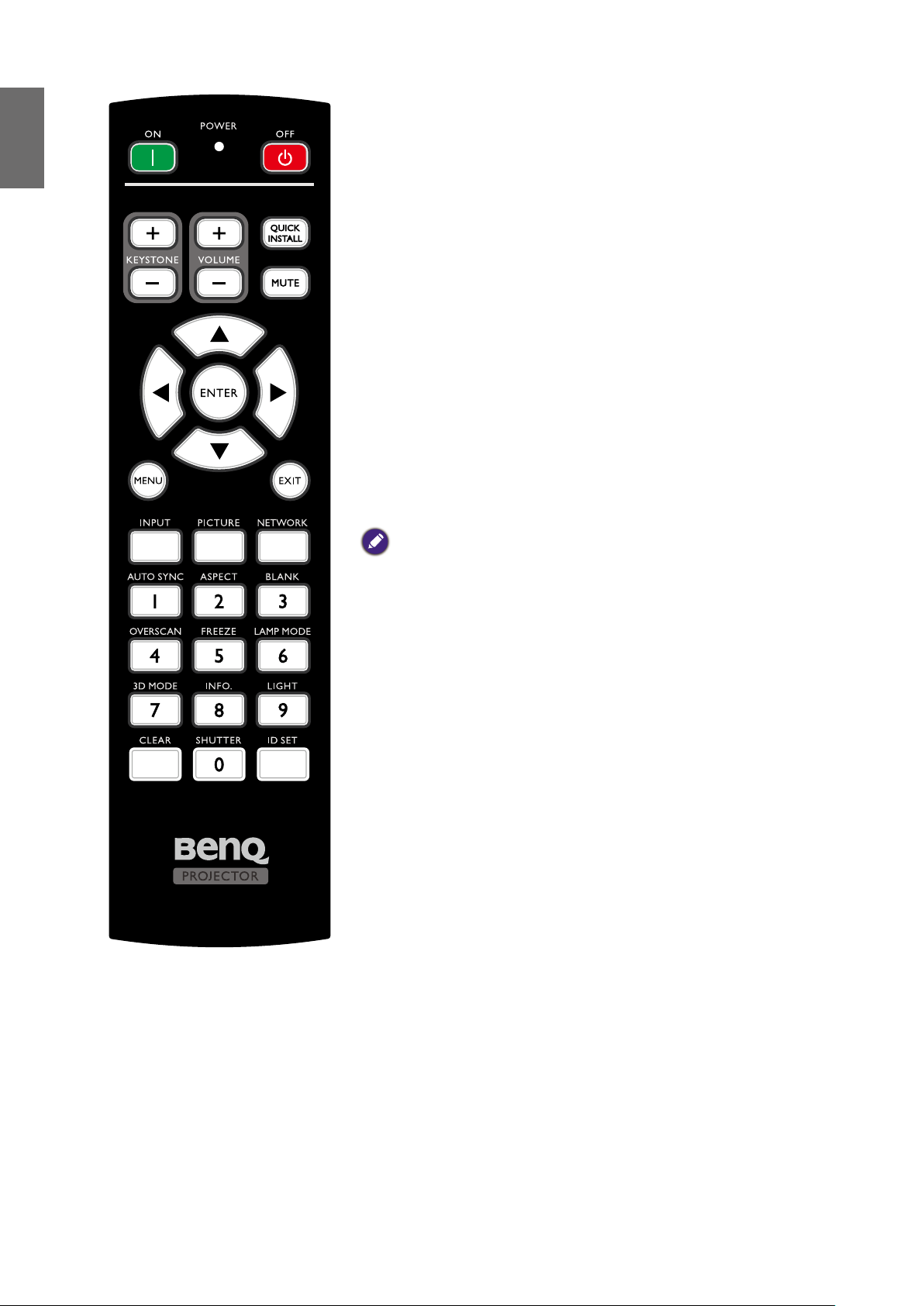

Remote control

ON / OFF

Toggles the projector between standby mode and on.

KEYSTONE+/KEYSTONE-

Manually corrects distorted images resulting from an angled projection.

VOLUME +/VOLUME -

Increases/decreases the projector volume.

QUICK INSTALL

Displays the Quick Install OSD menu.

MUTE

Toggles projector audio between on and off.

Arrow keys (▲Up, ▼Down, ◄Left, ►Right)

When the On-Screen Display (OSD) menu is activated, the arrow keys

are used as directional arrows to select the desired menu items and to

make adjustments.

ENTER

Selects an available picture setup mode. Activates the selected On-

Screen Display (OSD) menu item.

Turns on the On-Screen Display (OSD) menu. Goes back to previous

OSD menu, exits and saves menu settings.

EXIT

Goes back to previous OSD menu, exits and saves menu settings.

INPUT

Selects an input source for display.

PCITURE

Press to display Picture menu.

NETWORK

Selects Network Display as the input signal source.

AUTO SYNC

Automatically determines the best picture timings for the displayed im-

age.

ASPECT

Selects the display aspect ratio.

BLANK

Used to hide the screen picture.

English

OVERSCAN

Press to select overscan mode.

FREEZE

Freezes the projected image.

LAMP MODE

Press to display OSD menu to select desired light mode.

3D MODE

Press to display 3D setup menu.

INFO.

Press to display INFORMATION menu.

LIGHT

Press to open backlight of remote controller.

CLEAR

Clear remote ID SET assigned to all projectors.

Press CLEAR and ID SET for ve seconds. The LED blinks three times

then the ID setting is cleared.

SHUTTER

The function is not available on this projector.

ID SET

• Remote control ID SET (set the particular remote code)

Press to set remote ID.

Press ID SET for three seconds. The POWER indicator on the remote

control blinks, then press 01~99 to designate an ID.

Note:

The remote control number (Remote control ID) must match the Pro-

jector ID Setting number for accurate control.

• Clear Remote ID SET (set remote code to all)

Press CLEAR and ID SET for ve seconds. The POWER

indicator on the remote control blinks a single instance to reset

remote code to all, can control projector no matter projector id

setting.

Numeric buttons

Enters numbers in network settings.

Numeric buttons 1, 2, 3, 4 cannot be pressed when asked to enter pass-

word.

WIRE REMOTE jack

Connect to projector for wire remote control.

English

Installation

Projection table

• LU960UST

The screen aspect ratio is 16:10 and the projected picture is 16:10.

Note:

To optimize the projection quality, we suggest to project images in an area without grayscale.

Diagonal Image Width Image Height

Offset Fix Distance (mm) Distance (mm)

Projector Top to

Screen Bottom (A)

Center of Cover

Glass to Screen (B)

Projector Front to

Screen (C)

(Inch) (mm) (Inch) (mm) (Inch) (mm) (Inch) (mm) (Inch) (mm) (Inch) (mm)

70 1778 59.4 1508 37.1 943 5.4 136 12.9 328 15.8 402

80 2032 67.8 1723 42.4 1077 6.4 163 15.0 382 17.9 456

87 2210 73.8 1874 46.1 1171 7.2 182 16.5 420 19.4 494

90 2286 76.3 1939 47.7 1212 7. 5 190 17.2 436 20.1 510

100 2540 84.8 2154 53.0 1346 8.6 217 19.3 491 22.2 565

120 3048 101.8 2585 63.6 1616 10.7 271 23.6 599 26.5 673

150 3810 127.2 3231 79.5 2019 13.9 352 30.0 762 32.9 836

(A)

Screen

(B)

(C)

Screen

Front

Side
