BenQ mobile S68 Manuel utilisateur
Release 1.0
Technical Documentation 02/2006
TD_Repair_L2.5L_S68_R1.0.pdf Page 1 of 47
Service Manual
S68
Level 1-3
Release Date Department Notes to change
R 1.0 22.02.2006 BenQ Mobile S CC CES New document
Company Confidential
2005©BenQ
Release 1.0
Technical Documentation 02/2006
TD_Repair_L2.5L_S68_R1.0.pdf Page 2 of 47
Table of Content
1 Key Feature................................................................................................................................3
2 S68 Interface to Accessories....................................................................................................4
3 Unit Description of S68.............................................................................................................5
4 Exploded View of S68 ...............................................................................................................6
5Disassembly of S68...................................................................................................................7
6Assembly of S68......................................................................................................................14
7BenQ Service Equipment User Manual.................................................................................19
8GRT Software: Functionality Configuration..........................................................................20
9GRT Software: Regular Usage ...............................................................................................22
10 JPICS (Java based Product Information Controlling System)............................................27
11 International Mobile Equipment Identity, IMEI......................................................................33
12 General Testing Information...................................................................................................34
13 Introduction of Service Repair Documentation for Level 3 Basic Repairs – S68..............40
14 List of available Level 3 Basic Parts.....................................................................................41
15 Hardware Requirements.........................................................................................................41
16 S68 Board Layout...................................................................................................................42
17 SIM Card Problems .................................................................................................................43
18 IO Connector Problems .........................................................................................................44
19 B to B Connector (upper slider part) Problems....................................................................45
20 Battery Connector Problems..................................................................................................46
21 Filter EMI Problems.................................................................................................................47
Company Confidential
2005©BenQ
Release 1.0
Technical Documentation 02/2006
TD_Repair_L2.5L_S68_R1.0.pdf Page 3 of 47
1 Key Feature
Standard Systems Tri-band GSM 900/1800/1900
EGSM (GSM phase 2/phase 2+)
GPRS class 10
Vocoders FR, HR, EFR, AMR
Stand-by Time Up to 300 h (standard battery)
Talk Time Up to 300 min (standard battery)
Battery Technology
Battery Capacity Battery:Li-Ion 660 mAh
Charging time: Less than 2 h for 100%
Weight 78,5 g
Volume 44 cm³
Length 107 mm
Width 46 mm
Thickness 13,2 mm
Storage 8 MB user memory
SIM Functionality /
Security Controls
SIM Application Toolkit (class 3)
SIM lock, various levels
PIN 1 & 2 control
Ciphering A5.1, A5.2 and A5.3
SIM plug-in (3/1.8 V), SAT class 3
Antenna Integrated
Data Services Mobile Internet access (WAP 1.2.1 plus parts of 2.0)
Data download OTA via SMS or WAP
MMS release 98
EMS rel. 4.3
Data services (CSD) at 9.6 Kbps and GPRS
(up to 53.6 Kbps)
E-mail client
Display / Display Illumination 132 x 176 pixels, 262,144 colors,
enhanced TFT, transflective, high-end flat PMMA
window
Camera n / a
Connectivity USB cable / Bluetooth®
Features Basic organizer (including day, week, and month) with
Outlook® and Lotus Notes® synchronization, PIM
SMS, voice messaging (via MMS) EMS and MMS, e-mail client
Pop3
MMS supporting text, still images, voice and animations
SyncML 1.2.1 (or higher via OBEX and OTA)
Handsfree operation
Dual-speaker system for outstanding sound quality
64-chord polyphonic ringtones, MIDI
Very slim appearance
Real metal keypad and housing (brushed aluminum)
WAP 2.0 stack
Java MIDP 2.x
Wide range of headset and car kit solutions with Bluetooth®
technology
Company Confidential
2005©BenQ
Release 1.0
Technical Documentation 02/2006
TD_Repair_L2.5L_S68_R1.0.pdf Page 4 of 47
2 S68 Interface to Accessories
Original Accessories
Fashion & Carry
Leather Case FCL-720
Energy Li-Ion Battery 660 mAh EBA-120
Travel Charger (EU & UK) ETC-100/110
Car Charger Plus ECC-100
Desk Top Stand EDS-100
Handsfree Portable
Headset Basic HHS-100
Headset HHS-110
Headset Purestyle HHS-120
Headset Bluetooth® HHB-100
Headset Bluetooth® Clip HHB-130/131
Headset Bluetooth® Comfort HHB-160/161
Headset Bluetooth® HHB-700/710
Charger Adapter ECA-500 (for HS BT HHB-700/710)
Charger Adapter ECA-100 (for HS BT HHB-130/131/160/161)
Car Solutions
Car Kit Bluetooth® Easy HKW-100
Car Kit Bluetooth® Portable HKW-700
Car Kit Bluetooth® HKW-710 (successor of HKW-600)
Car Kit Bluetooth® SIM HKW-720
Car Kit Portable HKP-100
Mobile Holder HMH-100
Office Data Cable DCA-100 (RS232)
Data Cable USB DCA-140
Sync Station DSC-100
Company Confidential
2005©BenQ
Release 1.0
Technical Documentation 02/2006
TD_Repair_L2.5L_S68_R1.0.pdf Page 5 of 47

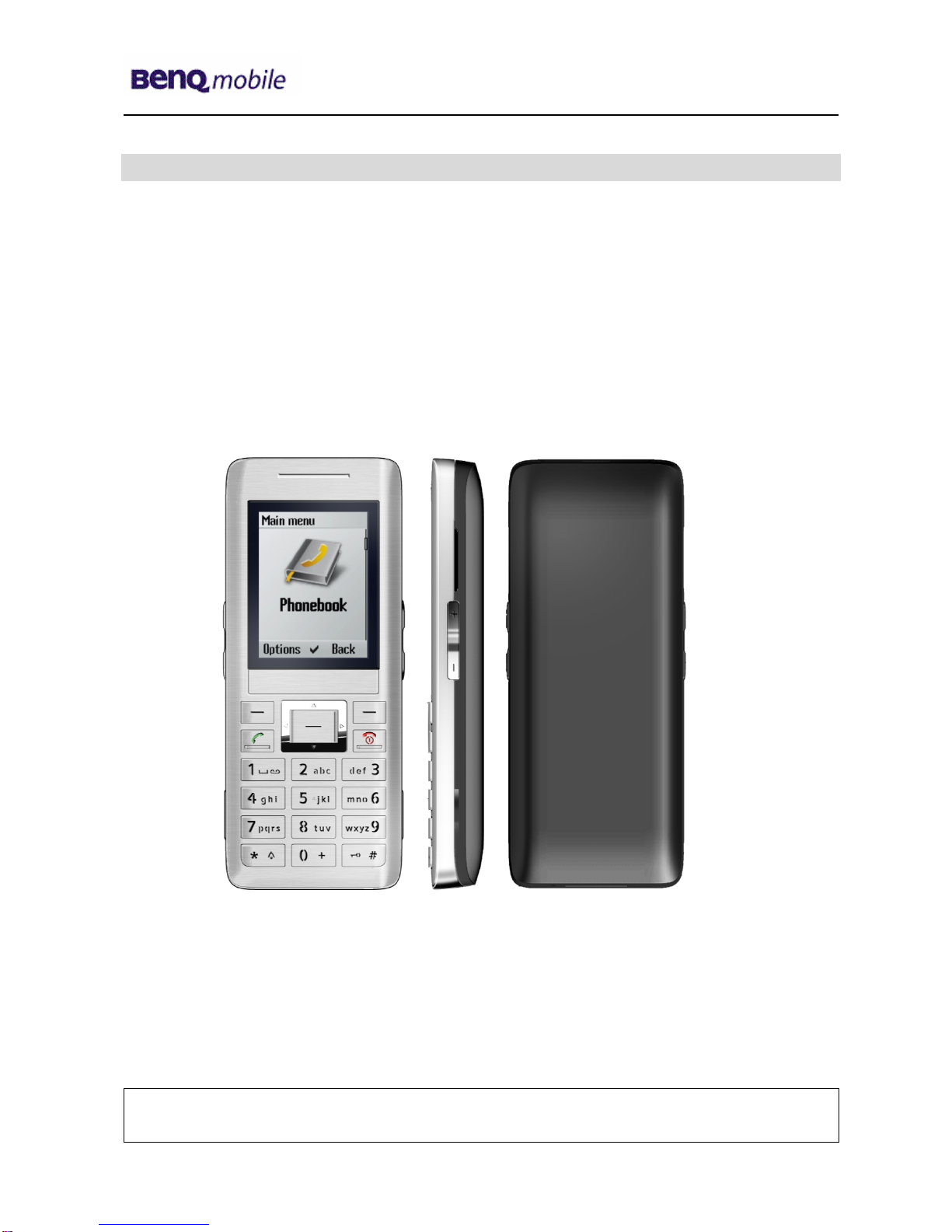

3 Unit Description of S68
Highly attractive premium design: very slim phone (13 mm) with real metal (brushed aluminum)
surface and keypad.
Focusing on the core and most convenient business functions, PIM, Bluetooth®, Fax and Document
Viewer, and other business applications that enrich professional life.
New simplified and intuitive menu structure.
Fast Dialing™ key, voice messaging (via MMS), dictaphone, and e-mail client.
Excellent overall ergonomics.
Superb sound quality (including handsfree talking).
Optimal visibility of content display under all lighting conditions.
Company Confidential
2005©BenQ
Release 1.0
Technical Documentation 02/2006
TD_Repair_L2.5L_S68_R1.0.pdf Page 6 of 47

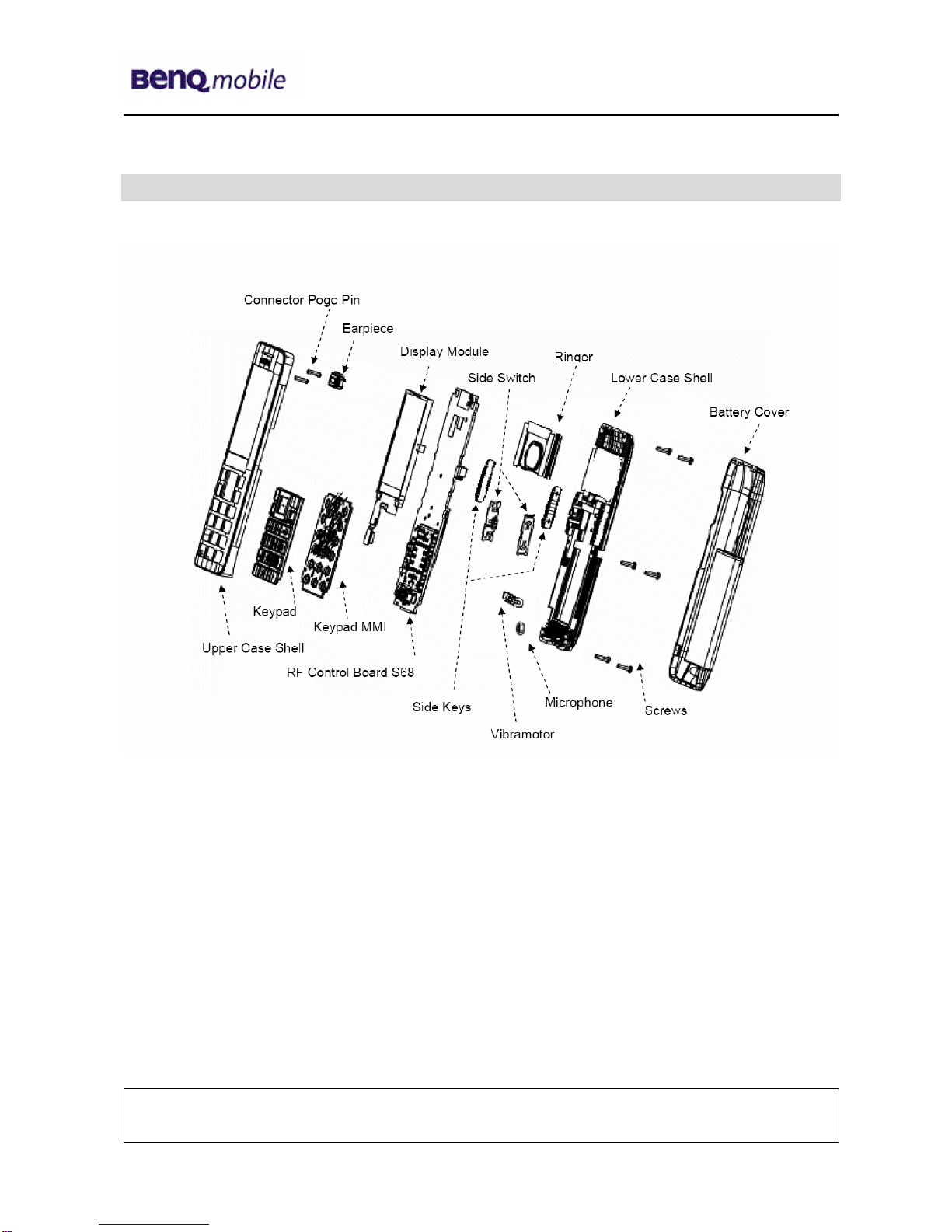

4 Exploded View of S68
Without illustration:
Shielding Cover RF
Shielding Cover BB Top
Shielding Cover BB BOT
Shielding Cover BT
Company Confidential
2005©BenQ
Release 1.0
Technical Documentation 02/2006
TD_Repair_L2.5L_S68_R1.0.pdf Page 7 of 47

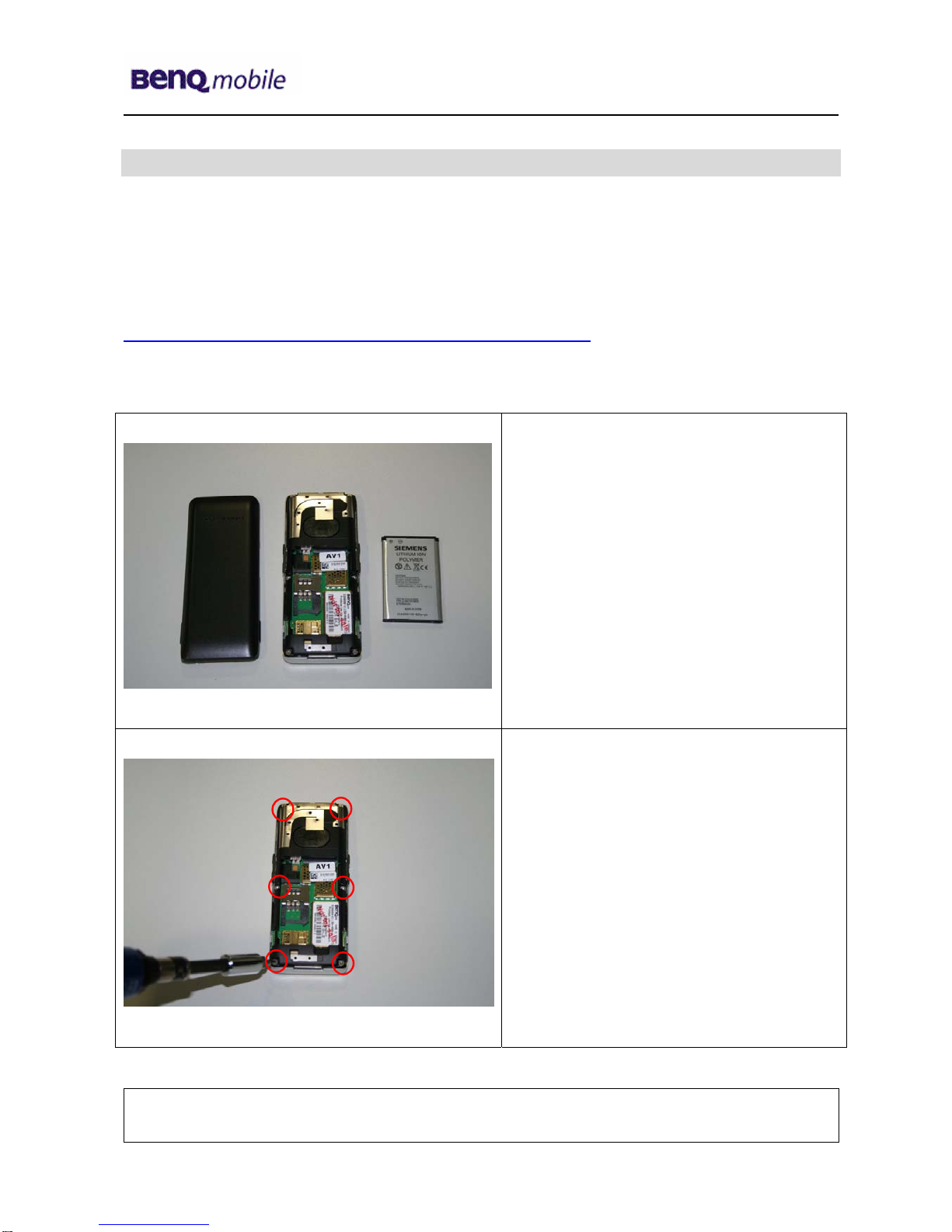

Disassembly of S68
All repairs as well as disassembling and assembling have to be carried out in an ESD
protected environment and with ESD protected equipment/tools. For all activities the
international ESD regulations have to be considered.
For more details please check information in c – market
https://market.benqmobile.com/SO/welcome.lookup.asp
There you can find the document “ESD Guideline”.
Step 1
Remove Battery Cover and Battery.
Step 2
Remove screws with the Torque –
Screwdriver.
T5+
Company Confidential
2005©BenQ
Release 1.0
Technical Documentation 02/2006
TD_Repair_L2.5L_S68_R1.0.pdf Page 8 of 47

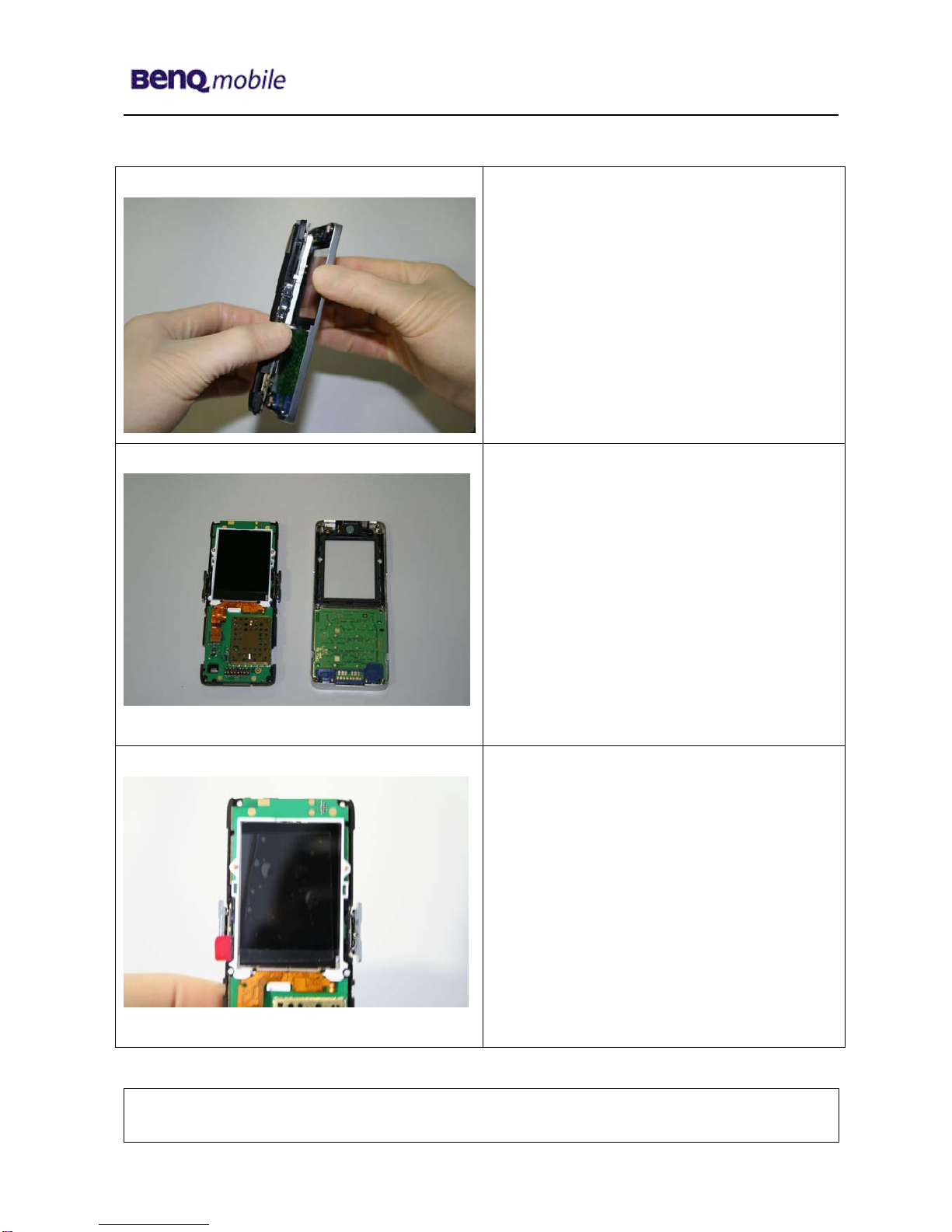

Step 3
Disassemble Upper Case from Lower Case.
Step 4
Step 5
To avoid scratches, it is mandatory to place
a protection foil onto the display!
Company Confidential
2005©BenQ
Release 1.0
Technical Documentation 02/2006
TD_Repair_L2.5L_S68_R1.0.pdf Page 9 of 47

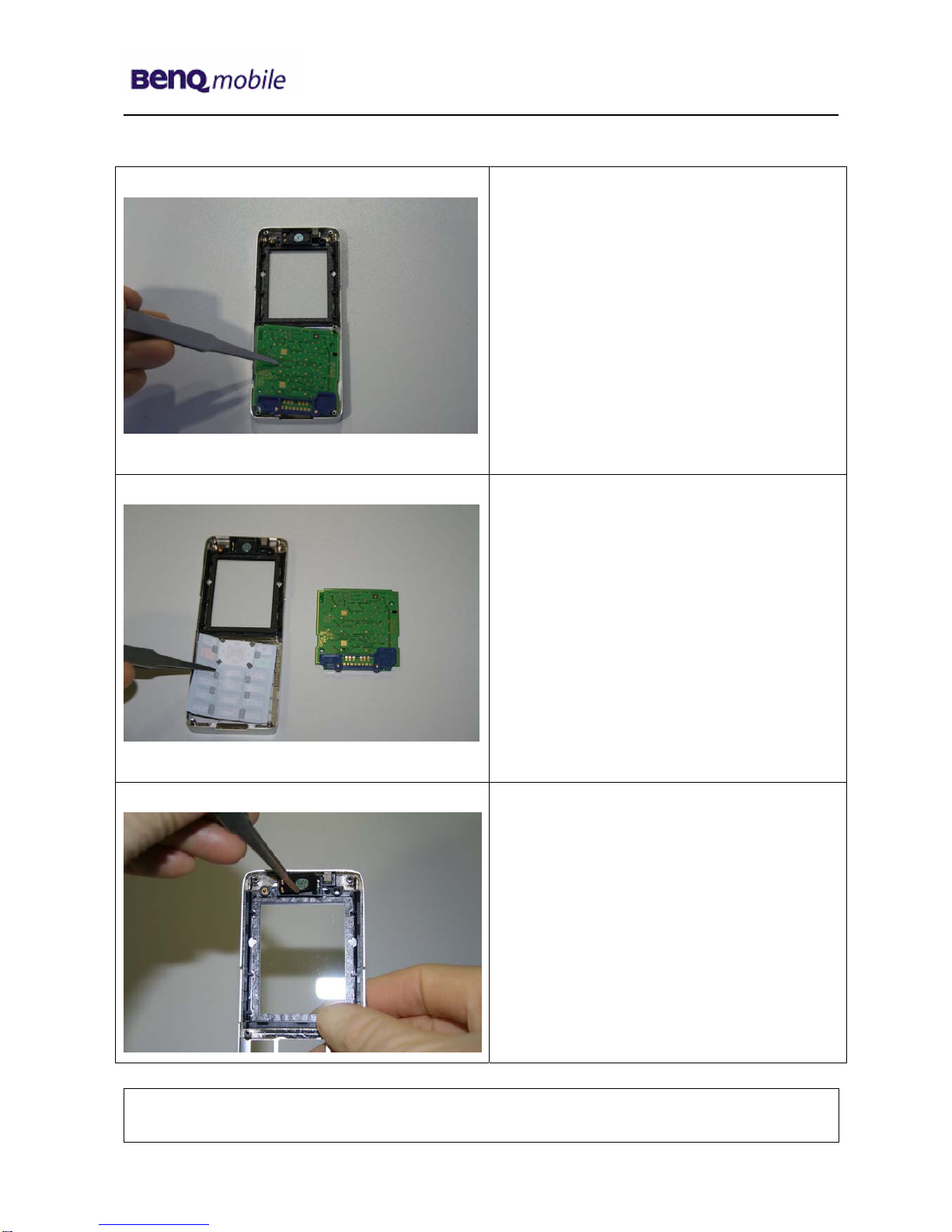

Step 6
Remove Keypad MMI by using Tweezers
carefully.
Step 7
Remove Keypad by using Tweezers
carefully.
Step 8
Use Tweezers to remove Earpiece.
Company Confidential
2005©BenQ
Release 1.0
Technical Documentation 02/2006
TD_Repair_L2.5L_S68_R1.0.pdf Page 10 of 47

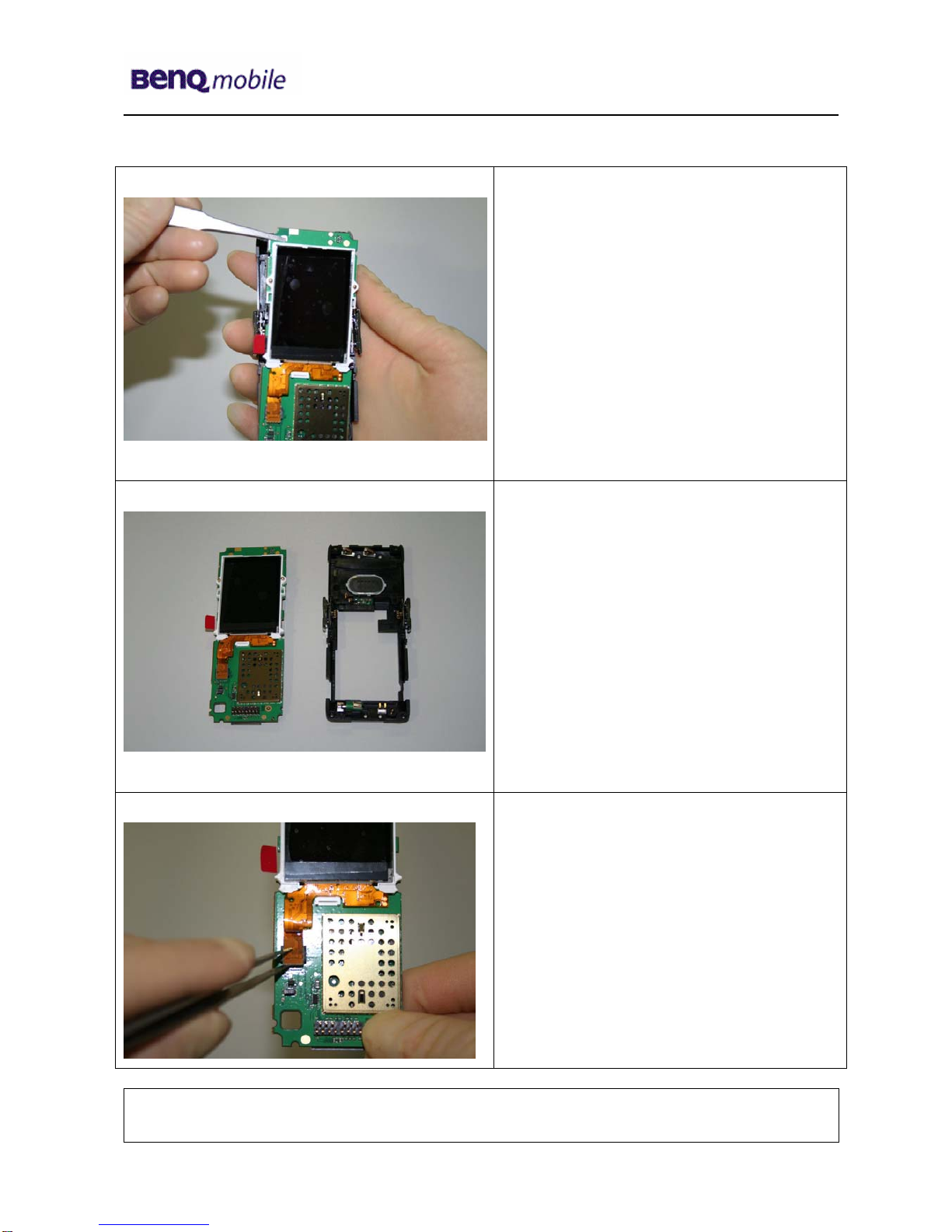

Step 9
.Remove PCB from Lower Case.
Step 10
Step 11
Disconnect Flex Cable from PCB socket by
using Tweezers.
Company Confidential
