Content
Safety instructions----------------------------- 2
Product description---------------------------- 4
Installation----------------------------------------6
Start using your Range hood-----------------12
Maintenance and cleaning -------------------13
Warranty------------------------------------------ 14
2
Safety instructions
This manual explains the proper installation and use of your range hood, please read it
carefully before using even if you are familiar with the product. The manual should be kept
in a safe place for future reference. In case of failure, only the Authorised Technical
Service may repair this range hood. Otherwise the guarantee will be null and void. All
Bellini Appliances are for domestic use only.
Never to do:
zThis appliance is not intended for use by persons
(including children) with reduced physical, sensory
and mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
zNever carry out flamable cooking under the
appliance
zThe exhaust from the range hood must not be
discharged into any heating flue, which may carry
combustion products from other sources.
zDo not leave lit gas burners exposed due to the risk
of fire.
zThis range hood is not recommended for
barbecues.
Always to do:
zPackaging materials (eg; polystyrene and
plastic items) must be kept out of reach of
babies or young children at all times due to
risk of suffocation.
zYoung children should be supervised to
ensure that they do not play with the
appliance.
zEnsure the range hood is switched off before
carrying out maintenance, to avoid any
possibility of electric shock.
zGrease filters must be removed every four
weeks (maximum) for cleaning to reduce the
risk of fire.
zThere must be adequate ventilation of the
room when the range hood is used at the
same time as appliances burning gas or other
fuels.
zAlways cover lit gas burners with pots or pans
when range hood is in use.
zAlways switch off gas burners before you
remove pots or pans.
zIf the supply cord is damaged, the cord must
be replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard
zPlug must be accessible after installation.
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood
3
Safety instructions
Never to do:
zThis range hood cannot be installed for outdoor use.
zIt is prohibited to fit the range hood over a solid fuel
stove
zThis appliance must not be connected to a chimney
or vent flue which is in use.
zThis appliance is not to be vented into the roof
cavity, must exit into open air.
zExhaust air must not be discharged into a wall
cavity, unless the cavity is designed for the purpose.
zThis appliance should not be connected to ducting
which ventilates rooms with fire places.
Always to do:
zAttention should be given to ensure that any
applicable regulations concerning discharge
of exhaust air are fulfilled.
zThis appliance should be installed and
maintained by a suitably qualified and
competent person in accordance with the
relevant safety regulations.
zBefore connecting the appliance to the mains
supply, ensure that the voltage and frequency
details on the rating plate are consistent with
the source of supply.
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood
This product must not be disposed together
with domestic waste. This product has to be
disposed at an authorised place for recycling
of electrical and electronic appliances.
By collecting and recycling waste, you help save natural
resources, and make sure the product is disposed in an
environmental friendly and healthy way.
4
BRA603CPX,BRA603CPX-F,BRA903CPX,BRA903CPX-F
Component list:
1. Upper decorative chimney bracket*
2. Upper decorative chimney(Inner)
3. Lower decorative chimney bracket
4. Flexible exhaust pipe
5. Lower decorative chimney(outer)*
6. Hood mount bracket
7. Main body
8. Grease mesh filter
Technical data:
Power supply: 220 – 240v, 50Hz
Lights: 2x20w Halogen lamp
Motor: 190W
Length of power cord: 1.5m
Air outlet diameter: 150mm
*Maximum extension of upper and lower chimney is 780mm
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood
1
5
Operation Mode
Your range hood can be operated in two optional modes, choose the m ode suitable for your kitchen before
installation.
Air Extraction
Air Recirculation
To outside
To inside
For air extraction mode, a ducting kit is re
quired, the air
is drawn in and cleaned by the grease filters and
directed outside.
Ducting must be vented to outside atmosphere.
For air recirculation mode, charcoal filter is a must to
eliminate cooking smells.
The air is drawn in and cleaned first by the grease filters
and then charcoal filter. The cleaned air is then
re-circulated back into kitchen through grilles on the
upper decorative chimney.
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood
6
Installation

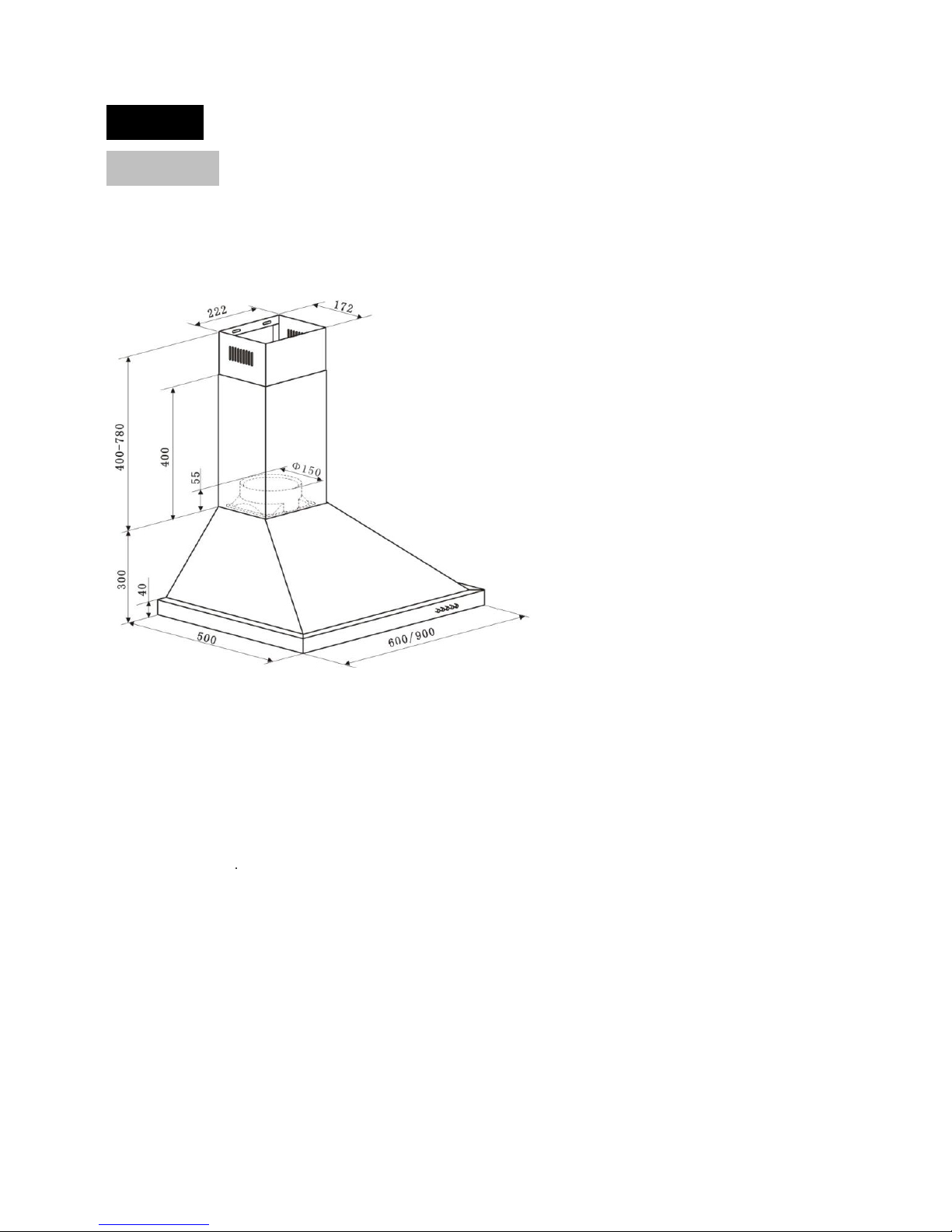

Dimensions:
BRA603CPX, BRA603CPX-F, Width=600;
BRA903CPX, BRA903CPX-F, Width=900
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood
7
Installation:
Warning:
Check that the installatio n complies with the standards of local building, gas and electrical authorities. Before
connecting to the mains supply ensure the mains vo ltage corresponds to the voltage on the applian ce rating
plate inside the range hood.
When installing the range hood, make sure you adhere to the minimum and maximum distances from the range
hood base to the cooktop hob surface.
Hints for exhaust duct installation
The following rules must be strictly followed to obtain optimal air extraction
•Keep exhaust duct short and straight
•Do not reduce the size or restrict exhaust duct
•When using flexible duct always install the duct pulled taut to minimize pressure loss
•Failure to observe these basic instructions will reduce the performance and increase noise levels of the
range hood
Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant.
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood
8
1. Using a spirit level mark a vertical centre line on the wall where the hood is to be positioned, and a horizontal
line where the hood base will be.
NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum of
600mm & 650mm to the gas cook top and a maximum height of 750mm (refer to table below).
Dimension 100mm
Dimension 30-365mm
Dimension 100mm Dimension 100mm Dimension 236mm
Dimension 300mm Dimension 88mm
Horizontal line Hood Base
*If the instructions of the hob specify a greater distance than the minimum above, then that shall be the minimum height for installation
Vertical centre line
Top of hob
Minimum:
Electric 600mm
Gas 650mm
Maximum:
750mm
3x8mm holes for
Hood mount bracket
2x8mm holes for Upper
chimney retaining
bracket
2x8mm holes for Lower
chimney retaining
bracket
Dimension 106mm
