Belling BL90B Manuel utilisateur

Read this manual carefully before operation

INSTRUCT ON MANUALI

Pictures in this manual are for reference only.

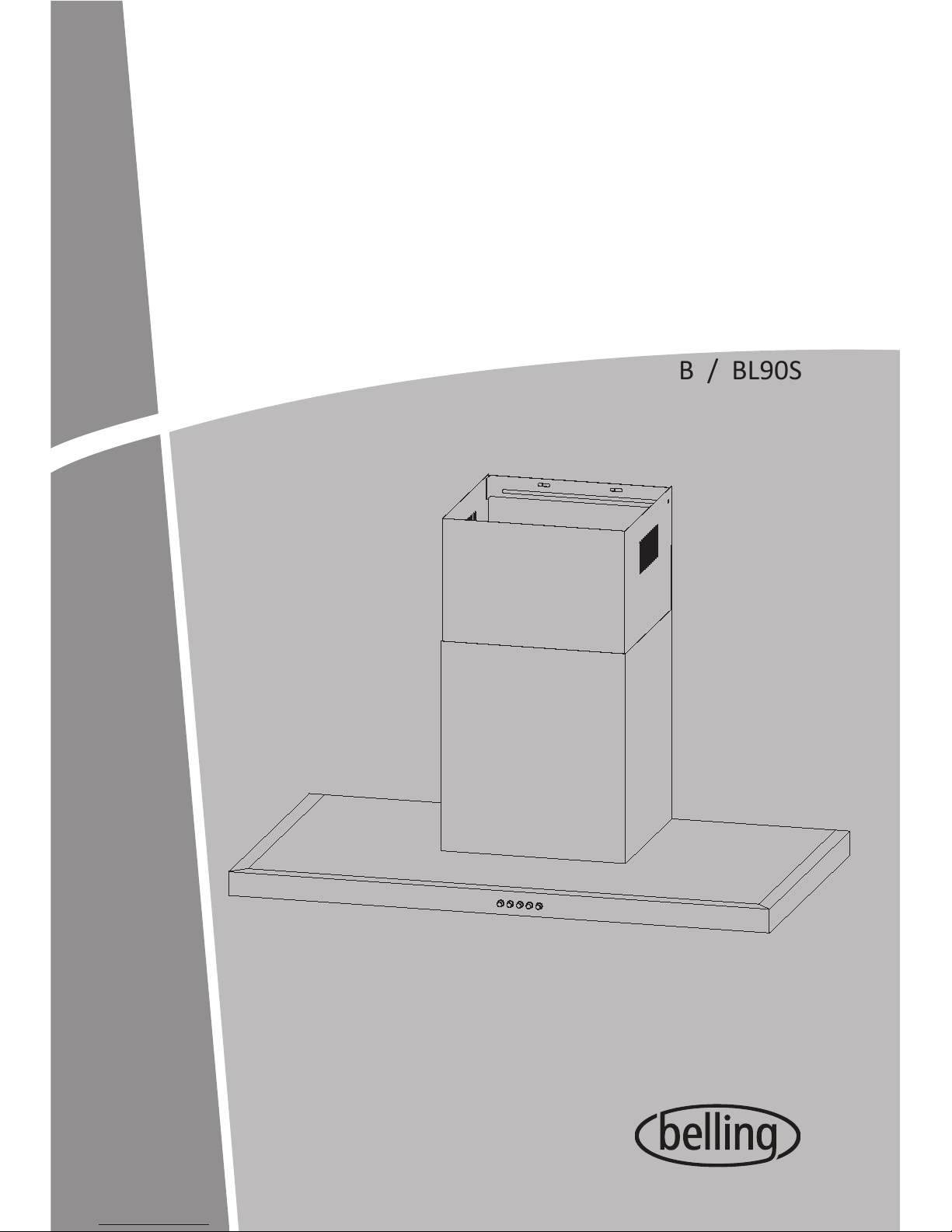

For Models:

BL90B / BL90S

Flat Canopy Rangehood

Contents

Warnings................................................................ 2

Safety Warning.......................................................3

Installation.............................................................. 4

Use...................................................................

Maintenance......................................................... 8

Trouble Shooting.................................................. 9

Contents

Disposal................................................................

Specifications........................................................

Contents.................................................................

Contents

zThis appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved. Children

shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without

supervision. If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or

similarly qualified persons in order to avoid a hazard.

zThere shall be adequate ventilation of the room when

the range hood is used at the same time as appliances

burning gas or other fuels.

zThe filter is made of high density aluminum.

Please do not use corrosive detergent for cleaning. The

proper function of the unit is conditioned by the

regularity of the maintenance.

zTo protect the main body from corrosive of the long time

accumulation of dirt, the cooker hood should be

cleaned with hot water with non-corrosive detergent

every two months.

zThere is a fire risk if cleaning is not carried out in

accordance with the instructions.

zThe air must not be discharged into a flue that is used

for exhausting fumes from appliances burning gas or

other fuels.

zThe minimum distance between the supporting surface

for the cooking vessels on the hob and the lowest part

of the range hood is 650 mm.

zRegulations concerning the discharge of air have to be

fulfilled.

zThe appliance uses 4 hob elements at most.

CAUTION :

used with cooking appliances.

Warnings

Accessible parts may become hot when

Do not flame under the range hood.

The appliance is not intended for use by young children or infirm

persons without supervisions.

Young children should be supervised to ensure they do not play with

the appliance.

Plug the power cord to socket outlet with earthing continuity terminal.

The cooker hood is for home use only, not suitable for barbecue, roast

shop and other commercial purposes.



according to the instruction.

Do not use open flame, or allow oil to go beneath the appliance.

If there is any fault occurred with the appliance, please call after-sale

service department.

Please keep the kitchen room ventilated.

Prior to any maintenance, cleaning operation, ensure the power is cut

off.

If the supply cord is damaged, it must be replaced by the manufacturer,

service agent or similarly qualified person in order to avoid a hazard.

The replaced power cord should be provided by manufacturer or seller.

If the plug or cord is damaged, please call after-sale service center.

There is a fire risk if cleaning is not carried out in accordance with the

instruction.

In case of damaged connecting wire, please refer to the manufacturer,

after-sale service personnel or other qualified technicians.

Use the unit according to the instructions to avoid any fire hazard.

The exhaust air must not be introduced into a smoke flue or chimney

that is used for exhausting fumes from appliances burning gas.

Follow the local laws applicable for external air evacuation.

Safety Warning



The cooker hood and its filter should be cleaned regularly

Notice of Installation

It can not share the same air ventilation tube with other appliance

such as gas tube, warmer tube, and hot wind tube. There will be

hazard of underpressure, combustion impaired and harmful gases

drawn back.

The bending of ventilation tube should be ≥120°,parallel or above the

start point/should be connected to the external wall.

placed horizontally to avoid

After installation, make sure that plug can be pulled out if necessary.

ed 650~750 mm up from the

Fig.1

Right Wrong

There shall be adequate ventilation of the room when the cooker

hood is working.

grease collection at one end. See Fig.1.

cooking plane for safe and a good effect. See Fig.2.

The cooker hood should be plac

Please make sure the installation plate is

Fig.2

Fig.3

2 x Chimney installation plates

7 x Plastic expansion pipes

7 x Screws(ST5*50)

1 x Installation plate

6 x Screws(ST4.2*9.5)

Fix installation plate and extension chimney installation plate, install

Fix the exhaust pipe and chimney on the main body, connect

Hang range hood on the installation plate. See Fig.6.

After connecting the exhaust pipe well, fix chimney installation plate

Fix extension chimney. See Fig.8.

Installation

chimney installation plate and chimney. See Fig.5.

installation plate. See Fig.7.



the plastic expansion pipes of chimney installation plate on wall.

See Fig.4.

to prevent the range hood from accidently sliding off the

Accessories. See Fig.3. (Type and quantity of accessories is



subject to actual demand.)

Fig.4 Fig.5

Fig.6 Fig.7

Fig.8

7XScrews(M5*50)

Fig.9.1

Stop Low Mid High Light

Use

Speed adjustment. See Fig.9.1.

Press Stop button, the motor will stop running.

Press the Low (speed) button, the motor runs at low speed.

Press the Mid (speed) button, the motor runs at mid speed.

Press the High (speed) button,

the motor runs at high speed.

Press the Light button, the two lighting lamps will come on.

Press it again and the lamps will be turned off.

(For some models)

222

Contents

Maintenance

Cleaning of the filters

Removing the filters according to Fig.10.

Put into a dishwasher with detergent, set the temperature below

Please do not use abrasive detergent for it will damage the hood.

Make sure that the hood is shut off before cleaning.

Replacement of the carbon filters ( )

Remove the filters see Fig.10.

The carbon filters are located at both end of the motor.

Apply reverse procedure to

It should be replaced after approximately 2-3 months of use.

The carbon filer cannot be washed or recycled.

Carbon filter is not supplied with your appliance.

60 degrees.

.11.giFeeS.dekcolerayehtlitnusretlifnobracehtnruT

Fig.10 Fig.11

remove the carbon filter.

Option

222

Trouble Shooting

noituloSesuaC

Light on, but motor

does not work.

The blades are blocked.

The capacitor is damaged. Replace capacitor.

The motor is damaged. Replace motor.

The internal wiring of motor is cut off /

disconnected. An unpleaseant smell

may be produced.

Replace motor.

Both light and motor

Apart from the above mentioned, check the following:

.sthgilecalpeR.degamadthgiL

Power cord loose. Connect the wires as per the

electric diagram.

Oil leakage.

Outlet and the air ventilation entrance

are not tightly sealed.

Take down the outlet and seal with

glue.

Leakage from the connection of

U-shaped section and cover.

Take U-shaped section down and

seal with soap or paint.

Vibration.

The blade, if damaged, can cause

vibrating. Replace the blade.

The motor is not tightly fastened. Fasten the motor tightly.

The cooker hood is not tightly fixed. Fixed the cooker hood tightly.

Insufficient suction.

The distance between the cooker

hood and the cooker top is too large. Readjust the distance.

Too much ventilation from open doors

or windows.

Choose a new place to install the

appliance or close some doors /

windows.

The machine inclines.

The fixing screws are not tight

enough.

Tighten the fixing screw and make

it horizontal.

The hanging screws are not tight

enough

Tighten the hanging screw and

make it horizontal.

do not work.

Fault

Electrical Diagram

Electrical diagram see label on main body of the actual product.


