Bellfires DERBY LARGE 3 CF Manuel utilisateur

This document is an essential part of your gas ﬁre. Read it carefully before

installation and use of the gas ﬁre and keep it in a safe place!

INSTALLATION INSTRUCTIONS &

MANUAL FOR MAINTENANCE

DERBY LARGE 3 CF/LF

Gas ﬁre with closed combustion system

Bellﬁres wishes you many cosy evenings with your new Bellﬁres gas ﬁre

Serial number:

Production date:

Bellﬁres English

Installation instructions

BELLFIRES GAS FIRE WITH CLOSED COMBUSTION SYSTEM:

Derby Large 3 CF (Centre Fire) (DYL3 CF)

Derby Large 3 LF (Line Fire) (DYL3 LF)

Bellﬁres English

Installation instructions

Bellﬁres English

Installation instructions

CONTENTS

Page

1. INSTALLATION INSTRUCTIONS .............................................................. 7

2. MAINTENANCE .....................................................................

...................

. 67

3. FAULTS ...................................................

.................................

...

..........

. 68

4. DISMANTLING / ASSEMBLING OF THE GLASS

....................

...

.......

... 69

5. DIAGRAM ELECTRICITY AND GAS ........................

........................

......... 75

6. DIMENSIONS ......................................................

..............................

....

. 76

7. TECHNICAL DETAILS/REGULATIONS .....................................

...

......... 84

8. REPLACEMENT PARTS LIST .........................................

..........

...

........ 88

9. DISPOSAL OF PACKAGING AND APPLIANCE .........

......................

...

.....

. 91

The installation must only be carried out by a

“Gas Safe Register” registered installation engineer.

IMPORTANT

Bellﬁres English

Installation instructions

Bellﬁres English

Installation instructions

1 INSTALLATION INSTRUCTIONS

1.1 GENERAL

The gas ﬁre must be positioned and connected as a “room sealed system” (balance

ﬂue) appliance by a “Gas Safe Register” registered gas installation engineer in

accordance with the following installation instructions, nationally and locally applicable

regulations (see “Technical Details/ Regulations” at the rear of this manual). If you have

any queries regarding the installation, please consult your local gas company.

Important: Before beginning the installation, check that the details on the

rating plate correspond to the gas type and pressure to which

the appliance will be connected.

The appliance is supplied with a “Centre Fire” or “Line Fire” double burner, as ordered.

These burners each have their own speciﬁc ﬂame image which is deﬁned by the

perforation pattern in the burner cover. See Chapter 5 and the Instructions for use.

The appliance is factory set to the correct nominal heat input. The pilot light is set to the

correct level of consumption.

Depending on the requested version, the appliance will be delivered from the factory

with a Ø100 mm - Ø150 mm or Ø130 mm - Ø200 mm concentric connection for

extracting the ﬂue gases and supply of combustion air.

It is possible to install the gas ﬁre with either a wall or roof outlet.

The roof connection must be carried out using the concentric ﬂue system Ø100 mm -

Ø150 mm. The fumes are exhausted naturally to the outside environment through the

inner Ø100 mm pipe whereas the combustion air supply passes between the Ø100 mm

and Ø150 mm pipes.

The wall connection must be carried out using the concentric ﬂue system Ø130 mm -

Ø200 mm. The ﬂue gases are evacuated outside by means of natural draft through the

internal pipe of Ø130 mm, whereas the combustion air is supplied between the pipes of

Ø130 mm and Ø200 mm. The wall outlet itself is, depending on the concentric ﬂue gas

system conﬁguration, Ø100 mm - Ø150 mm or Ø130 mm - Ø200 mm. (In some cases,

with a wall connection, a complete concentric ﬂue system Ø100 mm - Ø150 mm is also

possible (see Chapter 1.6.1).)

The gas ﬁre can be installed in a completely sealed or mechanically ventilated house

without extra ventilation and/or fume extraction.

The gas ﬁre can be installed as an insertion into an existing open ﬁreplace or as

a built-in appliance in a new ﬁreplace.

In order to prevent the ﬁreplace heating up excessively, it must be properly

ventilated by installing vents at the top and bottom of the ﬁreplace.

Bellﬁres English

Installation instructions

Set documentation - Instructions for use

- Installation instructions

Attributes - Ceramic log set, or

marble pebbles white or marble pebbles grey

- Hook (for opening the frame and the glass)

The appliance can be ﬁtted with a convection package as an optional extra. This is a

“convection jacket” (convection casing) for around and above the appliance, two ﬂexible

aluminium pipes and two built-in convection vents. This enables hot air to be circulated

into the room.

If required, two additional convector grills can be ﬁtted (= 1x extra convection set).

If an existing chimney is to be used, please consult your installer ﬁrst. If the chimney

was previously used for a wood or coal ﬁre, then it should be cleaned by an expert.

1.2 CONCENTRIC FLUE SYSTEMS Ø100 MM - Ø150 MM AND

Ø130 MM - Ø200 MM : • Bellﬁres (Muelink & Grol system)

• Poujoulat (PGI system)

• Ontop (Metaloterm US system)

The gas ﬁre, in combination with the concentric ﬂue system [Ø100 mm - Ø150 mm] and/

or [Ø130 mm - Ø200 mm] (rigid and/or ﬂexible)

for the brands Bellﬁres (Muelink & Grol

system), Poujoulat (PGI system) or Ontop (Metaloterm US system), has been approved

in accordance with the European CE-norm for gas appliances and may therefore be

used only with these systems. The permitted components for these systems are listed

in Chapter 1.6.2. The guarantee on the appliance lapses if it is installed, fully or partially,

with other components or a different ﬂue system.

The concentric ﬂue [Ø100 mm - Ø150 mm] and [Ø130 mm - Ø200 mm] systems can be

used with either a newly-built or existing chimney.

N.B. If any part is missing, please contact your dealer.

1.3 INCLUDED

Bellﬁres English

Installation instructions

1.4 OPTIONS AND ACCESSORIES

The following options and accessories can be supplied by your dealer:

Part no Accessorie

312829 Convection set General: (for convection air extraction)

302188 • 1x Flexible aluminium pipe Ø125 mm, L= 3 m (max.)

310178 • 2x Fitting box 135 x 135 mm

309872 • 2x Convection exit grid, white, 145 x 145 mm

309730 • 2x Collar adaptor Ø125 mm

304040 • 4x Hose clamp Ø125 mm

329874 Set carrying brackets (2 pieces)

3........ Bellﬁres (M&G) concentric ﬂue system

See component summary

3........ Poujoulat (PGI) concentric ﬂue system

See component summary

3........ Ontop (Metaloterm US) concentric ﬂue system

See component summary

Part no Option

Convection package Derby Large 3

329703 • 1x Convection casing

329704 • 1x Top plate Convection

312829 • 1x Convection set General

330361 Set of high adjustable feet (4 pieces)

311967 Mantle iron L = 1250 mm

Bellﬁres English

Installation instructions

1.5 PREPARATION FOR INSTALLATION

The following preparation must be carried out before the gas ﬁre can be installed.

1.5.1 Instructions for positioning the outlet

1.5.1.1 Positioning the outlet for correct operation:

Roof-mounted outlet:

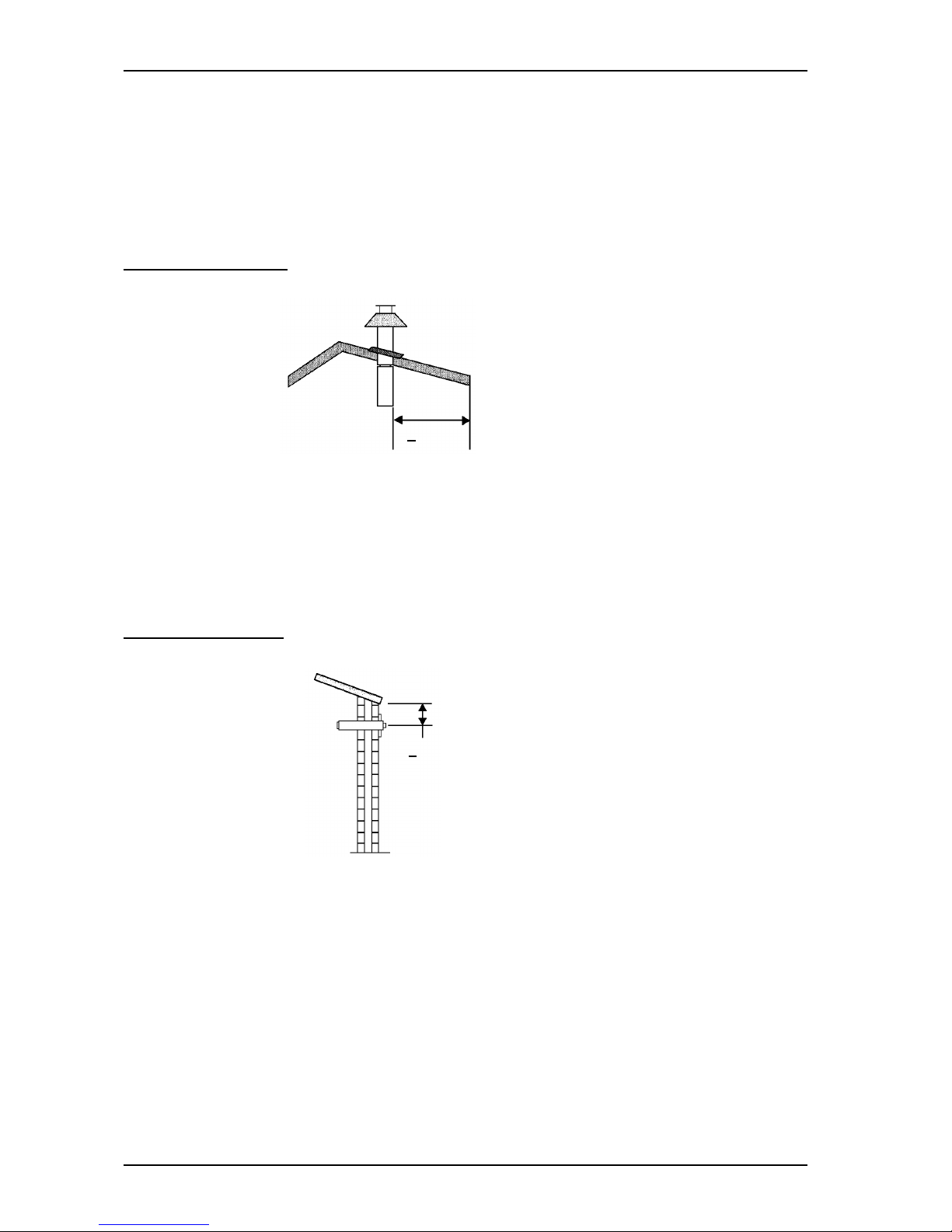

Figure 1: Roof-mounted outlet

This must be positioned at least 0.5 m from the roof edge;

the apex of the roof can be disregarded.

Wall-mounted outlet:

Figure 2: Wall-mounted outlet

This must be positioned at least 0.5 m from:

• the corner of the building.

• the roof overhang, the rain gutter.

• balconies etc., unless the exhaust construction

extends to at least the face of the protruding section.

>0.5 m
