INSTALLATION INSTRUCTIONS &

MANUAL FOR MAINTENANCE

SMART BELL

75 - 80 PF

Gas ﬁre with closed combustion system

This document is an essential part of your gas ﬁre. Read it carefully before

installation and use of the gas ﬁre and keep it in a safe place!

Bellﬁres wishes you many cosy evenings with your new Bellﬁres gas ﬁre

Serial number:

Production date:

Bellﬁres English

Installation instructions

BELLFIRES GAS FIRE WITH CLOSED COMBUSTION SYSTEM:

Smart Bell 75 - 80 PF (Premium Fire) (SB 75-80 PF)

Bellﬁres English

Installation instructions

IMPORTANT

These Installation Instructions form part of the documentation pack supplied

with the appliance.

The complete documentation, necessary for the installation of the appliance,

consists of:

1. INSTALLATION INSTRUCTIONS &

MANUAL FOR MAINTENANCE

2. AVAILABLE COMPONENTS CONCENTRIC FLUE-SYSTEMS FOR

BELLFIRES GAS FIRES WITH CLOSED COMBUSTION SYSTEM

3. INSTRUCTIONS FOR USE &

MANUAL DAILY MAINTENANCE

Bellﬁres English

Installation instructions

CONTENTS

Page

1. INSTALLATION INSTRUCTIONS .............................................................. 7

2. INSTALLATION .......................................................................

..........

...

..... 23

3. MAINTENANCE .....................................................................

...................

. 47

4. FAULTS ...................................................

.................................

...

..........

. 49

5. DISMANTLING / ASSEMBLING OF THE GLASS

....................

...

.......

... 50

6. DIAGRAM ELECTRICITY AND GAS ........................

........................

......... 53

7. DIMENSIONS ......................................................

..............................

....

. 54

8. TECHNICAL DETAILS/REGULATIONS .....................................

...

......... 60

9. REPLACEMENT PARTS LIST .........................................

..........

...

........ 62

10. DISPOSAL OF PACKAGING AND APPLIANCE .........

......................

...

.....

. 65

The installation must only be carried out by a

“Gas Safe Register” registered installation engineer.

IMPORTANT

Bellﬁres English

Installation instructions

Bellﬁres English

Installation instructions

1 INSTALLATION INSTRUCTIONS

1.1 GENERAL

The gas !re must be positioned and connected as a “room sealed system” (balance

"ue) appliance by a “Gas Safe Register” registered gas installation engineer in

accordance with the following installation instructions, nationally and locally applicable

regulations (see “Technical Details / Regulations” at the rear of this manual). If you have

any queries regarding the installation, please consult your local gas company.

Important: Before beginning the installation, check that the details on the

rating plate correspond to the gas type and pressure to which

the appliance will be connected.

The appliance is factory set to the correct nominal heat input. The pilot light is set to the

correct level of consumption.

The appliance will be delivered from the factory with a Ø100 mm - Ø150 mm concentric

connection for extracting the "ue gases and supply of combustion air.

It is possible to install the gas !re with either a wall or roof outlet.

The roof connection must be carried out using the concentric "ue system Ø100 mm -

Ø150 mm. The fumes are exhausted naturally to the outside environment through the

inner Ø100 mm pipe whereas the combustion air supply passes between the Ø100 mm

and Ø150 mm pipes.

The gas !re can be installed in a completely sealed or mechanically ventilated house

without extra ventilation and/or fume extraction.

The gas !re can be installed as an insertion into an existing open !replace or as

a built-in appliance in a new !replace.

In order to prevent the ﬁreplace heating up excessively, it must be properly

ventilated by installing vents at the top and bottom of the !replace.

The appliance is equipped with a convection casing. This brings the heated air into

the room. Optionally, the appliance can be equipped with a convection fan for faster

dissemination of this hot air.

If an existing chimney is to be used, please consult your installer !rst. If the chimney

was previously used for a wood or coal !re, then it should be cleaned by an expert.

Bellﬁres English

Installation instructions

1.2 CONCENTRIC FLUE SYSTEMS Ø100 MM - Ø150 MM

• Bellﬁres - Muelink & Grol system

• Poujoulat - DUOGAS system

• Ontop - Metaloterm US system

• Jeremias/STB - H-Twin system (STB = Chimney-Technics

Brummen NL)

• Jeremias - TWIN-GAS system

The gas !re, in combination with the concentric "ue system [Ø100 mm - Ø150 mm]

(rigid and/or "exible)

for the brand types mentioned above, has been approved in

accordance with the European CE-norm for gas appliances and may therefore be used

only with these systems.

The permitted components for these systems are listed in instructions enclosed:

AVAILABLE COMPONENTS CONCENTRIC FLUE-SYSTEMS FOR BELLFIRES GAS

FIRES WITH CLOSED COMBUSTION SYSTEM. The guarantee on the

appliance lapses if it is installed, fully or partially, with other components or a different

"ue system.

The concentric "ue [Ø100 mm - Ø150 mm] systems can be used with either a

newly-built or existing chimney.

N.B. If any part is missing, please contact your dealer.

1.3 INVENTARIS

Set documentation - Installation instructions & Manual for maintenance

- Instructions for Concentric Components

- Instructions for use & Manual daily maintenance

Attributes - Ceramic log set

- Hook (for opening the frame and the glass)

- Fire glass “Black”

- Fire glass “Dark Amber”

- Embers

- Decorative ash

Bellﬁres English

Installation instructions

1.4 OPTIONS AND ACCESSORIES

The following options and accessories can be supplied by your dealer:

Part no Accessorie

329874 Set carrying brackets (2 pieces)

302278 Adapter ﬂue gas connection

Ø100 mm for stainless steel ﬂex.

302279 Adapter combustion air connection

Ø150 mm for stainless steel ﬂex.

3........ Bellﬁres (M&G) concentric ﬂue system(*)

3........ Poujoulat (DUOGAS) concentric ﬂue system(*)

3........ Ontop (Metaloterm US) concentric ﬂue system(*)

3....... Jeremias/STB - H-TWIN concentric ﬂue system(*)

3....... Jeremias - TWIN-GAS concentric ﬂue system(*)

(*) Please refer to the instructions enclosed:

CONCENTRIC COMPONENTS SUITABLE

FOR THE INSTALLATION OF A BELLFIRES

GAS FIRE WITH CLOSED COMBUSTION

Part no Option

311967 Mantle iron L = 1250 mm

343785 Built-in Frame (3-sided)

343786 Built-in Frame 4 cm deepened

343788 Classic Frame 35 mm

343787 Classic Frame 52 mm

343789 Classic Frame 70 mm

343401 Black mirror rear wall

343790 Steel panel rear wall

343791 Fan set Smart Bell 75-80:

Set, consisting a convection fan (230VAC/39W),

cable, assembly material and convection cover.

Bellﬁres English

Installation instructions

1.5 PREPARATION FOR INSTALLATION

The following preparation must be carried out before the gas !re can be installed.

1.5.1 Instructions for positioning the outlet

1.5.1.1 Positioning the outlet for correct operation:

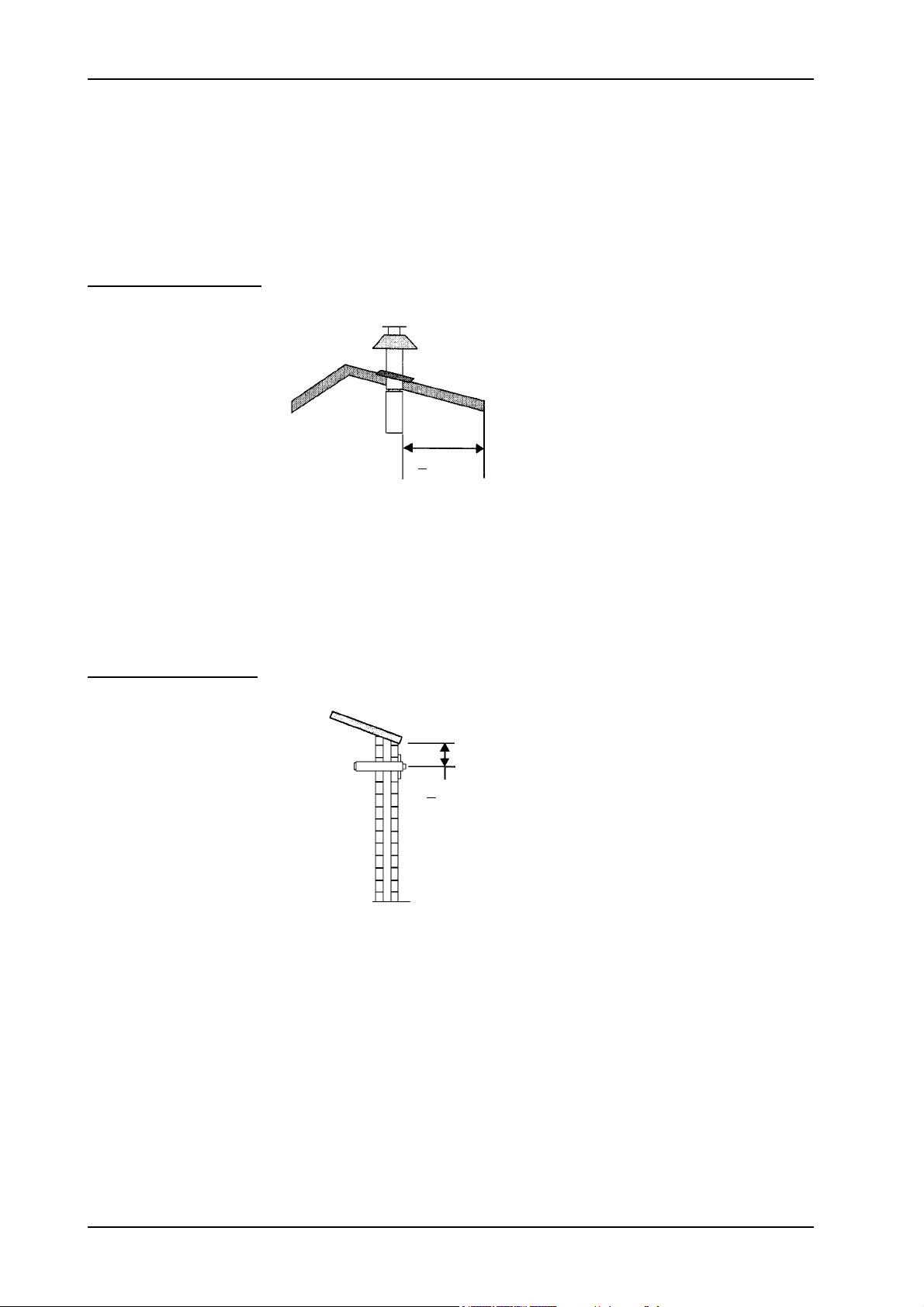

Roof-mounted outlet:

Figure 1: Roof-mounted outlet

This must be positioned at least 0.5 m from the roof edge;

the apex of the roof can be disregarded.

Wall-mounted outlet:

Figure 2: Wall-mounted outlet

This must be positioned at least 0.5 m from:

• the corner of the building.

• the roof overhang, the rain gutter.

• balconies etc., unless the exhaust construction

extends to at least the face of the protruding section.

>0.5 m
