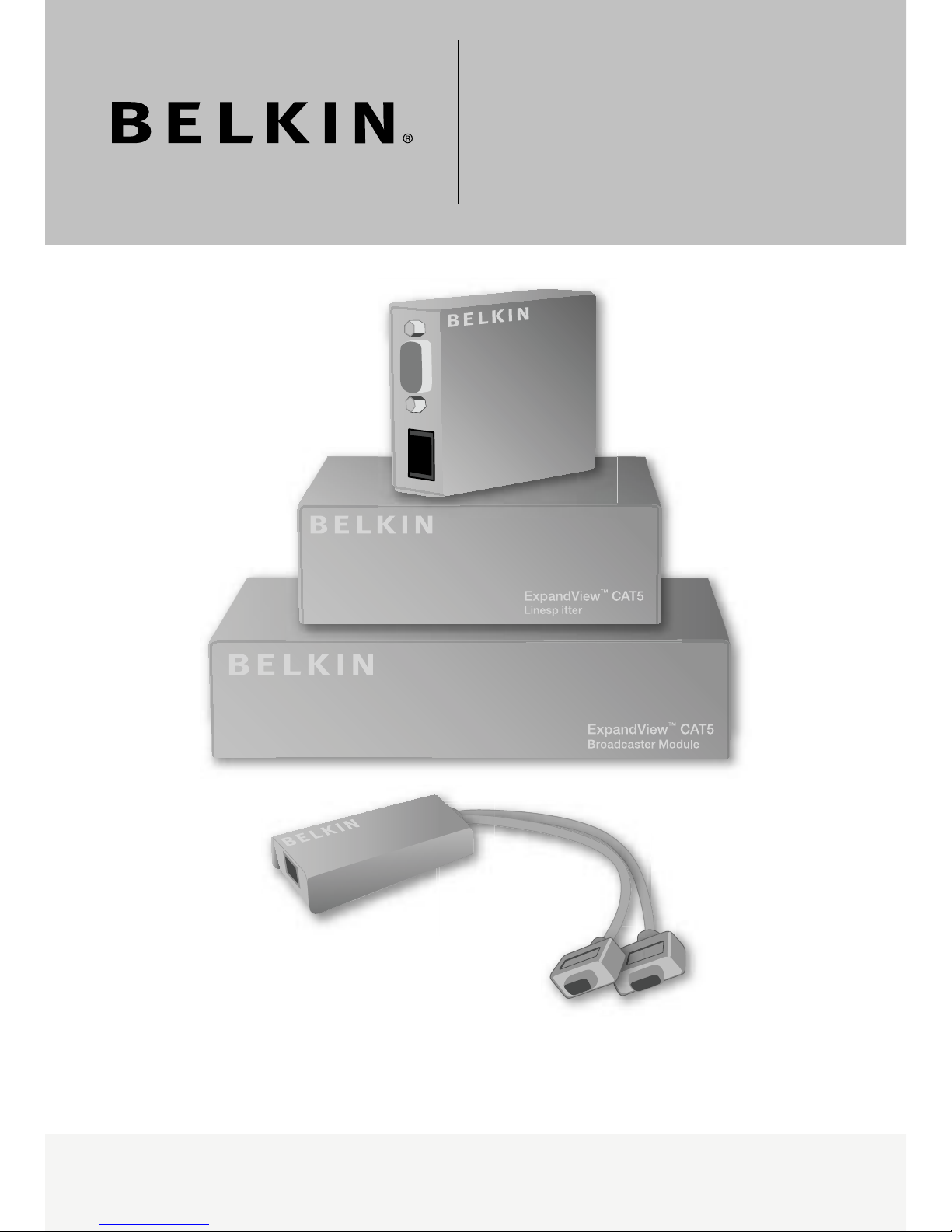

Belkin F1DV108Aea Manuel utilisateur

ExpandView™ CAT5

Quick Installation Guide

F1DV108Aea

















Intoduction

1. What is the ExpandView™ CAT5? ............................................................. 1

Overview

2. The multi-functional ExpandView™ CAT5 ................................................. 2

3. The ExpandView™ CAT5 ........................................................................... 3

Installation

4. Expanding the ExpandView™ CAT5 .......................................................... 5

5. Pre-installation instructions ..................................................................... 5

6. The ExpandView™ CAT5 cables ................................................................ 5

The Remote Video cable .......................................................................... 6

Connecting the CAT5 cables .................................................................... 6

Power supply ............................................................................................ 6

Configuration

7. The ExpandView™ CAT5 configuration for a CBT application .................. 7

8. ExpandView™ CAT5 detailed connections ................................................ 8

9. The ExpandView™ CAT5 configuration without remote computers ......... 9

10. Operating the ExpandView™ CAT5 ....................................................... 10

Technical Specifications

Technical Specifications ............................................................................. 11

TABLE OF CONTENTS

1. What is the ExpandView™ CAT5?

The ExpandView™ CAT5 from Belkin broadcasts real-time high-resolution video

signals to hundreds of remote display monitors.

The ExpandView™ CAT5 consists of the following:

• Broadcaster + Control Unit

• Line Splitters to expand the system

• Remote module that connect to each remote monitor/computer

• Dual Remote module connects 2 monitors to the system

CAT5 UTP or FTP cables connect the ExpandView™ CAT5.

The Remote units can be up to 110m/360ft away from the Broadcaster.

This Quick Installation Guide illustrates the ExpandView™ CAT5

and explains how to install and operate it.

INTRODUCTION

3. The ExpandView™ CAT5

The figures below illustrate the Broadcaster module, Line Splitter, Remote

module and Dual Remote module.

2. The multi-functional ExpandView™ CAT5

You can use the ExpandView™ CAT5 in the following ways:

(A) Without the Control Unit

The ExpandView™ CAT5 constantly broadcasts a computer screen to all

remote monitors.

(B) With the Control Unit

• Broadcast a computer screen to all remote monitors

• Darken all remote screens

• Release the remote screens to allow local monitor viewing (when remote

computers are connected).

The screen dark function is useful when carrying out maintenance, changing

the broadcast program or in a classroom environment to grab students’

attention.

With both applications broadcast the video up to resolutions

of 1600 x 1200 @ 75Hz depending on the cable length.

OVERVIEW OVERVIEW

Power

Connector

System

Cables

Monitor

ExpandView CAT5

Control Unit

Video Cable

Power

Connector

System

Cables

System cable from Broadcaster or

previus Line Splitter

Broadcaster Module

Linesplitter

OVERVIEW INSTALLATION

4. Expanding the ExpandView™ CAT5

You can expand the ExpandView™ CAT5 to 512 Remote modules by having

2 levels of Line Splitters. Level 1 Line Splitters can have 8 Remote modules or

Line Splitters connected. Level 2 Line Splitters can have 8 Remote modules

connected. (See page 7).

5. Pre-installation instructions

Note! In the ExpandView™ CAT5 the CAT5 UTP or FTP cables carry electrical

power. Therefore do NOT connect them to any other device. To avoid this we

recommend you attach the stickers provided to the ends of each cable.

Place cables away from fluorescent lights, air conditioners and machines

that are likely to generate electrical noise.

6. The ExpandView™ CAT5 VGA video cables

The Video cable is illustrated below. Connect the cable as explained.

Video

Cable

System

Cables


adjuster

SIDE A SIDE B

To monitors

Dual Remote

Module

To monitors

Remote Module

Dual Remote Module

Monitor

System

Cables

To Computer’s

Video Card

To Broadcaster’s

or Remote’s Video

In port

Broadcaster & Remote Video cable

The Remote Video cable

The Remote Video cable is only used with the Remote module when the

Dongle is connected to a computer.

Connecting the CAT5 cables

Please note! Connect the CAT5 cables to the Broadcaster and Line Splitter

modules when the modules are powered off. We recommend that you

connect the CAT5 cables BEFORE connecting the power supply.

Power supply

Connect the Broadcaster and Line Splitters to the power supply with the

12 VDC, 2A from the AC/DC adapter provided. The Remote modules and

the Dual Remote module receive 12 VDC, 160 mA via the CAT5 cables

from the Broadcaster or Line Splitter.

7. The ExpandView™ CAT5 configuration for a CBT application

The figure below illustrates the ExpandView™ CAT5 configuration with the

ExpandView™ CAT5 Control Unit and the optional remote computers.

The Dual Remote module has no VGA input and is therefore not suitable

for CBT applications.

INSTALLATION CONFIGURATION

Control

Unit

Broadcaster Module

Video cable

Broadcaster

Computer

Remote

Computer

Remote

Computer

Remote

Computer

Video cable

Remote

module

Remote

module

Remote

module

CAT5 cables

to Remotes or

Line Splitters

CAT5 cables

to Remotes or

Line Splitters

CAT5 cables

to Remotes

CAT5 cables

to Remotes

Level 2

Level 1 Line

Splitter

Line

Splitter

CAT5 cables to

Broadcaster or

Line Splitters

Dual

Remote

module

8. ExpandView™ CAT5 detailed connections

The figure below illustrates the detailed connections of the ExpandView™ CAT5.

9. The ExpandView™ CAT5 configuration without remote computers

The figure below illustrates the ExpandView™ CAT5 configuration without

optional computers connected to the Remote modules and the Dual Remote

module. Connect the Broadcaster and Line Splitters as in figure 1.

Figure 2 illustrates the detailed connections of the Remote module.

CONFIGURATION CONFIGURATION

Control

Unit

Broadcaster

Module

Broadcaster

Computer

Remote

Computer

Video cable

Remote

module

CAT5 cables

to Remotes or

Line Splitters

CAT5 cables

to Remotes or

Line Splitters

CAT5 cables

to Remotes

CAT5 cables

to Remotes

Line

Splitter

Line

Splitter

CAT5 cables

to Remotes or

Line Splitters

CAT5 cables

to Remotes or

Line Splitters

Broadcaster

Computer

Broadcaster Module

Line

Splitter

Line

Splitter

Video cable

Remote

module

Dual

Remote

module

Remote

module

CAT5 cables

to Remotes

CAT5 cables

to Remotes or

Line Splitters

CAT5 cables

to Remotes or

Line Splitters

Control

Unit

Dual Remote Module

Instead of the Remote module,

use the Dual Remote Module

to connect 2 screens to the

Broadcaster or Line Splitter

via CAT5 cable. The 2 screens

display the images broadcast

by the Broadcaster computer.

Remote Module

Remote

module

CAT5 cables to Broadcaster

or Line Splitters

Figure 1

Figure 2

Figure 3

10. Operating the ExpandView™ CAT5

Once connected, the ExpandView™ CAT5 broadcasts to all remote monitors.

The Control Unit

The Control Unit is illustrated below

With the ExpandView™ CAT5 Control Unit carry out the following functions:

Master to all

Press the Master to all button to send the broadcaster’s screen

to all remote monitors. The LED above the button lights up.

Press the button again to release the remote monitors.

Dark all

Press the Dark all button to darken all remote screens.

The LED above the button lights up.

Press the button again to release the remote screens.

11. Adjusting the picture quality

Use a small screwdriver to turn the Picture adjuster on the Remote module to

adjust the picture quality.

SYSTEM

Resolution Up to 1600x1200 @ 75 Hz

System cable CAT5 UTP or FTP 2x4x24

AWG Solid Wire Conductor cable

Max distance 110m/360ft

Input/Output Video Signals Analog signal red, green, blue 0.7v p-p 75 Ohm

Sync. TTL compatible

Horizontal/Vertical Sync. Polarity Positive/Negative

Operating temperature 0ºC to 40ºC/32ºF to 104ºF

Storage temperature -40ºC to 70ºC/-40ºC to 158ºF

Humidity 80% non condensing relative humidity

Warranty 3 Years

BROADCASTER

MODULE

LINE SPLITTER REMOTE MODULE

Cables & Connectors VGA In - HDD15M System In - RJ45 System In - RJ45

VGA Out - HDD15F System Out - RJ45 CPU VGA - HDD15M

System Out - 8 Ports

RJ45

Screen - HDD15F

Control - MiniDin8F

Dimensions 175 x 96 x 42mm/

0.57 x 0.38 x 0.14ft

118 x 96 x 42mm/

0.39 x 0.38 x 0.14ft

78 x 62 x 23mm/ 0.31

x 0.26 x 0.07ft

Power supply External Power

Adapter 12VDC 2A

External Power

Adapter 12VDC 2A

From previous unit

through CAT5 cable

DUAL REMOTE MODULE

Cables

& Connectors

System In - RJ45

Screen x 2 - HDD15F

Power

supply

From previous unit

through CAT5 cable

CONFIGURATION TECHNICAL SPECIFICATIONS

To Broadcaster’s

Control port

P75110ea

are registered trademarks of respective manufacturers listed.

Belkin Ltd.

Express Business Park

Shipton Way, Rushden

NN10 6GL, United Kingdom

+44 (0) 1933 35 2000

+44 (0) 1933 31 2000 fax

Belkin B.V.

Boeing Avenue 333

1119 PH Schiphol-Rijk

The Netherlands

+31 (0) 20 654 7300

+31 (0) 20 654 7349 fax

Belkin GmbH

Hanebergstraße 2

80637 Munich

Germany

+49 (0) 89 143405 0

+49 (0) 89 143405 100 fax

Belkin SAS

130 rue de Silly

92100 Boulogne-Billancourt

France

+33 (0) 1 41 03 14 40

+33 (0) 1 41 31 01 72 fax

Belkin Nordic

Knarrarnäsgatan 7

164 40 Kista

Sweden

+46 (0) 8 5229 1870

+46 (0) 8 5229 1874 fax

Belkin Iberia

Avda. Cerro del Aguila 3

28700 San Sebastián de los Reyes

Spain

+34 (0) 9 16 25 80 00

+34 (0) 9 02 02 00 34 fax

Belkin Tech Support

Europe: 00 800 223 55 460

ExpandView™ CAT5

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Belkin Changer

Belkin

Belkin Network USB Hub Manuel utilisateur

Belkin

Belkin ExpressBus F5U001 Manuel utilisateur

Belkin

Belkin OmniView F1DK102P Manuel utilisateur

Belkin

Belkin Network USB Hub Manuel utilisateur

Belkin

Belkin F5U221 Manuel utilisateur

Belkin

Belkin Bitronics AutoSwitch Kit Manuel utilisateur

Belkin

Belkin F5U231 F5U231ea Manuel utilisateur

Belkin

Belkin F5U302 - Wireless USB Hub Manuel utilisateur

Belkin

Belkin F5U301 - CableFree USB Hub Manuel utilisateur

Belkin

Belkin BusStation F5U1000 Manuel utilisateur

Belkin

Belkin F5L009EA Manuel utilisateur

Belkin

Belkin F5U416 - Clip-On Hub Manuel utilisateur

Belkin

Belkin Secure KVM - NIAP PP4.0 Manuel de service

Belkin

Belkin OmniView F1DP104Aea Manuel utilisateur

Belkin

Belkin OMNIVIEW P72021 Manuel utilisateur

Belkin

Belkin OmniView F1DJ102P-B Manuel utilisateur

Belkin

Belkin F5U403 Manuel utilisateur

Belkin

Belkin F1DG102U - Flip USB With Audio KVM Manuel utilisateur

Belkin

Belkin OmniView F1DH102U Manuel utilisateur

Belkin

Belkin OMNIVIEW F1DA104PEA Manuel utilisateur

Belkin

Belkin F4U006 - Travel USB Hub Manuel utilisateur

Belkin

Belkin OmniView F1D104 Manuel utilisateur

Belkin

Belkin F1DN102C Manuel utilisateur

Belkin

Belkin F1DA116Z Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
