Belkin SURF N300 Manuel utilisateur

N300 WIRELESS HOME NETWORK

ROUTER

User Manual

8820ed00831uk F9K1010

ENGLISH

TABLE OF CONTENTS

Troubleshooting, Support, and Warranty ................... 42

Troubleshooting .............................................42

Belkin International, Inc., Limited 2-Year Product Warranty......... 47

European Compliance Statement:..............................49

General Safety Information: ................................... 49

What’s in the Box ............................................. 3

Initial Setup.................................................. 3

How to Set It UP .............................................. 4

Adding Computers to Your Network ............................. 5

Manually Set Up Your Internet Connection ....................... 6

Front Panel ................................................. 12

Back Panel ................................................. 13

Technical Details ........................................ 14

Technical Features .......................................... 14

System Requirements........................................ 15

USING YOUR ROUTER .................................... 16

Using the LAN IP Setup ...................................... 16

Configuring Your Internet Connection........................... 18

Cloning your MAC address.................................... 24

Enabling Website Filtering .................................... 25

Configuring Basic Wireless Settings............................ 25

Restarting Your Router ....................................... 27

Restoring Your Router to Factory Defaults ....................... 28

Backing Up Your Configuration ................................ 29

Restoring Previous Settings................................... 31

Enabling Auto Firmware Update for Your Router.................. 33

Updating the Router’s Firmware ...............................34

Configuring Administrator Password............................ 37

Configuring Time Zone .......................................38

Configuring Remote Management..............................39

Configuring UPnP ...........................................40

Configuring the Eco Mode .................................... 40

Configuring Self Healing...................................... 41

GETTING STARTED

What’s in the Box

N300 Wireless Router

Ethernet cable

Power supply

Belkin CD with User Manual

Quick Installation Guide

Service Card

Initial Setup

Where to Place Your Router

For the best results, place the Router next to your modem in

an open location away from large metal objects and magnets

such as those found in speakers. Raising the Router above

floor level can improve the strength of your wireless signal.

GETTING STARTED

How to Set It UP

Connect Your N300 Router

1. Turn off your modem by disconnecting its power supply.

2. Connect your Router to your modem using the cable.

3. Power up your modem by plugging in its power supply.

4. Power up your Router by plugging in its power supply.

GETTING STARTED

Adding Computers to Your Network

Wireless devices such as computers, network printers, and gaming

systems can connect to your Router with a few simple steps.

Manual Setup

If you know what sort of Internet service you have,

you might try a manual setup. For this you will need a

Wi-Fi-enabled smartphone, tablet, or computer.

Wirelessly Connect to Your Router

The default network name and password are

printed on the foot of the Router.

Use your computer, tablet, or smartphone to connect to

the wireless network shown on the network ID card.

When requested, please enter the password

(security key) provided on the card.

Using the WPS Button

Start WPS Push Button Connection (WPS PBC) on your computer or

other Wi-Fi device that you would like to connect wirelessly to your

Router. Often there will be a button for this purpose in software that

came with the device, or a physical “WPS” button on the device itself.

Within two minutes, press the WPS button on your Router.

The WPS indicator will blink green while it listens for your

Wi-Fi device. Once a connection is established, the light

will turn green for about 5 minutes and then go out. If a

connection is not established, the light will blink green

for 30s. You may repeat the process to try again.

You can repeat this process for each WPS-enabled

device you’d like to add to your network.

GETTING STARTED

Manually Set Up Your Internet Connection

Use a browser to visit http://Router/. The

Router homepage should appear.

You can also try visiting http://192.168.2.1/.

The status of your Internet connection is shown in the

upper right corner of the Router homepage.

If after a few moments it says “Connected”,

you’re done! You can surf the Internet.

GETTING STARTED

If not, select “Connection Type” from the menu on the left.

GETTING STARTED

If a password screen appears, press “Submit”. Dynamic Connection

Cable and fiber customers generally require a dynamic connection.

Some DSL customers require a PPPoE connection. Let’s try dynamic

first. Select “Dynamic” from the menu that appears and press “Next”.

GETTING STARTED

Enter the host name provided by your Internet

service provider. Click “Apply Changes”.

If after a few minutes your Internet Status says

“Connected”, you’re done! You can surf the Internet.

If these steps do not work, try restarting your

modem and repeating the process.

If not, we’ll try a PPPoE connection next.

GETTING STARTED

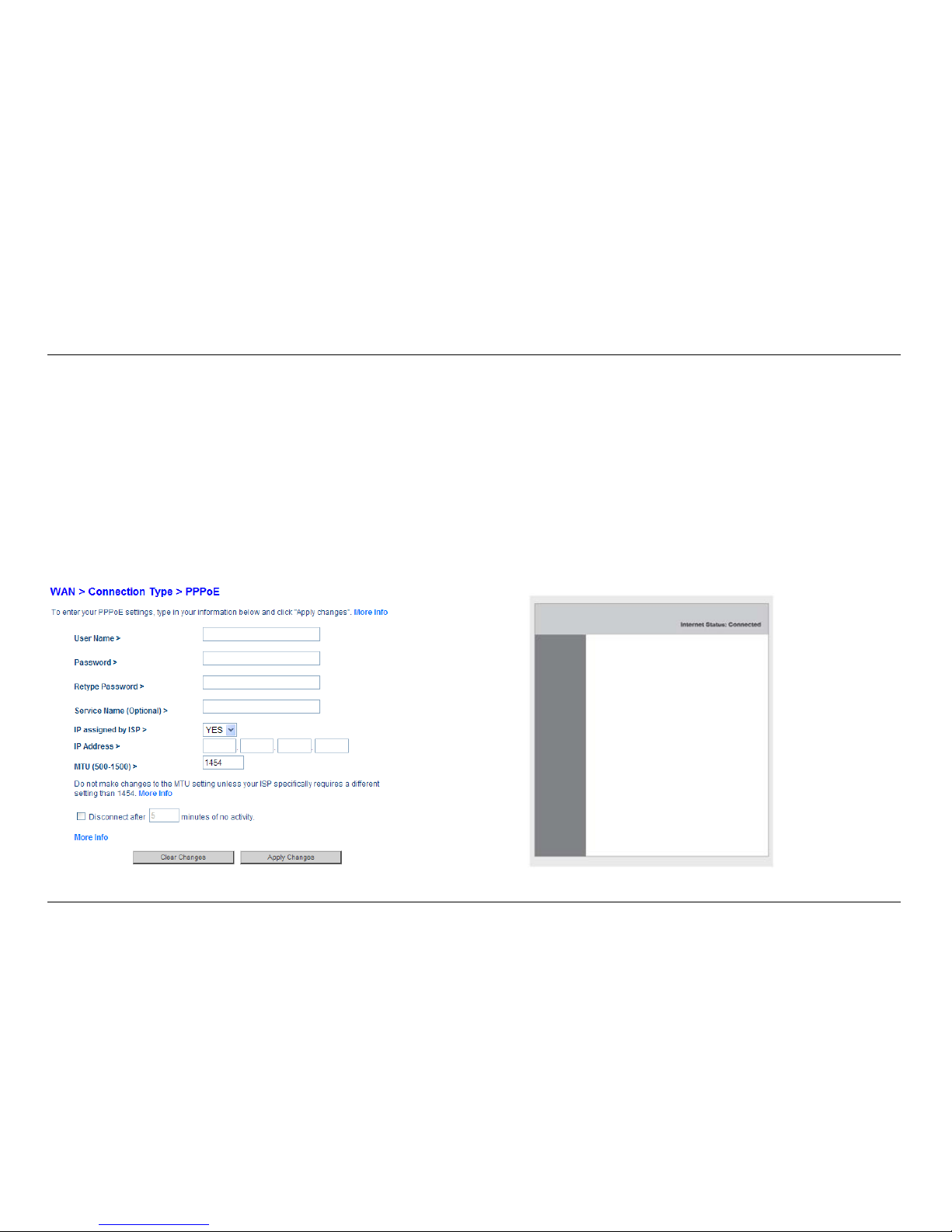

PPPoE Connection

Some DSL customers require a PPPoE connection.

Select PPPoE this time and press “Next”.

Enter the username and password supplied by your Internet

provider and click “Apply Changes”. Ignore the other fields.

\If after a few minutes your Internet Status says

“Connected”, you’re done! You can surf the Internet.

If these steps do not work, try restarting your

modem and repeating the process.
