Belkin F1DN002A Manuel utilisateur

Advanced Secure Headset Adapter

User Manual

F1DN002A – Belkin Secure Headset Adapter

Document Number 8820-01352 Rev. A02

Belkin®Advanced Secure Headset Adapter User Manual

TABLE OF CONTENTS

SECTIONS

123456

Table of C on tents

Introduction .............................................. 1

Package Contents.........................................1

Safety Precautions ........................................2

Overview ................................................. 3

Security Features .........................................3

Operational Features ......................................4

Equipment Requirements ...................................5

Unit Display Diagrams .....................................7

Specifications ...........................................10

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Before Installation ........................................11

Connection and Installation ................................12

Operation ...............................................13

Operating the Belkin Advanced Secure

Headset Adapter .........................................13

Troubleshooting .........................................16

Information..............................................17

Reporting Belkin Product Security Vulnerability..............20

Belkin®Advanced Secure Headset Adapter User Manual

INTRODUCTION

SECTIONS

Table of C on tents 23456

Thank you for purchasing this Belkin Advanced Secure Headset Adapter.

This User Manual provides all the details you’ll need to install and

operate your new product, and also to troubleshoot it in the unlikely

event of a problem.

What is a Secure Headset Adapter?

The Belkin Advanced Secure Headset Adapter is used to securely

connect analog audio devices such as microphones or headsets to

classified computers. The Belkin Advanced Secure Headset Adapter

is the perfect security solution in cases where the classification of the

computer is lower than the classification of the call made. The Belkin

Advanced Secure Headset Adapter protects audio input devices such

as microphones and headsets with the help of a physical microphone

mute push button that disables the microphone if pushed.

Package Contents

r Belkin Advanced Secure Headset Adapter

r 5V 1A DC Power Supply

r 3.5mm Male (x2) to 3.5mm Male (x1) Audio Cable (6ft)

r 3.5mm Male (x2) to 3.5mm Female (x1) Audio Cable (6ft)

r Cisco Adapter to 3.5mm (x2) Audio Cable (6ft)

r 3.5mm Male (x2) to 3.5mm Male (x2) Audio Cable (6ft)

r User Manual

Important Security Note:

If you are aware of potential security vulnerability while installing or

operating this product, we encourage you to contact us immediately

at the following email address:

gov_security@belkin.com

Important:

This product is equipped with an always-on active anti-tamper

system. Any attempt to open the enclosure may activate the anti-

tamper system and render the unit permanently inoperable. If

the unit’s enclosure appears disrupted or if all the port LEDs

flash continuously, please call Belkin Technical Support at

1 (800) 282-2355.

Belkin®Advanced Secure Headset Adapter User Manual

SECTIONS

Table of C on tents 23456

INTRODUCTION

Safety Precautions

Please read the following safety precautions carefully before using the

Belkin Secure Headset Adapter:

r Before cleaning, disconnect the product from DC.

r Be sure not to expose the product to excessive humidity.

r Be sure to install the product on a clean secure surface.

r Do not place the DC/AC power cord in a path of foot traffic.

r If the product is not used for a long period of time, remove the

product’s wall-mount power supply from the main jack.

r The product should be stored and used only in temperature and

humidity-controlled environments as defined in the product’s

environmental specifications.

r The wall-mount power supply used with this product should be

the model supplied by the manufacturer or an approved equivalent

provided by Belkin or an authorized service provider. The use of

an improper power source will void product warranty.

r If one of the following situations occurs, get the product checked

by a qualified service technician:

– The product’s power supply overheats, is damaged or broken,

causes smoke, or shortens the main power socket.

– Liquid penetrates the product’s case.

– The product is exposed to excessive moisture or water.

– The product is not working properly even after carefully

following the instructions in this user’s manual.

– The product has been dropped or is physically damaged.

– The product has obvious signs of breakage or loose internal

parts.

Belkin®Advanced Secure Headset Adapter User Manual

OVERVIEW

SECTIONS

Table of C on tents 1 3456

Security Features

The Belkin Advanced Secure Headset Adapter is a unique and secure

product used to protect audio devices. Below is a summary of some key

security features incorporated into this product:

Analog Audio Data Diode

Preventing audio stream from headphones flowing back to the computer’s

audio jack. The only effective means to protect from remote eavesdropping

through connected headphones configured as a microphone.

Timer Function

The Belkin Advanced Secure Headset Adapter is equipped with a timer

function with a clear indicator LED to warn the user that the microphone

or headset is active.

Independent Microcontroller

Attacks from connected computers are prevented by the Belkin Advanced

Secure Headset Adapter’s isolated microcontroller. The product cannot

be tampered with or be controlled by a connected computer.

Secure Mute Function

The audio device can be securely muted through microphone electrical

isolation and input shorting.

Microphone Enable Push-Button

Microphone enable push-button with an internal 60-second timer

preventing the option that an open microphone can be abused for

environment eavesdropping.

Active Always-On Anti-Tampering

Active always-on chassis anti-tampering system prevents the Belkin

Secure Headset Adapter electronic circuitry from being accessed and

tampered with by permanently disabling the product once tampering is

detected. (Both microphone and headset are grounded.)

Tamper-Evident Label

A holographic security tamper-evident label is placed on the enclosure

to provide a visual indication if the Adapter has been opened or

compromised.

Please note: Belkin Secure products cannot be upgraded, serviced

or fixed.

Secure Packaging

“Tear away” packaging ensures secure delivery of the product as it is

routed to the end user. The recyclable packaging also breaks down flat,

simplifying the cleanup process.

Non-Reprogrammable Firmware

All firmware resides on ROM. The product features custom firmware

that is not reprogrammable, preventing the ability to remotely attack

the Headset Adapter.

Belkin®Advanced Secure Headset Adapter User Manual

SECTIONS

Table of C on tents 1 3456

OVERVIEW

Operational Features

The Belkin Advanced Secure Headset Adapter was designed with the

user in mind for today’s IT environment. Below is a summary of some

key operational features incorporated into the product.

Crystal-Clear Audio Quality

The Belkin Advanced Secure Headset Adapter is equipped with active

diode circuitry to assure that audio is passed in the right direction and

is not distorted or attenuated. Security features do not affect audio

quality.

Increased Reliability

Using a new, advanced anti-tampering battery with an extremely

low self-discharge rate, the life expectancy of the product has been

increased dramatically to over 25 years.

No USB Interface

The Belkin Advanced Secure Headset Adapter has no USB interface,

preventing the need to change existing audio equipment and preventing

the use of unsecure USB audio.

Easy Integration

The Belkin Advanced Secure Headset Adapter supports a wide range

of Belkin Secure switching products including KVM and KM switches.

Clear Indication

The Belkin Advanced Secure Headset Adapter has the ability to extend

the time interval of the microphone while the audio quality is not affected

at all. The Belkin Advanced Secure Headset Adapter provides the user

with a clear audio indication when the time interval is close to finishing.

Belkin®Advanced Secure Headset Adapter User Manual

SECTIONS

Table of C on tents 1 3456

OVERVIEW

Equipment Requirements

User Operating-System (OS) Support

The Belkin Advanced Secure Headset Adapter is compatible with

computers running on the following OS platforms:

r Windows®2000

r Windows XP (Home/Professional)

r Windows 2003 Server

r Windows 7

r Windows 8

r Unix®

r Linux®

r MacOS®

User Audio Devices

The Belkin Advanced Secure Headset Adapter is compatible with the

following types of user audio devices:

r Stereo headsets

r Amplified stereo speakers

r Microphones

r Cisco IP phones

r Mobile Devices (phones, tablets)

r PCs with 3.5mm audio jacks

Belkin®Advanced Secure Headset Adapter User Manual

SECTIONS

Table of C on tents 1 3456

OVERVIEW

Required Cables for Advanced Secure Headset Adapter Setup

Included - F1D9033-06

Connected Devices Not Included

Included - F2CV020-06

Included - F1D9031-06

Included - F1D9016b-06

Belkin®Advanced Secure Headset Adapter User Manual

SECTIONS

Table of C on tents 1 3456

OVERVIEW

F1DN002A Front Panel Features

1Microphone Disable Push-Button + Red LED

2Microphone Enable/Extend Push-Button + Green LED

3Tamper-Evident Label

Belkin®Advanced Secure Headset Adapter User Manual

SECTIONS

Table of C on tents 1 3456

OVERVIEW

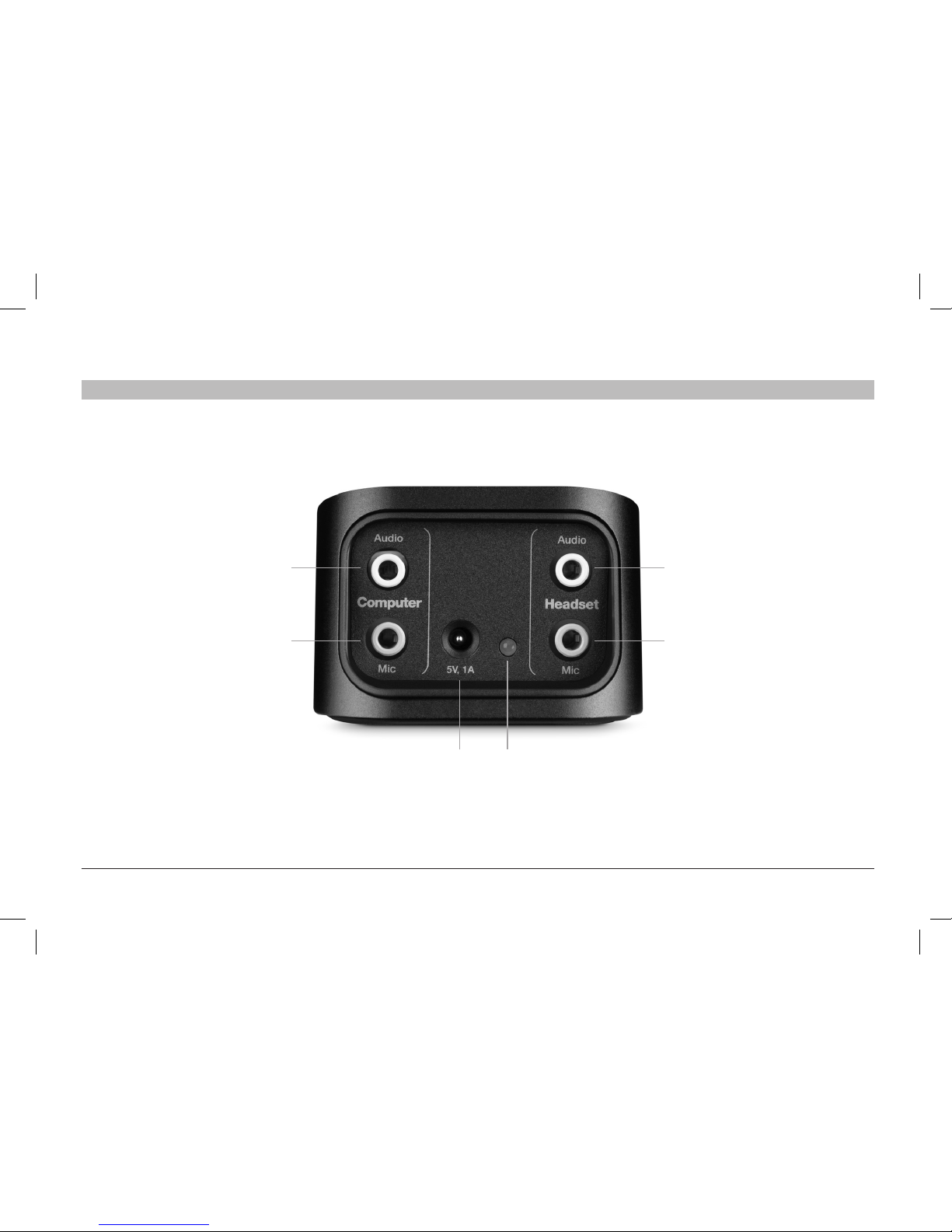

F1DN002A Back Panel Features

3 4

1Audio Cable Jack (to PC) 4Admin LED (bi-color green/red)

2Microphone Cable Jack (to PC) 5Microphone Jack

3Power Supply DC Jack 6Audio Jack
