3.46"

[88]

8.5" [216]

3.3"

[84]

2.49"

[63.4]

1.35"

[35]

AR...24-3 Actuators, On/Off, FloatingPoint

Models

ARB24-3

ARB24-3-S w/built-in Aux. Switch

ARX24-3

Flexible

ARX24-3-S Flexible w/built-in Aux.Switch

ARB24-3-5-14

ARX24-3-5-14

Dimensions with 2-Way Valve

ValveNominal Size

Dimensions (Inches [mm])

Valve Body

Inches DN[mm] A

B231-B232

1¼” 32 3.72” [94.6]

1.98” [50.4]

B238-B240

1½” 40 3.88” [98.5]

1.98” [50.4]

B248-B250

2” 50 4.21” [107.0]

2.21” [56.2]

B251-B254

2” 50 4.93” [125.2]

2.68” [68.0]

B261-B265

2½” 65 5.55” [140.9]

2.68” [68.0]

B277-B280

3”80 5.82” [147.9]

2.68” [68.0]

Technical Data

Control

on/off, floating point

Power supply

24 VAC ± 20% 50/60 Hz

24 VDC ± 10%

Powerconsumption

running

holding

2.5 W

0.2 W

Transformer sizing

5.5 VA (class 2 power source)

Electrical connection

ARB24-3...

ARX24-3...

½” conduit connector

18 GA plenum rated cable

3 ft. [1m]

3 ft. [1m] 10 ft. [3m] 16 ft. [5m]

Overload protection

electronic throughout 0° to 95° rotation

Input impedance

600





Angle of rotation

90°, adjustable with mechanical stop

Direction of rotation

reversible with protected

Position indication

handle

Manual override

external push button

Running time

ARB24-3...

ARX24-3...

90 seconds

300, 150, 90 seconds,

constant independent of load

Humidity

5to95%RHnon-condensing(EN60730-1)

Ambient temperature

-22°F to 122°F [-30°C to 50°C]

Storage temperature

-40°F to 176°F [-40°C to 80°C]

Housing

NEMA 2/IP54

Housing material

UL94-5VA

Agency listings†

cULus according to UL 60730-1A/-2-14,

CAN/CSA E60730-1:02, CE according to

2004/108/EC and 2006/95/EC for line voltage

and/or –S versions

Noise leve

<45 dB(A)

Quality standard

ISO 9001

AR...24-3-S

Auxiliary switch (-S models)

1xSPDT,3A(0.5A)@250VAC,ULListed,

adjustable 0 to 90°

†Ratedimpulsevoltage800V,Controlpollutiondegree3,Typeofaction

(1.B for -Smodels)

Dimensions with 3-Way Valve

ValveNominalSize Dimensions (Inches[mm])

Valve Body nches DN[mm] A B C

B329-B331

1¼”

3.96” [100.6]

2.21” [56.2]

2.14” [54.3]

B338-B341

1½”

4.39” [111.6]

2.45” [62.2]

2.33” [59.1]

B347-B352

2”

4.90” [124.5]

2.68” [68.0]

2.60” [66.0]

D152

D155

O50905- 05/12-Subjecttochange.©BelimoAircontrols (USA),Inc.

Encontre Belimo na RSA - A mais completa em soluções para HVAC e Automação - Avenida Ragueb Chohfi, 960 - Torre 3, Sala 73 - Jardim Três Marias, São Paulo-SP, Cep: 08375-000 -

Telefone Sac: 55 11 2031 6658 / Whats App 55 11 9799 6574 - Email: contato@rsistemasdeautomacao.com.br - Site: http://www.rsistemas-automacao.com.br/empres/empres.aspx

AR...24-3 Actuators, On/Off, Floating Point

Dimensions

3.46"

[88]

CAUTION Equipment damage!

Actuators may be connected in parallel.

Power consumption and input impedance must be observed.

For end position indication, interlock control, etc.,

ARB24-3-S incorporates one built-in auxiliary switches:

1xSPDT,3A(0.5A)@250VAC,ULlisted,adjustable0°to95°.

Actuators may alsobepoweredby24VDC.

Meets cULus or UL and CSA requirements without the

need of an electrical ground connection.

ARNIN

IVE

Electrical

omponents

During installation, testing, servicing and troubleshooting ofthis product, it may

benecessaryto work withlive electrical components. Havea qualified licensedelectrician

orotherindividual who has been properly trained inhandling live electrical components

perform these tasks. Failure tofollow all electrical safetyprecautions when exposed tolive

electricalcomponentscouldresultindeathorserious injury.

8.5" [216]

3.3"

[84]

2.49"

[63.4]

1.35"

[35]

Auxiliary switch

ARB24-3-S

0° to 95°

Floating Point or On/Offcontrol

ARB24-3

1 0

The indication of direction

is valid for switch position 1.

Blk (1) Common –

Red (2) +

Wht (3) +

Line

Volts

24 VAC Transformer

On/Offcontrol

ARB24-3

1 0

The indication of direction

is valid for switch position 1.

Wht (3) +

a open

a closed

Blk (1) Common –

Red (2) +

Line

Volts

24 VAC Transformer

Wiring Diagrams

O50905- 05/12-Subjecttochange.©BelimoAircontrols (USA),Inc.

W410

W411

W409

Valve Nominal Top Flange Face-to-Face

Body Pipe Flange Diameter Length

Height

Size Design

F05

7.50" [190.5]

8.00" [203.2]

5.50" [139.7]

6.60" [167.6]

8.10" [205.4]

8.40" [213.1]

B6250

B6300

2½" [65]

3" [80]

B6400

4" [100]

9.00" [228.6]

8.30" [210.8]

9.30" [235.9]

Encontre Belimo na RSA - A mais completa em soluções para HVAC e Automação - Avenida Ragueb Chohfi, 960 - Torre 3, Sala 73 - Jardim Três Marias, São Paulo-SP, Cep: 08375-000 -

Telefone Sac: 55 11 2031 6658 / Whats App 55 11 9799 6574 - Email: contato@rsistemasdeautomacao.com.br - Site: http://www.rsistemas-automacao.com.br/empres/empres.aspx

AR...24-SR Actuators, Proportional

Models

ARB24-SR

ARX24-SR

Flexible Version

Technical Data

Power supply

24 VAC ± 20% 50/60 Hz

24 VDC ± 10%

Powerconsumption

running

holding

2.5 W

0.4 W

Transformer sizing

5 VA (class 2 power source)

Electrical connection

½” conduit connector

18 GA plenum rated cable

3 ft [1m], 10 ft [3m], 16 ft [5m]

Overload protection

electronic throughout 0° to 95° rotation

Operating range Y

2 to 10 VDC, 4 to 20 mA

Feedback output U

1 to 10 VDC, max 0.5 mA

nput impedance

100 k (0.1 mA), 500





Angle of rotation

90°, adjustable with mechanical stop

Torque

180 in-lb [20 Nm]

Direction of rotation

reversible with protected

Position indication

handle

Manual override

external push button

Running time

ARB24-SR...

ARX24-SR...

90 seconds

300, 150, 90 seconds,

constant independent of load

Humidity

5 to 95% RH non-condensing

(EN 60730-1)

Ambient temperature

-22°F to +122°F [-30°C to +50°C]

Storage temperature

-40°F to +176°F [-40°C to +80°C]

Housing

NEMA 2/IP54

Housing material

UL94-5VA

Agency listings†

cULus according to UL 60730-1A/-2-14,

CAN/CSA E60730-1:02, CE according to

2004/108/EC and 2006/95/EC for line voltage

and/or –S versions

Noise leve

<45 dB(A)

Quality standard

ISO 9001

†Ratedimpulsevoltage800V,Controlpollutiondegree3,Typeofaction

(1.B for -Smodels)

Dimensions with 2-Way Valve

ValveNominal Size

Dimensions (Inches [mm])

Valve Body

Inches DN[mm] A

B231-B232

1¼” 32 3.72” [94.6]

2.04” [51.9]

B238-B240

1½” 40 3.88” [98.5]

2.04” [51.9]

B248-B250

2” 50 4.21” [107.0]

2.27” [57.7]

Dimensions with 3-Way Valve

ValveNominalSize Dimensions (Inches[mm])

Valve Body nches DN [mm] A B C

B329-B331

1¼”

3.96” [100.6]

2.27” [57.7]

2.14” [54.3]

B338-B341

1½”

4.39” [111.6]

2.51” [63.7]

2.40” [61.1]

B347-B352

2”

4.90” [124.5]

2.73” [69.5]

2.74” [69.7]

D152

D152-2

O50905- 05/12-Subjecttochange.©BelimoAircontrols (USA),Inc.

Encontre Belimo na RSA - A mais completa em soluções para HVAC e Automação - Avenida Ragueb Chohfi, 960 - Torre 3, Sala 73 - Jardim Três Marias, São Paulo-SP, Cep: 08375-000 -

Telefone Sac: 55 11 2031 6658 / Whats App 55 11 9799 6574 - Email: contato@rsistemasdeautomacao.com.br - Site: http://www.rsistemas-automacao.com.br/empres/empres.aspx

AR...24-SR Actuators, Proportional

CAUTION

Equipment damage!

Actuators may be connected in parallel.

Power consumption and input impedance must be observed.

Actuators may also be powered by 24 VDC.

Only connect common to neg. (–) leg of control circuits.

The ZG-R01500



resistor converts the 4to20 mAcontrolsignalto

2to10VDC,upto2actuatorsmaybeconnectedinparallel.

ARNIN

IVE

Electrical

Components

During installation, testing, servicing and troubleshooting of this product, it may

benecessarytoworkwith live electrical components. Have a qualifiedlicensed electrician

or other individual who hasbeen properly trained inhandling live electrical components

performthesetasks.Failuretofollow all electrical safety precautions when exposed tolive

electricalcomponentscouldresultindeathorseriousinjury.

Wiring Diagrams

O50905- 05/12-Subjecttochange.©BelimoAircontrols (USA),Inc.

W408

2to10VDCcontrol

24 VAC Transformer

Line

Volts

Control Signal (–)

2 to 10VDC (+)

2 to 10VDC (–)

Feedback Signal (+)

Blk (1) Common –

Red (2) Hot + 3

Wht (3) Y

Input, 2 to 10V

Org (5) U

Output, 2 to 10V

1 0

ARB24-SR

24 VAC Transformer

Line

Volts





4to20mA (–) 500

Control Signal (+)

5 To other

actuators

Blk (1) Common –

Red (2) Hot + 3

Wht (3) Y Input,

10V

Org (5) U Output,

10V

1 0

ARB24-SR

4to20mAcontrol

Encontre Belimo na RSA - A mais completa em soluções para HVAC e Automação - Avenida Ragueb Chohfi, 960 - Torre 3, Sala 73 - Jardim Três Marias, São Paulo-SP, Cep: 08375-000 -

Telefone Sac: 55 11 2031 6658 / Whats App 55 11 9799 6574 - Email: contato@rsistemasdeautomacao.com.br - Site: http://www.rsistemas-automacao.com.br/empres/empres.aspx

AR...120-3 Actuators, On/Off, FloatingPoint

Models

ARB120-3

ARX120-3

Flexible Version

Technical Data

Control

on/off, floating point

Power supply

100to240VAC,50/60Hz(nominal)

85to265VAC,50/60Hz(tolerance)

Powerconsumption

running

holding

3 W

0.6 W

Transformer sizing

7 VA (class 2 power source)

Electrical connection

ARB120-3

ARX120-3

½” conduit connector

18 GA appliance rated cable

3 ft [1m]

3 ft [1m], 10 ft [3m], 16 ft [5m]

Overload protection

electronic throughout 0° to 95° rotation

nput impedance

600





Angle of rotation

90°, adjustable with mechanical stop

Direction of rotation

reversible with protected

Position indication

handle

Manual override

external push button

Running time

ARB120-3

ARX120-3

90 seconds

300, 150, 90 seconds,

constant independent of load

Humidity

5 to 95% RH non-condensing

(EN 60730-1)

Ambient temperature

-22°F to 122°F [-30°C to 50°C]

Storage temperature

-40°F to 176°F [-40°C to 80°C]

Housing

NEMA 2/IP54

Housing material

UL94-5VA

Agency listings†

cULus according to UL 60730-1A/-2-14,

CAN/CSA E60730-1:02, CE according to

2004/108/EC and 2006/95/EC for line voltage

and/or –S versions

Noise leve

<45 dB(A)

Servicing

maintenance free

Quality standard

ISO 9001

† Rated impulse voltage 4kV, Control pollution degree 3, Type of action

Dimensions with 2-Way Valve

ValveNominal Size

Dimensions (Inches [mm])

Valve Body

Inches DN[mm] A

B231-B232

1¼” 32 3.72” [94.6]

2.04” [51.9]

B238-B240

1½” 40 3.88” [98.5]

2.04” [51.9]

B248-B250

2” 50 4.21” [107.0]

2.27” [57.7]

B251-B254

2” 50 4.93” [125.2]

2.73” [69.5]

B261-B265

2½” 65 5.55” [140.9]

2.73” [69.5]

B277-B280

3” 80 5.82” [147.9]

2.73” [69.5]

Dimensions with 3-Way Valve

ValveNominalSize Dimensions (Inches[mm])

Valve Body nches DN [mm] A C

B329-B331

1¼”

3.96” [100.6]

2.27” [57.7]

2.14” [54.3]

B338-B341

1½”

4.39” [111.6]

2.51” [63.7]

2.40” [61.1]

B347-B352

2”

4.90” [124.5]

2.73” [69.5]

2.74” [69.7]

D149A

D149-2A

O50905- 05/12-Subjecttochange.©BelimoAircontrols (USA),Inc.

Encontre Belimo na RSA - A mais completa em soluções para HVAC e Automação - Avenida Ragueb Chohfi, 960 - Torre 3, Sala 73 - Jardim Três Marias, São Paulo-SP, Cep: 08375-000 -

Telefone Sac: 55 11 2031 6658 / Whats App 55 11 9799 6574 - Email: contato@rsistemasdeautomacao.com.br - Site: http://www.rsistemas-automacao.com.br/empres/empres.aspx

AR...120-3 Actuators, On/Off, Floating Point

Dimensions

3.46"

[88]

Provide overload protection and disconnect as required.

CAUTION Equipmentdamage!

Actuators may be connected in parallel.

Power consumption and input impedance must be observed.

Meets cULus or UL and CSA requirements without the

need of an electrical ground connection.

ARNIN

IVE

Electrical

Components

Duringinstallation,testing,servicingandtroubleshootingofthisproduct,itmay

benecessarytoworkwith liveelectrical components. Havea qualifiedlicensed electrician

or other individual who hasbeen properly trained in handling live electrical components

performthesetasks.Failuretofollow all electrical safety precautions when exposed tolive

electricalcomponentscouldresultindeathorserious injury.

Floating Point or On/Offcontrol

On/Offcontrol

8.5" [216]

3.3"

[84]

2.49"

[63.4]

1.35"

[35]

Wiring Diagrams

O50905- 05/12-Subjecttochange.©BelimoAircontrols (USA),Inc.

W415

W414

Valve Nominal Top Flange Face-to-Face

Body Pipe Flange Diameter Length

Height

Size Design

F05

7.50" [190.5]

8.00" [203.2]

5.50" [139.7]

6.60" [167.6]

8.10" [205.4]

8.40" [213.1]

B6250

B6300

2½" [65]

3" [80]

B6400

4" [100]

9.00" [228.6]

8.30" [210.8]

9.30" [235.9]

Encontre Belimo na RSA - A mais completa em soluções para HVAC e Automação - Avenida Ragueb Chohfi, 960 - Torre 3, Sala 73 - Jardim Três Marias, São Paulo-SP, Cep: 08375-000 -

Telefone Sac: 55 11 2031 6658 / Whats App 55 11 9799 6574 - Email: contato@rsistemasdeautomacao.com.br - Site: http://www.rsistemas-automacao.com.br/empres/empres.aspx

AR...120-SR Actuators

Models

ARB120-SR

ARX120-SR

Flexible Version

Technical Data

Control

on/off, floating point

Power supply

100to240VAC,50/60Hz(nominal)

85to265VAC,50/60Hz(tolerance)

Powerconsumption

running

holding

3 W

0.6 W

Transformer sizing

7.5 VA (class 2 power source)

Electrical connection

ARB120-SR

ARX120-SR

½” conduit connector

18 GA plenum rated cable

3 ft [1m]

3 ft [1m], 10 ft [3m], 16 ft [5m]

Overload protection

electronic throughout 0° to 95° rotation

Feedback output U

1 to 10 VDC, max 0.5 mA

nput impedance

600





Angle of rotation

90°, adjustable with mechanical stop

Direction of rotation

reversible with protected

Position indication

handle

Manual override

external push button

Running time

ARB120-SR

ARX120-SR

90 seconds

300, 150, 90 seconds,

constant independent of load

Humidity

5 to 95% RH non-condensing

(EN 60730-1)

Ambient temperature

-22°F to 122°F [-30°C to 50°C]

Storage temperature

-40°F to 176°F [-40°C to 80°C]

Housing

NEMA 2/IP54

Housing material

UL94-5VA

Agency listings†

cULus according to UL 60730-1A/-2-14,

CAN/CSA E60730-1:02, CE according to

2004/108/EC and 2006/95/EC for line voltage

and/or –S versions

Noise leve

<45 dB(A)

Servicing

maintenance free

Quality standard

ISO 9001

† Rated impulse voltage 4kV, Control pollution degree 3, Type of action

Dimensions with 2-Way Valve

ValveNominal Size

Dimensions (Inches [mm])

Valve Body

Inches DN[mm] A

B231-B232

1¼” 32 3.72” [94.6]

2.04” [51.9]

B238-B240

1½” 40 3.88” [98.5]

2.04” [51.9]

B248-B250

2” 50 4.21” [107.0]

2.27” [57.7]

Dimensions with 3-Way Valve

ValveNominalSize

Dimensions (Inches[mm])

Valve Body

nches DN[mm] A C

B329-B331

1¼”

3.96” [100.6]

2.27” [57.7]

2.14” [54.3]

B338-B341

1½”

4.39” [111.6]

2.51” [63.7]

2.40” [61.1]

B347-B352

2”

4.90” [124.5]

2.73” [69.5]

2.74” [69.7]

D149A

D149-2B

O50905- 05/12-Subjecttochange.©BelimoAircontrols (USA),Inc.

Encontre Belimo na RSA - A mais completa em soluções para HVAC e Automação - Avenida Ragueb Chohfi, 960 - Torre 3, Sala 73 - Jardim Três Marias, São Paulo-SP, Cep: 08375-000 -

Telefone Sac: 55 11 2031 6658 / Whats App 55 11 9799 6574 - Email: contato@rsistemasdeautomacao.com.br - Site: http://www.rsistemas-automacao.com.br/empres/empres.aspx

AR...120-SR Actuators

Wiring Diagrams

CAUTION

Equipment damage!

Actuators may be connected in parallel.

Power consumption and input impedance must be observed.

Only connect common to neg. (–) leg of control circuits.

A500resistorconvertsthe4to20mAcontrolsignalto2to10VDC.

ARB(X)canbesupplied withboth120VAC and230VAC.

All 120 VAC and 230 VAC actuators use appliance rated cables.

Meets cULus or UL and CSA requirements without the

need of an electrical ground connection.

ARNIN

IVE

Electrical

omponents

Duringinstallation,testing,servicingandtroubleshootingofthisproduct,itmay

benecessarytoworkwith liveelectrical components. Have a qualifiedlicensed electrician

or other individual who hasbeen properly trained inhandling live electrical components

performthesetasks.Failuretofollow all electrical safety precautions when exposed tolive

electricalcomponentscouldresultindeathorseriousinjury.

Proportional,100to 240V

3 Y Input, 2 to 10V

5 UOutput,2to10V

1 0

1 Common

2 Hot +

Control Signal (–)

VDC/mA (+)

2to10VDC (–)

Feedback Signal(+)

2 19

1 Neutral

Hot +

100 to 240 VAC 15

N L1

H L2

O50905- 05/12-Subjecttochange.©BelimoAircontrols (USA),Inc.

Cable 1

Cable 2

W365

Encontre Belimo na RSA - A mais completa em soluções para HVAC e Automação - Avenida Ragueb Chohfi, 960 - Torre 3, Sala 73 - Jardim Três Marias, São Paulo-SP, Cep: 08375-000 -

Telefone Sac: 55 11 2031 6658 / Whats App 55 11 9799 6574 - Email: contato@rsistemasdeautomacao.com.br - Site: http://www.rsistemas-automacao.com.br/empres/empres.aspx

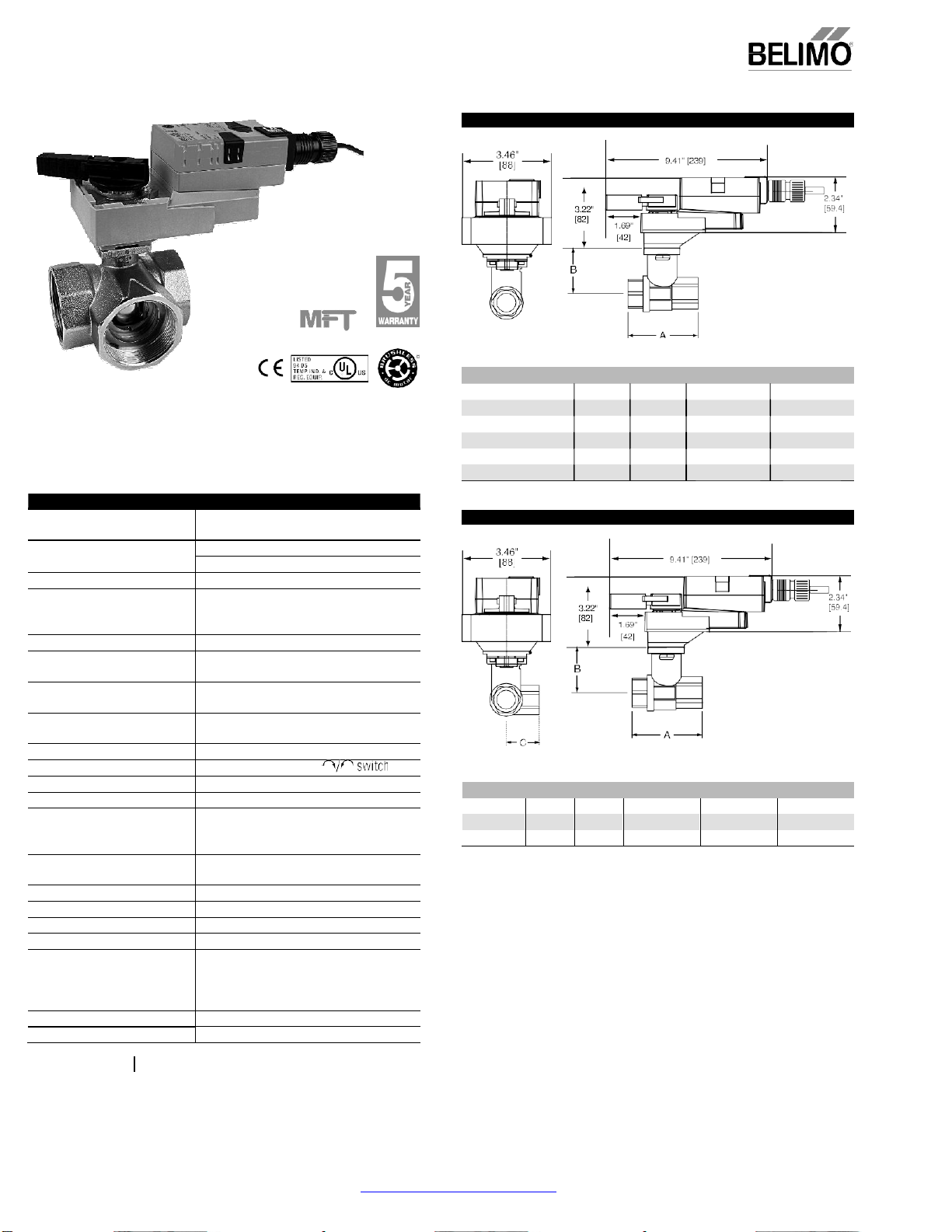

AR...24-MFT Actuators, Multi-FunctionTechnology

Models

ARX24-MFT

ARX24-MFT-5-14

Technical Data

Power supply

24 VAC ± 20% 50/60 Hz

24 VDC ± 10%

Powerconsumption

running

holding

4 W

1.25 W

Transformer sizing

6 VA (class 2 power source)

Electrical connection

ARX24-MFT

½” conduit connector

18 GA plenum rated cable

3 ft. [1m], 10 ft. [3m], 16 ft. [5m]

Overload protection

electronic throughout 0° to 95° rotation

Operating range Y

2 to 10 VDC, 4 to 20 mA (default)

variable(VDC,PWM,floatingpoint,on/off)

Feedback output U

2to10VDC,0.5mAmax

VDC variable

Input impedance

100 k



(0.1 mA), 500





1500 (PWM, floating point, on/off)

Angle of rotation

95° electronically variable

Direction of rotation

reversible with protected

Position indication

handle

Manual override

external push button

Running time

ARB24-MFT

ARX24-MFT

150 seconds

variable (90 to 350 seconds)

Humidity

5 to 95% RH non-condensing

(EN 60730-1)

Ambient temperature

-22°F to 122°F [-30°C to 50°C]

Storage temperature

-40°F to 176°F [-40°C to 80°C]

Housing

NEMA 2/IP54

Housing material

UL94-5VA

Agency listings†

cULus according to UL 60730-1A/-2-14,

CAN/CSA E60730-1:02, CE according

to 2004/108/EC and 2006/95/EC for line

voltage and/or –S versions

Noise leve

<45 dB(A)

Quality standard

SO 9001

† Rated impulse voltage 4kV, Control pollution degree 3, Type of action

Dimensions with 2-Way Valve

ValveNominal Size

Dimensions (Inches [mm])

Valve Body

Inches DN[mm] A

B231-B232

1¼” 32 3.72” [94.6]

1.98” [50.4]

B238-B240

1½” 40 3.88” [98.5]

1.98” [50.4]

B248-B250

2” 50 4.21” [107.0]

2.21” [56.2]

B251-B254

2” 50 4.93” [125.2]

2.68” [68.0]

B261-B265

2½” 65 5.55” [140.9]

2.68” [68.0]

B277-B280

3” 80 5.82” [147.9]

2.68” [68.0]

Dimensions with 3-Way Valve

ValveNominalSize Dimensions (Inches[mm])

Valve Body nches DN[mm] A C

B329-B331

1¼”

3.96” [100.6]

2.21” [56.2]

2.14” [54.3]

B338-B341

1½”

4.39” [111.6]

2.45” [62.2]

2.33” [59.1]

B347-B352

2”

4.90” [124.5]

2.68” [68.0]

2.60” [66.0]

D149A

D149-2A

Encontre Belimo na RSA - A mais completa em soluções para HVAC e Automação - Avenida Ragueb Chohfi, 960 - Torre 3, Sala 73 - Jardim Três Marias, São Paulo-SP, Cep: 08375-000 -

Telefone Sac: 55 11 2031 6658 / Whats App 55 11 9799 6574 - Email: contato@rsistemasdeautomacao.com.br - Site: http://www.rsistemas-automacao.com.br/empres/empres.aspx

3.46"

[88]

AR...24-MFT Actuators, Multi-Function Technology

Dimensions

Valve Nominal Top Flange Face-to-Face

Body Pipe Flange Diameter Length

Height

Size Design

F05

7.50" [190.5]

8.00" [203.2]

5.50" [139.7]

6.60" [167.6]

8.10" [205.4]

8.40" [213.1]

B6250

B6300

2½" [65]

3" [80]

B6400

4" [100]

9.00" [228.6]

8.30" [210.8]

9.30" [235.9]

Wiring Diagrams

CAUTION Equipment damage!

Actuators may be connected in parallel.

Power consumption and input impedance must be observed.

Actuators may also be powered by 24 VDC.

Position feedback cannot be used with Triac sink controller

The actuator internal common reference is not compatible.

ControlsignalmaybepulsedfromeithertheHot(source)

or the Common (sink) 24 VAC line.

Contact closures A & B also can be triacs.

A& B should both be closed for triac source and open for triac sink.

Fortriacsinkthecommonconnectionfromtheactuator

must beconnectedtothehot connection.

The ZG-R01500



resistor converts the 4to20 mAcontrolsignalto

2to10VDC,upto2actuatorsmaybeconnectedinparallel.

ARNIN

IVE

Electrical

Components

During installation, testing, servicing and troubleshooting of this

product, itmay benecessary towork with live electrical components. Have a

qualifiedlicensedelectrician orother individual who has been properlytrained

inhandling live electrical components perform these tasks.Failure tofollow all

electricalsafety precautionswhen exposedtoliveelectricalcomponentscould

result in death or serious injury.

PWM

VDC/4-20 mA

Floating Point

On/Offcontrol

AR_MFT_LGCCV

W538

Ce manuel convient aux modèles suivants

Autres manuels Belimo Contrôleurs

Belimo

Belimo ZSN-BF Manuel utilisateur

Belimo

Belimo NIMOFR C Series Manuel utilisateur

Belimo

Belimo TRANE TTF Series Mode d’emploi

Belimo

Belimo AF24 US Manuel utilisateur

Belimo

Belimo AMB24-SR-X1 Manuel utilisateur

Belimo

Belimo CMU Series Manuel d'instructions

Belimo

Belimo HR series Manuel utilisateur

Belimo

Belimo AM230-SR Manuel utilisateur

Belimo

Belimo LRX24-SR Manuel utilisateur

Belimo

Belimo AF24-SR US Manuel de la liste des pièces

Belimo

Belimo AF Series Manuel utilisateur

Belimo

Belimo AVK230A-3 Manuel utilisateur

Belimo

Belimo EFB Series Manuel utilisateur

Belimo

Belimo PRCA-S2-T Mode d’emploi

Belimo

Belimo AF24-LIN US Manuel utilisateur

Belimo

Belimo GKX24-MFT-X1 Manuel utilisateur

Belimo

Belimo AFX24LON Manuel utilisateur

Belimo

Belimo NM24P Mode d’emploi

Belimo

Belimo FS Series Manuel d'utilisation et d'entretien

Belimo

Belimo LF24-SR US Manuel utilisateur

Belimo

Belimo LMC24 Manuel utilisateur

Belimo

Belimo EXT-T24-D201 Manuel utilisateur

Belimo

Belimo GMX24-3-X1 Manuel utilisateur

Belimo

Belimo FGVL Series Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
