Cooker Hood

User Manual

HCP91030X

01M-8850823200-0116-02

Ths product has been manufactured n envronmental frendly modern plants wthout gvng any harm to the nature.

Ths applance conforms to the

WEEE regulaton.

Please read this manual first!

Dear Customers!

Thank you for preferring a Beko product. We hope that you get the best results from

your product which has been manufactured with high quality and state-of-the-art

technology. Therefore, please read this entire user manual and all other accompanying

documents carefully before using the product and keep it as a reference for future use.

If you handover the product to someone else, give the user manual as well. Follow all

warnings and information in the user manual.

Remember that this user manual is also applicable for several other models. Differences

between the models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about

usage.

AWARNING:

Warnings for dangerous situa-

tions concerning the safety of life and property.

Warning for electric shock.

Warning for hot surfaces.

3 / 15 EN

Cooker Hood / User Manual

CONTENTS

1 Important safety and

envronmental nstructons 4

1.1 General safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.1.1 Electrcal safety. . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.1.2 Product safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1.3 Chldren's safety . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.2 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.3 Complance wth WEEE Drectve and dspo-

sng of the waste product. . . . . . . . . . . . . . . . . . . . . . .7

1.4 Package nformaton . . . . . . . . . . . . . . . . . . . . . . . .7

2 Techncal specfıcatons of your

applance 8

2.1 Controls and parts . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2 Techncal data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3 Installng your applance 9

3.1 Wall drllng and bracket fxng . . . . . . . . . . . . . 9

3.1.1 Wall mountng . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.2 Mountng the hood body . . . . . . . . . . . . . . . . . . 10

3.3 Connecton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.3.1 Ducted mode ar exhaust system . . . . . . . 10

3.3.2 Recrculaton mode ar outlet . . . . . . . . . . . 10

3.4 Chmney assembly . . . . . . . . . . . . . . . . . . . . . . . . 11

3.4.1 Upper chmney . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.4.2 Lower chmney. . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.5 Ducted vs. Recrculaton mode . . . . . . . . . . . . 11

3.6 Installaton of the ol collector . . . . . . . . . . . . 12

4 Operatng your applance 13

5 Cleanng and mantenance 14

5.1 Surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.2 Alumnum flters . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.3 Charcoal flters (Recrculaton verson). . . . 14

6 Troubleshootng 15

4 / 15 EN Cooker Hood / User Manual

1 Important safety and environmental

instructions

This section contains safety in-

structions that will help protect

from risk of personal injury or prop-

erty damage. Failure to follow these

instructions invalidates the granted

warranty.

1.1 General safety

•Always have the installation and

repairing procedures carried out

by the Authorized Service Agent.

Manufacturing firm shall not be

held responsible for damages that

may be caused by unauthorized

persons.

•This appliance is not intended for

use by persons (including chil-

dren) with reduced physical, sen-

sory or mental capabilities, or lack

of experience and knowledge.

Children should be supervised to

ensure that they do not play with

the appliance.

1.1.1 Electrical safety

•Always unplug the appliance from

the mains supply during installa-

tion, maintenance, cleaning and

repair operations.

•If the power cable is faulty, it

should be replaced by a qualified

person certified by the manufac-

turer, after-sales service or similar

(preferably an electrician) or a per-

son described by the importer.

•Operating voltage is 220 to 240

volts.

•If the appliance has a failure, it

should not be operated unless it is

repaired by the Authorized Service

Agent. There is the risk of electric

shock!

•Do not route power cable close to

hobs. Otherwise power cable may

cause fire since it melts down eas-

ily.

•Never plug the hood before instal-

lation is completed.

•In order to obtain the best perfor-

mance, external conductor must

not be longer than 4 m. It must not

contain more than 2 perpendicular

(90°) angles and its diameter must

be min. ø120 mm.

•Disconnect the appliance from

mains before any intervention to

the internal parts of the appliance.

•Use the appliance with a grounded

outlet only.

5 / 15 EN

Cooker Hood / User Manual

1 Important safety and environmental

instructions

1.1.2 Product safety

•You can use a pipe with a diameter

of 120 mm or 150 mm on the flue

connection of the hood.

•Do not make connections to the

flues connected with stoves, ex-

haust shafts or flues with rising

flames. Observe the rules set by

authorities on the discharge of

exhaust air.

•Do not operate the hood without

aluminum filters and do not re-

move the filters while it is oper-

ated.

•Never touch the hood's lamps

after they are operated for a long

time. Hot lamps may burn your

hand.

•Avoid large flames beneath the

product. Otherwise, particles on

oil filter may ignite and lead to a

fire.

•Turn on the hobs after placing

pans or pots on it. Otherwise, ris-

ing heat may deform certain parts

of your product.

•Turn off the hobs before taking

away pans or pots.

•Avoid inflammable materials under

the hood.

•Oil may ignite while frying foods.

Therefore, be careful about cloths

and curtains.

•Never leave the cooker unat-

tended when frying foods; other-

wise hot oil may cause fire.

•There is the risk of fire if your hood

is not cleaned in the specified pe-

riods.

•Be extremely careful and wear

gloves when cleaning the hood.

•We advise you to operate the

appliance a few minutes before

starting to cook in order to in-

crease the suction power. Thus,

you shall have a continuous and

stable suction power when the

vapors arise.

•Operate your hood for 15 minutes

more after the end of cooking or

frying in order to remove the smell

and cooking vapor in the kitchen.

•When the hood is in use, especially

together with gas cookers, make

sure that environment is venti-

lated with clean air.

•Pay attention not to connect

the appliance to the flues used

by non-electrical devices. (E.g.:

Heater flue).

6 / 15 EN Cooker Hood / User Manual

•Simultaneous and smooth op-

eration of the hood and another

device that require air is only pos-

sible when a low pressure of 4 Pa

(0.04 mbar) is reached, and thus

the reabsorption of the gas is

avoided. This can only be achieved

by means of air coming from un-

covered openings (door, window,

ventilation openings or other

technical measures). Pay utmost

attention to provide sufficient

air flow. A flue that provides air

ingress/egress is not enough for

this purpose.

1.1.3 Children's safety

•Packaging materials are danger-

ous to children. Keep packaging

materials in a safe place out of

reach of children.

•Electrical appliances are danger-

ous to children. Keep children

away from the product. Do not

allow children play with the appli-

ance.

•This appliance can be used by the

children who are at the age of 8 or

over and by the people who have

limited physical, sensory or men-

tal capacity or who do not have

knowledge and experience, as

long as they are supervised with

regard to safe use of the product

or they are instructed accordingly

and understand the risks of using

the product. Children should not

play with the appliance.

•

CAUTION:

Accessible parts may

heat up when used with a cooking

device.

1.2 Intended use

•This appliance is intended for do-

mestic use. It is not suitable for

commercial use and it must not be

used out of its intended use.

•The manufacturer shall not be lia-

ble for any damage caused by im-

proper use or handling.

•Service life of your appliance is 10

years. This is the period required

for availability of spare parts for

proper functioning of the product.

•

WARNING:

Failure to fix the

screws in concordance with the

instructions provided in the man-

ual may lead to electrical hazards.

1 Important safety and environmental

instructions

7 / 15 EN

Cooker Hood / User Manual

1.3 Compliance with WEEE

Directive and disposing of the

waste product

This product complies with EU WEEE

Directive (2012/19/EU). This product

bears a classification symbol for waste

electrical and electronic equipment

(WEEE).

This product has been manufactured with high

quality parts and materials which can be reused

and are suitable for recycling. Do not dispose of

the waste product with normal domestic and oth-

er wastes at the end of its service life. Take it to

the collection center for the recycling of electrical

and electronic equipment. Please consult your

local authorities to learn about these collection

centers.

1.4 Package information

Package of the product is made of recy-

clable materials in accordance with our

National Legislation. Do not dispose of

the packaging materials together with the do-

mestic or other wastes. Take them to the packag-

ing material collection points designated by the

local authorities.

1 Important safety and environmental

instructions

8 / 15 EN Cooker Hood / User Manual

Markings on the product or the values stated in other documents supplied with the product are values obtained

under laboratory conditions as per relevant standards. These values may vary depending on operational and

environmental conditions of the product.

2 Technical specifıcations of your appliance

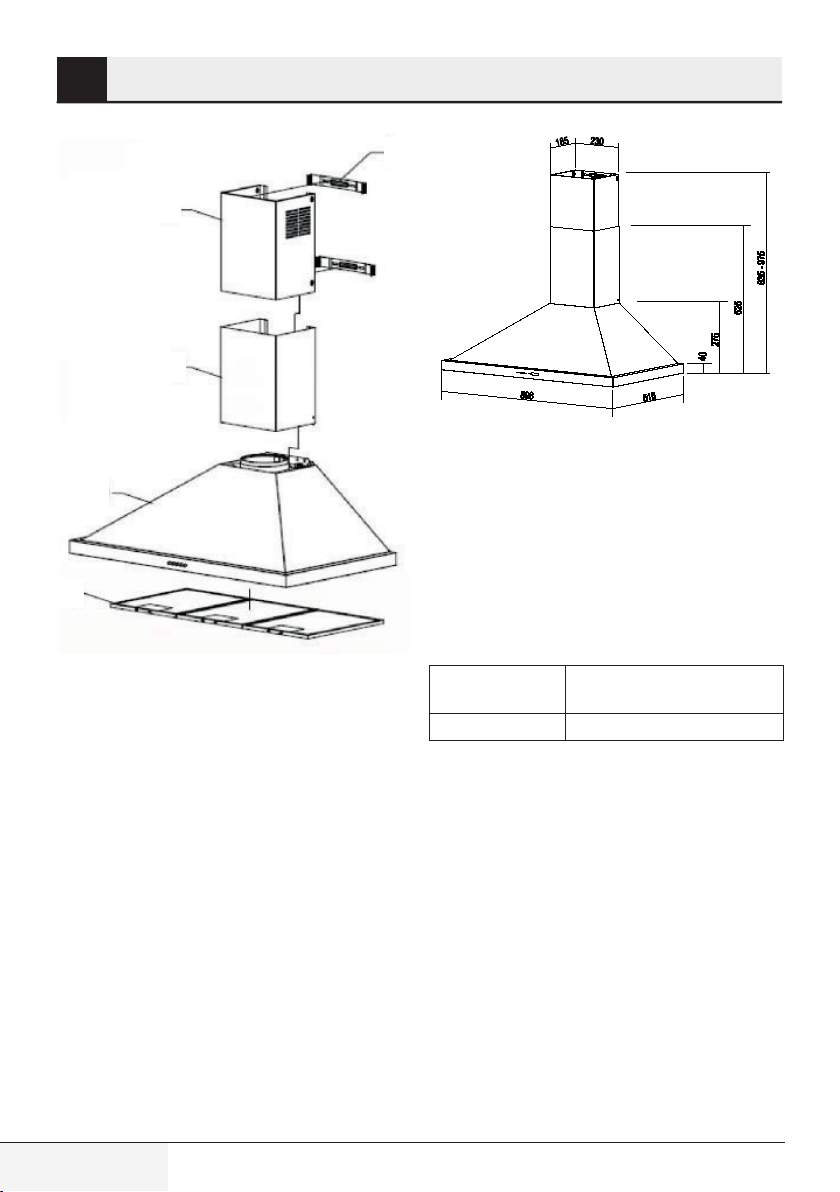

2.1 Controls and parts

1. Chimney Mounting Bracket

2. Upper Chimney Cover

3. Lower Chimney Cover

4. Canopy Section

5. Aluminum Filters

2.2 Technical data

Power con-

sumption

220-240V ~50Hz

Absorption

260 W

9 / 15 EN

Cooker Hood / User Manual

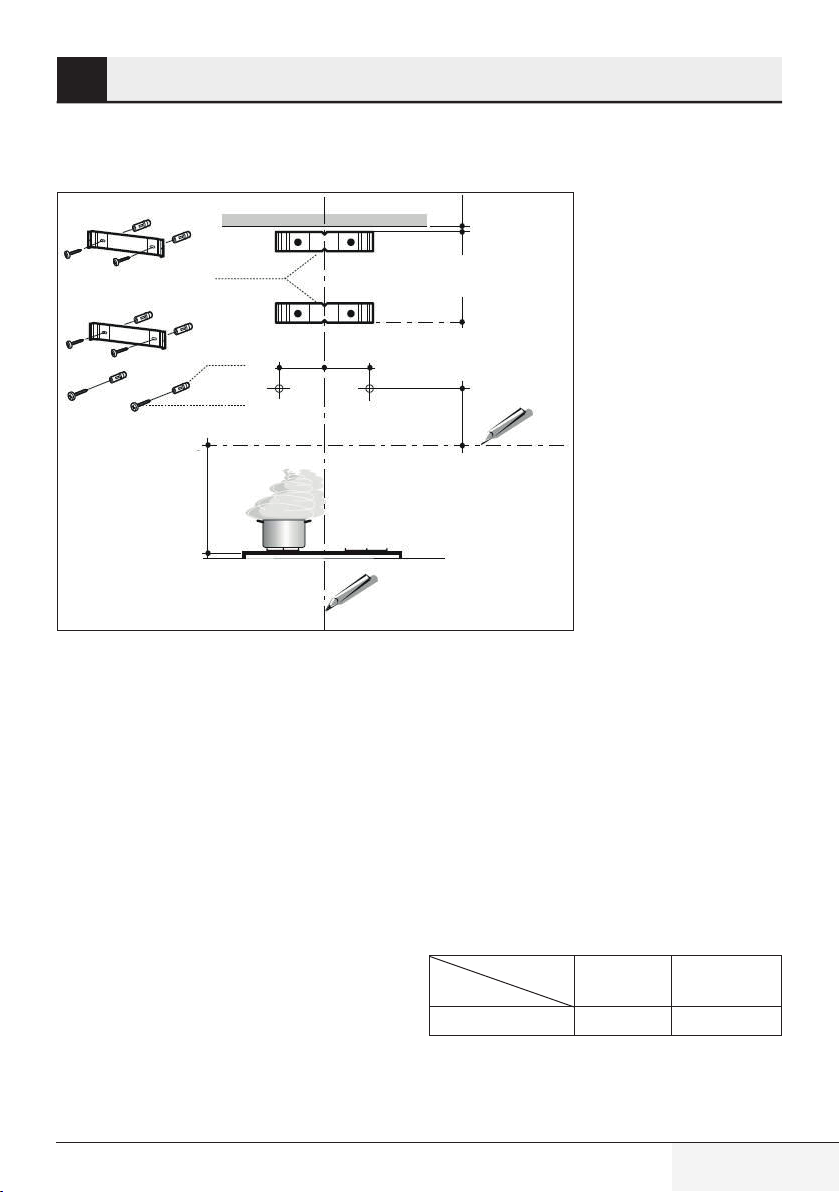

3.1 Wall drilling and bracket

fixing

101 101

min. 750 mm

3.1.1 Wall mounting

•Draw a vertical line on the supporting wall up to

the ceiling, or as high as practical, at the center

of the area in which the hood will be installed.

•Draw a horizontal line at 700 mm above the hob.

•Place bracket on the wall as shown about 1-2

mm from the ceiling or upper limit aligning the

center with the vertical reference line.

•Mark the wall at the center of the holes in the

bracket.

•Place bracket on the wall as shown at X mm

below the first bracket ( X = height of the upper

chimney section supplied).

•Aligning the center of the bracket with the

vertical line.

•Mark the wall at the center of the holes in the

bracket.

3 Installing your appliance

•Mark a reference point as indicated at 101 mm

from the vertical reference line and Y mm above

the horizontal reference line.

•Repeat this step on the other side.

•Drill Ø 8mm holes at all the center points marked.

•Insert the wall plugs in the wall.

•Fix the upper and lower bracket using the

screws (ST 5 X 30) supplied.

•Insert 2 screws (ST 5 X 30) supplied in the hood

body fixing holes, leaving a gap of 5-6 mm

between the wall and the head of the screw.

Dimensions

Models X Y

294.1 mm 276.8mm mm

10 / 15 EN Cooker Hood / User Manual

3 Installing your appliance

3.2 Mounting the hood body

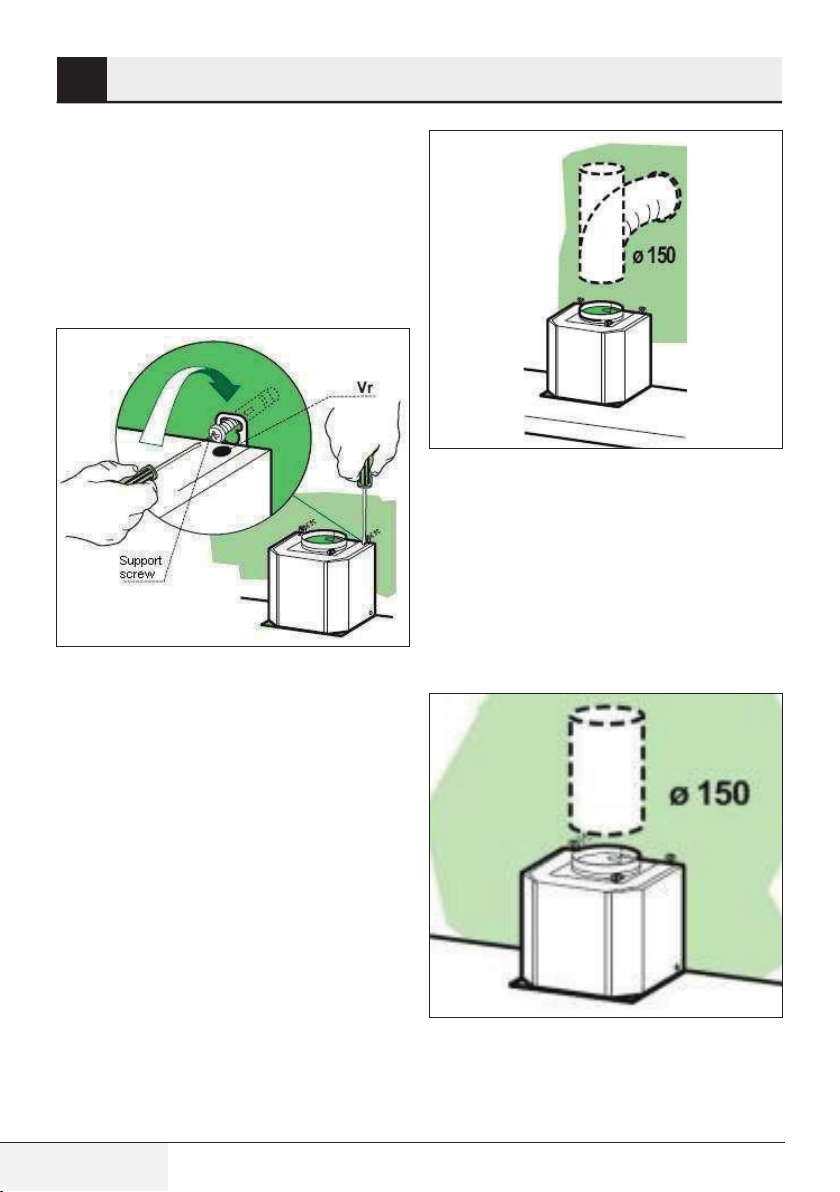

•Before attaching the hood body, tighten the two

screws Vr located on the hood body mounting

points.

•Hook the hood body onto the support screws.

•Fully tighten the support screws.

•Adjust screws Vr to level the hood body.

3.3 Connection

3.3.1 Ducted mode air exhaust

system

•When installing the ducted mode, connect the

hood to the chimney using either a flexible or

rigid pipe with ø 150 mm.

•Fix the pipe in position using sufficient pipe

clamps (not supplied).

•Remove any activated charcoal filters.

3.3.2 Recirculation mode air

outlet

•Insert the connection extension pieces laterally

in air outlet connection.

•Make sure that the outlet of the extension

pieces is horizontally and vertically aligned with

the chimney outlets.

•Ensure that the activated charcoal filters have

been inserted.

Table des matières

Autres manuels Beko hotte de ventilation

Beko

Beko HNT 62210 B Manuel utilisateur

Beko

Beko CWB 6420 X Manuel utilisateur

Beko

Beko BCL 90X Manuel utilisateur

Beko

Beko BHCB 61632 XH Manuel utilisateur

Beko

Beko CWB 9441 Manuel utilisateur

Beko

Beko HNT62610BH Manuel utilisateur

Beko

Beko CIB 9600 X Guide de l'utilisateur

Beko

Beko CTB 6250 W Manuel utilisateur

Beko

Beko CWB 6730 X Instructions d'installation

Beko

Beko HCB61731BXH Manuel utilisateur

Beko

Beko HNT61630X Manuel utilisateur

Beko

Beko BHCA97841BBHSI Manuel utilisateur

Beko

Beko CWB 6430 X Manuel utilisateur

Beko

Beko BHCA66641BBHS Manuel utilisateur

Beko

Beko CWB 6441 WN Manuel utilisateur

Beko

Beko CTB 9250 XA Manuel utilisateur

Beko

Beko HCP 91400 I Manuel utilisateur

Beko

Beko CHP 30100 SS Manuel utilisateur

Beko

Beko CFB 6310 W Manuel utilisateur

Beko

Beko CWB 9441 WN Manuel utilisateur

Beko

Beko HCA92641WH Manuel utilisateur

Beko

Beko BHCA66341BBH Manuel utilisateur

Beko

Beko CWB 6600 X Manuel utilisateur

Beko

Beko CWB 7441 X Manuel utilisateur

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
