Beko CTB 6253X Manuel utilisateur

3323-06

2 / EN

Cooker Hood / User Manual

CONTENTS

1 Important safety and

environmental instructions 4

1.1 General safety . . . . . . . . . . . . . . 4

1.2 Compliance with the WEEE Directive

and Disposing of the Waste Product: . 7

1.3 Compliance with RoHS Directive . 7

1.4 Package Information . . . . . . . . . . 7

2 General appearance 8

2.1 Overview . . . . . . . . . . . . . . . . . . 8

2.1 Technical data. . . . . . . . . . . . . . . 8

3 Operation of the appliance 9

3.1 Controlling the appliance . . . . . . . 9

3.2 Energy efficient usage. . . . . . . . . 9

3.3 Operating the hood . . . . . . . . . . . 9

3.4 Replacement of lamp . . . . . . . . . 9

3.5 Operation with chimney

connection . . . . . . . . . . . . . . . . . . 10

3.6 Operation without chimney

connection . . . . . . . . . . . . . . . . . . . 10

4 Cleaing and maintenance 11

4.1 Cleaning of aluminum grease filter11

4.2 Replacement of carbon filters . . 11

5 Installation of appliance 12

5.1 Position of the appliance . . . . . . 12

5.2 Installation accessories . . . . . . . 12

5.3 Installation of the hood . . . . . . . 13

5.4 Storage . . . . . . . . . . . . . . . . . . 15

5.5 Handling and transportation. . . . 15

6 Troubleshooting 16

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results

from your appliance which has been manufactured with high quality and state-of-

the-art technology. For this reason, please read this entire user manual and all other

accompanying documents carefully before using the appliance and keep it as a

reference for future use. If you handover the appliance to someone else, give the user

manual as well. Follow the instructions by paying attention to all the information and

warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between

models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

CImportant information and useful hints about us-

age.

AWARNING: Warnings against dangerous situa-

tions concerning the security of life and property.

WARNING: Warning for danger of fire.

BWARNING: Warning for electric shock.

Protection class for electric shock.

This appliance has been produced in environmentally friendly facilities without harming the nature.

4 / EN

Cooker Hood / User Manual

Important safety and environmental instructions

1.1 General safety

Important Safety Instructions Read

Carefully And Keep For Future

Reference This section contains

safety instructions that will help

protect from risk of fire, electric

shock, exposure to leak micro-

wave energy, personal injury or

property damage. Failure to follow

these instructions shall void any

warranty.

•Beko products comply with the

applicable safety standards;

therefore, in case of any damage

on the appliance or power cable,

it should be repaired or replaced

by the dealer, service center or a

specialist and authorized service

alike to avoid any danger. Faulty

or unqualified repair work may

be dangerous and cause risk to

the user.

•This appliance is intended to be

used in household and similar

applications such as:

– Staff kitchen areas in shops,

offices and other working en-

vironments;

– Farm houses

– By clients in hotels, and other

residential type environments;

– Bed and Breakfast type envi-

ronments.

•Operate the appliance for its

intended purpose only as de-

scribed in this manual.

•The manufacturer cannot be held

liable for damages resulting from

improper installation or misuse of

the product.

•This appliance can be used by

children aged from 8 years and

above and persons with reduced

physical, sensory or mental ca-

pabilities or lack of experience

and knowledge if they have been

given supervision or instruction

concerning use of the appliance

in a safe way and understand the

hazards involved.

•Children shall not be allowed

play with the appliance. Clean-

ing and user maintenance shall

not be made by children without

supervision.

Cooker Hood / User Manual

5 / EN

Important safety and environmental instructions

•The minimum distance between

the supporting surface for the

cooking vessels on the hob and

the lowest part of your product

must be at least 65 cm.

•If the instructions for installation

for the gas hob specify a greater

distance, this has to be taken

into account.

•Make sure that your mains

power supply complies with the

information supplied on the rat-

ing plate of the appliance.

•Never use the appliance if the

power cable or the appliance it-

self is damaged.

•Prevent damage to the power

cable by not squeezing, bending,

or rubbing it on sharp edges.

Keep the power cable away from

hot surfaces and naked flame.

•Use the appliance with a

grounded outlet only.

WARNING: Do not connect the

appliance to the mains until the

installation is fully complete.

•Place the appliance in a way so

that the plug is always accessible.

•Do not touch the lamps if they

have operated for a long time.

They can burn your hands since

they will be hot.

•Follow the regulations set out by

competent authorities on dis-

charge of the exhaust air (this

warning is not applicable for use

without flue).

•Operate your appliance after put-

ting a pot, pan etc. on the hob.

Otherwise, high heat may cause

deformation in some parts of

your product.

•Turn off the hob before taking the

pot, pan etc. from it.

•Do not leave hot on the hob. Pans

with hot may cause self combus-

tion.

•Pay attention to your curtains

and covers since may catch fire

while cooking food such as fries.

•Grease filter must be cleaned

at least monthly. Carbon filter

must be replaced at least every

3 months.

6 / EN

Cooker Hood / User Manual

Important safety and environmental instructions

•Product shall be cleaned ac-

cordance with user manual. If

cleaning was not carried out in

accordance with user manual,

there may be fire risk.

•Do not use non-fire-resistant

filtering materials instead of the

current filter.

•Only use the original parts or

parts recommended by the man-

ufacturer.

•Do not operate the product with-

out the filter and do not remove

the filters while the product is

running.

•In the event of be started any

flame, de-energize your product

and cooking appliances.

•In the event of be started any

flame, cover the flame and never

use water to extinguish.

•Unplug the appliance before

each cleaning and when the ap-

pliance is not in use.

•The negative pressure in the envi-

ronment should not exceed 4 Pa

(4x10 bar) while the hood for elec-

tric hob and appliances running on

another type of energy but electric-

ity operate simultaneously.

•In the environment where the

appliance is being used, the

exhaust of devices running on

fuel or gas, such as room heater

must be absolutely isolated or

device must be hermetical type.

•When connecting the flue, use

pipes with a diameter of 120 or

150 mm. Pipe connection must

be as short as possible and have

as few elbows as possible.

•Danger of choking! Keep all the

packaging materials away from

children.

CAUTION: Accessible parts may

become hot when used with cook-

ing appliances.

•The product outlet must not be

connected to air channels that

include other smoke.

•The ventilation in the room may

be insufficient when the hood for

electric hob is used simultane-

ously with the devices operating

on gas or other fuels (this may

not apply to appliances that only

discharge the air back into the

room).

Cooker Hood / User Manual

7 / EN

Important safety and environmental instructions

•Objects placed on the product

may fall. Do not place any ob-

jects on the product.

•Do not flambe under the your

product.

WARNING: Before installing the

Hood, remove the protective films.

•Never leave high naked flames

under the hood when it is in op-

eration

•Deep fat fryers must be con-

tinuously monitored during use:

overheated can burst into flames.

1.2 Compliance with the WEEE

Directive and Disposing of the Waste

Product:

This product complies with EU WEEE Directive

(2012/19/EU). This product bears a classification

symbol for waste electrical and electronic equip-

ment (WEEE).

This symbol indicates that this product

shall not be disposed with other

household wastes at the end of its ser-

vice life. Used device must be returned

to offical collection point for recycling

of electrical and electronic devices. To find these

collection systems please contact to your local au-

thorities or retailer where the product was pu-

chased. Each household performs important role

in recovering and recycling of old appliance.

Appropriate disposal of used appliance helps pre-

vent potential negative consequences for the envi-

ronment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU

RoHS Directive (2011/65/EU). It does not contain

harmful and prohibited materials specified in the

Directive.

1.4 Package Information

Packaging materials of the product are

manufactured from recyclable materials

in accordance with our National

Environment Regulations. Do not dis-

pose of the packaging materials together with the

domestic or other wastes. Take them to the pack-

aging material collection points designated by the

local authorities.

8 / EN

Cooker Hood / User Manual

2 General appearance

2.1 Overview

2.1 Technical data

Supply voltage & Frequency 220 - 240 V~ 50 Hz

Lamp power 2x28 W

Motor power 200 W

Flow rate – 2. Level 440 m³/h

Control and parts

.1 Front panel

.2 Switch

.3 Aluminum grease filter

.4 Halogen lighting

Cooker Hood / User Manual

9 / EN

3 Operation of the appliance

3.1 Controlling the appliance

Key Function

A : Light On/Off Pull the sliding plate to the front.

Press the button downwards to

turn on the lamp or upwards to

turn off the lamp.

B : 1 and 2 speed

button

Pull the sliding plate to the front.

Press the button upwards to op-

erate the hood at speed level 1,

and downwards to operate the

hood at speed level 2.

3.2 Energy efficient usage

•When using your appliance, adjust the speed

settings according to vapour and odour intensity,

in order to save energy.

•Use low speeds (1-2) under normal conditions,

and high speed (3) for intense odour and vapour.

•The lamps on the hood are placed for illuminat-

ing the cooking area.

•Using them for environmental lighting shall

cause unnecessary energy expenditure and in-

sufficient lighting.

3.3 Operating the hood

•Your appliance contains a motor that has various

speeds.

•For better performance, we recommend using

low speeds under normal conditions and high

speeds in cases of strong odours and intense

vapour.

•You can start your appliance by pressing on the

desired speed setting button. (B).

•You may illuminate the cooking area by pressing

the lamp.

3.4 Replacement of lamp

ACAUTION: Disconnect the electrical

supply of the hood. Leave the lamps

to cool down first because they could

burn your hands when they are hot.

MAX 28 W

(Figure 1)

Remove the aluminium cartridge filter. Remove the

defective bulb and replace with a new one with the

same rating (Figure 1).

Bulb

Bulb power 28 W

Holder/Socket E 14

Bulb voltage AC 220 V

10 / EN

Cooker Hood / User Manual

3 Operation of the appliance

3.5 Operation with chimney

connection

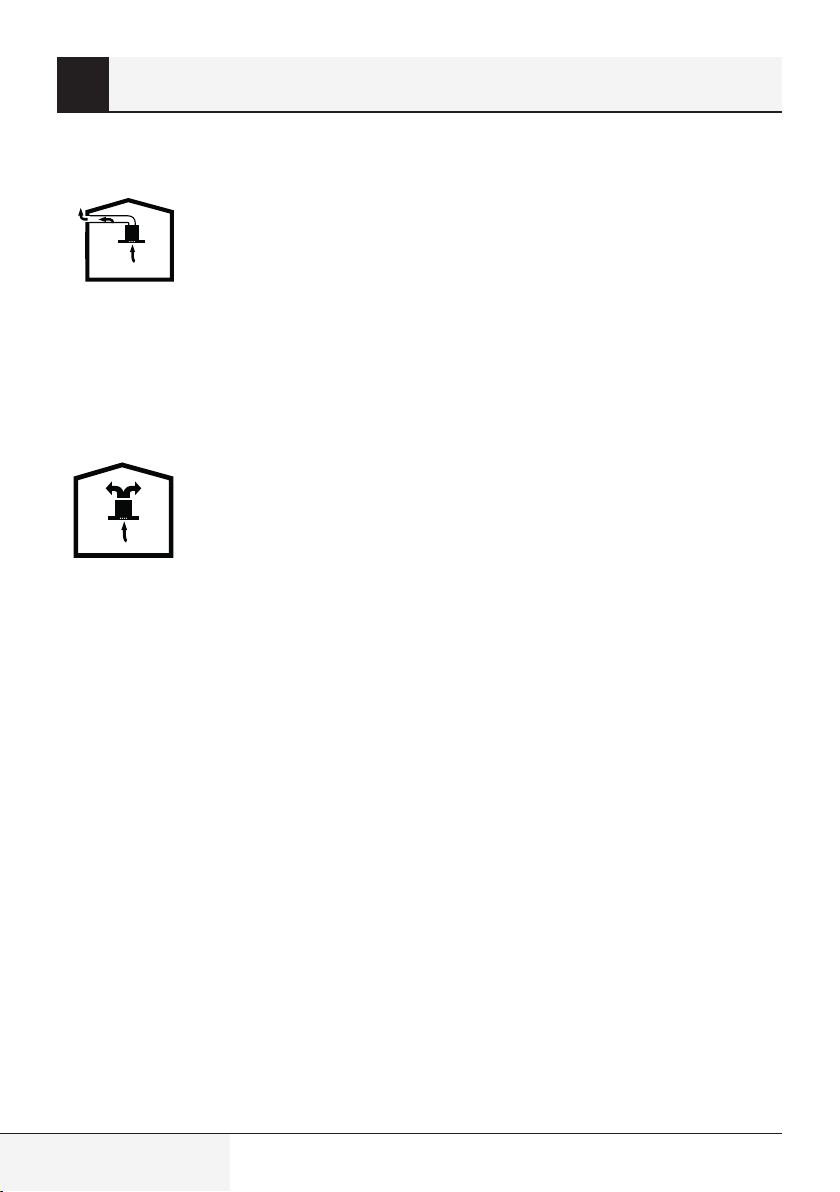

•Vapour is extracted through the

flue duct, which is fastened to

the connection head on the

hood.

•The diameter of the flue duct must be the same

as the connection ring. In horizontal settings, the

pipe has to have a slight upward slope (around

10º) so that the air can exit the room easily.

3.6 Operation without chimney

connection

•Air is filtered through the carbon

filter and recirculated in the

room. Carbon filter is used

when it is impossible to use a

flue in the house.

•In flueless use, remove the flaps inside the flue

adapter.

•Remove the aluminum grease filter. To install the

carbon filter, fit the filter to the tabs by centring

it on the plastic piece on both sides of the fan

body. tighten it by turning right or left.

•Replace aluminum grease filter.

Autres manuels pour CTB 6253X

Table des matières

Autres manuels Beko hotte de ventilation

Beko

Beko BHCA62422BBH Manuel utilisateur

Beko

Beko HNU71311S Manuel utilisateur

Beko

Beko 01M-8842123200-2618-02 Manuel utilisateur

Beko

Beko 01M-8848063200-2223-10 Manuel utilisateur

Beko

Beko HCA62320B Manuel utilisateur

Beko

Beko HNS 61120 WHS Manuel utilisateur

Beko

Beko CFB 5432 W Manuel utilisateur

Beko

Beko HNT61220XH Manuel utilisateur

Beko

Beko CFB5433 Manuel utilisateur

Beko

Beko CWB 6441 XN Manuel utilisateur

Beko

Beko CFB 6436 X Guide de l'utilisateur

Beko

Beko HNU51311SH Manuel utilisateur

Beko

Beko CWB 6441 AN Manuel utilisateur

Beko

Beko HCA62640B Manuel utilisateur

Beko

Beko CWB 6731 B Manuel utilisateur

Beko

Beko BHCA66741BBHS Manuel utilisateur

Beko

Beko HNT 62210 B Manuel utilisateur

Beko

Beko BHCI98841BBHSI Manuel utilisateur

Beko

Beko CWB 950 Manuel utilisateur

Beko

Beko HCA62641BH Manuel utilisateur

Beko

Beko BHCI 31322 BBH Manuel utilisateur

Beko

Beko BRH90CB Manuel utilisateur

Beko

Beko BHCA92442BBH Manuel utilisateur

Beko

Beko BHCB93640B Manuel utilisateur

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
