EUROLIVE Digital Processor-Controlled

600-Watt 12"PA Speaker System with

Integrated Mixer

High-power 600-Watt 2-way

PA sound reinforcement speaker

system with integrated mixer for live

and playback applications

Industry’s rst intelligent 24-bit

digital signal processor for ultimate

system control:

• Digital crossover, phase and

time correction for perfect driver

alignment plus dual compressor/

limiter for total system protection

• Digital noise gate, low-cut lter,

2-band EQ, dynamic Contour lter

for ultimate sound reproduction

2 ULN Mic/Line inputs with individual

volume controls and peak LEDs

Extremely powerful 12" long-

excursion driver provides incredibly

deep bass and acoustic power

State-of-the-art 1.75" titanium-

diaphragm compression

driver for exceptional

high-frequency reproduction

Ultra-wide dispersion and large

format exponential/conical horn with

multi-cell aperture throat

Additional Line output enables

linking of additional speaker systems

Versatile trapezoidal enclosure design

allows dierent positioning:

Stand mounting with 1 3/8" / 35-mm

pole socket

Is there a little tiny sound technician

inside? Almost.

If this were just a“dumb”powered

loudspeaker, it would be one of the best

you’ve ever heard. But we added smart

digital processing that constantly adjusts

the B412DSP’s sound as the music changes.

It doesn’t matter whether you need a

PA system for a heavy metal band, a church

or a one-man show, you need a speaker

that sounds as great at a whisper as it does

when run full-out. The B412DSP is designed

to handle a wide range of applications,

with power to spare and the kind of delity

typically only available from state-of-the-art

studio monitors.

Digital processing is the audible

B412DSP dierence.

Lots of companies make“powered”

speaker systems by simply strapping

amps on the back of a conventional

two-way speaker. They sound better than

passive speakers. But they’re not taking

advantage of 2008 digital technology.

Until now, the few active systems that did

use an internal digital“brain”for creating

optimized sound were prohibitively

expensive. Now the EUROLIVE B412DSP

oers an intelligent solution at a price

point that is unheard of in its class. The

technology used in its design represents

a major advancement in loudspeaker

manufacture and performance. How so?

First, digital eliminates the

variables that result from conventional

analog electronics: parts tolerances,

changes in performance as the parts age,

hard-to-solve audio problems such as

phase linearity and crossover slopes.

These variables literally make it impossible

to consistently produce identical

performance in every speaker — or the

same speaker over its lifespan.

Continued on next page

EUROLIVE

B412DSP

Professional Powered Speakers

Page 2 of 5

Tilts on its side for use as a

oor monitor

Ergonomically shaped handles for

easy carrying and setup

High-quality components and

exceptionally rugged construction

ensure long life

Conceived and designed by

BEHRINGER Germany

Second, digital vastly expands the

signal processing capabilities that would

require racks and racks of external analog

equipment to achieve with a“dumb”

active speaker.

A pristine 24-bit/48kHz digital

signal path

From the instant the analog signal enters

the B412DSP, the 24-bit digital processor

takes over, ensuring the highest possible

signal integrity — and we’re talking CLEAN.

First, this internal computer does chores like

assigning frequencies to the low and high

frequency ampliers far more elegantly

and with less distortion than old analog

crossovers ever could. Then it compensates

for the inevitable non-linearities in

transducer frequency response.

But much more than just selective EQ

enhancement, the engine in the B412DSP

analyzes the signal and intelligently applies

specic lters to actually improve the sound

quality depending on the bass content of

the music and how loud you have it turned

up. It’s like having a tiny sound guy inside

each enclosure (with all the best gear),

monitoring the input and output signals,

dialing in the perfect EQ and constantly

making subtle adjustments to the crossover,

compressor/limiter and more.

This powerful 24-bit DSP circuitry

takes all the guesswork out of running the

system so you can concentrate on your

performance. All these intelligent processes

work together proactively behind-the-

scenes, making the B412DSP the

best-sounding 12"loudspeaker system on

the market.

Slam the gate on noise.

The B412DSP is ultra-quiet. But that

can’t be said of all of the sound sources

you connect to it either directly or through

Mic Input

Main Out R

XENYX 2442USB

XM8500

EUROLIVE B412DSP

Mic/Line 2

with adaptor

Mic/Line 1

EUROLIVE B412DSP

MP3 Player Laptop Computer

XM8500

Continued on next page

EUROLIVE

B412DSP

Page 3 of 5

a mixer. Add a noisy computer sound output,

a couple of microphones, a guitar with six

stompboxes chained to it and your aunt’s

antique cassette player and you going to hear…

HISSSSSSSSsssssssssss.

Once again, the remarkable digital processing

inside the B412DSP comes to the rescue.

Turn up its Noise Gate and hear background

hiss disappear! The internal computer is

analyzing the sound and selectively cutting out

the hiss without compromising the music!

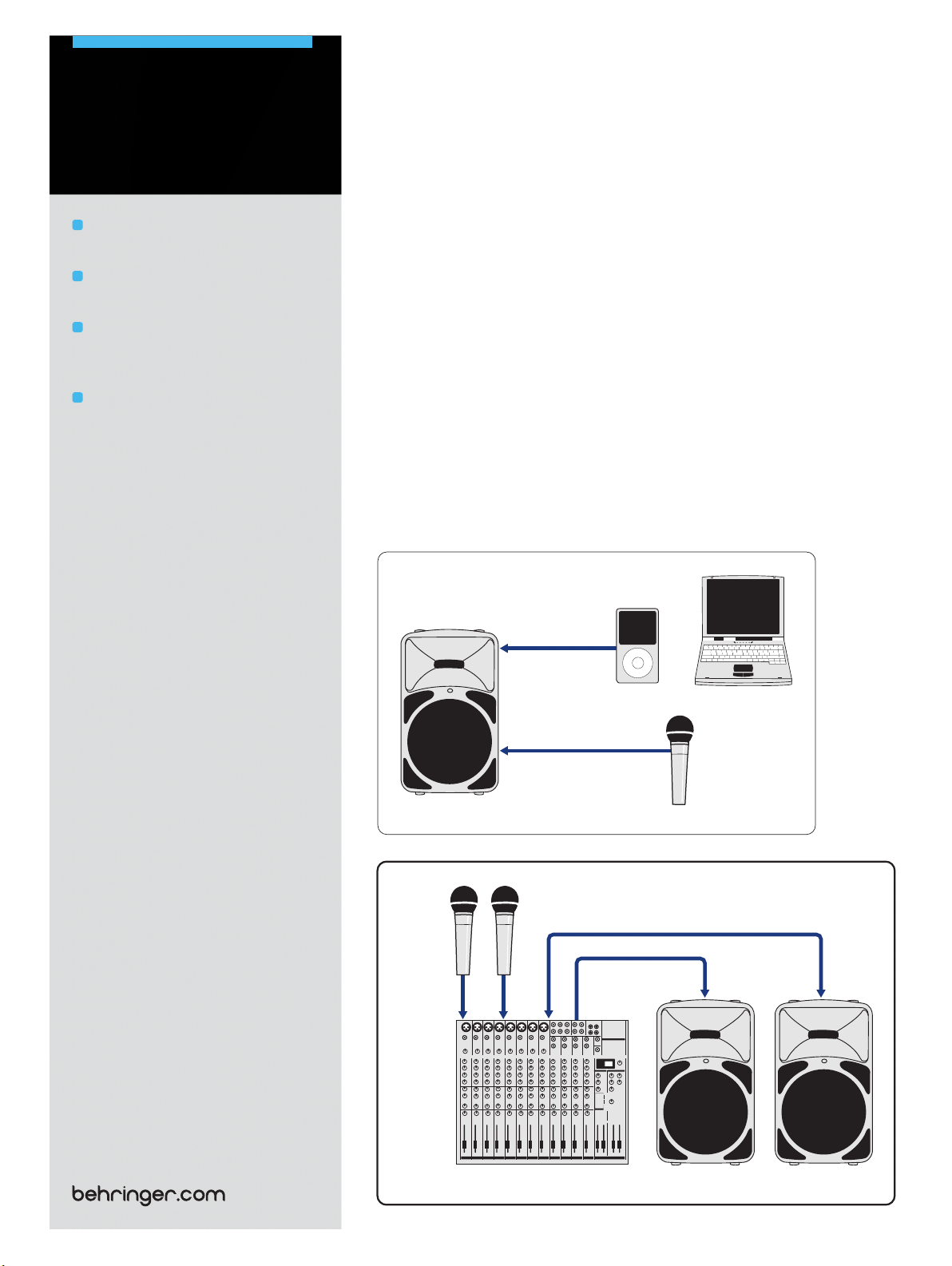

Instant PA system

With just a single B412DSP loudspeaker

system and one or two dynamic microphones,

you can set up an instant sound system.

Connect microphones directly to the

B412DSP via the built-in mixer section. Put the

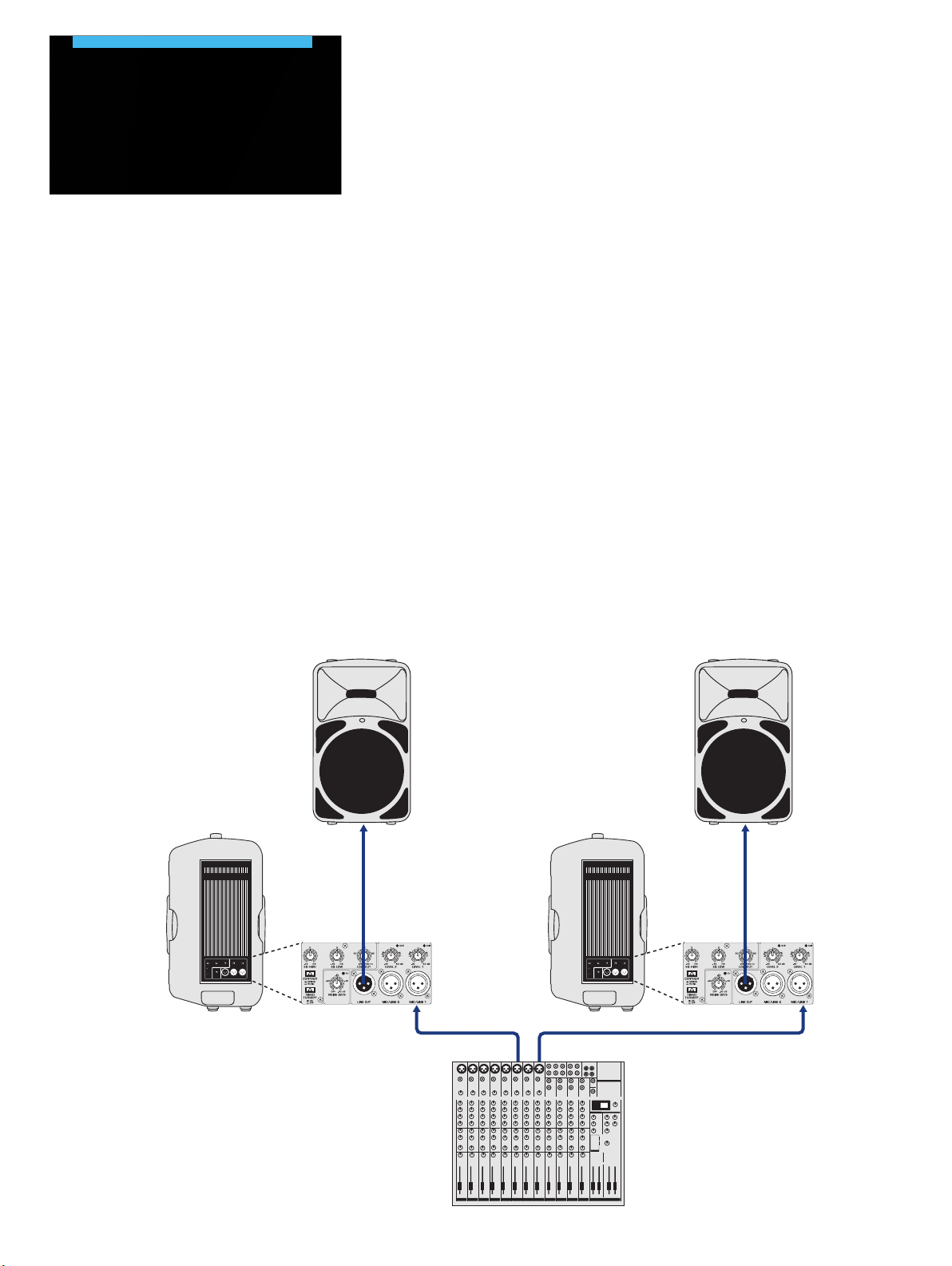

Connecting additional B412DSPs

B412DSP on a table-top or speaker stand,

and power up. It’s just that easy. And if

you need more coverage, you can chain

together as many as you like via the

convenient Line Out XLR connector.

Now when you need a small PA,

you can plug a microphone into the

B412DSP right out-of-the-box and start

the show. The rear panel of this speaker

features inputs and level controls for two

microphones or line-level sources such as

MP3 players, audio from a DVD deck or a

laptop computer.

There are also bass and treble master

tone controls and an adjustable Low

Cut lter to help eliminate annoying

breath pops and mic handling noise.

An additional lter, which we call Contour,

allows you to select Speech (for enhanced

voice intelligibility), or Music for the

broader frequency range required for

high-delity reproduction of music.

Put this all together and you have a

mixer. Only you get it free built into the

back of the B412DSP.

Custom-designed transducers

Let’s face it; the transducer (speaker)

is the only part of a sound system you

actually hear, so we don’t cut any corners.

While some of our competitors are

content to settle for third-party, o-the-

shelf, one-size-ts-all speakers, we build

our own transducers from scratch.

Not only do we wind our own voice

coils, we process the paper pulp into cones

and even machine metal components. We

assemble them, magnetize them and test

them multiple times.

This enables us to control the quality,

and frankly, make better speakers that

our competition can aord to put into

comparably-priced “dumb” speakers.

For example, both the 12"long-excursion

LF transducer and state-of-the-art 1.75"

titanium driver with Kapton voice coil we

deploy in every B412DSP was specially

designed and built just for this particular

speaker model. There are no compromises

because we did everything ourselves.

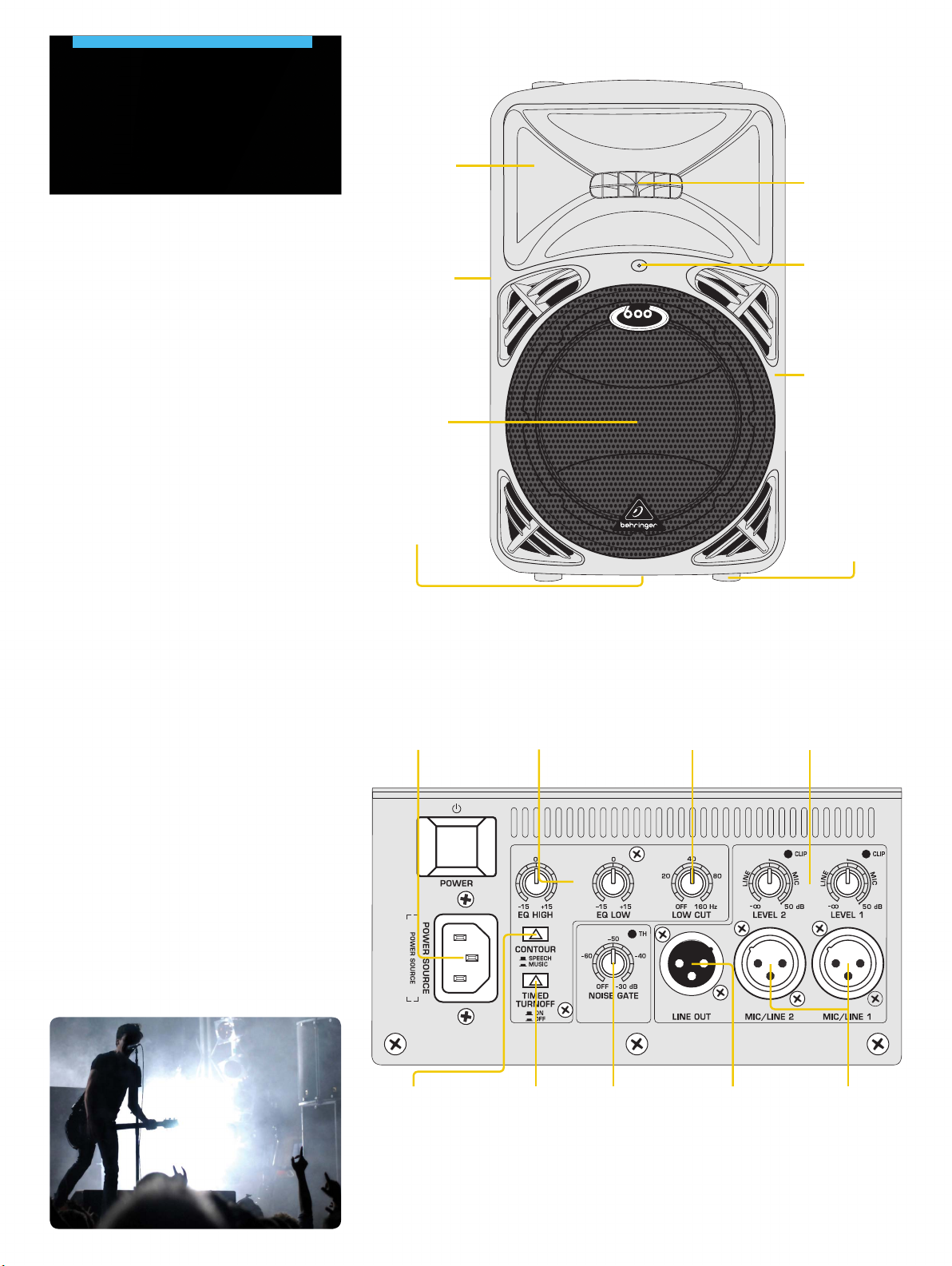

EUROLIVE B412DSP

Rear

Mic/ Line 1

Line Out Mic/Line In

Main Out L Main Out R

XENYX 2442USB

Rear

Mic/ Line 1

Line Out Mic/Line In

Continued on next page

EUROLIVE

B412DSP

Page 4 of 5

Power to spare

Cutting-edge technology and high-delity

transducers are not all it takes to get your message

across — you need power, and lots of it. At the

heart of the B412DSP are two state-of-the-art

ampliers totalling 600 watts of output. They’re

capable of driving the speakers to shock volumes

without the slightest hint of distortion. When

it comes to pure output power, the EUROLIVE

B412DSP will simply blow you away with its

massive punch, smooth mids and articulate

top-end — even at 3AM when somebody can’t

resist cranking the system up “all the way”.

Marvelous monitoring

When laid on its side, the B412DSP tilts to

the ideal angle for onstage monitor wedge

applications. With its onboard ampliers and

dual-band EQ, the B412DSP merges high-delity

performance with portability. Hookup is

simple, requiring only a single mic cable from

the monitor send on the mixing console and,

of course, power. Additional monitors can be

chained together via the XLR Line Out jack on

B412DSP’s rear panel.

More than just a PA loudspeaker...

The B412DSP also makes an excellent

onstage monitor for keyboards, acoustic guitars,

or any line-level instrument* for that matter. You

can plug your instrument into Mic/Line 1 and

use the MIC/LINE 2 input to connect the monitor

signal from the PA mixing console, so that you

can also hear the other members of your band.

This opens up lots of possibilities. If you want to

use more than two instruments, you will need

a submixer (e.g. MicroMIX MX400) to mix down

the signals and route them to the B412DSP.

* You will need a special adapter to convert a standard

¼" TS cable to XLR, or a direct injection box like our

ULTRA-DI DI100.

WAT T S

24-BIT DIGITALLY

POWERED Impact-resistant,

molded enclosure

withstands

years of rugged

abuse. Trapezoid

shape allows it to

function as an ideal

active monitor

when placed on

its side

POWER LED shows

that B412DSP is on

Rubber feet for

stacking enclosure

on structures or

subwoofers

State-of-the-art

1.75" titanium-

diaphragm

compression driver

with heat-resistant

Kapton voice coil

for exceptional

high-frequency

reproduction

Ultra-wide

dispersion and

large format

exponential/

conical horn with

multi-cell aperture

throat

Ergonomically

shaped carry

handles on each

side of enclosure

makes for easy

transport of system

Extremely powerful

12" long-excursion

driver provides

incredibly deep

bass and acoustic

power

35-mm pole

socket in base ts

standard speaker

stands

MIC/LINE 1 & 2 XLR

inputs with built-

in microphone

preamps

EQ HIGH & LOW

controls — cuts or

boosts the treble

and bass range by

15 dB. The cut-o

frequencies are

12 kHz and 100 Hz,

respectively

LOW CUT adjustable

high-pass lter

used to eliminate

unwanted low-

frequency content,

such as popping,

rumble or wind noise

CONTOUR

switch optimizes

the B412DSP’s

frequency response

for either SPEECH

or MUSIC

TIMED TURNOFF

switch automatically

puts the B412DSP

in standby mode

when no signal is

present

Cord socket

accepts standard

IEC cables available

at most computer

and consumer

electronics stores

LEVEL controls —

a 2-channel mixer for

adjusting the signal

gain of the MIC/LINE

inputs. Dedicated CLIP

LEDs light up if signal

levels are too high (just

like a real mixer!)

LINE OUT XLR

jack lets you

connect additional

B412DSPs or similar

active loudspeaker

systems

NOISE GATE

eliminates

unwanted noise

during periods of

program silence.

LED shows when ist

working

EUROLIVE

B412DSP

Page 5 of 5

For service, support or more information contact the BEHRINGER location nearest you:

Europe

MUSIC Group Services UK

Tel: +44 156 273 2290

Email: [email protected]om

USA/Canada

MUSIC Group Services NV Inc.

Tel: +1 702 800 8290

Email: [email protected]om

Japan

MUSIC Group Services JP K.K.

Tel.: +81 3 6231 0454

Email: [email protected]om

Technical speciﬁcations and appearances are subject to change without notice and accuracy is not guaranteed. BEHRINGER is part of the MUSIC Group (music-group.com). All trademarks are the property of their respective owners. MUSIC Group accepts no liability for any loss

which may be suﬀered by any person who relies either wholly or in part upon any description, photograph or statement contained herein. Colors and speciﬁcations may vary from actual product. MUSIC Group products are sold through authorized fullﬁllers and resellers only.

Fullﬁllers and resellers are not agents of MUSIC Group and have absolutely no authority to bind MUSIC Group by any express or implied undertaking or representation.This manual is copyrighted. No part of this manual may be reproduced or transmitted in any form or by any

means, electronic or mechanical, including photocopying and recording of any kind, for any purpose, without the express written permission of MUSIC Group IP Ltd. ALL RIGHTS RESERVED. © 2012 MUSIC Group IP Ltd.Trident Chambers,Wickhams Cay, P.O. Box 146, RoadTown,

Tortola, British Virgin Islands. 985-10000-00280

AUDIO INPUTS

MIC/LINE (2) XLR (balanced)

Input impedance 27 kOhm

Sensitivity -40 to +10 dBu

AUDIO OUTPUTS

LINE OUT XLR (balanced)

Output impedance 120 Ohm

PROCESSING

DSP 24-bit xed-point Motorola

AD/DA converter 24-bit / 48 kHz

Limiter dual protection for woofer and HF driver

Dynamic EQ dual parametric EQ’s

NOISE GATE variable (o to -30 dB < -45 dBr)

TIMED TURNOFF switchable (3 min)

CONTOUR switchable speech / music contour

EQ HIGH ± 15 dB (12 kHz)

EQ LOW ± 15 dB (100 Hz)

LOW CUT 40 - 160 Hz (24 dB/Oct.)

SYSTEM DATA

Frequency range 45 Hz to 20 kHz

Crossover Butterworth, 1.7 kHz, 24 dB/Oct.

Max. SPL 127 dB @ 1 m

Dispersion angle 90° x 45°

OUTPUT POWER

LOW-FREQUENCY RANGE

RMS @ 1% THD 320 W @ 8 Ohm

Peak Power 460 W @ 8 Ohm

HIGH-FREQUENCY RANGE

RMS @ 1% THD 80 W @ 8 Ohm

Peak Power 140 W @ 8 Ohm

POWER SUPPLY

Mains Voltage/Fuse

100 V~, 50/60 Hz T 6,3 A H 250V

120 V~, 60 Hz T 6,3 A H 250V

220 V~, 50 Hz T 4,0 A H 250V

230 V~, 50 Hz T 4,0 A H 250V

Power consumption max. 650 W

Mains connector Standard IEC receptacle

DIMENSIONS/WEIGHT

Dimensions

(H x W x D) 26 x 15 ½ x 15"

660 x 395 x 380 mm

Weight approx. 65 lbs

approx. 30 kg

BEHRINGER is constantly striving to maintain the highest professional

standards. As a result of these eorts, modications may be made from

time to time to existing products without prior notice. Specications and

appearance may dier from those listed or illustrated.

EUROLIVE

B412DSP

Autres manuels pour Eurolive B412DSP

Autres manuels Behringer Intervenants

Behringer

Behringer Eurolive B315A Manuel utilisateur

Behringer

Behringer Monitor 1C Manuel utilisateur

Behringer

Behringer Ultrabass BB115 Manuel utilisateur

Behringer

Behringer ULTRADRIVE PRO DCX2496 Manuel utilisateur

Behringer

Behringer DIGITAL MONITOR SPEAKERS MS20 Manuel utilisateur

Behringer

Behringer Monitor Speakers MS16 Manuel utilisateur

Behringer

Behringer Eurolive B207 MP3 Manuel utilisateur

Behringer

Behringer EUROLIVE B612D Manuel utilisateur

Behringer

Behringer EUROPORT HPA40 Manuel utilisateur

Behringer

Behringer Ultrabass BXL450A Manuel utilisateur

Behringer

Behringer Ultratone K3000FX Manuel utilisateur

Behringer

Behringer Ultrabass BXL900A Manuel utilisateur

Behringer

Behringer DIGITAL MONITOR SPEAKERS MS40 Manuel utilisateur

Behringer

Behringer Eurolive B415DSP Manuel utilisateur

Behringer

Behringer DIGITAL MONITOR SPEAKERS MS40 Manuel utilisateur

Behringer

Behringer EUROPORT MPA200BT Manuel utilisateur

Behringer

Behringer Eurolive F1220A Manuel utilisateur

Behringer

Behringer DIGITAL MONITOR SPEAKERS MS20 Manuel utilisateur

Behringer

Behringer Eurolive P1220F Manuel utilisateur

Behringer

Behringer Eurolive B912NEO Manuel utilisateur

Behringer

Behringer EUROLIVE Series Manuel utilisateur

Behringer

Behringer Ultrabass BA410 Manuel utilisateur

Behringer

Behringer EUROPORT MPA100BT Manuel utilisateur

Behringer

Behringer DIGITAL MONITOR SPEAKERS MS40 Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
