Thanks to our revolutionary Class-D

amplier technology and internal switch-

mode power supplies, EUROLIVE D

Seriesloudspeakers provide a much

better power-to-weight ratio than

competing active speakers. Put simply,

you get all the power of traditional

bi-amped active loudspeakers without

all the backbreaking weight. And the

sound quality of these lightweight

loudspeakers exceeds that of our

extremely popular EUROLIVE B215D and

B212D systems, plus we've given them

even more outputpower and a signicant

transducerupgrade.

Due to their high-eciency design,

EUROLIVE B615D and B612D active

loudspeakers crank out 1500 of the

cleanest, punchiest audio Watts we've

ever packed into a compact loudspeaker

system. The integrated sound processor

provides total system control for

dependable protection of the LF/HF

transducers, and thanks to the built-

in active high-pass lter, you can run

them full out without the slightest hint

of distortion. In addition, both models

feature an Ultra-Low Noise (ULN) Mic/Line

input with Level control and dedicated

2-band EQ (bass/treble) for easy control.

Intelligent by Design

One of the coolest things about active

loudspeakers is the lack of back-breaking

racks of amps, crossovers and EQs that are

often required to make passive speaker

systems sound almost as good. But that

comes with a trade-o—that extra

weight is transferred to the loudspeaker,

making it dicult for a single user to

heave all that mass onto the top of a

speaker stand. BEHRINGER EUROLIVE D

Series' “Intelligent-Design”merges the

best features of active loudspeakers

with signicantly lower weight through

the use of switch-mode power supplies

(SMPS) and Class-D amplier topology.

Active 1500-Watt 2-Way PA Speaker

System with 15" Woofer and 1.75"

Titanium Compression Driver

Continued on next page

High-power 1500-Watt 2-way PA

sound reinforcement speaker system

for live and playback applications

Ultra-compact and light weight

system delivers excellent sound even

at extreme sound pressure levels

Revolutionary Class-D amplier

technology: enormous power,

incredible sonic performance and

super-light weight

Internal switch-mode power supply

for noise-free audio, superior

transient response and very low

power consumption

Integrated sound processor for

ultimate system control and

speakerprotection

Extremely powerful 15/12''

long-excursion driver provides

incredibly deep bass and

acousticpower

State-of-the-art 1.75''

titanium-diaphragm compression

driverforexceptional high-

frequencyreproduction

Ultra-wide dispersion, large-format

exponential horn

Ultra-low noise Mic/Line input with

Volume control and Clip LED

Dedicated 2-band EQ for perfect

sound adjustment

EUROLIVE

B615D/B612D

Professional Powered Speakers

Page 2 of 5

Class-D Amplier Technology Delivers

High Power With Low Weight

Instead of operating relatively

continuously like Class-AB circuits,

Class-D amps switch on and o thousands

of times per second, delivering power

only as it is needed. In other words, the

amplier is either fully on or fully o,

which signicantly reduces the power

losses in the output devices. Although we

didn't invent Class-D technology, our R&D

Department has spent years perfecting

our own version with all the benets of

reduced weight and cool running—and

none of the drawbacks.

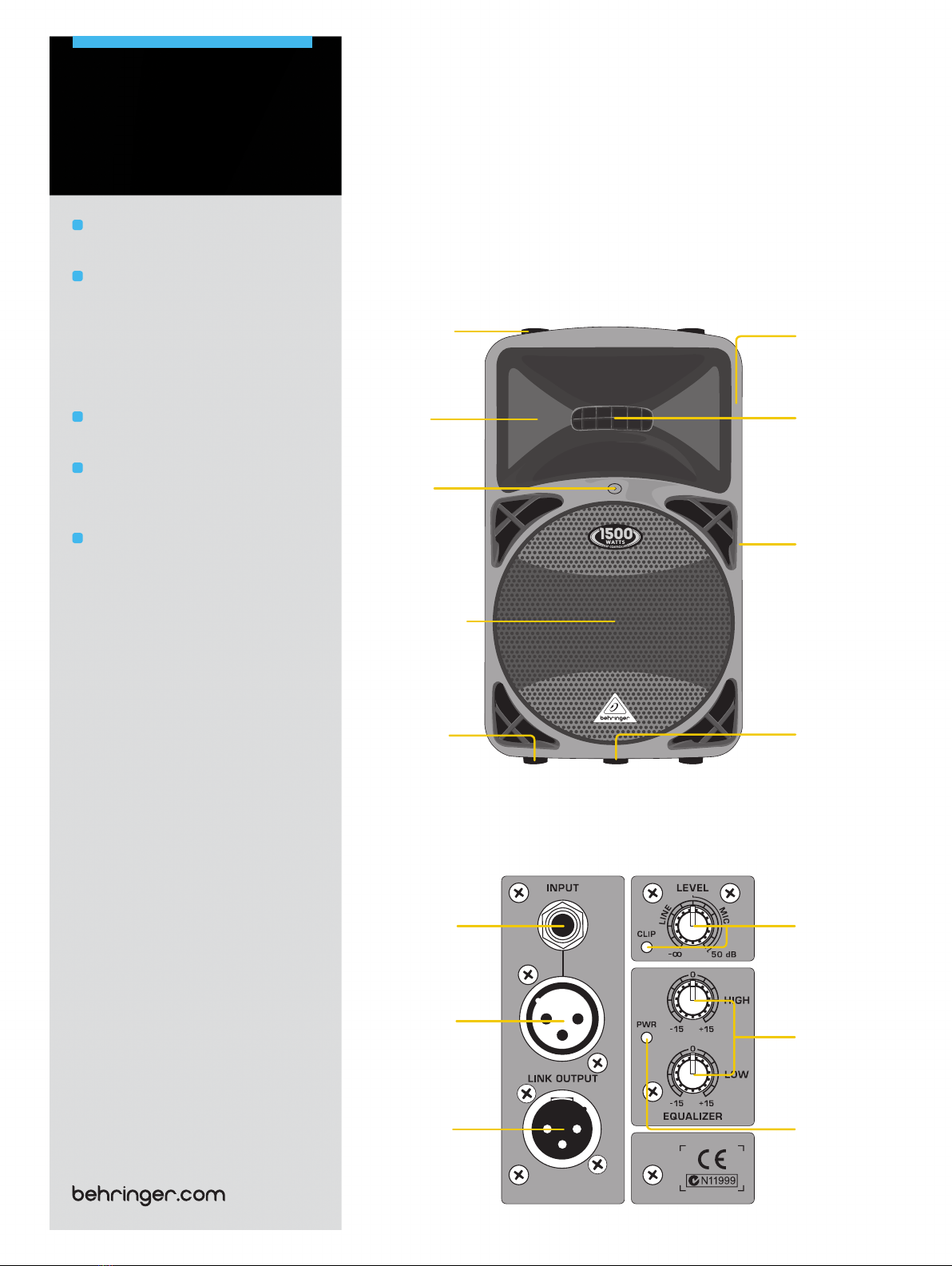

B615D/B612D rear panel callout

¼" INPUT jack for

balanced TRS and

unbalanced TS

connections

MIC/LINE input

jack with internal

microphone

preamplier for

balanced XLR

connections

LINK OUTPUT

XLR jack lets you

connect additional

BEHRINGER active

loudspeaker systems

LEVEL control

with CLIP LED for

optimizing input

signal level

EQ HIGH &

LOW shelving

equalization

controls, ±15 dB

@ 12 kHz and 80 Hz

Power LED

Continued on next page

POWER LED

Ultra-wide

dispersion,

large format

multi-cell horn

State-of-the-art 1.75"

titanium-diaphragm

compression driver

for exceptional

high-frequency

reproduction

Extremely powerful

15"/12" long-excursion

LF transducer provides

incredibly deep bass

and acoustic power

Ergonomically shaped

carry handles on each

side of enclosure

for easy transport

of system

Top-mounted,

weight-balanced

carry handle

1- ⁄" (35-mm)

pole socket for

standard speaker

stands

Rubber feet for

stacking enclosure

on structures or

subwoofers

Impact resistant,

molded enclosure.

Trapezoid shape

allowsuseaspowered

monitor wedge

Additional Line output allows linking

of additional speaker systems

Versatile trapezoidal enclosure

design allows dierent positioning:

• Stand mounting with 35-mm

polesocket

• Tilts on its side for use as a

oormonitor

Ergonomically shaped handles for

easy carrying and setup

High-quality components and

exceptionally rugged construction

ensure long life

Conceived and designed by

BEHRINGER Germany

EUROLIVE

B615D/B612D

Page 3 of 5

Instant PA System

With just a single EUROLIVE D Series

loudspeaker and a microphone you can

set up an instant sound system. Thanks to

the built-in preamp section, you just

connect a dynamic mic and raise and

lower the volume with the Level control.

Place the speaker on a tabletop or stand,

and power up. It's just that easy. And if

you need more coverage, say for a larger

room or audience, you can add more

active loudspeakers via the convenient

Link Output XLR connector.

Stereo Music System

You can even use two D Series

enclosures for stereo playback of your

music sound les without any additional

hardware. Just plug the appropriate

stereo “breakout”adapter into your deck's

output jack and run the cables to the

¼" inputs on each loudspeaker. Set the

Level and EQ controls the same on both

enclosures. Voilà, instant party!

Marvelous as Monitors

Thanks to their trapezoidal design,

these cabinets can be laid on their side

providing the ideal angle for onstage

monitor wedge applications. Hookup

is simple, requiring only a single XLR or

¼" cable from the monitor send on your

mixing console and power. Additional

monitors can be chained together via the

XLR Link Output jack on the rear panel.

Massive Power to Size Ratio

At the heart of each B615D and B612D

are two high-current ampliers with a

combined maximum output of 1500 Watts.

These Class-D amps are capable of driving

the speakers to their maximum without

damage or distortion thanks to their internal

active protection circuits. Putsimply,

thesesystems will astound you with their

massive punch, smooth midrange and

articulate top-end.

Custom-Designed Transducers

Let's face it; the transducers (woofers and

tweeters) are the only part of a sound

system you actually hear, so we never

cut any corners here. While some of our

competitors are content to buy o-the-shelf

transducers and plug them into their boxes,

we custom-design and build ours from

scratch. We wind the voice coils, process

the paper pulp into cones—and even

machine our own back plates. This enables

us to control the quality, and frankly to

make better components, like the long-

excursion 12 and 15" LF transducers and

state-of-the-art 1.75" titanium-diaphragm

compression drivers we load into each and

every B612D/B615D.

Continued on next page

Connecting a Microphone

XM8500 Mic

Connecting a Music Player

CD Player

EUROLIVE

B615D/B612D

Page 4 of 5

Processor Controlled Output

Hidden deep inside each

enclosure is the equivalent of an

active 2-way electronic crossover,

graphic EQ, parametric EQ, mic preamp,

limiter and two Class-D power ampliers,

yet overall weight is less than comparable

loudspeaker systems. These components

work together seamlessly to provide

optimal sound quality without you ever

having to touch a single knob.

As output demands rise, the

internal processor frees up LF amp

and transducer resources by reducing

program bass content, so that higher

overall system volume can be realized.

It's like having a tiny soundman inside

each cabinet constantly monitoring and

changing output parameters for the best

possible sound.

Which Speaker Should I Buy?

Well, let's start with your application…

are you giving a speech in a hotel

ballroom—or rocking out at the local bar

or dance club? Whether to choose one

speaker cabinet over another depends on

your bass requirements. A 15" woofer has

about 40% more surface area with which

to move air than a 12" and that translates

into more bass. So if you're addressing a

meeting, or jamming at the local blues

joint, the B612D might be all you'll ever

need. But if you're providing disco in a

busy nightclub, hosting Karaoke night

in your living room, or just want a little

more “thump”, then the B615D may be a

better choice.

Sound Value

EUROLIVE active PA loudspeakers

stand head and shoulders above the

rest of the pack and deliver exceptional

performance, even when pushed to

their limits. Lightweight and powerful,

with built-in mixers, 2 band EQ and

custom-designed transducers, B612D and

B615D active loudspeakers are ideal for

both speech and music applications—at a

price unheard of in this class.

Experience the B612D and B615D

at your local dealer today and nd out

why more and more professionals are

turning to BEHRINGER EUROLIVE Series

active loudspeakers for their superb

performance and extraordinary value.

Powerful Low Frequency Response

The EUROLIVE D Series was built with

extended low frequency handling in

mind. Thanks to their internally braced,

injection-molded, tuned-port enclosures,

these bad boys really crank out serious

quantities of bass. Keep in mind that bass

response varies according to LF transducer

size, so the larger the speaker, the more bass

you will be able to generate.

Articulate Midrange and Treble

Even if your particular application doesn't

include booming bass, you'll love the sheer

accuracy of these loudspeakers. Over a

year went into designing an exponential

horn/titanium-diaphragm compression

driver combination that could handle

serious hard rock or dance music—yet

also satisfy audiophiles with its musical

timbre and attention to detail. For spoken

word, singing or acoustical instruments,

the EUROLIVE D Series is un-matched for

its ability to articulate complex harmonic

content. In fact, many customers say these

are the most natural-sounding speakers

they've ever heard, even when compared to

systems costing much more.

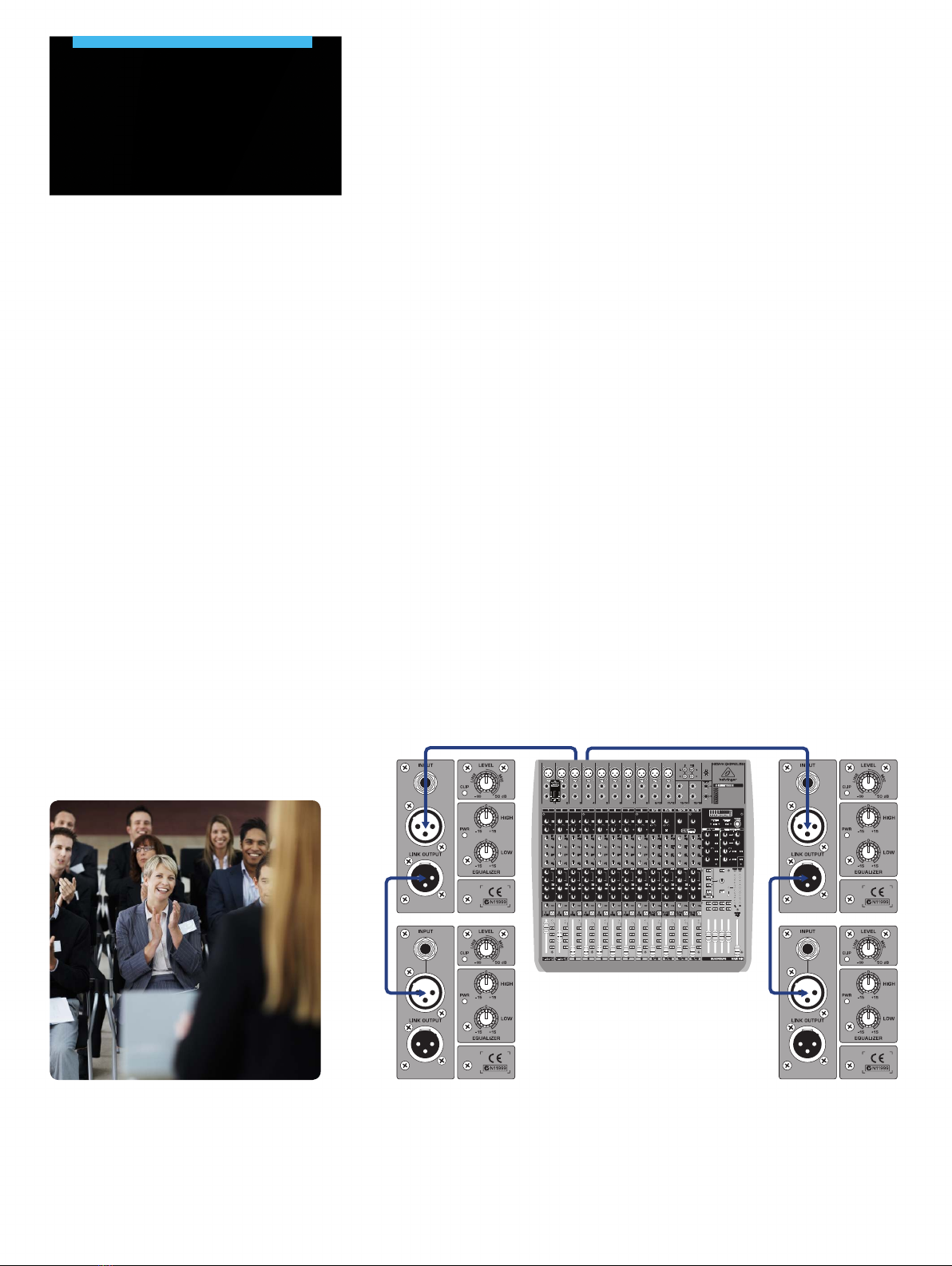

Connecting Multiple Loudspeakers

QX2442USB

EUROLIVE

B615D/B612D

Page 5 of 5

For service, support or more information contact the BEHRINGER location nearest you:

Technical speciﬁcations and appearances are subject to change without notice and accuracy is not guaranteed. BEHRINGER is part of the MUSIC Group (music-group.com). All trademarks are the property of their respective owners. MUSIC Group accepts no liability for any loss

which may be suﬀered by any person who relies either wholly or in part upon any description, photograph or statement contained herein. Colors and speciﬁcations may vary from actual product. MUSIC Group products are sold through authorized fullﬁllers and resellers only.

Fullﬁllers and resellers are not agents of MUSIC Group and have absolutely no authority to bind MUSIC Group by any express or implied undertaking or representation.This manual is copyrighted. No part of this manual may be reproduced or transmitted in any form or by any

means, electronic or mechanical, including photocopying and recording of any kind, for any purpose, without the express written permission of MUSIC Group IP Ltd. ALL RIGHTS RESERVED. © 2012 MUSIC Group IP Ltd.Trident Chambers,Wickhams Cay, P.O. Box 146, RoadTown,

Tortola, BritishVirgin Islands.

Europe

MUSIC Group Services UK

Tel: +44 156 273 2290

Email: [email protected]om

USA/Canada

MUSIC Group Services NV Inc.

Tel: +1 702 800 8290

Email: [email protected]om

Japan

MUSIC Group Services JP K.K.

Tel.: +81 3 6231 0454

Email: [email protected]om

Specications

B615D/B612D

Amplier Power Output

System

Max output power 1500 W

B615D

Speaker Size

Size 15" / 387 mm

1.75" / 44 mm

B612D

Speaker Size

Size 12" / 308 mm

1.75" / 44 mm

B615D/B612D

Audio Inputs

XLR (servo-balanced)

Sensitivity -40 dBu to +4 dBu

Input impedance 20 k

¼" TRS jack (servo-balanced)

Sensitivity -40 dBu to +4 dBu

Input impedance 20 k

Level control

Input Trim –∞ to + 30 dB

Max. input level +22 dBu

Link

Connector XLR connector

B615D

Loudspeaker System Data

Frequency Response 50 Hz to 18 kHz

Crossover frequency 1.8 kHz

Sound pressure level max. 126 dB SPL @ 1 m

Limiter Optical

Dynamic Equalizer Processor-controlled

B612D

Loudspeaker System Data

Frequency Response 60 Hz to 18 kHz

Crossover frequency 2.1 kHz

Sound pressure level max. 125 dB SPL @ 1 m

Limiter Optical

Dynamic Equalizer Processor-controlled

B615D/B612D

Equalizer

HIGH 12 kHz / ±15 dB

LOW 80 Hz / ±15 dB

Power Supply

Voltage (Fuses)

USA/Canada 120 V, 60 Hz (T 6.3 A H 250 V)

UK/Australia 240 V~, 50 Hz (T 3.15 A H 250 V)

Europe 230 V~, 50 Hz (T 3.15 A H 250 V)

Japan 100 V~, 50-60 Hz (T 6.3 A H 250 V)

Power consumption max. 600 Watts

Mains connection Standard IEC receptacle

B615D

Dimensions/Weight

Dimensions (H x W x D) 28.8 x 18.5 x 16.7"

732 x 470 x 424 mm

Weight 57.8 lbs / 26.2 kg

B612D

Dimensions/Weight

Dimensions (H x W x D) 25.9 x 15.5 x 15.1"

658 x 394 x 384 mm

Weight 49 lbs / 22.2 kg

Please note these specifications are preliminary and conceptual in nature, and as such are subject

to change as product development progresses. This information is supplied for market research

purposes only and is not to be made public in any manner. This document is solely the property of

The MUSIC Group, or one of its subsidiaries, and must be surrendered upon request of the owner.

EUROLIVE

B615D/B612D

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Behringer Intervenants

Behringer

Behringer EUROPORT EPA40 Manuel utilisateur

Behringer

Behringer Ultrabass BA115 Manuel utilisateur

Behringer

Behringer Eurolive F1220D Manuel utilisateur

Behringer

Behringer TRUTH B2031 Manuel utilisateur

Behringer

Behringer TRUTH B1030A Manuel utilisateur

Behringer

Behringer Eurolive F1220A Manuel utilisateur

Behringer

Behringer Eurolive P1220F Manuel utilisateur

Behringer

Behringer Eurolive B1200D-PRO Manuel utilisateur

Behringer

Behringer Eurolive B207 MP3 Manuel utilisateur

Behringer

Behringer EUROPORT MPA200BT Manuel utilisateur

Behringer

Behringer Eurolive B415DSP Manuel utilisateur

Behringer

Behringer EUROLIVE Series Manuel utilisateur

Behringer

Behringer Europort EPA150 Manuel utilisateur

Behringer

Behringer Eurolive B315A Manuel utilisateur

Behringer

Behringer TRUTH B3030A Manuel utilisateur

Behringer

Behringer TRUTH B2031P Manuel utilisateur

Behringer

Behringer Europort MPA40BT Manuel utilisateur

Behringer

Behringer TRUTH B2031 Manuel utilisateur

Behringer

Behringer Eurolive B1220DSP Manuel utilisateur

Behringer

Behringer Monitor Speakers MS16 Manuel utilisateur

Behringer

Behringer EUROPORT EPA300 Manuel utilisateur

Behringer

Behringer Nekkst K5 Manuel utilisateur

Behringer

Behringer 1C Manuel utilisateur

Behringer

Behringer EUROPORT EPS500MP3 Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
